    CPU upgrade for under 10 bucks (socket M)

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by cdoublejj, Jun 22, 2014.

  1. cdoublejj

    cdoublejj Notebook Deity

    Reputations:
    195
    Messages:
    1,123
    Likes Received:
    92
    Trophy Points:
    66
    ARK | Intel® Celeron® Processor 585 (1M Cache, 2.16 GHz, 667 MHz FSB)

    SLB6L (Intel Celeron M 585)

    Socket M / Socket mPGA478MT


    Now i'm might be wrong but, most Core 2 Duos are gonna be faster but, boy are there a lot of them. I've seen some already for under $USD.

    This is in a Toshiba L305-S5917

    This is fora charity build so i'm trying to keep the cost odn'w since i'm pretty broke and jobless my self.

    [Build Log] Charity build, Silver Hodgepodge

    http://www.cnet.com/products/toshib...5-vista-home-basic-1-gb-ram-160-gb-hdd/specs/


    -----------------------------

    http://www.ebay.com/itm/Intel-Core-...8VQ-/360967677960?pt=CPUs&hash=item540b59a808

    cdoublejj, Jun 22, 2014
    #1
  2. ajkula66

    ajkula66 Courage and Consequence

    Reputations:
    3,018
    Messages:
    3,198
    Likes Received:
    2,318
    Trophy Points:
    231
    The best you can do in a Socket M is T7600, however these maintain their price pretty well.

    A T7200 can be found for $20 shipped or thereabouts presuming you're in the U.S. and that's a very fine CPU for the given generation of laptops.

    If you need to keep the cost really low, a T2500/2600 will run you no more than 10-15 shipped.

    Happy upgrading.

    ajkula66, Jun 22, 2014
    #2
    cdoublejj likes this.
  3. cdoublejj

    cdoublejj Notebook Deity

    Reputations:
    195
    Messages:
    1,123
    Likes Received:
    92
    Trophy Points:
    66
    bought the 3 dollar T2400.

    cdoublejj, Jun 23, 2014
    #3
  4. Qing Dao

    Qing Dao Notebook Deity

    Reputations:
    1,600
    Messages:
    1,771
    Likes Received:
    304
    Trophy Points:
    101
    Don't forget the T7600G, with unlocked multipliers.

    Qing Dao, Jun 23, 2014
    #4
  5. cdoublejj

    cdoublejj Notebook Deity

    Reputations:
    195
    Messages:
    1,123
    Likes Received:
    92
    Trophy Points:
    66
    So that's what the "G" stands for!

    cdoublejj, Jun 23, 2014
    #5
  6. cdoublejj

    cdoublejj Notebook Deity

    Reputations:
    195
    Messages:
    1,123
    Likes Received:
    92
    Trophy Points:
    66
    Mobile Intel® GM45, GS45, and GL40 Express Chipsets

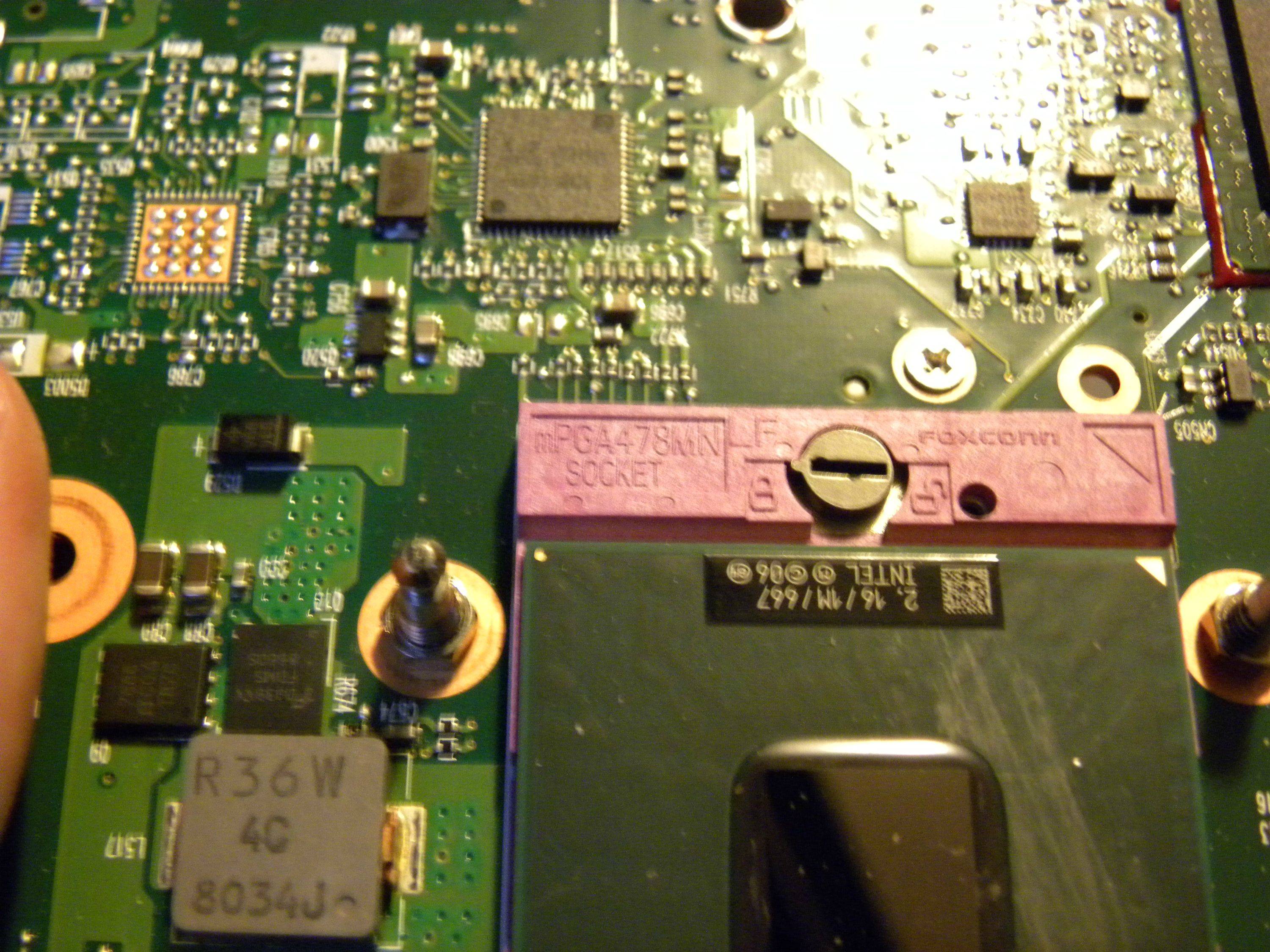

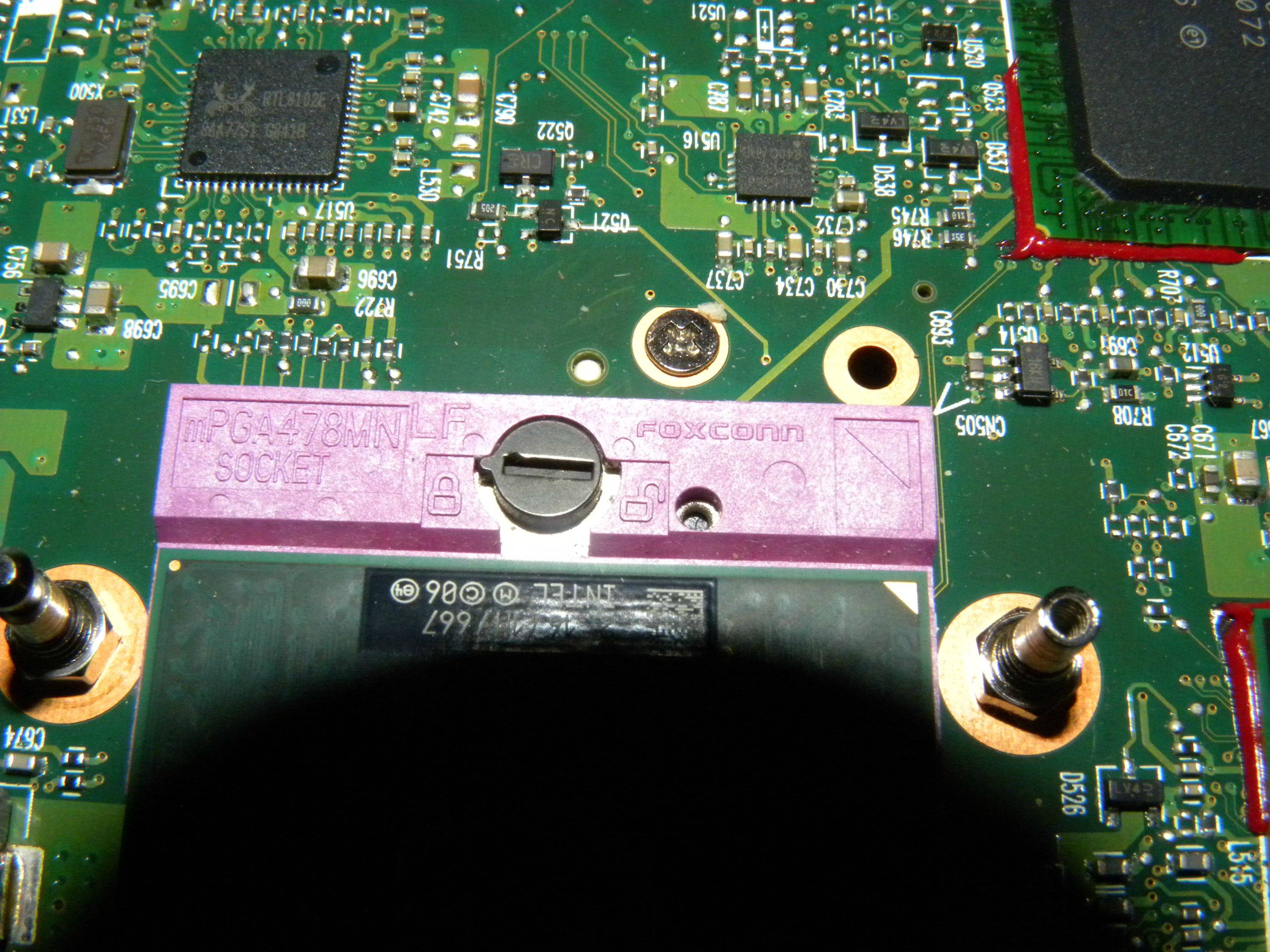

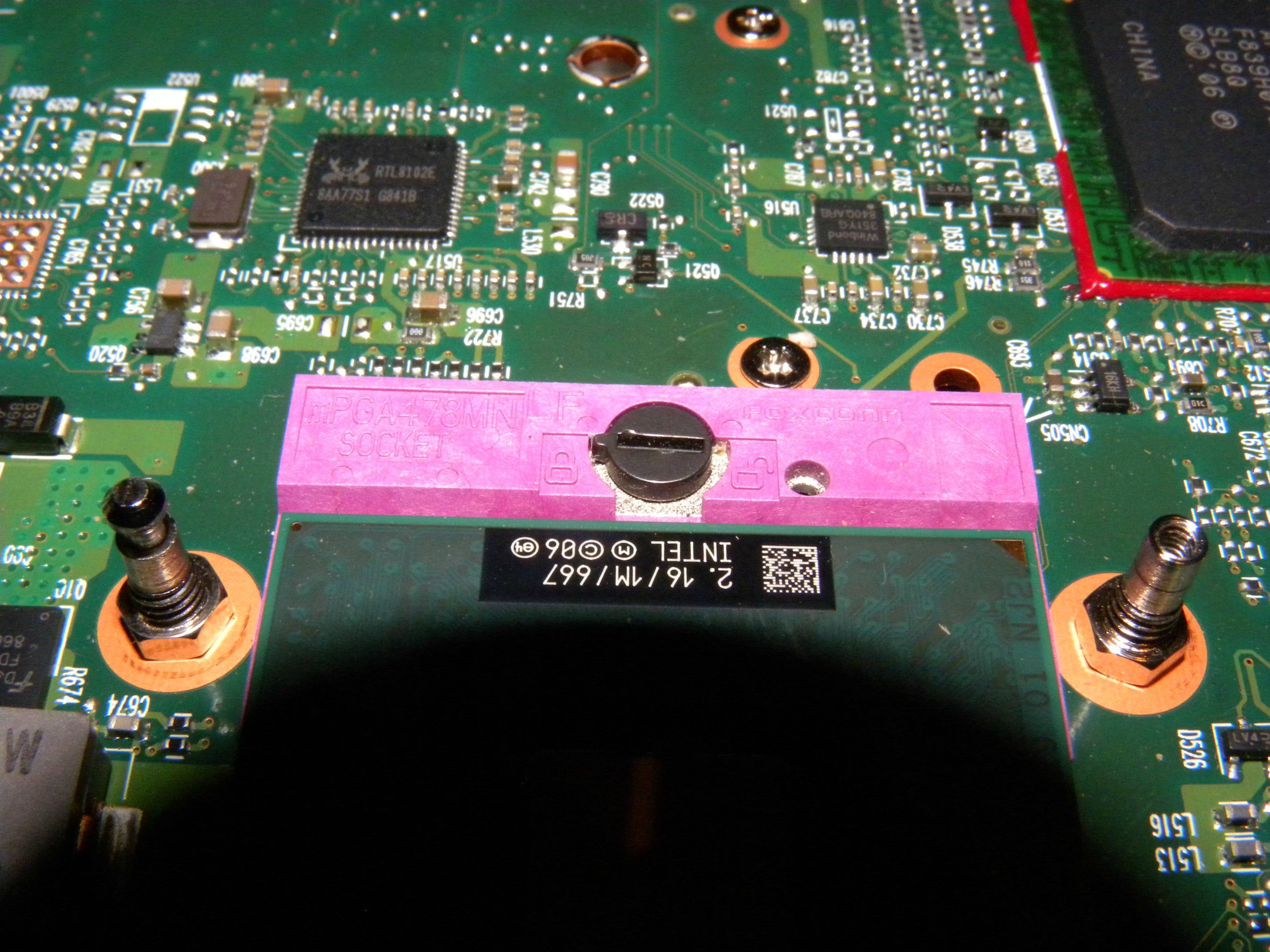

    interesting, the laptop also has 2x1gb of ddr2 6400s. i'm wondering if it's down clocked. the socket saps "478MN". unless i swapped out all the ram from my friend who previously owned it and forgot... why would there be 6400s in there? GL40 on socket "M" twists my brain around.

    I guess CPU-Z will tell all when i able to boot after an OS install.


    EDIT:

    http://www.cpu-world.com/sspec/SL/SLB6L.html

    http://www.cpu-world.com/CPUs/Celeron_M/Intel-Celeron M 585 LF80537NF0481M.html

    since most of the launch dates are 2008 perhaps i done goofed and it is socket P?

    [​IMG]

    [​IMG]

    [​IMG]

    If it is Socket P i can gangster a Core 2 Duo From one of my other laptops.


    YUP! it's socket P: which is what i thought before i took it apart. it's too bad Google result for socket "478mn" don't relate or link to socket P.

    EDIT: picked up a T5800 for just under 4 bucks. Guess i'll keep the T2400 for an experiment or upgrade another day. i have another toshiba with a pentium m, maybe i can see if plugging in a T2400 will set it on fire? :p

    cdoublejj, Jun 23, 2014
    #6
