    Can raid nvme speed up to 3,4gbps on laptop

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by Djadit, Sep 4, 2020.

  1. Djadit

    Djadit Notebook Evangelist

    Reputations:
    113
    Messages:
    494
    Likes Received:
    168
    Trophy Points:
    56
    Hello
    I need help
    I just wanna make raid 0 using adata sx8200 pro and 970 evo
    Can speed better than single ssd ?


    Sent from my iPhone using Tapatalk

    Djadit, Sep 4, 2020
    #1
  2. saturnotaku

    saturnotaku Notebook Nobel Laureate

    Reputations:
    4,879
    Messages:
    8,926
    Likes Received:
    4,701
    Trophy Points:
    431
    You should always try to run a RAID array with identical drives. Unless you have a good backup solution and are running I/O intensive business/scientific applications (game loading time is not one of those cases), RAID-0 is not worth it.

    saturnotaku, Sep 5, 2020
    #2
    Aivxtla and Starlight5 like this.
  3. Aivxtla

    Aivxtla Notebook Evangelist

    Reputations:
    709
    Messages:
    650
    Likes Received:
    890
    Trophy Points:
    106
    4K Random Reads/Writes are what give you the responsiveness and those actually take a slight/negligible hit in RAID0. Unless you’re doing sequential file transfers it probably won’t really do much for you, other than maybe just giving you a single logical drive. As @saturnotaku mentioned above, it’s not going to do much to boost loading times or anything. If maximizing sequential speeds is your goal then yeah RAID0 will be good.

    Last edited: Sep 6, 2020
    Aivxtla, Sep 6, 2020
    #3
    Dr. AMK, Papusan and Spartan@HIDevolution like this.
  4. Spartan@HIDevolution

    Spartan@HIDevolution Company Representative

    Reputations:
    39,579
    Messages:
    23,560
    Likes Received:
    36,854
    Trophy Points:
    931
    100% agreed. Snappiness is all about the 4K Random Read/Write.

    Here is an example of my Western Digital SN730 SSDs both in RAID and single drive setup benchmarks:

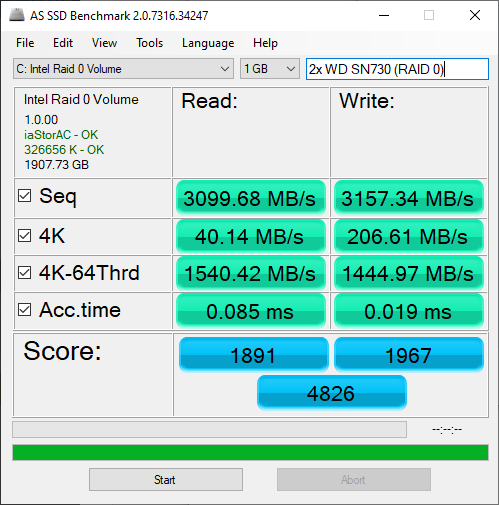

    AS SSD Benchmark - 2x Western Digital PC SN730 NVMe SSDs in RAID 0 [64K Data Strip Size]

    [​IMG]

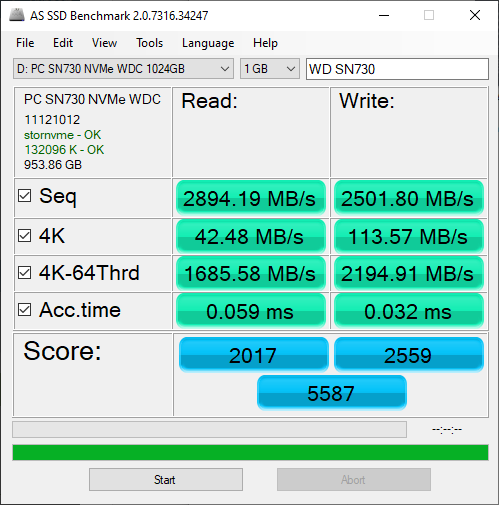

    AS SSD Benchmark - Single Western Digital PC SN730 NVMe SSD

    [​IMG]

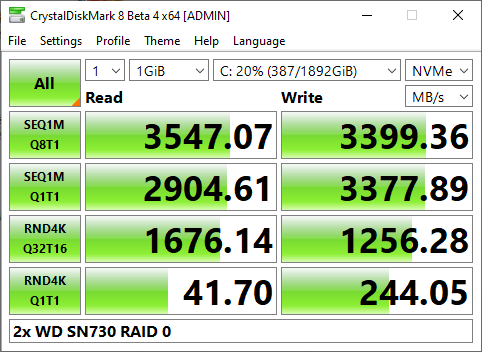

    CrystalDiskMark- 2x Western Digital PC SN730 NVMe SSDs in RAID 0 [64K Data Strip Size]

    [​IMG]

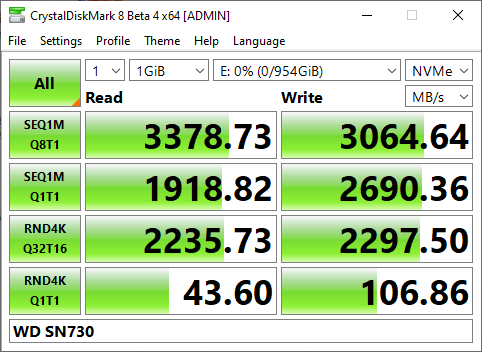

    CrystalDiskMark - Single Western Digital PC SN730 NVMe SSD

    [​IMG]

    Spartan@HIDevolution, Sep 6, 2020
    #4
    Dr. AMK, custom90gt and Aivxtla like this.
  5. Djadit

    Djadit Notebook Evangelist

    Reputations:
    113
    Messages:
    494
    Likes Received:
    168
    Trophy Points:
    56
    Thankyou very much
    What Crystalldiskmark increase write host ?


    Sent from my iPhone using Tapatalk

    Djadit, Sep 11, 2020
    #5
