    Can you spot my GPU?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by Parkerrush92, Jun 30, 2014.

  1. Parkerrush92

    Parkerrush92 Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Hey all

    Having a hard time locating my GeForce gt320m GPU in my ASUS k50ID. I can see what appear to be two NVidia chips. These were directly under my fan and heatsink. Neither of them are labeled 320m or anything related to my gpu. (google search identifies as chipsets?) Im reapplying thermal paste and trying to combat gpu heating problems. (100c under load)

    Any help would be super appreciated.

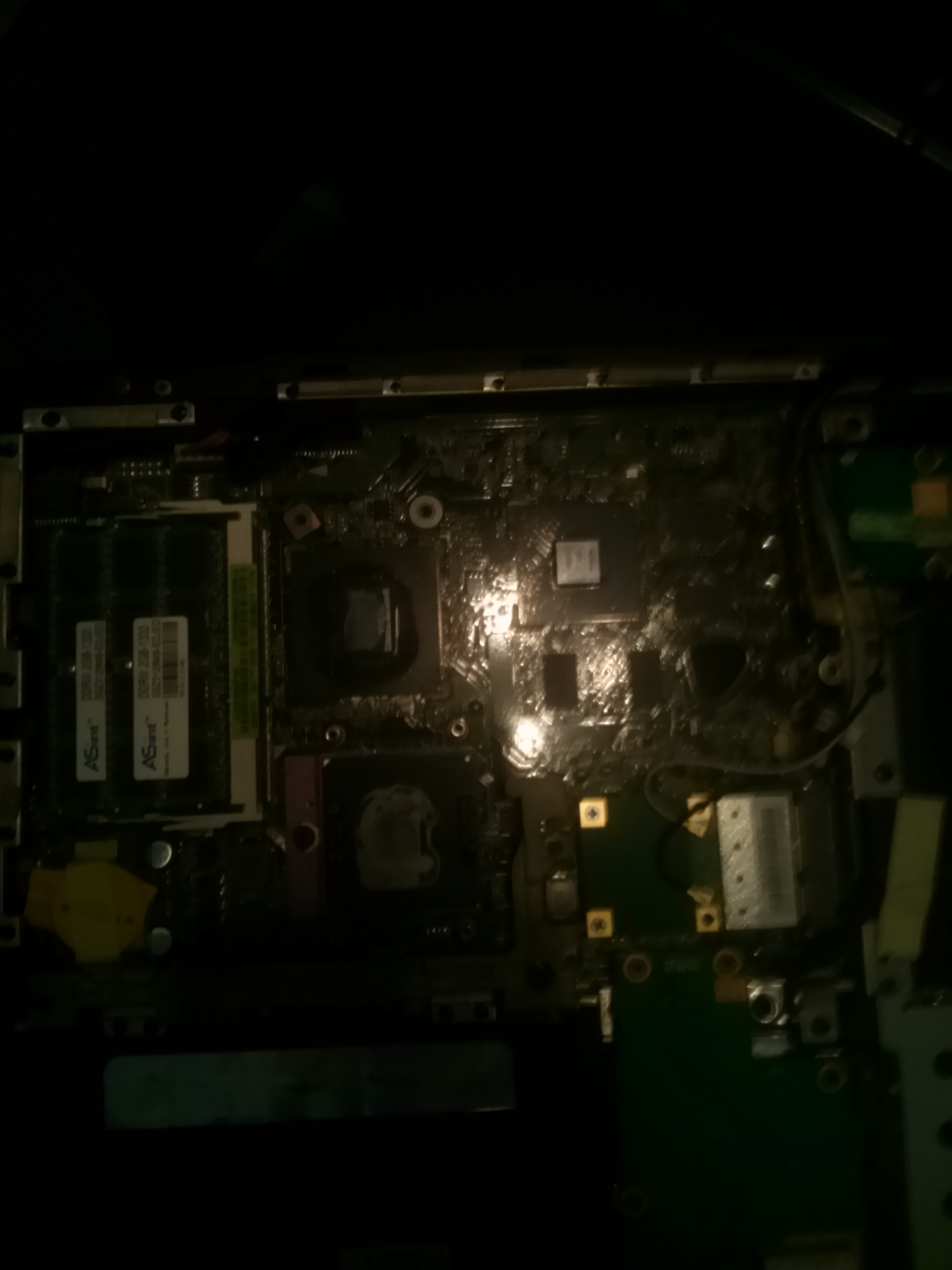

    pic is attached. sorry for quality. Cpu is located just above battery. the two chips visible are both NVidia but are labled N11p-GV2-A3 and MCP79D-B2. From what I understand this is my motherboard chipset. This makes me think my graphics are integrated?

    again, any help is super appreciated.


    Parker.


    Attached Files:

    Parkerrush92, Jun 30, 2014
    #1
  2. Kuu

    Kuu That Quiet Person

    Reputations:
    765
    Messages:
    968
    Likes Received:
    18
    Trophy Points:
    31
    If I had to hazard a guess, the one off to the right since it has RAM around it, RAM can't stray too far from whatever CPU/GPU is connected to it :p

    Kuu, Jun 30, 2014
    #2
  3. n=1

    n=1 YEAH SCIENCE!

    Reputations:
    2,544
    Messages:
    4,346
    Likes Received:
    2,600
    Trophy Points:
    231
    MCP79 is your motherchip chipset as you identified, the one marked N11P should be your GT320M.

    n=1, Jun 30, 2014
    #3
  4. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,898
    Trophy Points:
    931
    Due to the high speed and width of the memory interface the GPU is always the chip with the more widely spaced black memory chips around it where as the CPU if it has soldered memory will tend to have it in banks and all together, the GPUs also tend to have laser etched markings on them.

    Meaker@Sager, Jul 1, 2014
    #4
  5. StormJumper

    StormJumper Notebook Virtuoso

    Reputations:
    579
    Messages:
    3,537
    Likes Received:
    488
    Trophy Points:
    151
    I would say from the picture lacking enough light to see the details the chip with the 4 smaller squares surrounding it is the GPU. But you first need to give more light so we can actually see the board itself to even begin to see the hardware itself.

    StormJumper, Jul 1, 2014
    #5
  6. Cloudfire

    Cloudfire (Really odd person)

    Reputations:
    7,279
    Messages:
    10,304
    Likes Received:
    2,878
    Trophy Points:
    581
    Hard to see but looks like it says "NVIDIA" on the top right chip

    Cloudfire, Jul 1, 2014
    #6
  7. kuchiose

    kuchiose Notebook Enthusiast

    Reputations:
    0
    Messages:
    41
    Likes Received:
    2
    Trophy Points:
    16
    with lower-end gpu, they are usually soldered onto the motherboard and it's doesn't goes in favor of good cooling... re-applying thermal paste is a good idea but i would also suggest buying a cooler pad for the laptop to put on...

    kuchiose, Jul 1, 2014
    #7
  8. StormJumper

    StormJumper Notebook Virtuoso

    Reputations:
    579
    Messages:
    3,537
    Likes Received:
    488
    Trophy Points:
    151
    Cooling pad is a waste of money...re-apply the thermal paste as well as a through cleaning of vents and fan would do far more to improve your cooling then a cooling pad will do if the vents are plugged that cooling pad is worthless. Cooling pad are just gimmicks to sell money rather the address the real problem ---- improper usage of laptop in wrong position and on carpets don't help it vent out heat.

    StormJumper, Jul 3, 2014
