    Can't OC my R4670

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by cdoublejj, Jul 18, 2012.

  1. cdoublejj

    cdoublejj Notebook Deity

    Reputations:
    195
    Messages:
    1,123
    Likes Received:
    92
    Trophy Points:
    66
    cdoublejj, Jul 18, 2012
    #1
  2. Tsunade_Hime

    Tsunade_Hime such bacon. wow

    Reputations:
    5,413
    Messages:
    10,711
    Likes Received:
    1,204
    Trophy Points:
    581
    Tsunade_Hime, Jul 18, 2012
    #2
  3. cdoublejj

    cdoublejj Notebook Deity

    Reputations:
    195
    Messages:
    1,123
    Likes Received:
    92
    Trophy Points:
    66
    tried/trying Sapphire Trixx,any time i try to apply clocks it snaps back to stock, how ever it does seem to let me undervolt and form what i can see it actualy works.

    EDIT: so maybe it was/is the Vbios but, i have notice no one program reads all of the settings/readings/sensors correctly and each program can read or do something the other can't except Riva tuner which can't do diddly squat.

    cdoublejj, Jul 18, 2012
    #3
  4. MOppyOfey

    MOppyOfey Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Try the Ati Tray Tools overdrive section (not the hardware oc one since it normally doesn't support the 4xxx series)
    download from Guru3D.com

    MOppyOfey, Jul 18, 2012
    #4
  5. cdoublejj

    cdoublejj Notebook Deity

    Reputations:
    195
    Messages:
    1,123
    Likes Received:
    92
    Trophy Points:
    66

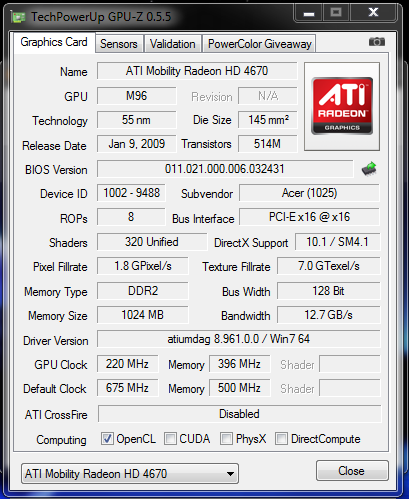

    [​IMG]

    msi after burner only lets me under clock, sapphire Trixx lets can't adjust any clocks but, will let me under volt.

    cdoublejj, Jul 19, 2012
    #5
  6. cdoublejj

    cdoublejj Notebook Deity

    Reputations:
    195
    Messages:
    1,123
    Likes Received:
    92
    Trophy Points:
    66

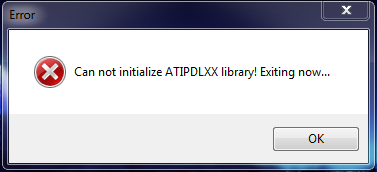

    Wasn't sure if this meant any thing or not?
    http://i.imgur.com/JL7BD.png

    EDIT: got it working.

    I install MSI AfterBurner but, didn't open it

    modified afterburner.cfg set unofficial COing and EULA to "1"

    modified rtcore.cfg and added "9488h" to RV730

    copied "atipdl64.dll" & atipdlxx.dll to \Program Files (x86)\ATI Technologies\ATI.ACE\Core-Static\ [probably unneeded]

    copied "atipdl64.dll" & atipdlxx.dll to MSI AfterBurner root

    ran AfterBurner clocks didn't work/apply

    added "/XCL" to the MSI AfterBurner shortcut

    rebooted

    AfterBurner alerted me of extended clocks and told me to reboot

    rebooted

    ran AfterBurner altered me again about extended clocks and asked me to reboot (i didn't reboot), i removed "/XCL" from the shortcut.

    ran AfterBurner, clocks showed up on GPU Observer, jammed core clock as far as it could go and hit apply and it instantly crashed the machine.

    PROFIT!

    EDIT: it insta crashes if i even raise the core clock 3mhz. I believe MSI AfterBurner is trying to apply these clocks in 2d clocks/mode. gonna try the above with Riva Tuner.

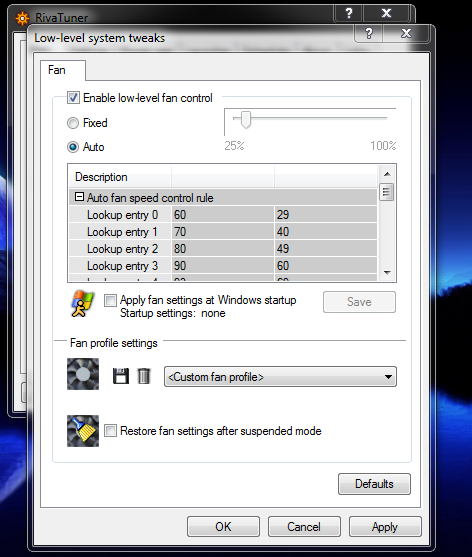

    EDIT: got Riva Tuner working, how ever i don't see it letting the card drop back down to 2d clocks. However this should let be able to test clocks so that maybe i can flash the Vbios with my desired clocks.

    cdoublejj, Jul 19, 2012
    #6
