    Changing HDD to SSD - Laptop. Help, please

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by railan, Mar 30, 2014.

  1. railan

    railan Notebook Enthusiast

    Reputations:
    0
    Messages:
    19
    Likes Received:
    1
    Trophy Points:
    6
    Hello guys,

    I recently bought an Acer Aspire V5. It's a Core i5 4200U, 8 GB, R7 M265 and 1TB HDD. I'd like to change to a SSD. But I've never had a SSD storage, it's means, I don't have much knowledge about it.

    I remove screws and I can see the HDD and memory. Is it possible change to a SSD? Until I know this laptop has an easy access to upgrade. (because I usually upgraded my desktop, but never a laptop)

    If yes, what do you think about these?
    Toshiba Q Series Pro 128 GB Solid State Drive : Solid State Drives - Future Shop

    http://www.staples.ca/en/Samsung-MZ-7TE120BW-120GB-25-SATA3-Internal-SSD/product_279300_2-CA_1_20001

    OBS: I need to buy the SSD in a local store.

    [​IMG]

    railan, Mar 30, 2014
    #1
  2. alexhawker

    alexhawker Spent Gladiator

    Reputations:
    500
    Messages:
    2,540
    Likes Received:
    792
    Trophy Points:
    131
    You'll most likely want a larger drive if you only have space for one. Do yourself a favor and search the forum for OP'ing (over provisioning), and read up on that as well.


    Sent from my iPhone using Tapatalk

    alexhawker, Mar 30, 2014
    #2
    RCB likes this.
  3. Bullrun

    Bullrun Notebook Deity

    Reputations:
    545
    Messages:
    1,171
    Likes Received:
    494
    Trophy Points:
    101
    Agreed with alexhawker, a larger drive if possible.

    It should be a simple swap SSD for HDD. Clean install also highly recommended.

    Your Staples/Samsung link didn't link to a drive for me.

    Bullrun, Mar 30, 2014
    #3
    RCB likes this.
  4. tijo

    tijo Sacred Blame

    Reputations:
    7,588
    Messages:
    10,023
    Likes Received:
    1,077
    Trophy Points:
    581
    Remove the last screw on the SSd caddy to the left of the RAM, slide it to the left, remove it, unscrew the HDD, screw your HDD in, put it back in, screw it in place and Profit!

    I would just check whether you are limited to a 7 mm height drive or the standard 9.5 mm.

    tijo, Mar 31, 2014
    #4
    railan likes this.
  5. railan

    railan Notebook Enthusiast

    Reputations:
    0
    Messages:
    19
    Likes Received:
    1
    Trophy Points:
    6
    Hi guys,

    I bought the Samsung 120 GB EVO 840 and installed it. It was a simple swap indeed. Now I'm reading about SSD (optimization and configuration).

    Unfortunately I couldn't afford a large drive.

    Sent from my Moto X using Tapatalk

    railan, Mar 31, 2014
    #5
  6. railan

    railan Notebook Enthusiast

    Reputations:
    0
    Messages:
    19
    Likes Received:
    1
    Trophy Points:
    6
    Hi again,

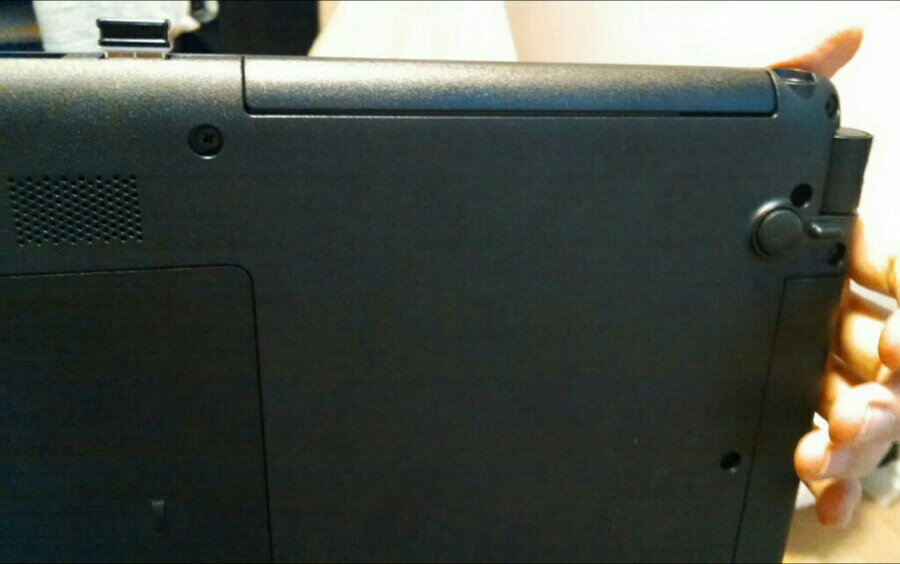

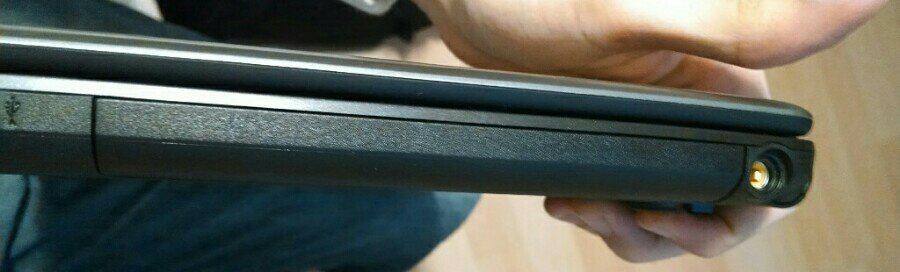

    Can you help me taking a look in the photos below to tell me if is possible te remove this "optical drive" (because this laptop hasn't one) and install the HDD that I removed to install the SSD?


    Sent from my Moto X using Tapatalk


    Attached Files:

    railan, Apr 2, 2014
    #6
  7. tilleroftheearth

    tilleroftheearth Wisdom listens quietly...

    Reputations:
    5,398
    Messages:
    12,692
    Likes Received:
    2,717
    Trophy Points:
    631
    To remove it should be no problem - I would be worried if the actual power and data connection cables were actually installed though and available.

    tilleroftheearth, Apr 2, 2014
    #7
  8. railan

    railan Notebook Enthusiast

    Reputations:
    0
    Messages:
    19
    Likes Received:
    1
    Trophy Points:
    6
    Got it. If is not available I can't install a HDD there, right?

    Sent from my Moto X using Tapatalk

    railan, Apr 2, 2014
    #8
  9. tilleroftheearth

    tilleroftheearth Wisdom listens quietly...

    Reputations:
    5,398
    Messages:
    12,692
    Likes Received:
    2,717
    Trophy Points:
    631
    Again; physically you could probably put one in... but use it? Not without the cables or some magic. :O

    tilleroftheearth, Apr 2, 2014
    #9
  10. railan

    railan Notebook Enthusiast

    Reputations:
    0
    Messages:
    19
    Likes Received:
    1
    Trophy Points:
    6
    Of course I'm talking about buy sata cables/adapters. o_O

    Sent from my Moto X using Tapatalk

    railan, Apr 2, 2014
    #10
  11. tilleroftheearth

    tilleroftheearth Wisdom listens quietly...

    Reputations:
    5,398
    Messages:
    12,692
    Likes Received:
    2,717
    Trophy Points:
    631
    Of course, I was just j/k...

    What I'd be worried about is being able to connect the cables to the M/B properly though; is the notebook hard to take apart?

    tilleroftheearth, Apr 2, 2014
    #11
  12. railan

    railan Notebook Enthusiast

    Reputations:
    0
    Messages:
    19
    Likes Received:
    1
    Trophy Points:
    6
    I'll open this weekend to find out.

    Sent from my Moto X using Tapatalk

    railan, Apr 2, 2014
    #12
    tilleroftheearth likes this.
  13. railan

    railan Notebook Enthusiast

    Reputations:
    0
    Messages:
    19
    Likes Received:
    1
    Trophy Points:
    6
    Hi again,

    I just opened the place where should stay my optical drive (remembering, this laptop has not any optical drive). Fortunately, the sata conectores are there!
    So, until I understand, I can buy a caddy drive and install the HDD that I removed from this Acer, right?

    Sorry for the quality. But the satas are on the right.

    [​IMG] [​IMG]

    railan, Apr 5, 2014
    #13
  14. railan

    railan Notebook Enthusiast

    Reputations:
    0
    Messages:
    19
    Likes Received:
    1
    Trophy Points:
    6
    Edit : A caddy drive 9.5 mm works fine with this Acer.

    Sent from my Moto X

    railan, Apr 12, 2014
    #14
