    Clevo PZ751ZM - mSata slot ?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by omegear, Feb 26, 2015.

  1. omegear

    omegear Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5
    Hello everyone,

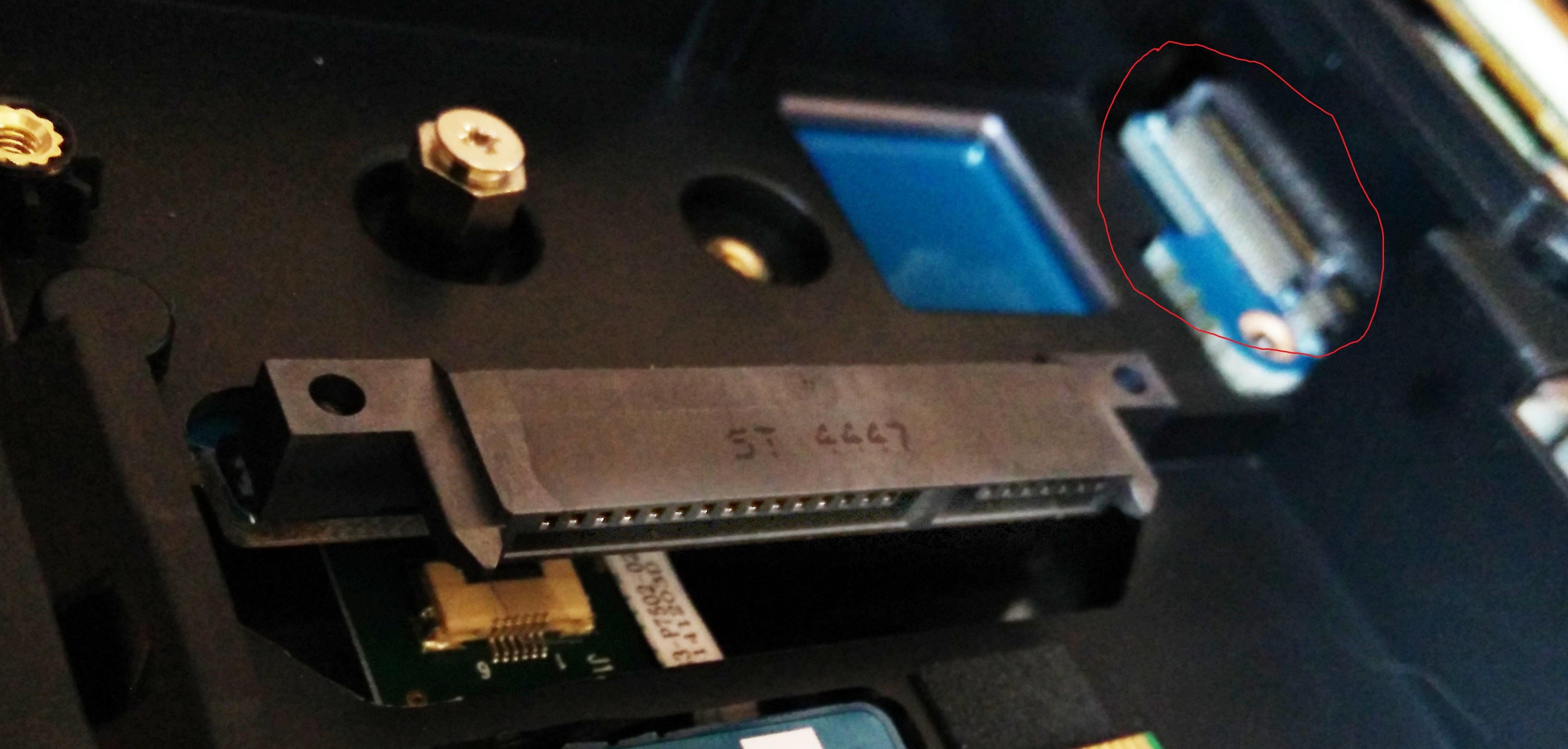

    I recently bought the Clevo PZ751ZM from Xnotebooks, a holland company. In the manual they are referring to a mSata slot so I buyed a Crucial 512GB SSD mSATA but now that I opened my laptop, I can't find the slot.

    Anyone know where he is located ? I can't find any information about this...

    [​IMG]

    omegear, Feb 26, 2015
    #1
  2. omegear

    omegear Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5
    Also, can someone tell me what can I connect to this slot ? What is this? 2..5 ?

    [​IMG]

    omegear, Feb 26, 2015
    #2
  3. octiceps

    octiceps Nimrod

    Reputations:
    3,147
    Messages:
    9,944
    Likes Received:
    4,194
    Trophy Points:
    431
    Oh boy, I think u dun goofed. The laptop has M.2 not mSATA.

    And yeah that's a SATA port for a 2.5" hard drive.

    octiceps, Feb 26, 2015
    #3
  4. omegear

    omegear Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5
    Fuuuu.
    I hope the store can exchange me this to another drive.

    Anyway, as it's a 2.5" slot, does this SSD will work on it ? http://www.shscomputer.be/fiche/2000014342.php

    I never inserted any kind of Hardrive in my entire life, I need to be really sure about the connector etc.
    Many thanks guys !

    omegear, Feb 26, 2015
    #4
  5. octiceps

    octiceps Nimrod

    Reputations:
    3,147
    Messages:
    9,944
    Likes Received:
    4,194
    Trophy Points:
    431
    You need an M.2 SSD in the 80mm (Type 2280) form factor.

    Yeah any 2.5" SSD will work no problem. For 2.5" HDD make sure it's 9.5mm or thinner.

    Looks like the laptop has space for two M.2 80mm and two 2.5" 9.5mm drives.

    octiceps, Feb 26, 2015
    #5
  6. omegear

    omegear Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5
    Where do you see the space for the 2.M ? Can you show me the slots positions please ?

    Also, I feel like the 2.5" ssd drive won't connect to the bottom slot. How do you connect it ? Just plug in and it's good to go ?

    Thx

    omegear, Feb 26, 2015
    #6
  7. octiceps

    octiceps Nimrod

    Reputations:
    3,147
    Messages:
    9,944
    Likes Received:
    4,194
    Trophy Points:
    431
    [​IMG]

    [​IMG]

    BTW I was wrong. Looks like it can take all 42mm, 60mm, and 80mm M.2 SSDs.

    What do you mean won't connect? Just put SSD into bay and plug it into the slot. Make sure you slide it in flat and not at an angle.

    Last edited: Feb 27, 2015
    octiceps, Feb 26, 2015
    #7
  8. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,877
    Trophy Points:
    931
    It has two 2.5" SSD slots for up to 9.5mm thick, and two M.2 SSD's, 42, 60, or 80mm. Just move the standoff screw. Remove battery and power supply before you install anything. Then just remove the screw in the standoff, insert SSD in the slot at a slight angle, push down, hold in place while you add the screw. Done.

    There's a whole big thread on it here: http://forum.notebookreview.com/threads/official-clevo-p75xzm-batman-sager-np9752-owner´s-lounge-welcome-to-the-batcave.767105/

    And my initial impressions here (full review pending): http://forum.notebookreview.com/thr...essions-and-review.770412/page-7#post-9941113

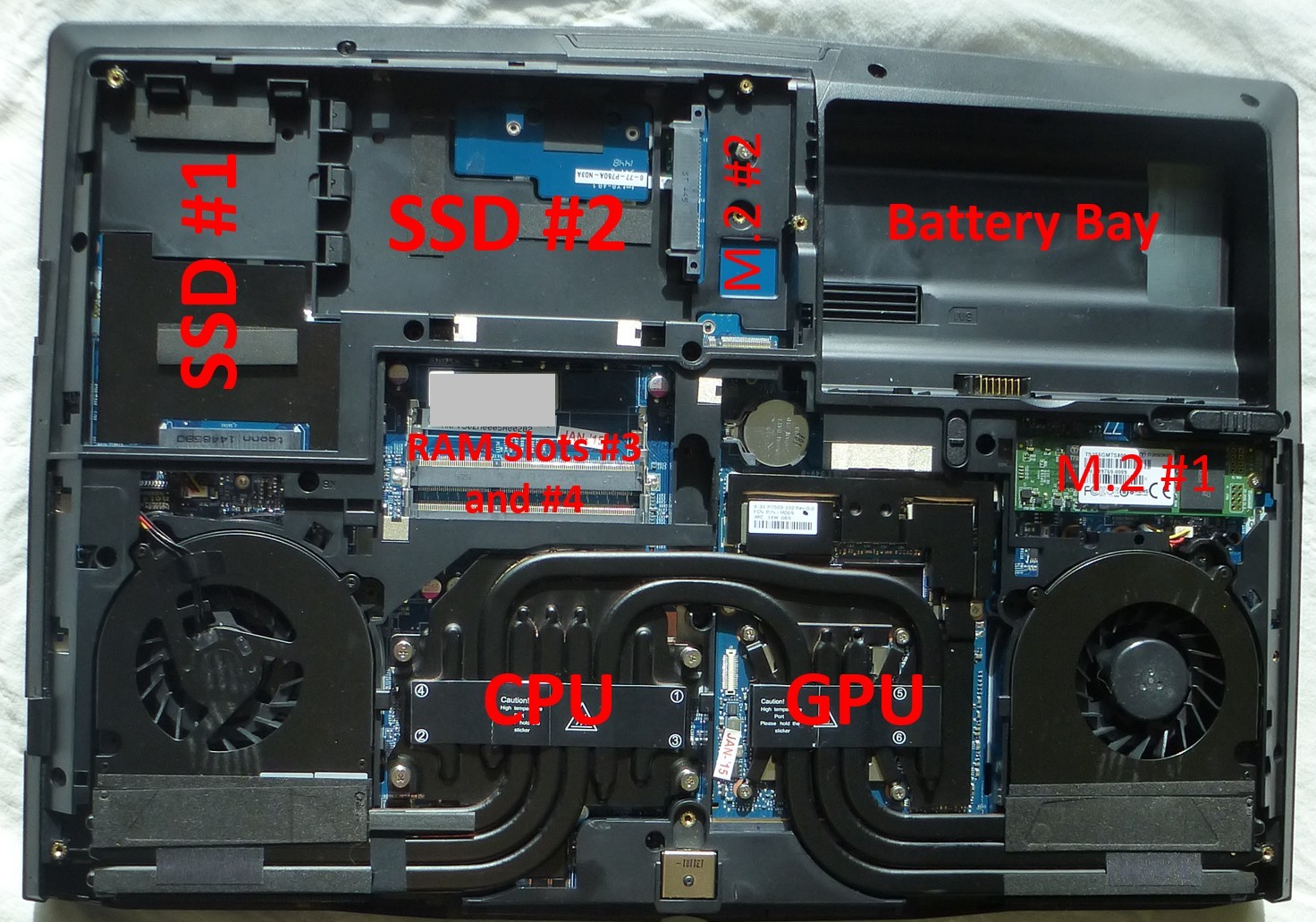

    Here's an image of the bottom layout:

    [​IMG]

    HTWingNut, Feb 27, 2015
    #8
