    Cm420+945gm=?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by C420, Aug 24, 2006.

  1. C420

    C420 Notebook Enthusiast

    Reputations:
    0
    Messages:
    14
    Likes Received:
    0
    Trophy Points:
    5

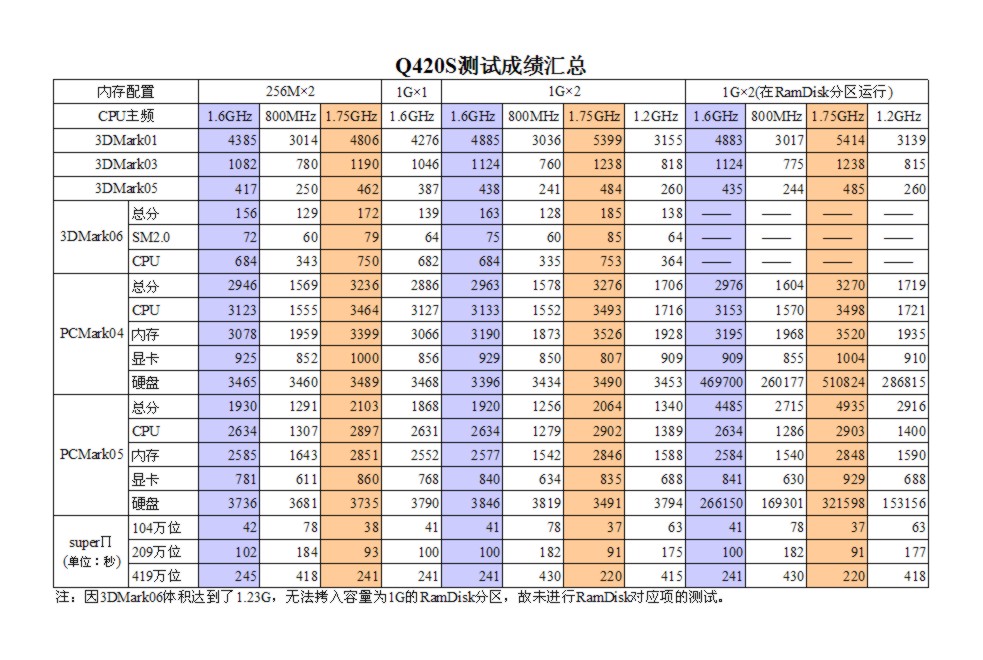

    Excuse me,I only can speak few English.I am Chinese.
    This's a test for my notebook,I want to look your perspective for the test.Thank you!


    Attached Files:

    • Test.jpg
      File size:
      174.2 KB
      Views:
      163
    C420, Aug 24, 2006
    #1
  2. PC_pulsar

    PC_pulsar Notebook Evangelist

    Reputations:
    5
    Messages:
    479
    Likes Received:
    0
    Trophy Points:
    30
    ??? Weird table

    PC_pulsar, Aug 24, 2006
    #2
  3. Charles P. Jefferies

    Charles P. Jefferies Lead Moderator Super Moderator

    Reputations:
    22,339
    Messages:
    36,639
    Likes Received:
    5,080
    Trophy Points:
    931
    Your 3DMark results are not that high, I assume you have the integrated Intel GMA950 card. Of course, if you have that card, you probably aren't that interested in gaming, so it does not really matter. ;)

    Other than that, it is a very intriging table. What are you system secifications?

    Charles P. Jefferies, Aug 24, 2006
    #3
  4. C420

    C420 Notebook Enthusiast

    Reputations:
    0
    Messages:
    14
    Likes Received:
    0
    Trophy Points:
    5
    Yes, I don't like games.
    This table is only test my notebook reliable whether. Somebody think it can't finish the test for 3DMark06, but I think it can.

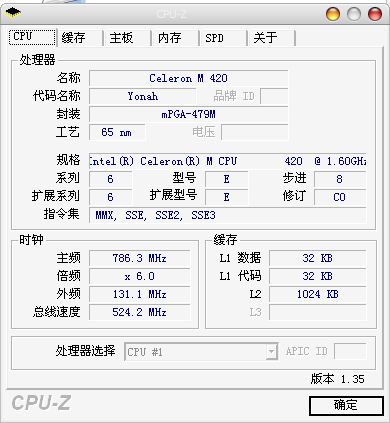

    About the speed of CM420, at this notebook, CM420 can drop frequency and UHF. If press the hot key of the "S", CM420 can drop multiplier from 12× to 6×, the speed is 800MHz. Of course, we kown, the standard frequency of CM420 is 1.6GHz.
    In the "power" of this COMS, if set "High Performance Mode" with "Enabled" and reboot, the speed of the CM420 is 1.75GHz.Than, if press the hot key of the "S", CM420 can drop bus speed from 133Mhz to 100Mhz, the speed is 1.2GHz.


    Attached Files:

    C420, Aug 24, 2006
    #4
  5. C420

    C420 Notebook Enthusiast

    Reputations:
    0
    Messages:
    14
    Likes Received:
    0
    Trophy Points:
    5
    The detection for 1.75GHz and 1.2GHz.


    Attached Files:

    C420, Aug 24, 2006
    #5
  6. adinu

    adinu I pwn teh n00bs.

    Reputations:
    489
    Messages:
    2,842
    Likes Received:
    0
    Trophy Points:
    55
    Well the reduction of clocks to save power is nothing new to anyone here. But its interesting to see how different amounts of ram can have an affect on 3d performance given that its a integrated gpu.

    adinu, Aug 25, 2006
    #6
  7. C420

    C420 Notebook Enthusiast

    Reputations:
    0
    Messages:
    14
    Likes Received:
    0
    Trophy Points:
    5

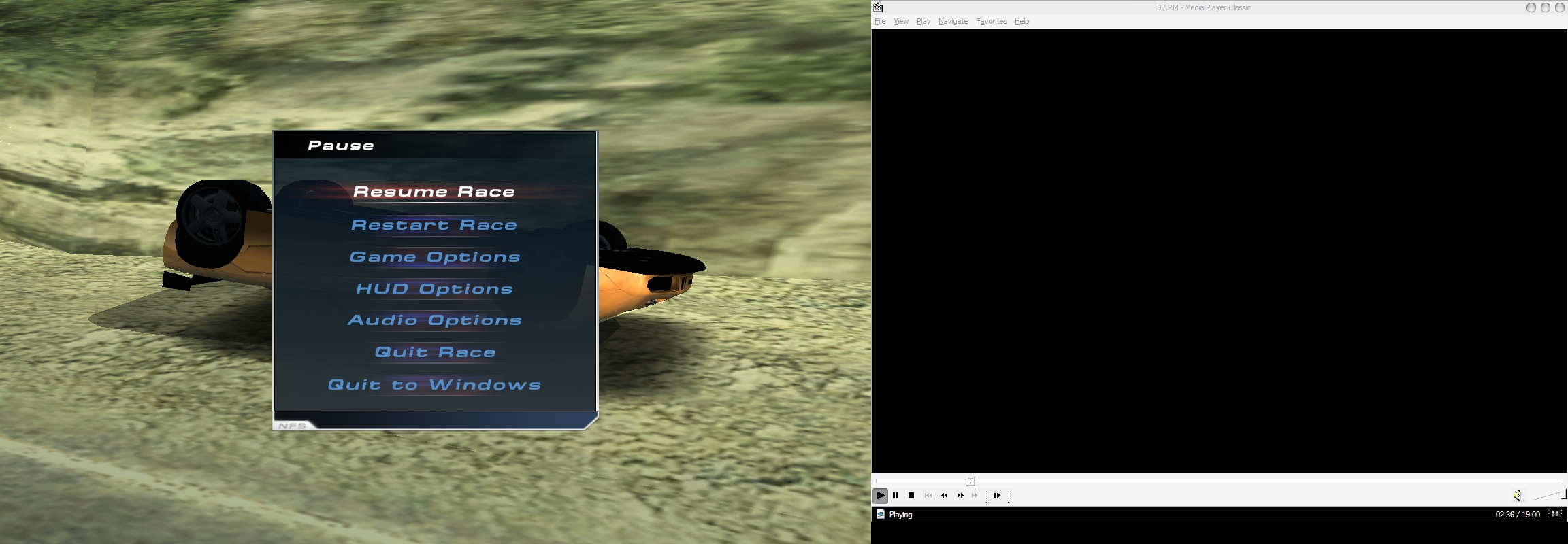

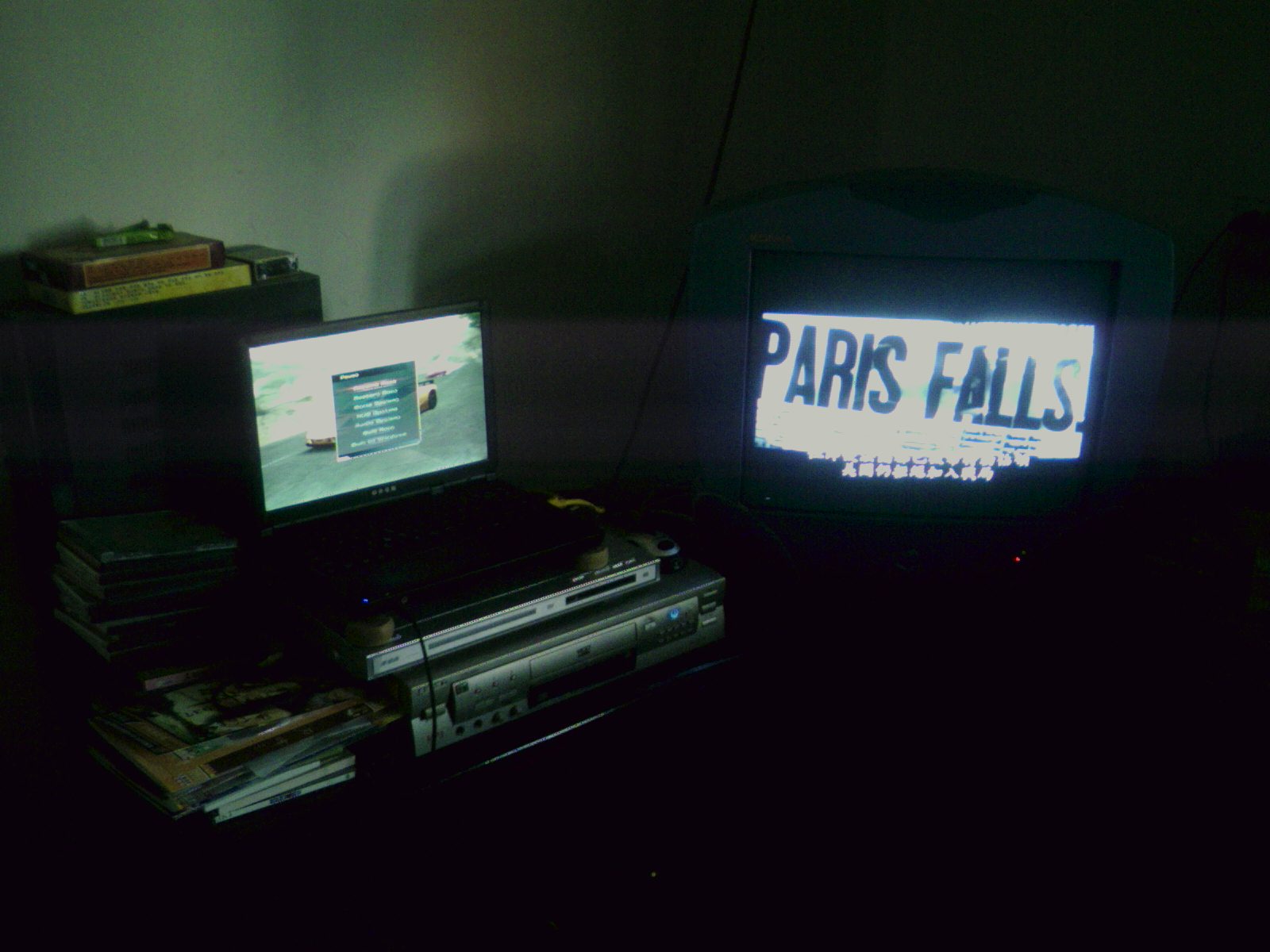

    For me, the function of the GMA950 has already gone around, it can playing NFS6 on the notebook and outputting the video to the television.

    I have a biggest question for this notebook, what is it reduction the clock mechanism? It even can also use in the LINUX.


    Attached Files:

    C420, Aug 30, 2006
    #7
  8. ed22

    ed22 Notebook Consultant

    Reputations:
    96
    Messages:
    103
    Likes Received:
    0
    Trophy Points:
    30
    AFAIK the Celeron M can't reduce its clockspeed because EIST is disabled. Only Pentium M, Core Duo and Core 2 Duo can.

    ed22, Aug 30, 2006
    #8
