    Compaq (HP) Presario F739WM: Funky Hard Drive?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by Vitro13, Jun 24, 2010.

  1. Vitro13

    Vitro13 Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5

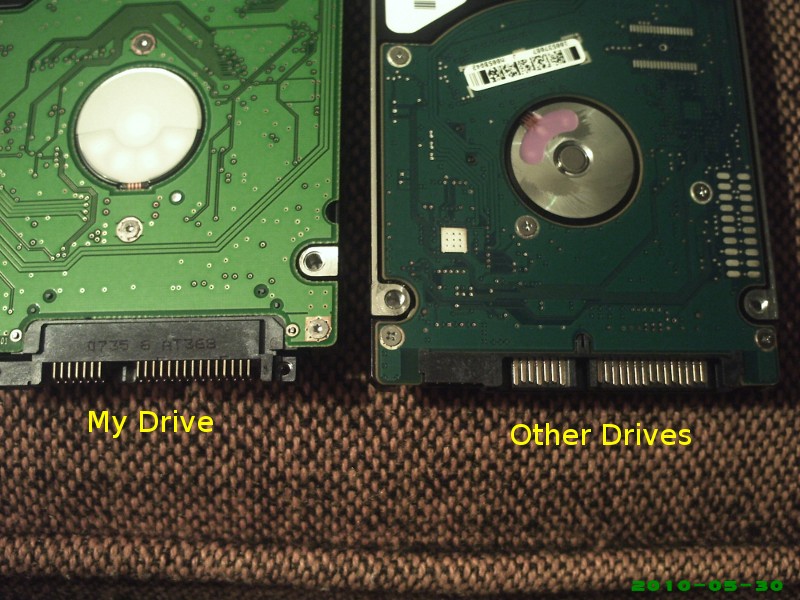

    I've been trying to upgrade my stock drive to a bigger drive with faster spin and a bigger cache, something along the lines of +250gb, 7200rpm, 16mb, but every drive I buy/investigate has a different plug configuration that my drive. Would somebody please explain to me:

    1. The difference between the two.

    2. What upgrade options I have.

    Any assistance will be appreciated. Thank you.


    Attached Files:

    Vitro13, Jun 24, 2010
    #1
  2. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    The other drives are SATA.

    Your drive, not sure...
    Looks a bit like IDE/PATA (but seems a bit odd to me).

    Maybe someone else will know.

    moral hazard, Jun 24, 2010
    #2
  3. Nick

    Nick Professor Carnista

    Reputations:
    3,870
    Messages:
    4,089
    Likes Received:
    641
    Trophy Points:
    181
    Its a special connecter HP and some others use that goes over the SATA connector. Just pull it of and put it on the new HDD.

    Nick, Jun 24, 2010
    #3
  4. Vitro13

    Vitro13 Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    Ooh ooh I hope you're right...will try tonight...

    Vitro13, Jun 24, 2010
    #4
  5. Nick

    Nick Professor Carnista

    Reputations:
    3,870
    Messages:
    4,089
    Likes Received:
    641
    Trophy Points:
    181
    I just made a video of myself taking the connector off. Click the video to play.

    [​IMG]

    Click to play

    Nick, Jun 24, 2010
    #5
  6. JKleiss

    JKleiss Notebook Evangelist

    Reputations:
    261
    Messages:
    660
    Likes Received:
    0
    Trophy Points:
    30
    You have lovely hands ;)

    JKleiss, Jun 24, 2010
    #6
  7. Nick

    Nick Professor Carnista

    Reputations:
    3,870
    Messages:
    4,089
    Likes Received:
    641
    Trophy Points:
    181
    Ok that was weird :eek:

    Nick, Jun 24, 2010
    #7
  8. JKleiss

    JKleiss Notebook Evangelist

    Reputations:
    261
    Messages:
    660
    Likes Received:
    0
    Trophy Points:
    30
    Don't worry, just joking.
    Perhaps a different camera angle would have been better?

    JKleiss, Jun 24, 2010
    #8
  9. Nick

    Nick Professor Carnista

    Reputations:
    3,870
    Messages:
    4,089
    Likes Received:
    641
    Trophy Points:
    181
    I did that video when my mom was yelling at me to brush my teeth. I took the HDD and the camera with me.

    Nick, Jun 24, 2010
    #9
  10. JKleiss

    JKleiss Notebook Evangelist

    Reputations:
    261
    Messages:
    660
    Likes Received:
    0
    Trophy Points:
    30
    And did you do what ur mother asked and brush ur teeth?

    JKleiss, Jun 24, 2010
    #10
  11. Vitro13

    Vitro13 Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    Sweet, I found the adapter, and she's good to hook. Thanks to jOKER!

    Vitro13, Jun 25, 2010
    #11
  12. Nick

    Nick Professor Carnista

    Reputations:
    3,870
    Messages:
    4,089
    Likes Received:
    641
    Trophy Points:
    181
    Of course, i'm a good boy :D

    Nick, Jun 25, 2010
    #12
