    Dell SXPS 16 bios flash failed

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by fred2028, Oct 25, 2009.

  1. fred2028

    fred2028 Sexy member

    Reputations:
    196
    Messages:
    2,205
    Likes Received:
    1
    Trophy Points:
    56
    Well I tried to flash to the A11 bios from A10 and it failed. Now when I turn on my laptop it delays for about 3 seconds, then the media keys light up normally, then volume keys blink. Keyboard backlight turns on and nothig happens. Then backlight becomes brighter and system turns off. The cycle repeats if I try to turn it on.

    I have a tech coming to give me a new mobo but is there a DYI way to do it? I need my laptop out of paperweight mode asap

    fred2028, Oct 25, 2009
    #1
  2. fred2028

    fred2028 Sexy member

    Reputations:
    196
    Messages:
    2,205
    Likes Received:
    1
    Trophy Points:
    56
    Bump Bump Bump Bump

    fred2028, Oct 26, 2009
    #2
  3. sean473

    sean473 Notebook Prophet

    Reputations:
    613
    Messages:
    6,705
    Likes Received:
    0
    Trophy Points:
    0
    I don't think that you can do anything .. you'll just have to wait for the tech to replace your motherboard...

    sean473, Oct 26, 2009
    #3
  4. weinter

    weinter /dev/null

    Reputations:
    596
    Messages:
    2,798
    Likes Received:
    1
    Trophy Points:
    56
    If it is Phoenix BIOS here is a guide.
    The key to initialize bootblock recovery could be different from Acer though.
    Other key Combo you can try Fn+B or WinKey+B

    weinter, Oct 26, 2009
    #4
  5. fred2028

    fred2028 Sexy member

    Reputations:
    196
    Messages:
    2,205
    Likes Received:
    1
    Trophy Points:
    56
    Where can I get the Dell BIOS? Dell CS is refusing to give it and Phoenix Technologies' website sucks balls.

    Apparently the BIOS is by Phoenix.

    fred2028, Oct 26, 2009
    #5
  6. Trottel

    Trottel Notebook Virtuoso

    Reputations:
    828
    Messages:
    2,303
    Likes Received:
    0
    Trophy Points:
    0
    I don't understand. If you were flashing the bios, wouldn't you already have the bios? Also in the support section of dell.com you can get the bios for your laptop.

    Trottel, Oct 26, 2009
    #6
  7. fred2028

    fred2028 Sexy member

    Reputations:
    196
    Messages:
    2,205
    Likes Received:
    1
    Trophy Points:
    56
    From Dell I got an .exe ... I thought BIOSes are supposed to be some other kind of file, like .wph or .bin?

    fred2028, Oct 26, 2009
    #7
  8. weinter

    weinter /dev/null

    Reputations:
    596
    Messages:
    2,798
    Likes Received:
    1
    Trophy Points:
    56
    Open Command Prompt cd (Change directory) to the folder
    I hope you know how to use Command Prompt...
    For example if the executable is called A11.exe
    Do this:
    C:\Users\{Your Directory containing the executable}>A11.exe /writeromfile
    It will automatically generate the A11.wph which is the original BIOS.

    weinter, Oct 26, 2009
    #8
  9. fred2028

    fred2028 Sexy member

    Reputations:
    196
    Messages:
    2,205
    Likes Received:
    1
    Trophy Points:
    56

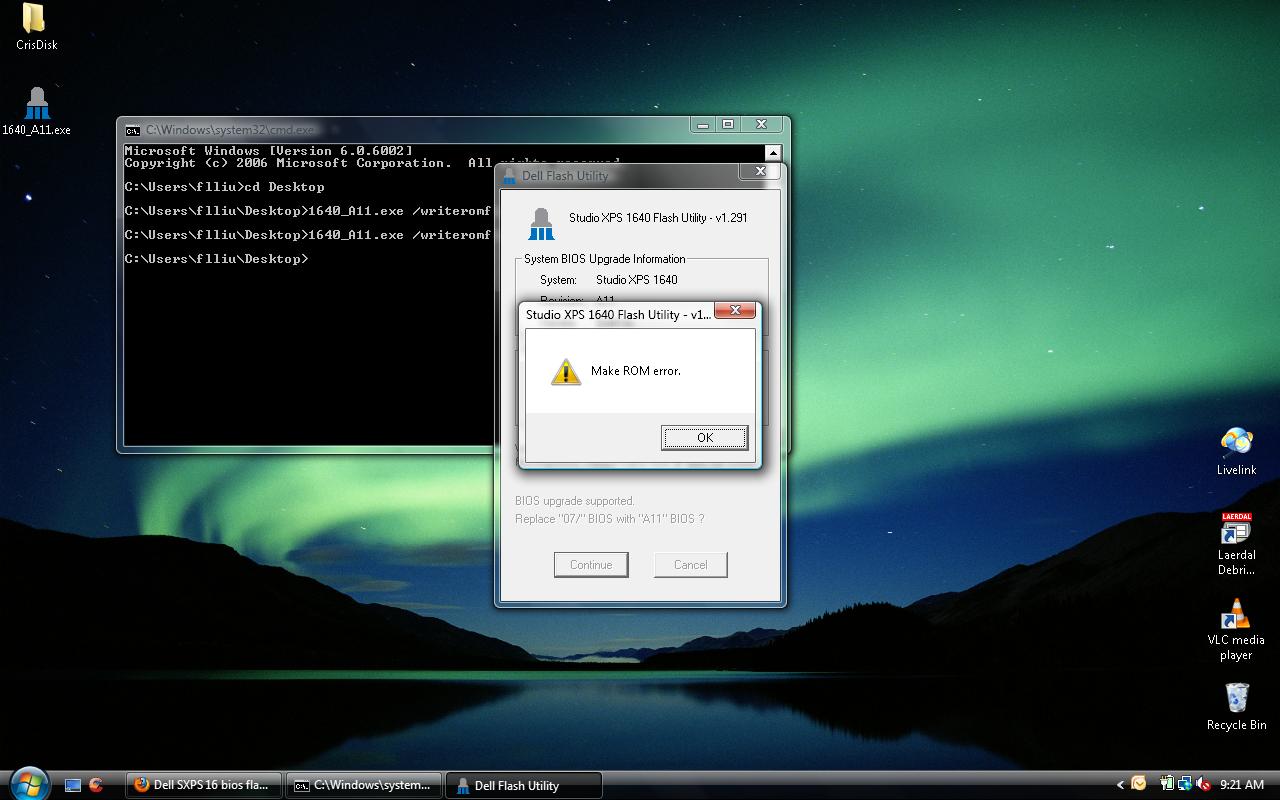

    That's the error I get.


    Attached Files:

    fred2028, Oct 27, 2009
    #9
  10. weinter

    weinter /dev/null

    Reputations:
    596
    Messages:
    2,798
    Likes Received:
    1
    Trophy Points:
    56
    You forgot about Admin Permission....
    Right Click on Command Prompt "Run as Admin"

    weinter, Oct 27, 2009
    #10
  11. steindrix

    steindrix Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Hi Fred, I had the same issue with my xps 16. Is there any way I can fix this? Any1 ??

    steindrix, Nov 6, 2009
    #11
  12. fred2028

    fred2028 Sexy member

    Reputations:
    196
    Messages:
    2,205
    Likes Received:
    1
    Trophy Points:
    56
    Call Dell and ask for a mobo replacement. Also ask for a RAM replacement because apparently that was the problem for me.

    fred2028, Nov 6, 2009
    #12
  13. notebooker-hp

    notebooker-hp Notebook Consultant

    Reputations:
    12
    Messages:
    190
    Likes Received:
    0
    Trophy Points:
    0
    i think that ram has nothing to do with bios.if you havent damaged it ...

    notebooker-hp, Nov 6, 2009
    #13
  14. fred2028

    fred2028 Sexy member

    Reputations:
    196
    Messages:
    2,205
    Likes Received:
    1
    Trophy Points:
    56
    BIOS updates might check for RAM, and if RAM is damaged when shipped, it might freeze the update.

    fred2028, Nov 6, 2009
    #14
