    Exchange Wireless NIC

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by camsimple, Mar 4, 2007.

  1. camsimple

    camsimple Notebook Evangelist

    Reputations:
    22
    Messages:
    595
    Likes Received:
    0
    Trophy Points:
    30
    Again, I am trying to scrap the parts off of my dead Toshiba to place inside a Z96J and like the title said, can this be done? I would really save a bundle by doing this. The only thing I would really have to buy would be the RAM, which comes cheap from Newegg and HD, also cheap.

    Thanx

    camsimple, Mar 4, 2007
    #1
  2. NetBrakr

    NetBrakr Notebook Deity

    Reputations:
    119
    Messages:
    1,344
    Likes Received:
    0
    Trophy Points:
    55
    Well its depends on what card manufacture. What is the name of the card?

    JC

    NetBrakr, Mar 4, 2007
    #2
  3. camsimple

    camsimple Notebook Evangelist

    Reputations:
    22
    Messages:
    595
    Likes Received:
    0
    Trophy Points:
    30
    Maybe Anatel, not sure, but the p/n is PA3362U-1MPC. It also has an intel logo on it.

    camsimple, Mar 4, 2007
    #3
  4. NetBrakr

    NetBrakr Notebook Deity

    Reputations:
    119
    Messages:
    1,344
    Likes Received:
    0
    Trophy Points:
    55
    According to the part number, its Toshiba band, Since because of this, it will not work on your Asus laptop...the BIOS. If it was Intel, it would work fine. Sorry about this.

    JC

    NetBrakr, Mar 4, 2007
    #4
  5. camsimple

    camsimple Notebook Evangelist

    Reputations:
    22
    Messages:
    595
    Likes Received:
    0
    Trophy Points:
    30

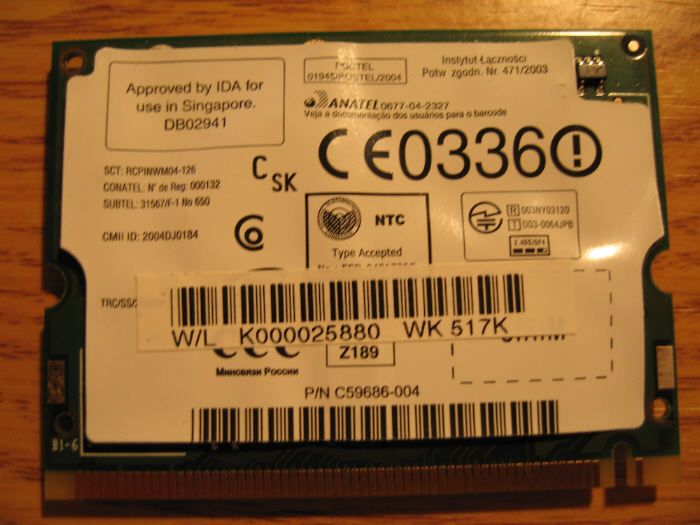

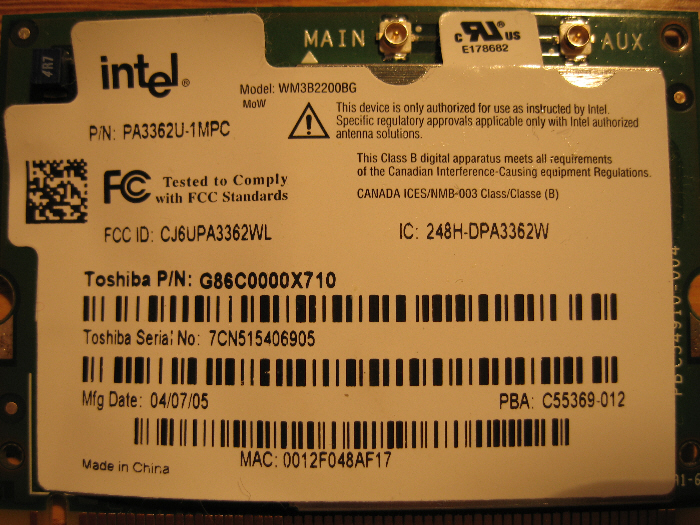

    Here are two pictures of it.


    Attached Files:

    camsimple, Mar 5, 2007
    #5
  6. NetBrakr

    NetBrakr Notebook Deity

    Reputations:
    119
    Messages:
    1,344
    Likes Received:
    0
    Trophy Points:
    55
    Ok nvm, it should worked.

    "Intel PRO/Wireless 2200B/G (PA3362U1MPC)"

    Just get the driver software.

    jC

    NetBrakr, Mar 5, 2007
    #6
  7. Kdawgca

    Kdawgca rotaredoM repudrepuS RBN

    Reputations:
    5,855
    Messages:
    8,609
    Likes Received:
    2
    Trophy Points:
    206
    I though the Wireless NIC in Z96j was mini-pcie(mini pci express) not minipci

    Kdawgca, Mar 5, 2007
    #7
  8. dragonesse

    dragonesse Notebook Deity

    Reputations:
    251
    Messages:
    1,176
    Likes Received:
    0
    Trophy Points:
    55
    Heh. Seems to me alot of resellers are just universally calling them "mini pci" regardless of the actual format. (Cost me an extra $60 on the Z84 I built for my friend, grrrr).

    dragonesse, Mar 5, 2007
    #8
  9. Gautam

    Gautam election 2008 NBR Reviewer

    Reputations:
    1,856
    Messages:
    3,564
    Likes Received:
    0
    Trophy Points:
    105
    That 2200BG mini-PCI card should work with any notebook with a mini-PCI slot.

    Gautam, Mar 5, 2007
    #9
  10. Charles P. Jefferies

    Charles P. Jefferies Lead Moderator Super Moderator

    Reputations:
    22,339
    Messages:
    36,639
    Likes Received:
    5,080
    Trophy Points:
    931
    The Asus Z96J has a mini PCI-express slot and not a mini-PCI slot, the two are not compatible. The Intel 2200 will not work but an Intel 3945 will though.

    Unfortunately this is not a part you can swap.

    Charles P. Jefferies, Mar 5, 2007
    #10
  11. camsimple

    camsimple Notebook Evangelist

    Reputations:
    22
    Messages:
    595
    Likes Received:
    0
    Trophy Points:
    30
    Yep, I actually just got off the phone with Ken, and had him add my Wireless NIC card to my total, which I still have it under $1,100.

    camsimple, Mar 5, 2007
    #11
