HM55 - Matrix or Rapid storage drivers?

Hello. Intel has the Matrix Storage Manager listed for the HM55 instead of the Rapid Storage drivers. Could anyone please recommend which package to choose for AHCI one hard disk configuration? Is Rapid the updated release of Matrix drivers? Thanks!
By the way I've installed and run without issues the Rapid drivers unfortunately executed no performance comparisons.

Matrix Storage Ver. 8.9.0.1023 Date 7/17/2009 - Readme:
The Intel(R) Matrix Storage Manager is designed to provide functionality for the following Storage Controllers:
RAID Controllers:
- Intel(R) ICH8M-E/ICH9M-E/PCHM SATA RAID Controller
- Intel(R) ICH8R/ICH9R/ICH10R/DO/PCH SATA RAID Controller
- Intel(R) ESB2 SATA RAID Controller
- Intel(R) ICH7MDH SATA RAID Controller
- Intel(R) ICH7R/DH SATA RAID Controller
AHCI Controllers:
- Intel(R) PCH SATA AHCI Controller
- Intel(R) PCHM SATA AHCI Controller 4 Port
- Intel(R) PCHM SATA AHCI Controller 6 Port
- Intel(R) ICH10D/DO SATA AHCI Controller
- Intel(R) ICH10R SATA AHCI Controller
- Intel(R) EP80579 SATA AHCI Controller
- Intel(R) ICH9M-E/M SATA AHCI Controller
- Intel(R) ICH9R/DO/DH SATA AHCI Controller
- Intel(R) ICH8M-E/M SATA AHCI Controller
- Intel(R) ICH8R/DH/DO SATA AHCI Controller
- Intel(R) ESB2 SATA AHCI Controller
- Intel(R) ICH7M/MDH SATA AHCI Controller
- Intel(R) ICH7R/DH SATA AHCI Controller

Rapid Storage Ver. 9.6.0.1014 Date 3/23/2010 - Readme:
Intel(R) Rapid Storage Technology is designed to provide functionality for the following Storage Controllers:
RAID Controllers:
- Intel(R) ICH8M-E/ICH9M-E/5 Series SATA RAID Controller
- Intel(R) ICH8R/ICH9R/ICH10R/DO/5 Series/3400 Series SATA RAID Controller
- Intel(R) ESB2 SATA RAID Controller
- Intel(R) ICH7MDH SATA RAID Controller
- Intel(R) ICH7R/DH SATA RAID Controller
AHCI Controllers:
- Intel(R) 5 Series/3400 Series SATA AHCI Controller
- Intel(R) 5 Series 4 Port SATA AHCI Controller
- Intel(R) 5 Series 6 Port SATA AHCI Controller
- Intel(R) ICH10D/DO SATA AHCI Controller
- Intel(R) ICH10R SATA AHCI Controller
- Intel(R) EP80579 SATA AHCI Controller
- Intel(R) ICH9M-E/M SATA AHCI Controller
- Intel(R) ICH9R/DO/DH SATA AHCI Controller
- Intel(R) ICH8M-E/M SATA AHCI Controller
- Intel(R) ICH8R/DH/DO SATA AHCI Controller
- Intel(R) ESB2 SATA AHCI Controller
- Intel(R) ICH7M/MDH SATA AHCI Controller
- Intel(R) ICH7R/DH SATA AHCI Controller



Rapid is newer ver of the old matrix drivers, you should use the Rapid drivers instead..No reason to move backward.



there is a debate and research going on in the forums with people with the HM55 and PM55 chips. People with SSDs appear to have a negative affect on the 64k and 512k file rates. instead of getting 100s of MBps they get like 40ish MBps. If you got an SSD i recommend you going through the search and search SSD and PM55



Doesn't seem to be tied to the drivers though. JJB has a good set of tweaks that can wring a lot more performance back out of an SSD: http://forum.notebookreview.com/har...ssd-performance-intel-series-5-jjb-tweak.html

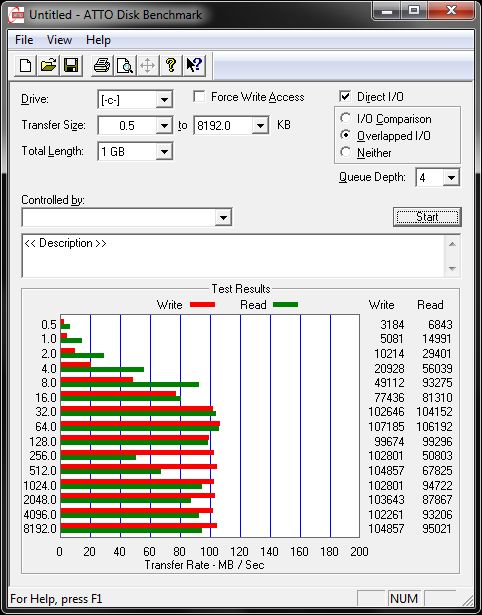

So that explains my Seagate Momentus XT scores



Glad to hear the IRST 9.6 isn't the culprit. There are lots of tweaks and resulting benchmarks in the main SSD thread and a couple other threads that deals just with SSDs on these chipsets.

One here
and
Another here



Sorry, I'm new to this whole thing about AHCI drivers- so if his questions was answered I apologize but I'm not seeing it. Wasn't he also asking which specific drivers to use?

I'm having a similar issue where I'm adding XP side-by-side with win 7 on my toshiba p500 w/ HM55 chipset. I'm trying to figure out which of the entries under IDE ATA/ATAPI controllers I Need to set the driver for (I don't have anything that looks specific, just 2 "primary ide channel", 2 secondary, and 2 "standard dual channel...". as well as which driver to choose. When I try to manually install the drivers for one of those it gives me a big list similar to the one posted by the OP, but i'm not sure which one to choose. Apparently once I chose the wrong one and got a bsod. Everything was ok when I rebooted, but I'm obviously in over my head here.

The reason I want to install the AHCI drivers post-install is so I don't have to keep swtiching between compatibility and ahci mode in the bios every time I want to change which OS i'm booting into. Any help would be appreciated, thanks.



If your chipset supports it, forget the IMSM drivers. Use the latest IRST drivers instead.

The current version is 10.0.0.1046 WHQL here:

See:
http://www.station-drivers.com/tele...10.0.0.1046-full(www.station-drivers.com).exe


On every system I've tried (HD or SSD based) the 1046 version is superior in every real world metric I can see.
