    HP Probook 430 g2 m.2 ssd and wireless card replacing

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by Bardys, Oct 16, 2015.

  1. Bardys

    Bardys Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Hello, I'm planning to buy 430 g2 broadwell version with HDD. I want to add m.2 SSD and replace 3160 Intel wireless card. To begin with the SSD, I've read I need 2242 Sata III, are these for sure compatible with the notebook? Which should I pick, or maybe is there another even better one, that will not be expensive?
    Adata SSD Premier SP600 M.2 2242 128GB SATA3
    Transcend SSD M.2 2242 128GB SATA3 MTS400

    And which wireless card would be best to get? From what I know HP does not use whitelisting anymore, so any should work. There is only 1 antenna in the notebook, is it easy to add another or maybe 2 for 3 antennas cards? I hear only about Intel cards, will just the newest     Intel® Dual Band Wireless-AC 8260 be best choice? Thanks for any suggestions.

    Last edited: Oct 16, 2015
    Bardys, Oct 16, 2015
    #1
  2. Kent T

    Kent T Notebook Virtuoso

    Reputations:
    270
    Messages:
    2,959
    Likes Received:
    753
    Trophy Points:
    131
    Antennas won't be easily added. And AC not doable easily due to that.

    Kent T, Oct 18, 2015
    #2
  3. Bardys

    Bardys Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5

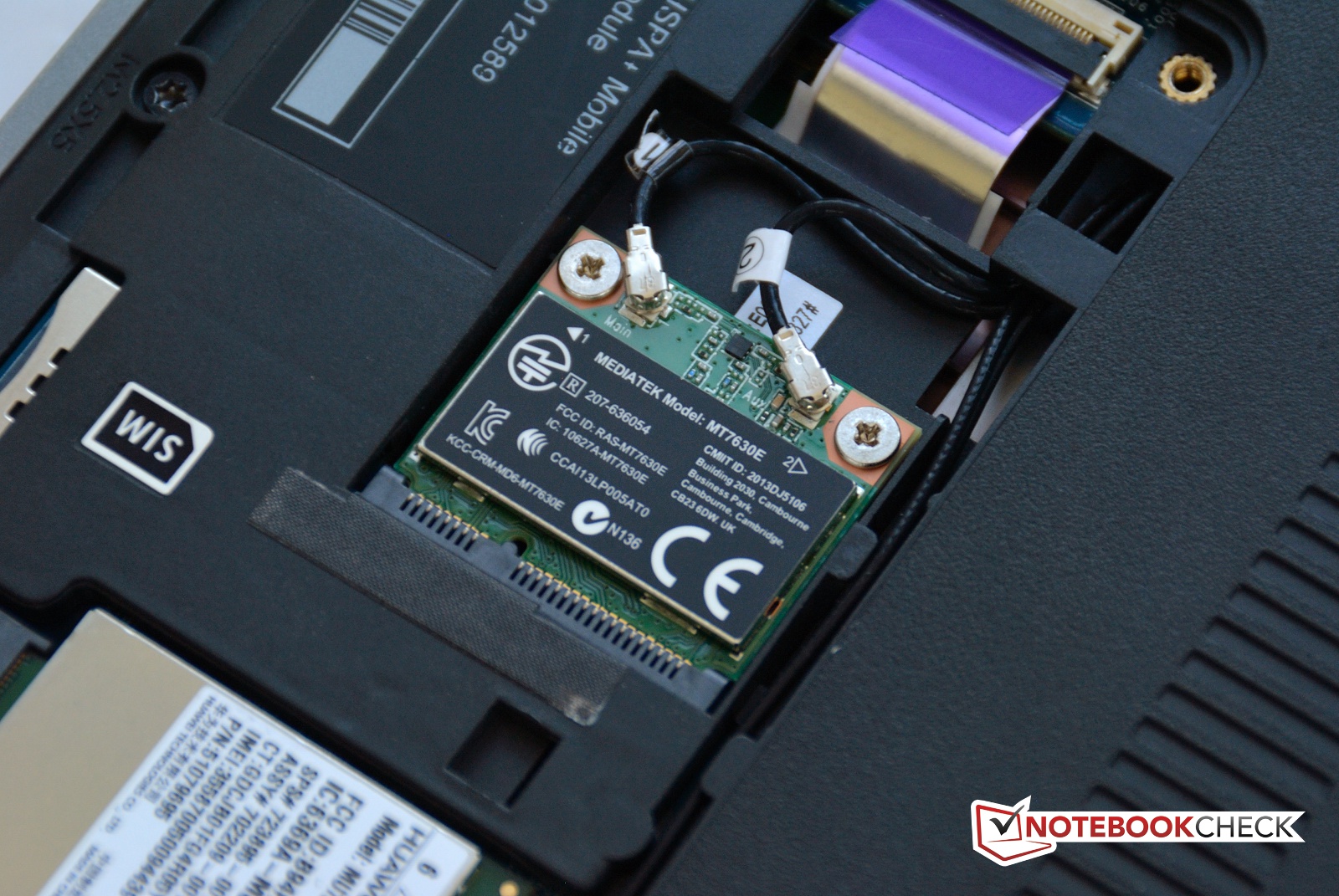

    Do you mean it's gonna require a lot of disassembly or case could not be prepared for it? Similar model, probook 430 g1 had 2, so probably there is space to put second one
    [hide]
    [​IMG]
    [/hide]

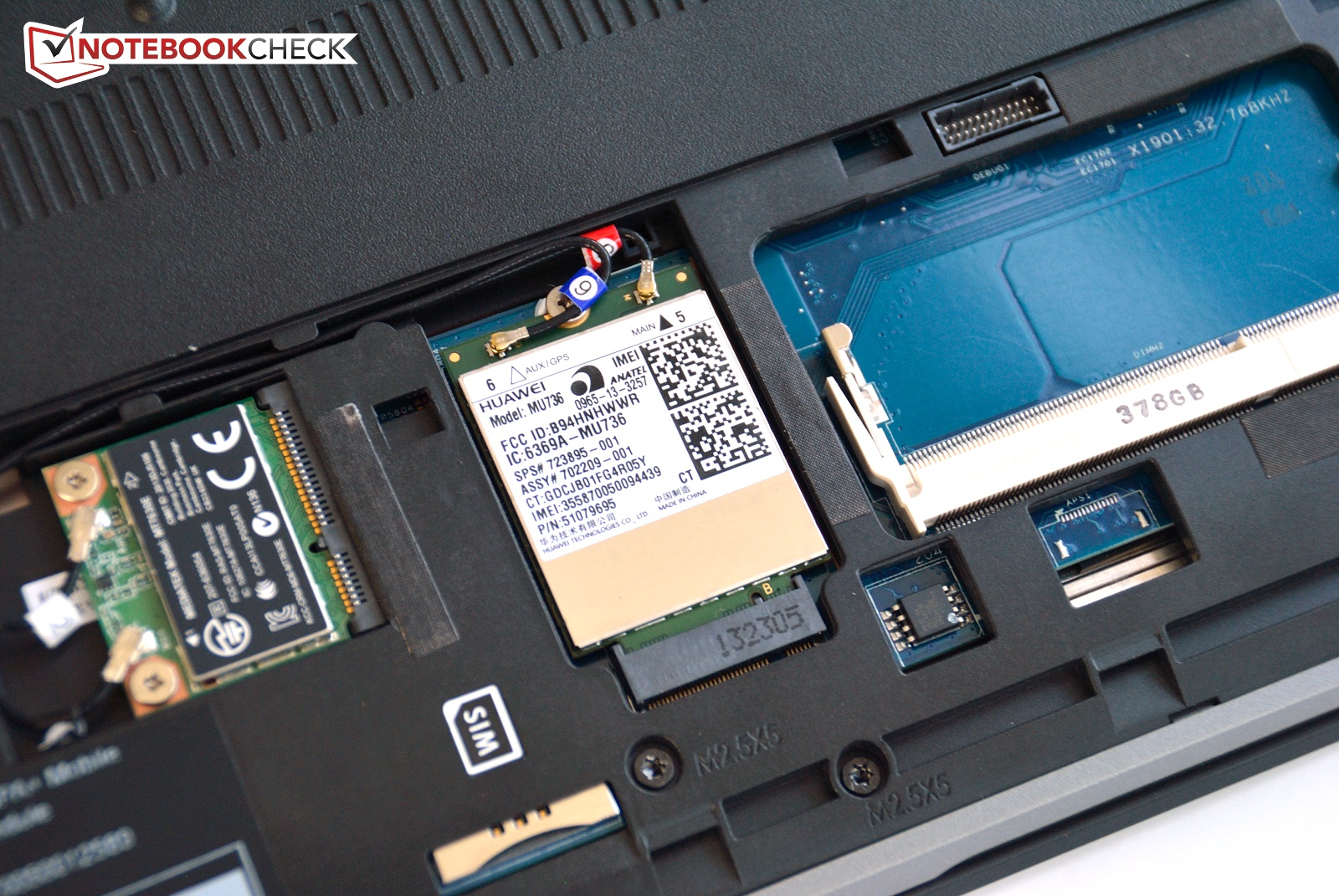

    There was even space for HSPA+ card and its antennas in the old one
    [hide]
    [​IMG]
    [/hide]

    Last edited: Oct 20, 2015
    Bardys, Oct 20, 2015
    #3
  4. Kent T

    Kent T Notebook Virtuoso

    Reputations:
    270
    Messages:
    2,959
    Likes Received:
    753
    Trophy Points:
    131
    2 antennas likely very doable, may need more advanced disassembly (you appear to know how). 3 antennas which a lot of A cards use would take some modifications.

    Kent T, Oct 20, 2015
    #4
  5. Bardys

    Bardys Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    I have bought the notebook finally but I'm confused. Isn't intel 3160 supposed to have 1 antenna if it's 1x1? Mine has 2. I think I will leave the stock card, shouldn't perform that bad if it isn't cheapest 1 antenna card
    [​IMG]

    Bardys, Nov 8, 2015
    #5
  6. tilleroftheearth

    tilleroftheearth Wisdom listens quietly...

    Reputations:
    5,398
    Messages:
    12,692
    Likes Received:
    2,717
    Trophy Points:
    631
    Isn't one antenna lead for the BT?

    tilleroftheearth, Nov 8, 2015
    #6
  7. StormJumper

    StormJumper Notebook Virtuoso

    Reputations:
    579
    Messages:
    3,537
    Likes Received:
    488
    Trophy Points:
    151
    Did you look at the HP Service Manual for your Laptop. That should be the first place to look as that is where the Service Manual is at and there it will tell you which wifi you can fit into your laptop.

    StormJumper, Nov 8, 2015
    #7
  8. Kent T

    Kent T Notebook Virtuoso

    Reputations:
    270
    Messages:
    2,959
    Likes Received:
    753
    Trophy Points:
    131
    Yes, get the service manual for it. HP should have it as a download on the site in PDF format.

    Kent T, Nov 8, 2015
    #8
