    Help Reassembling Dell Keyboard :(

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by ronnieb, Aug 7, 2010.

  1. ronnieb

    ronnieb Representing the Canucks

    Reputations:
    613
    Messages:
    1,869
    Likes Received:
    0
    Trophy Points:
    55

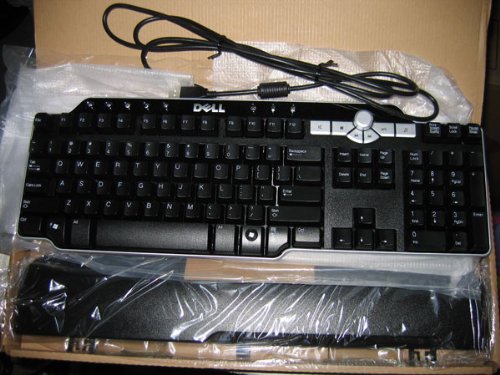

    Got this keyboard from my GF:
    [​IMG]

    and love the looks of it. Took it apart to clean out, but I couldn't put it back together. The keyboard has 3 layers to it: the back plastic piece, a metal piece which I guess is for support, and then the actual rubbery keyboard pieces.

    Imageshack - img00005201008062359.jpg

    The problem is that the metal piece is not sitting flush so I can't close up the laptop. the part that is bothering it is this(the white part):

    http://img580.imageshack.us/img580/599/img00006201008070002.jpg


    Anyone else have this keyboard or does anyone have any ideas? Been racking my brain for around 4 hours just trying to put it together so I can pwn at Starcraft 2 :(

    ronnieb, Aug 7, 2010
    #1
  2. H.A.L. 9000

    H.A.L. 9000 Occam's Chainsaw

    Reputations:
    6,415
    Messages:
    5,296
    Likes Received:
    552
    Trophy Points:
    281
    I have the Bluetooth version of that, but IDK how the heck it goes back together. Awesome keyboard though! I love mine, even though it does SUCK batteries like it's nobody's business.

    H.A.L. 9000, Aug 7, 2010
    #2
  3. ronnieb

    ronnieb Representing the Canucks

    Reputations:
    613
    Messages:
    1,869
    Likes Received:
    0
    Trophy Points:
    55
    Is there any way you could possibly remove the back and take pictures for me? Just the plastic back cover nothing else

    ronnieb, Aug 7, 2010
    #3
  4. H.A.L. 9000

    H.A.L. 9000 Occam's Chainsaw

    Reputations:
    6,415
    Messages:
    5,296
    Likes Received:
    552
    Trophy Points:
    281
    I can. :) I'll post them here in a few mins.

    H.A.L. 9000, Aug 7, 2010
    #4
  5. ronnieb

    ronnieb Representing the Canucks

    Reputations:
    613
    Messages:
    1,869
    Likes Received:
    0
    Trophy Points:
    55
    Thank you so much :D

    ronnieb, Aug 7, 2010
    #5
  6. H.A.L. 9000

    H.A.L. 9000 Occam's Chainsaw

    Reputations:
    6,415
    Messages:
    5,296
    Likes Received:
    552
    Trophy Points:
    281

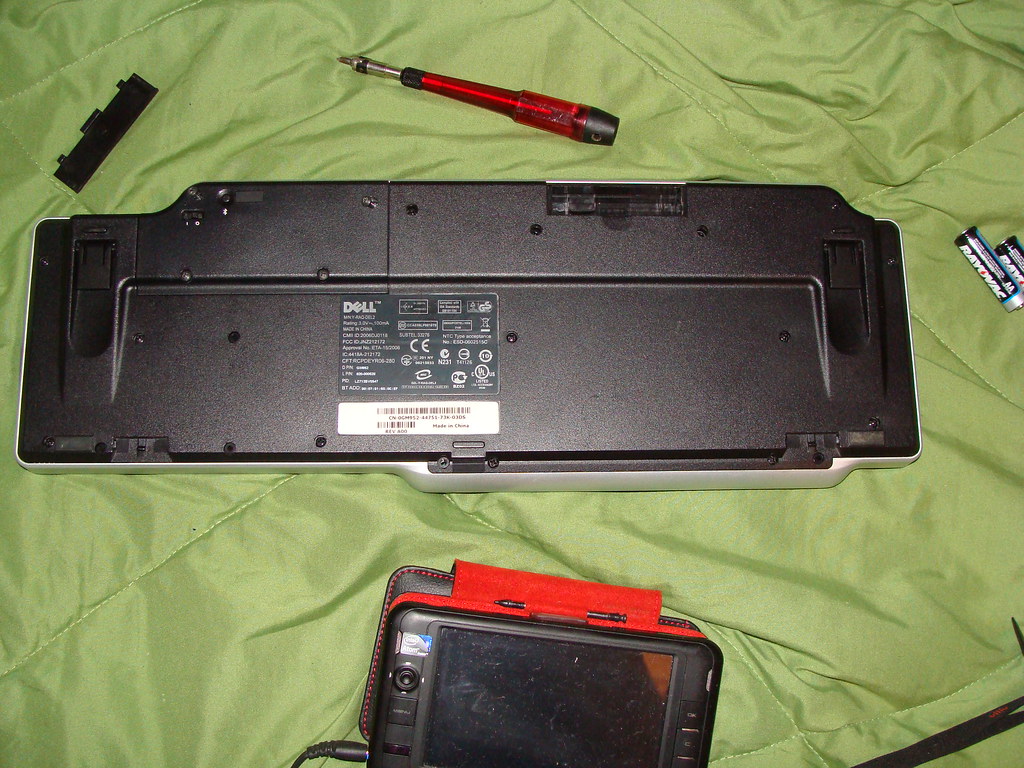

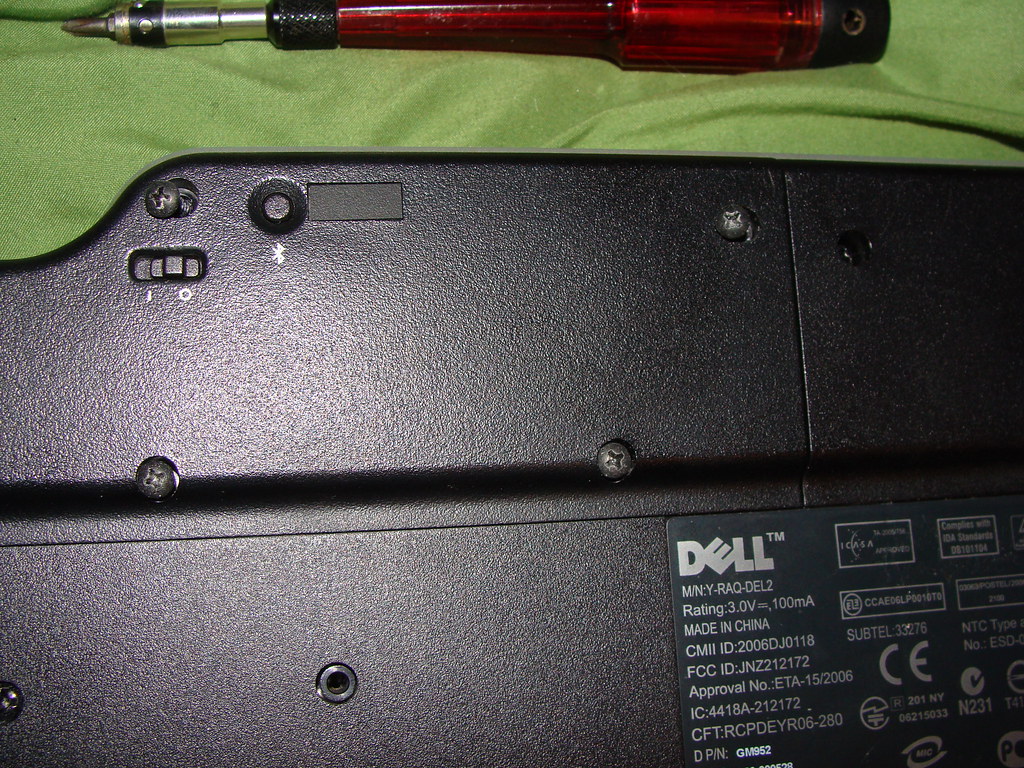

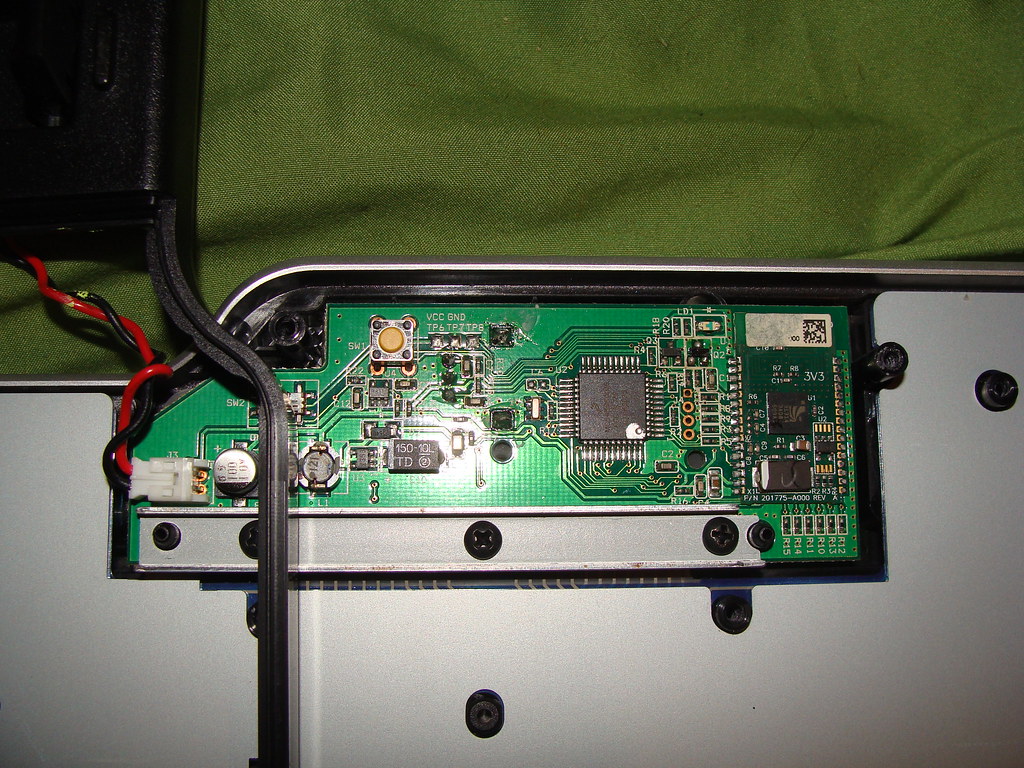

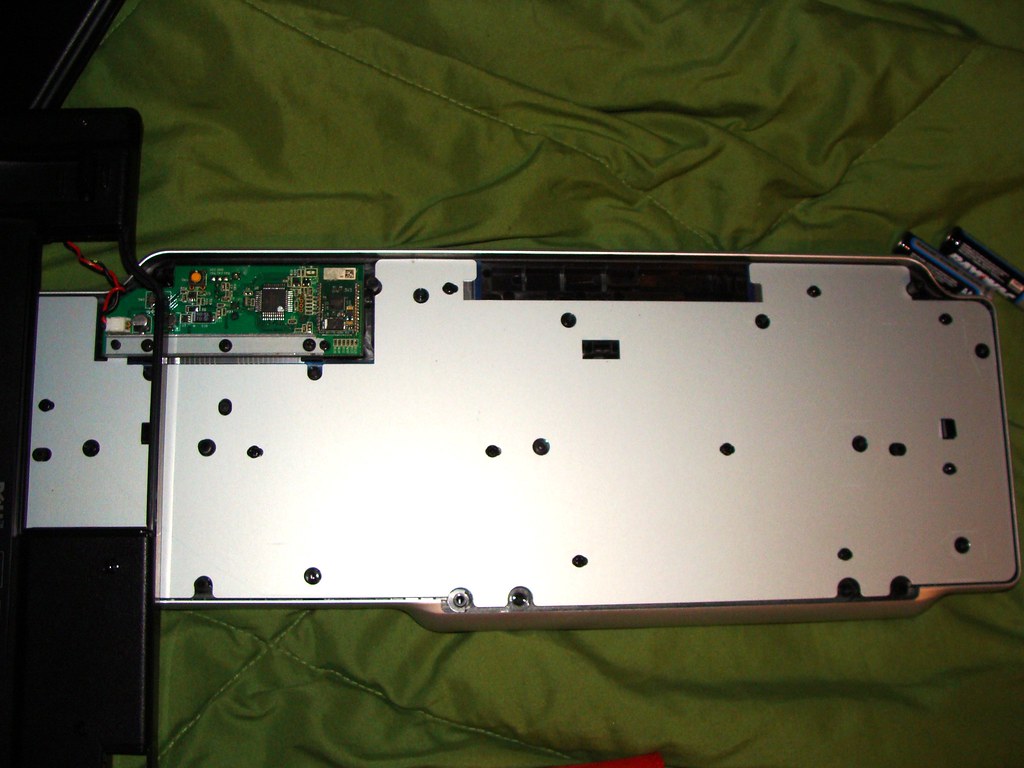

    I think my BT keyboard is assembled different on the inside, than yours, but here they are...

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    H.A.L. 9000, Aug 7, 2010
    #6
  7. ronnieb

    ronnieb Representing the Canucks

    Reputations:
    613
    Messages:
    1,869
    Likes Received:
    0
    Trophy Points:
    55
    Got it thanks to you! THANK YOU SOO MUCH!!

    ronnieb, Aug 7, 2010
    #7
