    Help me deal with a stripped screw - Omen 15 - 2017

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by FireLantern, Jun 8, 2018.

  1. FireLantern

    FireLantern Notebook Consultant

    Reputations:
    0
    Messages:
    101
    Likes Received:
    24
    Trophy Points:
    31
    Hello there!

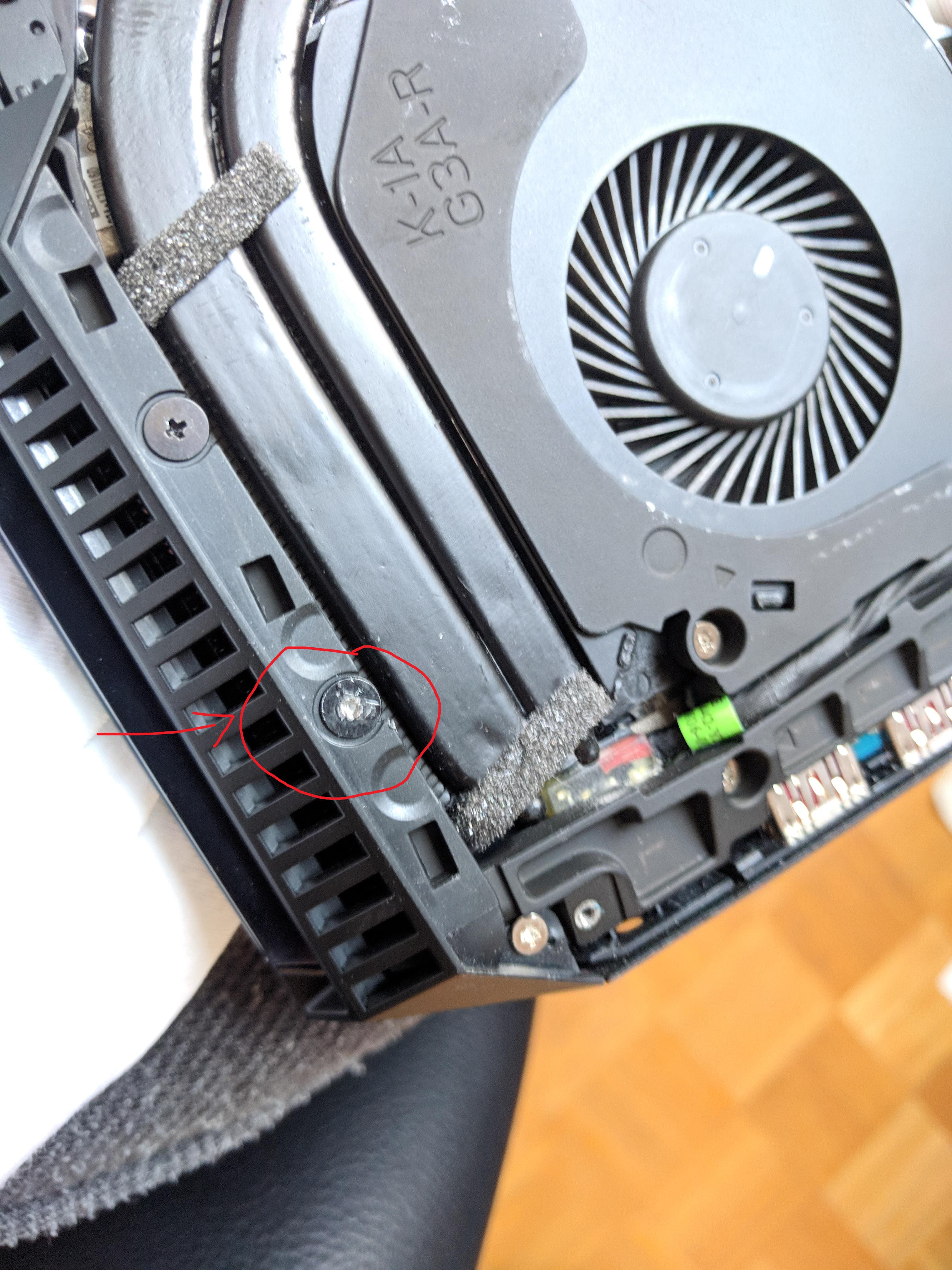

    A few months ago I purchased an Omen 15 ce027 from a retailer that added in 1 ram stick and an m2 SSD. I recently wanted to open it up, clean it up and re-paste it but came into contact with a very stripped screw once inside of the laptop. Now I've tried gently unscrewing the screw using a smaller screwdriver but I managed to destroy the screw even more...
    So any ideas how to get around this situation?
    [​IMG]

    FireLantern, Jun 8, 2018
    #1
  2. senso

    senso Notebook Deity

    Reputations:
    560
    Messages:
    1,645
    Likes Received:
    788
    Trophy Points:
    131
    Use a long nose/thin plier and grab it from the sides.

    senso, Jun 8, 2018
    #1
  3. FireLantern

    FireLantern Notebook Consultant

    Reputations:
    0
    Messages:
    101
    Likes Received:
    24
    Trophy Points:
    31
    That might be worth giving it a shot, but the problem is that it's still screwed in. Well as long as I get it out and can replace it with something it will be good I suppose.

    FireLantern, Jun 8, 2018
    #2
  4. senso

    senso Notebook Deity

    Reputations:
    560
    Messages:
    1,645
    Likes Received:
    788
    Trophy Points:
    131
    You grab from the sides and turn a bit, after like 1/4 turn it will be free and you can use a screwdriver to unscrew it, then, replace the screw.

    senso, Jun 8, 2018
    #2
  5. Starlight5

    Starlight5 Yes, I'm a cat. What else is there to say, really?

    Reputations:
    826
    Messages:
    3,230
    Likes Received:
    1,643
    Trophy Points:
    231
    @FireLantern cover everything with bubble-wrap, make a cutout for the screw and tape all edges, use a dremel to make a notch, unscrew with flathead. That's how I dealt with a stripped screw on my laptop's heatsink. Only you need to tape surroundings very well, if metal dust comes in contact with the motherboard you're screwed.

    Starlight5, Jun 8, 2018
    #3
    ellalan and KY_BULLET like this.
  6. FireLantern

    FireLantern Notebook Consultant

    Reputations:
    0
    Messages:
    101
    Likes Received:
    24
    Trophy Points:
    31
    Off, that sounds very risky. I mean I'm willing to try anything at this point so if the plier method will fail I guess I could turn to this :/

    FireLantern, Jun 8, 2018
    #4
  7. alexhawker

    alexhawker Spent Gladiator

    Reputations:
    500
    Messages:
    2,540
    Likes Received:
    792
    Trophy Points:
    131
    alexhawker, Jun 11, 2018
    #5
