    Homemade "cooling pad"

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by Morannon, Oct 30, 2005.

  1. Morannon

    Morannon Notebook Enthusiast

    Reputations:
    18
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    [​IMG]

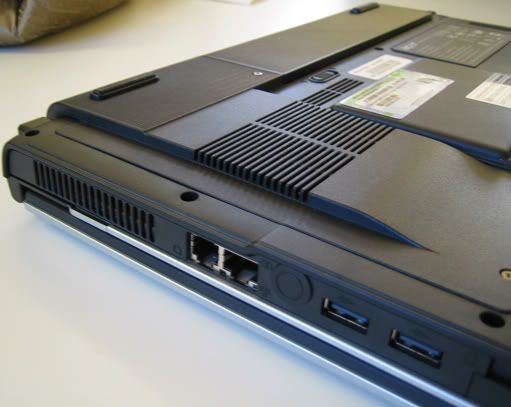

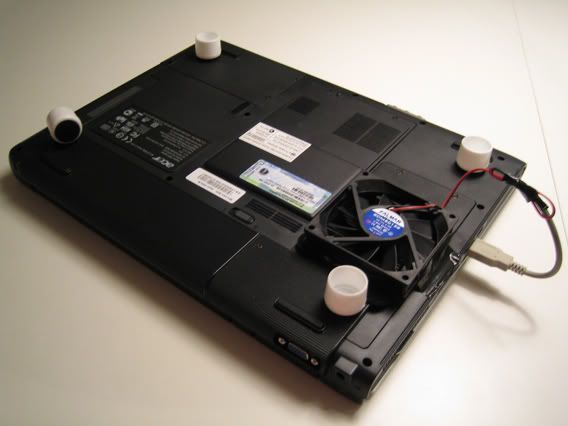

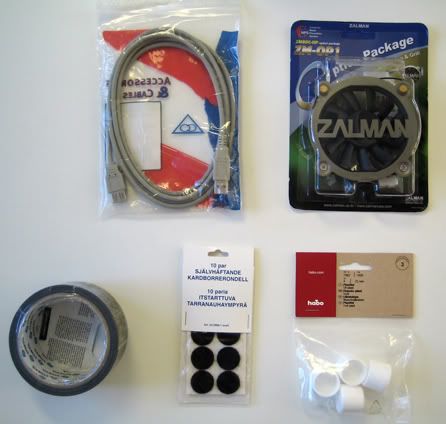

    This is an Aspire 3000. Like all notebooks it has a temperature controlled fan, but unlike most other notebooks this one was forged by Satan himself. The fan is on most of the time and makes a very annoying sound, even while surfing. It turns on at 42 C so to keep it lower than that, I constructed my own cooling pad. I simply connected a fan to a USB port and sticked it where it was hot. Just connect the fan's red and black wires to the USB's red and black. The USB dillivers 5 V so the fan goes nice and slow.

    [​IMG]

    [​IMG]

    [​IMG]

    It worked surprisingly well. The temp is mostly at 38-39 C but I haven't tested it for longer than 1 h yet. I can only hear the fan if I but my head close to it. I found out the fan worked best if it sucked the warm air out of the computer instead of blowing cold air in.

    Morannon, Oct 30, 2005
    #1
  2. jegHegy

    jegHegy Notebook Enthusiast

    Reputations:
    8
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15
    ghetto! :D

    edit: you should see the cooling i did for my desktop...huge standing room fan laid on the floor facing the open PC case.

    jegHegy, Oct 30, 2005
    #2
  3. Morannon

    Morannon Notebook Enthusiast

    Reputations:
    18
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    It takes a man to stick tape to a laptop. :D

    Morannon, Oct 30, 2005
    #3
  4. Charles P. Jefferies

    Charles P. Jefferies Lead Moderator Super Moderator

    Reputations:
    22,339
    Messages:
    36,639
    Likes Received:
    5,080
    Trophy Points:
    931
    That's awesome!!! :D

    What an innovative idea - great thinking! Sounds like your notebook is really cooling down.

    Anyways, thanks for posting!

    Chaz

    Charles P. Jefferies, Oct 30, 2005
    #4
  5. coriolis

    coriolis Notebook Nobel Laureate

    Reputations:
    2,319
    Messages:
    14,119
    Likes Received:
    1
    Trophy Points:
    455
    coriolis, Oct 30, 2005
    #5
  6. I23

    I23 Notebook Geek

    Reputations:
    18
    Messages:
    85
    Likes Received:
    0
    Trophy Points:
    15
    lol@satan... :)

    I23, Oct 30, 2005
    #6
  7. Morannon

    Morannon Notebook Enthusiast

    Reputations:
    18
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    Morannon, Oct 31, 2005
    #7
  8. cheziyi

    cheziyi Notebook Consultant

    Reputations:
    46
    Messages:
    220
    Likes Received:
    0
    Trophy Points:
    30
    Hey... i should also show you guys what i did... it really keeps down my notebook temp. Will post it when i get home.

    cheziyi, Oct 31, 2005
