    How do I find out if my M. 2 SSD is NVMe supported?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by Simona Simmy, Nov 21, 2015.

  1. Simona Simmy

    Simona Simmy Notebook Consultant

    Reputations:
    13
    Messages:
    126
    Likes Received:
    15
    Trophy Points:
    31
    Hey guys I have purchased
    laptop which has m.2 ssd and it supposed to be connected via pcie x4 but instead it is via ancient ahci..
    don't know why they didn't put it via pcie
    SSD is M.2 Toshiba HG6 SATA M.2 128GB THNSNJ128G8NU

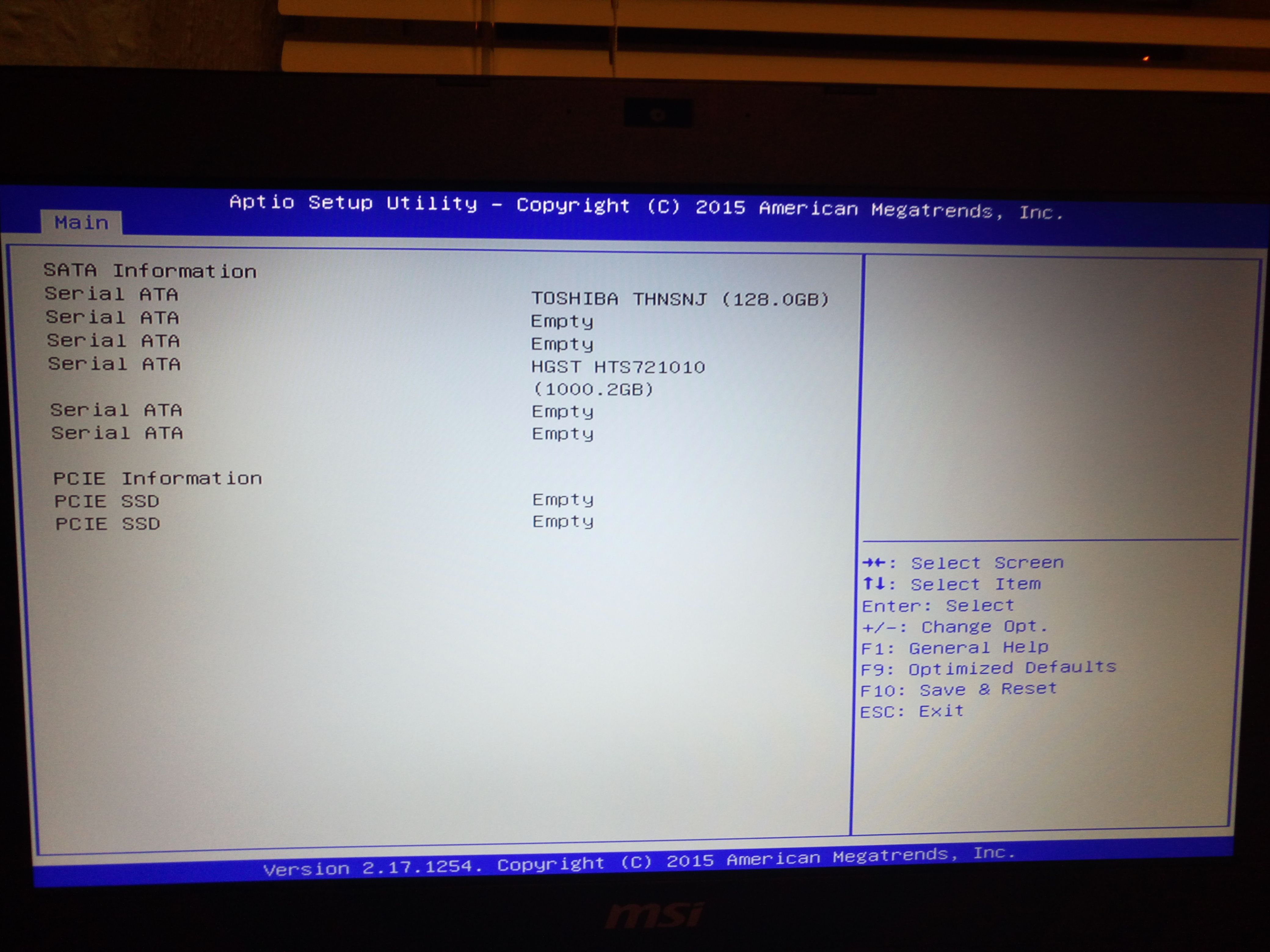

    Attached Files:

    Last edited: Nov 22, 2015
    Simona Simmy, Nov 21, 2015
    #1
  2. TomJGX

    TomJGX I HATE BGA!

    Reputations:
    1,456
    Messages:
    8,707
    Likes Received:
    3,315
    Trophy Points:
    431
    What bloody laptop is it first?

    TomJGX, Nov 21, 2015
    #2
    alexhawker and Spartan@HIDevolution like this.
  3. Simona Simmy

    Simona Simmy Notebook Consultant

    Reputations:
    13
    Messages:
    126
    Likes Received:
    15
    Trophy Points:
    31
    i think bloody english is you bcos only english uses that word.. ''blooodyyy'

    Simona Simmy, Nov 21, 2015
    #3
  4. Simona Simmy

    Simona Simmy Notebook Consultant

    Reputations:
    13
    Messages:
    126
    Likes Received:
    15
    Trophy Points:
    31
    The laptop is MSi GS70 6QE

    Simona Simmy, Nov 22, 2015
    #4
  5. TomJGX

    TomJGX I HATE BGA!

    Reputations:
    1,456
    Messages:
    8,707
    Likes Received:
    3,315
    Trophy Points:
    431
    Hmm.. Its probably the laptop and the SSD.. Never heard of this Toshiba SSD, as far as I'm aware only Samsung and Intel make PCIE ones and GS series has always supported M2 SATA SSDs only... Get a Clevo P670/671 if you want M2 Pcie support...

    Sent from my LG-H811 using Tapatalk

    TomJGX, Nov 22, 2015
    #5
  6. Simona Simmy

    Simona Simmy Notebook Consultant

    Reputations:
    13
    Messages:
    126
    Likes Received:
    15
    Trophy Points:
    31
    This is new latest skylake laptop with dd4 rams
    on official site says NVMe M.2 SSD by PCIe Gen3 X4 up to 2200MB/s speed
    http://www.msi.com/product/notebook/GS70-6QE-Stealth-Pro.html#hero-overview
    or this korean guy has NVMe speeds on same laptop.. http://itcm.co.kr/review/403758
    I guess I need to buy Samsung M.2 SSD with NVMe support ..
    Think this Toshiba SSD does not support it..
    That is why I was asking IF there is any soft ; which detects and show if particular M.2 SSD supports NVMe ..I think there is no any yet.. :)

    Simona Simmy, Nov 22, 2015
    #6
  7. Game7a1

    Game7a1 ?

    Reputations:
    529
    Messages:
    3,159
    Likes Received:
    1,040
    Trophy Points:
    231
    It is a SATA III M.2, so it most likely, rather, certainly won't support NVME.

    Game7a1, Nov 23, 2015
    #7
  8. Simona Simmy

    Simona Simmy Notebook Consultant

    Reputations:
    13
    Messages:
    126
    Likes Received:
    15
    Trophy Points:
    31
    yeah gonna sell this todhiba and order samsung one

    Simona Simmy, Nov 23, 2015
    #8
