    How does throttling work?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by afireinside, May 27, 2009.

  1. afireinside

    afireinside Notebook Consultant

    Reputations:
    17
    Messages:
    125
    Likes Received:
    0
    Trophy Points:
    30
    My performance goes down the drain completely when on battery and it never made any sense because CPUZ would read that I'm running at full speed. Today I was looking at the RMclock monitoring while on battery and I noticed that even though the multiplier was as 11x and CPU core clock was 1830mhz, the "throttle" was much lower. (450 idle, ~800 load). I assume these are the ACTUAL CPU speeds that I'm getting on battery. How exactly does that work though? And why does CPUZ read an incorrect clock speed?

    afireinside, May 27, 2009
    #1
  2. afireinside

    afireinside Notebook Consultant

    Reputations:
    17
    Messages:
    125
    Likes Received:
    0
    Trophy Points:
    30
    anyone? I can't be the only person confused by this...

    afireinside, May 31, 2009
    #2
  3. namaiki

    namaiki "basically rocks" Super Moderator

    Reputations:
    3,905
    Messages:
    6,116
    Likes Received:
    89
    Trophy Points:
    216
    I am a little confused..
    Could you post up two or three screenshots of CPU-z and RMClock together to demonstrate?

    namaiki, May 31, 2009
    #3
  4. Tinselworm

    Tinselworm Notebook Deity

    Reputations:
    1,303
    Messages:
    1,307
    Likes Received:
    0
    Trophy Points:
    0
    throttling simply reduces the multiplier, CPU-Z might have trouble recognising this changing, unless it is changing the FSB

    Tinselworm, May 31, 2009
    #4
  5. afireinside

    afireinside Notebook Consultant

    Reputations:
    17
    Messages:
    125
    Likes Received:
    0
    Trophy Points:
    30

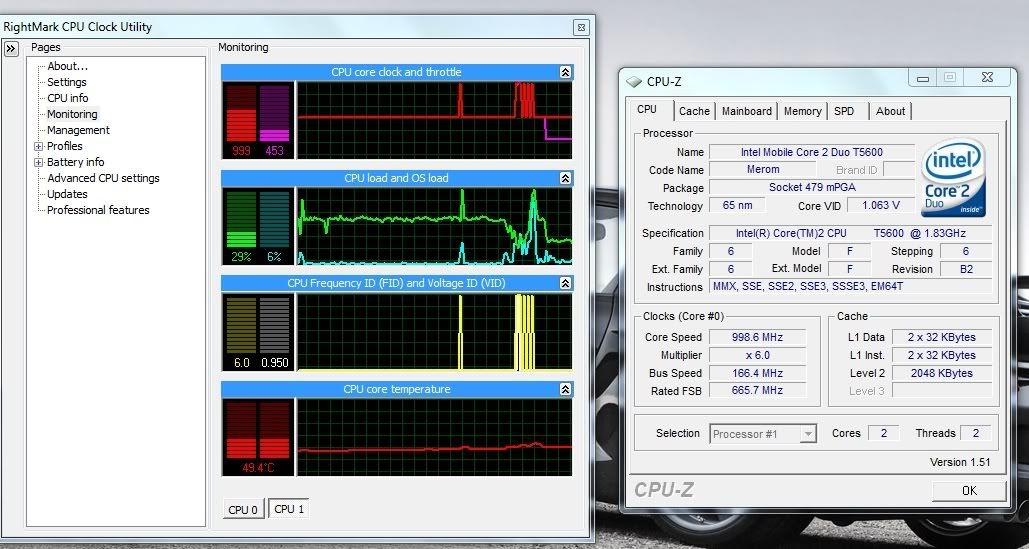

    [​IMG]

    Idle on battery. 453mhz? It certainly performs like 453mhz to because I've locked 1ghz on AC power and it is much faster.

    afireinside, May 31, 2009
    #5
  6. Tinselworm

    Tinselworm Notebook Deity

    Reputations:
    1,303
    Messages:
    1,307
    Likes Received:
    0
    Trophy Points:
    0
    its quite toasty for only 1Ghz, considering that i have a 2.4Ghz and it runs in the 30's (T8300), the XPSM1210 is old, the temperature sensors may be broken

    Tinselworm, Jun 1, 2009
    #6
