    How to change NEC ad-5540a DVD Burner fascia?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by Teetime, Mar 28, 2007.

  1. Teetime

    Teetime Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Can anyone advise me how to remove the fascia from the NEC ad-5540a DVD burner?

    BACKGROUND
    I bought this DVD burner to replace the GCC-4240N in my Dell Inspiron 8200. It works fine but in my original research I learned that another Inspirion 8200 owner was able to replace the ad-5540a fascia with the Dell-specific one from the GCC-4240a. This makes for a better fit in the 8200. I have been able to remove the fascia from GCC-4240, but I can't figure out how to remove the one from the NEC ad-5540a. Anyone know how?

    Thanks,

    Jerry

    Teetime, Mar 28, 2007
    #1
  2. John Ratsey

    John Ratsey Moderately inquisitive Super Moderator

    Reputations:
    7,197
    Messages:
    28,841
    Likes Received:
    2,166
    Trophy Points:
    581

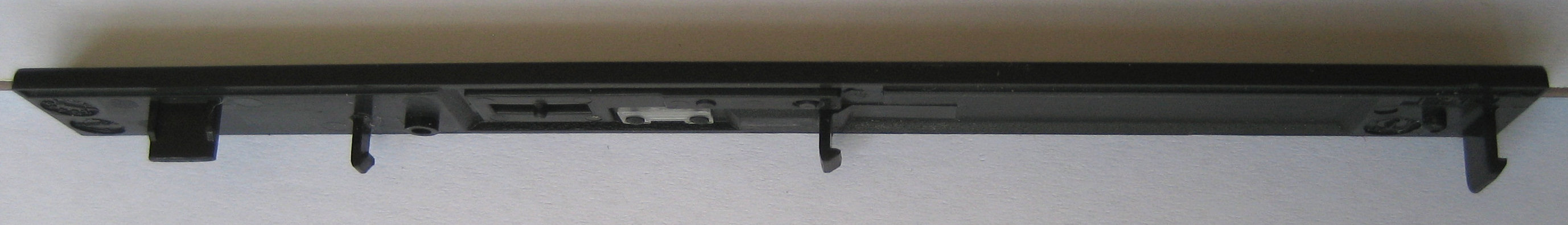

    I don't know the NEC ODD, but I've changed the fascias on various models. They are usually held on a a series of plastic hooks which you can see in the attached photo. Get a small screwdriver so that you can gently lever over the hooks from the back. I find it is usually only necessary to spring the two end hooks and then the fascia will move sideways slightly and the others will become released without any force.

    John


    Attached Files:

    John Ratsey, Mar 28, 2007
    #2
