    How to know the CLOCK Generator name??? On HP dv6

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by saebasan, Aug 17, 2009.

  1. saebasan

    saebasan Notebook Guru

    Reputations:
    3
    Messages:
    68
    Likes Received:
    0
    Trophy Points:
    15
    I even opened this HP computer, and I didn't find something which look like a clock generator... :rolleyes:

    Is someone who know how to find the clock generator name/type?

    saebasan, Aug 17, 2009
    #1
  2. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    you should be able to find it.

    it may be near a small crystal that says"14.318".
    look at every chip on the notebook.

    Also be aware that some silego chips are square (not rectangle like most).

    If you can take some good quality photos, I can help you spot it :)

    moral hazard, Aug 17, 2009
    #2
  3. The_Moo™

    The_Moo™ Here we go again.....

    Reputations:
    3,973
    Messages:
    13,930
    Likes Received:
    0
    Trophy Points:
    455
    The_Moo™, Aug 17, 2009
    #3
  4. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    check the thread in my sig about setfsb and clockgen for photos of my PLL :)

    moral hazard, Aug 17, 2009
    #4
  5. saebasan

    saebasan Notebook Guru

    Reputations:
    3
    Messages:
    68
    Likes Received:
    0
    Trophy Points:
    15
    Thank you so much for your answers.

    And sorry to take your time for that.
    In fact, I'm not totally a beginner. And just by reading your differant messages on differant posts, I should be able to find it alone with the explainations you gave.

    BUT, in these case, I even not able to find "the precious" crystal... :p
    It's like if there is no crystal on this motherboard. Could it be possible, that a new clock generator type(or a chip in general) include the crystal (or another frequency generator) in itself??? :confused:

    It's quite difficult to take clear pics but I took some:
    Two of the CPU side:
    http://img13.imageshack.us/i/dsc02604g.jpg/
    http://img151.imageshack.us/i/dsc02606p.jpg/
    Two of the other side:
    http://img194.imageshack.us/i/dsc02600v.jpg/
    http://img181.imageshack.us/i/dsc02672.jpg/
    In this last pics, there is one chip where it's write "24.576" on it. In my case, could it be that, the crystal...

    saebasan, Aug 17, 2009
    #5
  6. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    don't worry too much about finding the crystal.

    My crystal was on the other side of the motherboard, not exactly near the PLL. Also myne looked gold, and nothing like the crystal on the desktop motherboards shown above.


    one of these may be your PLL:

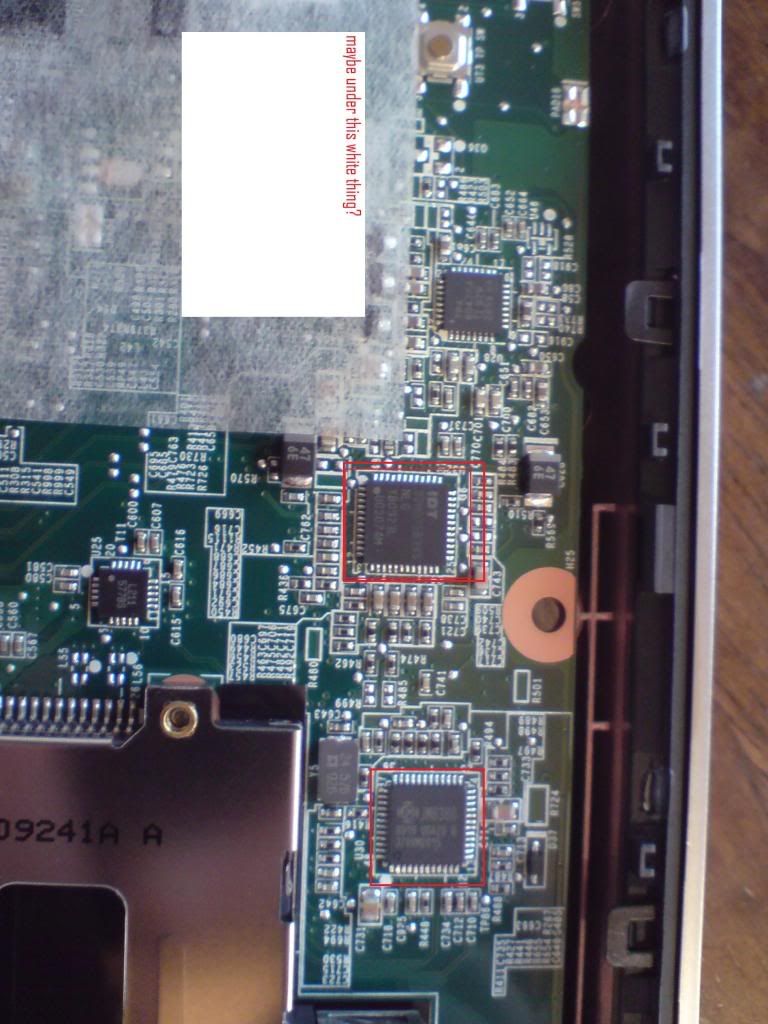

    [​IMG]


    *I drew a red square around them*

    Also it could be under the white thing.


    one of them is an IDT chip (IDT makes the ISC PLLs I believe).
    what does it say on the chip?

    moral hazard, Aug 17, 2009
    #6
  7. saebasan

    saebasan Notebook Guru

    Reputations:
    3
    Messages:
    68
    Likes Received:
    0
    Trophy Points:
    15
    Mmmm, yes I thought like you. I took out this white thing... :D
    But nothing seems to be interresting under it.
    In my case this IDT chip is for sound, the realtek one just next to it, is for network...

    For moment, I'm quite lazy to open one more time my laptop, it is really difficult to open it :nah:
    However I looked really precisly on the motherboard :rolleyes2: , but nothing with 14.xxx on it, nothing which looked like a clock generator.
    Next time I open it, I will have a much better look... :mad2: and take a pics of each chip.

    I just wondered if there is not a software way to find out this clock generator name???

    saebasan, Aug 18, 2009
    #7
  8. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    there is some software, give me 1 second to find it for you.

    moral hazard, Aug 18, 2009
    #8
  9. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    moral hazard, Aug 18, 2009
    #9
  10. saebasan

    saebasan Notebook Guru

    Reputations:
    3
    Messages:
    68
    Likes Received:
    0
    Trophy Points:
    15
    Yes, I already installed it. But nothing with Sandra, I will try a newer version, and next time I open my laptop I will take more care... :eek:

    saebasan, Aug 18, 2009
    #10
  11. NJoy

    NJoy Няшka

    Reputations:
    379
    Messages:
    857
    Likes Received:
    1
    Trophy Points:
    31
    does it look familiar?


    NJoy, Aug 18, 2009
    #11
  12. saebasan

    saebasan Notebook Guru

    Reputations:
    3
    Messages:
    68
    Likes Received:
    0
    Trophy Points:
    15
    In Sandra 15.99, section LPC Hub controler, I have:

    OEM Device name : Intel (ICH9M) LPC interface controler
    Advanced TCO mode support : Yes
    Hight precision timer enabled : Yes
    Number of precision timers : 4
    System timer: 14.32Mhz

    And so on...

    COULD IT BE THAT, my clock generator??? :confused:
    The ICH9M from intel???

    saebasan, Aug 18, 2009
    #12
  13. saebasan

    saebasan Notebook Guru

    Reputations:
    3
    Messages:
    68
    Likes Received:
    0
    Trophy Points:
    15
    Good try :p
    No, on an other pic, I can read that it's an ISL6251 which control 'battery charging'...
    Thanks

    saebasan, Aug 18, 2009
    #13
  14. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    no, that's the intel southbridge.


    that looks a bit to small to be it. But it is definatly worth double checking.
    who knows, it just might be it.

    moral hazard, Aug 18, 2009
    #14
  15. saebasan

    saebasan Notebook Guru

    Reputations:
    3
    Messages:
    68
    Likes Received:
    0
    Trophy Points:
    15
    Yes, you are right.
    I read over all the ICH9M datasheet, there is no mention about configuring the FSB clock speed, and one diagram show the clock generator as external of the ICH9M... :(

    I was dreaming, perhaps in the new ICH9M, Intel included the clock generator in it. :rolleyes:

    Anyway, I have no information about a "system clock generator" with Sandra. So definitively I should find it by myself on the motherboard, to be continued...

    saebasan, Aug 18, 2009
    #15
  16. saebasan

    saebasan Notebook Guru

    Reputations:
    3
    Messages:
    68
    Likes Received:
    0
    Trophy Points:
    15
    OK :p

    I finally find out this **dff***$$$£à chipset, which was hidden under this 'white thing' as you said moral hazard ;)

    In fact, I checked before under it, but as this 'white thing' is like a scotch tape it took all the ink on the chip. So it was un-readable...

    I finally opened my eyes BIGGER :eek: , and find that is a Seligo SLG8SP513V

    The conclusion of this story, it's almost impossible to find it by soft. :(

    P.S. I took some pics if someone need, just ask

    saebasan, Aug 20, 2009
    #16
  17. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    A bit of a typo there, should be S il ego.
    anyway I happy to hear that you found it.

    BTW that PLL is supported by setfsb:
    http://www13.plala.or.jp/setfsb/

    But I think your chipset is not supported.
