    How to remove the notebook HDD's adapter tht sits over the pins?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by japss1977, Oct 16, 2009.

  1. japss1977

    japss1977 Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    How to remove the notebook HDD's adapter tht sits over the pins?
    Hi
    My laptop hdd is not booting up and I wanted to recover data by connecting it to my desktop. But I could not find the pins in the HDD to connect through the IDE cable. Then I come across the thread, http://forum.notebookreview.com/showthread.php?t=201970

    Could someone help me to remove the small adaptor that sits over the pins to turn them into contacts. I could not figure out how to remove it so that it can be connected to the IDe.
    Thanks!

    japss1977, Oct 16, 2009
    #1
  2. garetjax

    garetjax NBR Freelance Reviewer NBR Reviewer

    Reputations:
    1,706
    Messages:
    1,681
    Likes Received:
    0
    Trophy Points:
    55
    The adapter (which should be black and thin) can be removed by gently prying on one side and then the other. Since it is an IDE hard drive, the pin area is a lot more prone to damage than a SATA drive so bending a pin is extremely easy to do. Just take your time, and slowly work the adapter off.

    As far as getting data off your IDE notebook drive, is the following what you are thinking?

    http://www.datapro.net/products/laptop-ide-hard-drive-adaptor.html

    garetjax, Oct 16, 2009
    #2
  3. japss1977

    japss1977 Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Thank you for the quick response.

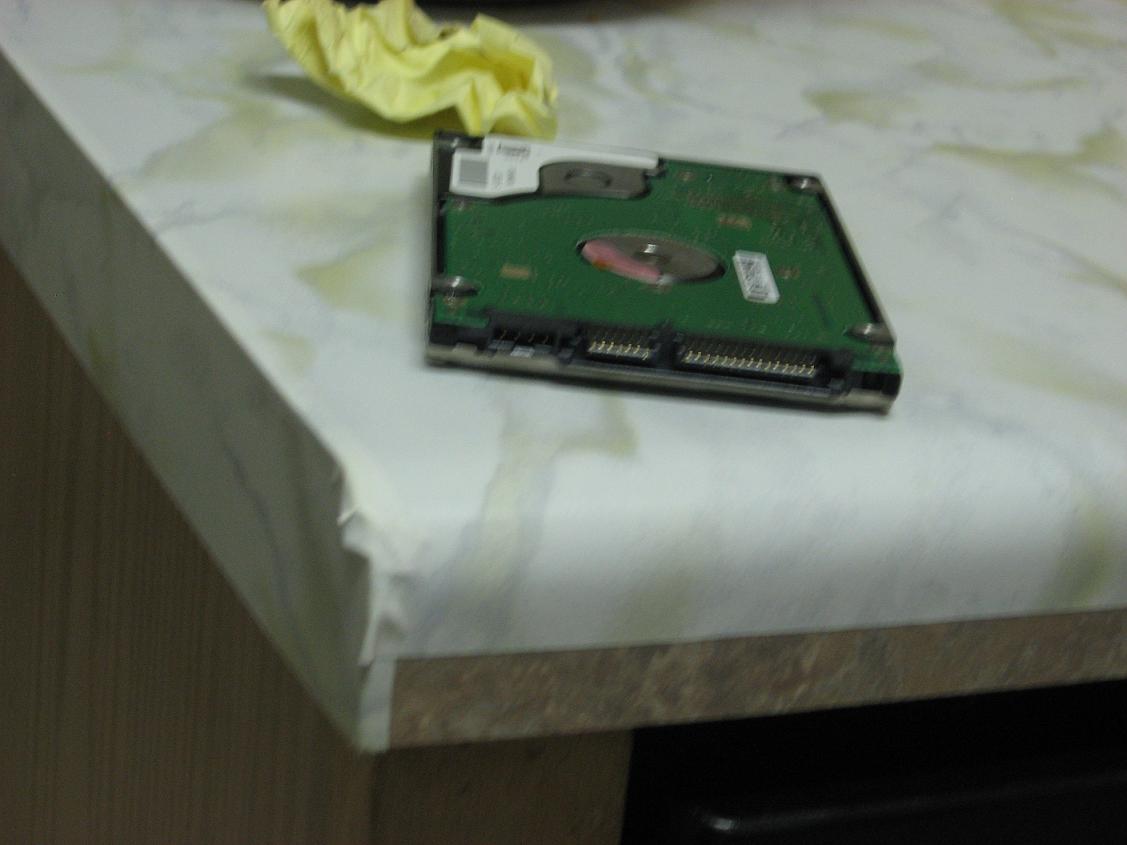

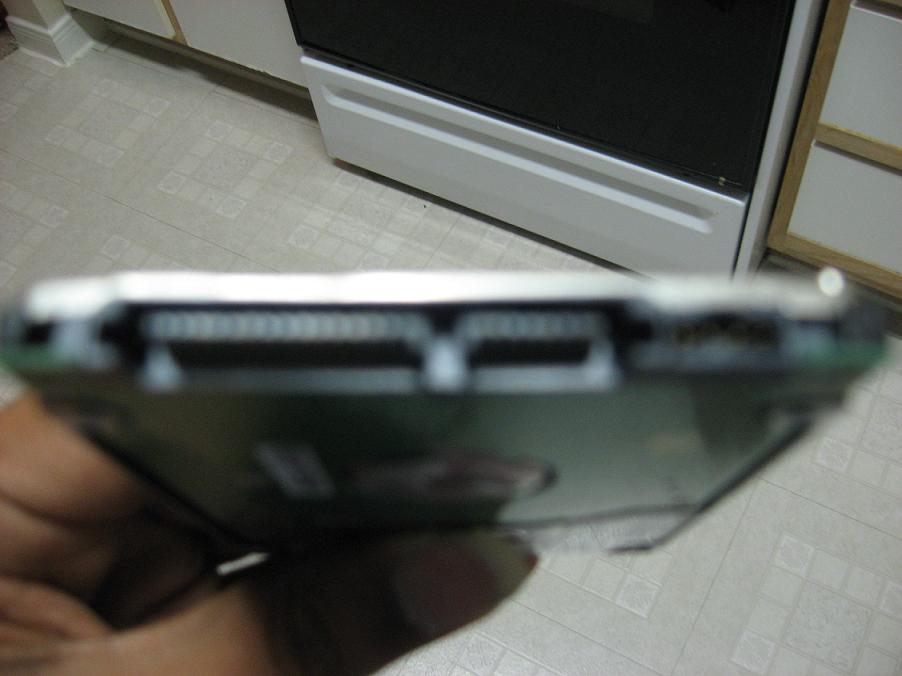

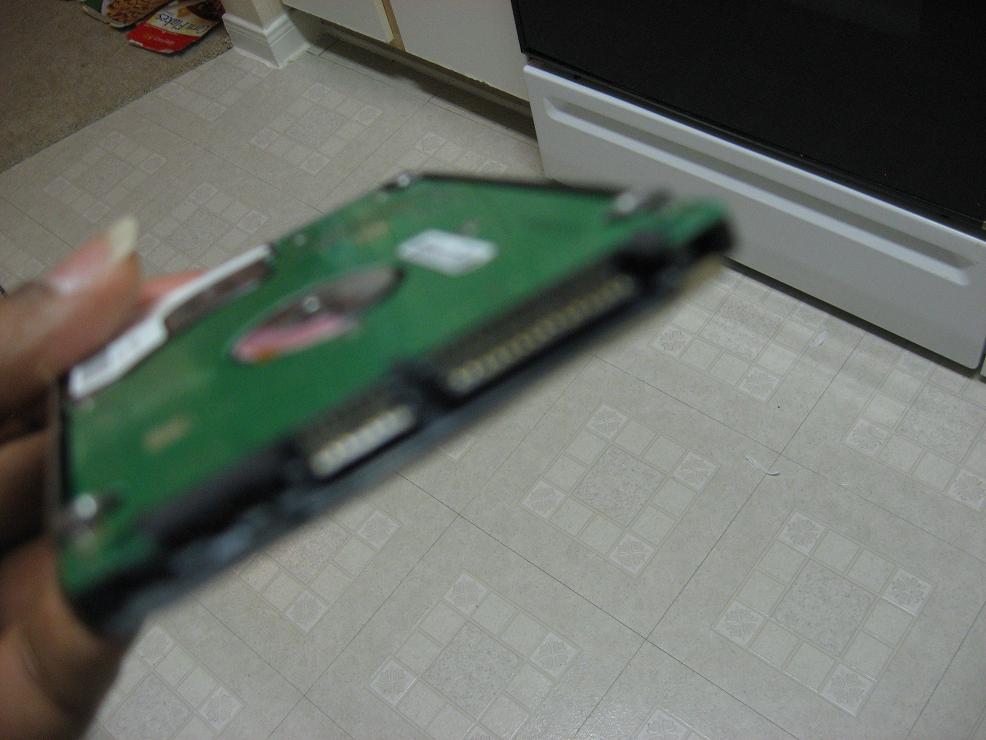

    I bought exactly the same Laptop IDE HDD adapter from Cables To Go. But then I noticed my disk does not have 40pin instead it has 25+ pins.

    And I could not remove the adapter (the blank and thin one) that sits over the pin because I could not see anyway to push the adapter from the left side.

    Is this type of disk needs special attention? I am not sure but read it on somewhere - is it called interposer card? What kind of interface I need to connect it to my desktop? Please help.

    Thanks!


    Attached Files:

    japss1977, Oct 17, 2009
    #3
  4. octagonalman

    octagonalman Notebook Guru

    Reputations:
    2
    Messages:
    52
    Likes Received:
    0
    Trophy Points:
    15
    While all of the photos seem out of focus, it does appear to be more like SATA.

    octagonalman, Oct 17, 2009
