    Installing an SSD into Sager NP8268s

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by Taffyrooster, Aug 11, 2014.

  1. Taffyrooster

    Taffyrooster Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    I recently bought a Sager NP8268s laptop with a 1TB HDD, and I bought a 2.5'' samsung 840 EVO 500gb because I thought the laptop housed three 2.5" drives. Upon investigating where it would go, I realized there is no way it would house three drives of that size. So I looked back at the tech specifications, and it says:
    2 x Mini-Card Slot for WLAN
    One for WLAN Combo module (Half size Mini Card with PCIe and USB interface)
    One for mSATA SSD Full size Mini Card with SATA interface

    So I have two questions: Would this product (Samsung EVO 500gb) work with my laptop?
    http://www.amazon.com/dp/B00HWHVOQS/ref=twister_B00ISJDX4K
    If not, could you link an SSD that is the proper size/ shape and has 500gb?

    Secondly, where is this port located on the computer? I popped open the back panel and I see some ram slots, but I don't see any place where this should go. I saw an image on google images along with some brief instructions that look like the sager I bought, but I don't know if it is the right one. ( AnandTech Portal | Eurocom Racer: Why the Radeon HD 6970M Rocks)

    Thanks in advance!

    Taffyrooster, Aug 11, 2014
    #1
  2. Taffyrooster

    Taffyrooster Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    The sager's tech specs also say this in reference to the "standard hard drive": 750GB 7200RPM Hard Drive (Upgradeable)
    1 Detachable 2.5" 9.5mm (H) SATA Hard Disk Drive + Coexisting 2 x mSATA SSDs

    Taffyrooster, Aug 11, 2014
    #2
  3. TomJGX

    TomJGX I HATE BGA!

    Reputations:
    1,456
    Messages:
    8,707
    Likes Received:
    3,315
    Trophy Points:
    431
    It can take 1 full sized 2.5" drive + 2 mSATA drives...The one you have listed will work in the mSATA slot..

    TomJGX, Aug 11, 2014
    #3
  4. Taffyrooster

    Taffyrooster Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    Ok great thank you!

    Taffyrooster, Aug 11, 2014
    #4
  5. Bullrun

    Bullrun Notebook Deity

    Reputations:
    545
    Messages:
    1,171
    Likes Received:
    494
    Trophy Points:
    101
    Bullrun, Aug 11, 2014
    #5
  6. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,877
    Trophy Points:
    931
    HTWingNut, Aug 11, 2014
    #6
  7. Bullrun

    Bullrun Notebook Deity

    Reputations:
    545
    Messages:
    1,171
    Likes Received:
    494
    Trophy Points:
    101

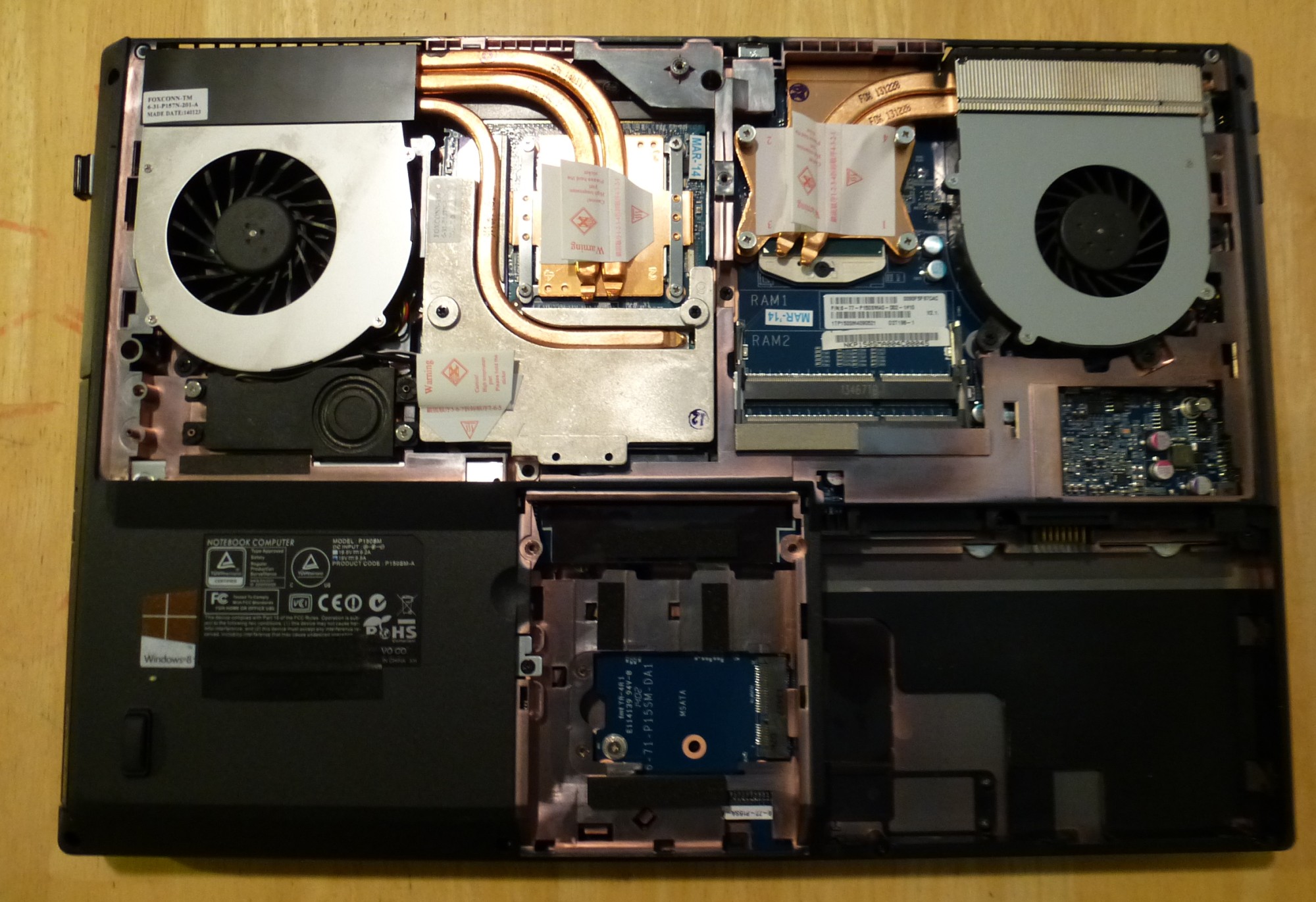

    Yeah, I guess that's one that wouldn't load. The up close on the 2.5" bay loaded.

    EDIT: I see them in the review now :thumbsup:

    Bullrun, Aug 11, 2014
    #7
