    Intel CPU Datasheets - "Embedded Options Available" what does it mean?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by HTWingNut, Jun 4, 2010.

  1. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,877
    Trophy Points:
    931

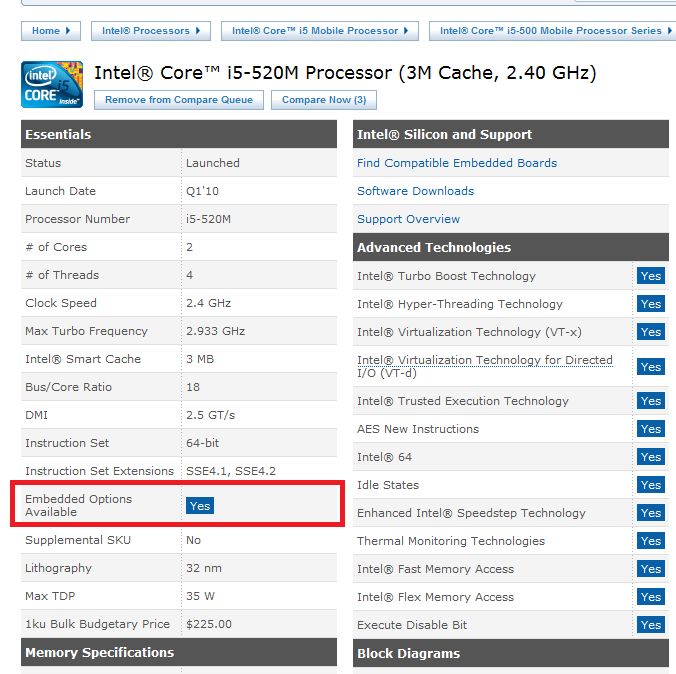

    I was looking at different Intel mobile i5 CPU's and there is a field on the datasheet that says "embedded options available". Many have a "no" and only a few have "yes". What does this option mean and is it important?


    Attached Files:

    HTWingNut, Jun 4, 2010
    #1
  2. JKleiss

    JKleiss Notebook Evangelist

    Reputations:
    261
    Messages:
    660
    Likes Received:
    0
    Trophy Points:
    30
    Embedded, as in soldered to the mainboard. BGA(Ball Grid Array) opposed to PGA(Pin Grid Array). BGA would not be upgrageable without alot of difficulty. PGA/non embedded is a better option

    JKleiss, Jun 4, 2010
    #2
  3. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    http://community.edc.intel.com/t5/N...e-Decoder-amp-Quick-Reference-Guide/bc-p/1377

    Thought someone would say that, believe you are wrong my freind ;)

    moral hazard, Jun 4, 2010
    #3
  4. JKleiss

    JKleiss Notebook Evangelist

    Reputations:
    261
    Messages:
    660
    Likes Received:
    0
    Trophy Points:
    30
    :eek: Whoops me :eek: :eek:

    JKleiss, Jun 4, 2010
    #4
  5. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,877
    Trophy Points:
    931
    Longer life cycle support? What does THAT mean? Just that it's a CPU they intend to build longer than others?

    HTWingNut, Jun 4, 2010
    #5
  6. othonda

    othonda Notebook Deity

    Reputations:
    717
    Messages:
    798
    Likes Received:
    15
    Trophy Points:
    31
    Typically Intel will give you a minimum 7 year life cycle with an embedded version of a processor. This includes the ability to buy for that long, and get technical support from engineering as well. These are used in more industrial designs versus consumer grade designs.

    othonda, Jun 4, 2010
    #6
