    Is mine SATA or IDE?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by ellalan, Dec 18, 2009.

  1. ellalan

    ellalan Notebook Deity

    Reputations:
    336
    Messages:
    1,262
    Likes Received:
    82
    Trophy Points:
    66

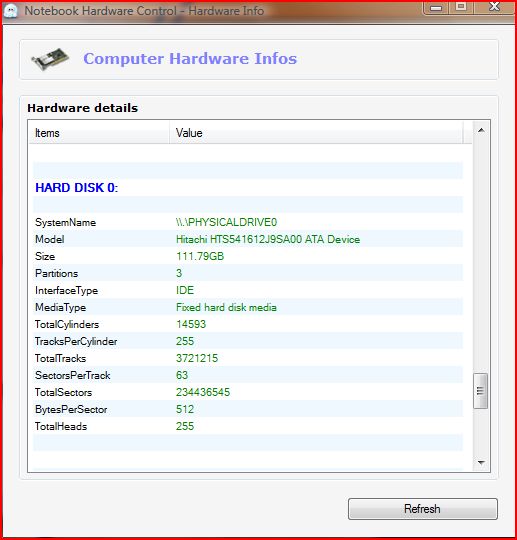

    I am not sure whether to buy SATA drives or IDE drives after seeing this. In Notebook Hardware Control,it says IDE interface but I have been thinking I have a SATA interface in my Acer Aspire 5610Z. Could someone please tell me which one should I buy. Thanks.


    Attached Files:

    ellalan, Dec 18, 2009
    #1
  2. hendra

    hendra Notebook Virtuoso

    Reputations:
    157
    Messages:
    2,020
    Likes Received:
    6
    Trophy Points:
    56
    hendra, Dec 18, 2009
    #2
  3. DetlevCM

    DetlevCM Notebook Nobel Laureate

    Reputations:
    4,843
    Messages:
    8,389
    Likes Received:
    1
    Trophy Points:
    205
    Isn't there a way that SATA can simulate a IDE port?

    DetlevCM, Dec 18, 2009
    #3
  4. namaiki

    namaiki "basically rocks" Super Moderator

    Reputations:
    3,905
    Messages:
    6,116
    Likes Received:
    89
    Trophy Points:
    216
    'Best solution.'

    You're going to have to open up the laptop at some point, so just open it and check the plug, if it's PATA or SATA.

    namaiki, Dec 18, 2009
    #4
  5. weinter

    weinter /dev/null

    Reputations:
    596
    Messages:
    2,798
    Likes Received:
    1
    Trophy Points:
    56
    Converters do exist but IMO it is pointless since it will revert to IDE speeds.

    weinter, Dec 18, 2009
    #5
  6. DetlevCM

    DetlevCM Notebook Nobel Laureate

    Reputations:
    4,843
    Messages:
    8,389
    Likes Received:
    1
    Trophy Points:
    205
    I don't mean a converter.

    But on my SZ....without AHCI it runs at close to Sata speeds while its not actually "feeling" like a SATA connection...but is handled like an IDE connection.

    But apparently the OP has IDE - so that's the way he/she needs to go.

    DetlevCM, Dec 18, 2009
    #6
  7. ellalan

    ellalan Notebook Deity

    Reputations:
    336
    Messages:
    1,262
    Likes Received:
    82
    Trophy Points:
    66
    Thanks a lot you guys, it's more clearer for me. Merry Christmas to All the members.

    ellalan, Dec 18, 2009
    #7
  8. weinter

    weinter /dev/null

    Reputations:
    596
    Messages:
    2,798
    Likes Received:
    1
    Trophy Points:
    56
    Actually there are 2 SATA standards.
    1)SATA Gen1 150mbps
    2)SATA Gen2 300mbps
    PATA has 133mbps
    All the speeds are theoretical you never get close to these numbers.
    To get Gen2 you need Gen2 Controller and Gen2 Disk otherwise it will revert to Gen 1 speeds

    weinter, Dec 18, 2009
    #8
  9. DetlevCM

    DetlevCM Notebook Nobel Laureate

    Reputations:
    4,843
    Messages:
    8,389
    Likes Received:
    1
    Trophy Points:
    205
    I know. And I get Read speeds of 245MB/s - thanks.

    But what does a SATA connector run at without AHCI?
    (Got a read speed of 228MB/s at that time)

    DetlevCM, Dec 18, 2009
    #9
  10. weinter

    weinter /dev/null

    Reputations:
    596
    Messages:
    2,798
    Likes Received:
    1
    Trophy Points:
    56

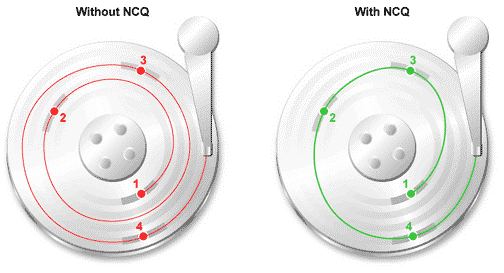

    AHCI has a feature called NCQ.
    Just take a look below the diagrams are self explanatory.

    [​IMG]

    weinter, Dec 18, 2009
    #10
  11. DetlevCM

    DetlevCM Notebook Nobel Laureate

    Reputations:
    4,843
    Messages:
    8,389
    Likes Received:
    1
    Trophy Points:
    205
    How does that work on a SSD....??

    DetlevCM, Dec 18, 2009
    #11
  12. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    moral hazard, Dec 18, 2009
    #12
  13. weinter

    weinter /dev/null

    Reputations:
    596
    Messages:
    2,798
    Likes Received:
    1
    Trophy Points:
    56
    weinter, Dec 18, 2009
    #13
  14. tilleroftheearth

    tilleroftheearth Wisdom listens quietly...

    Reputations:
    5,398
    Messages:
    12,692
    Likes Received:
    2,717
    Trophy Points:
    631

    Quite inaccurate.

    Though you're correct about the physical aspects, NCQ is very much needed and used by SSD's for maximum performance; Intel's maybe more than others (they actually speed up with deeper Queues instead of slowing down, like other SSD based controllers do).

    See:
    http://www.pcper.com/article.php?aid=669&type=expert&pid=3

    tilleroftheearth, Dec 18, 2009
    #14
  15. weinter

    weinter /dev/null

    Reputations:
    596
    Messages:
    2,798
    Likes Received:
    1
    Trophy Points:
    56
    Interesting. Stand Corrected.
    Anyway I feel that SSD is still not ready for primetime.
    I think filesystem layout has to change to better accommodate the way SSD operates.

    weinter, Dec 18, 2009
    #15
  16. tilleroftheearth

    tilleroftheearth Wisdom listens quietly...

    Reputations:
    5,398
    Messages:
    12,692
    Likes Received:
    2,717
    Trophy Points:
    631
    weinter,

    I agree with both your points (until I can test the G2 myself - to be sure).

    Possibly Win 8 may introduce this 'optimum to an SSD file system' in 2012, but I wouldn't doubt it may take a version or two (of O/S's) longer to get it right and get it mainstream over what we have now.

    tilleroftheearth, Dec 18, 2009
    #16
