    Is this a special type of PATA

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by kevinscotland, Jun 2, 2008.

  1. kevinscotland

    kevinscotland Notebook Consultant

    Reputations:
    99
    Messages:
    215
    Likes Received:
    0
    Trophy Points:
    30
    30GB (4, 200RPM) 9.5MM IDE HARD DRIVE

    because i tried to use my alienware pata which was also 2.5" and it had different pins.

    kevinscotland, Jun 2, 2008
    #1
  2. John Ratsey

    John Ratsey Moderately inquisitive Super Moderator

    Reputations:
    7,197
    Messages:
    28,841
    Likes Received:
    2,166
    Trophy Points:
    581
    I can't comment without a photo but check that there is no adaptor on the normal 44 pin connector.

    John

    John Ratsey, Jun 2, 2008
    #2
  3. K-TRON

    K-TRON Hi, I'm Jimmy Diesel ^_^

    Reputations:
    4,412
    Messages:
    8,077
    Likes Received:
    2
    Trophy Points:
    205
    All PATA notebook drives have 39 pins sticking out of the one side. The top row has 20 pins, and the bottom row has 19 pins, with the spacer pin in the middle of the bottom row.
    If you have an adapter on the end of the current drive, you will have to install it on the replacement drive.

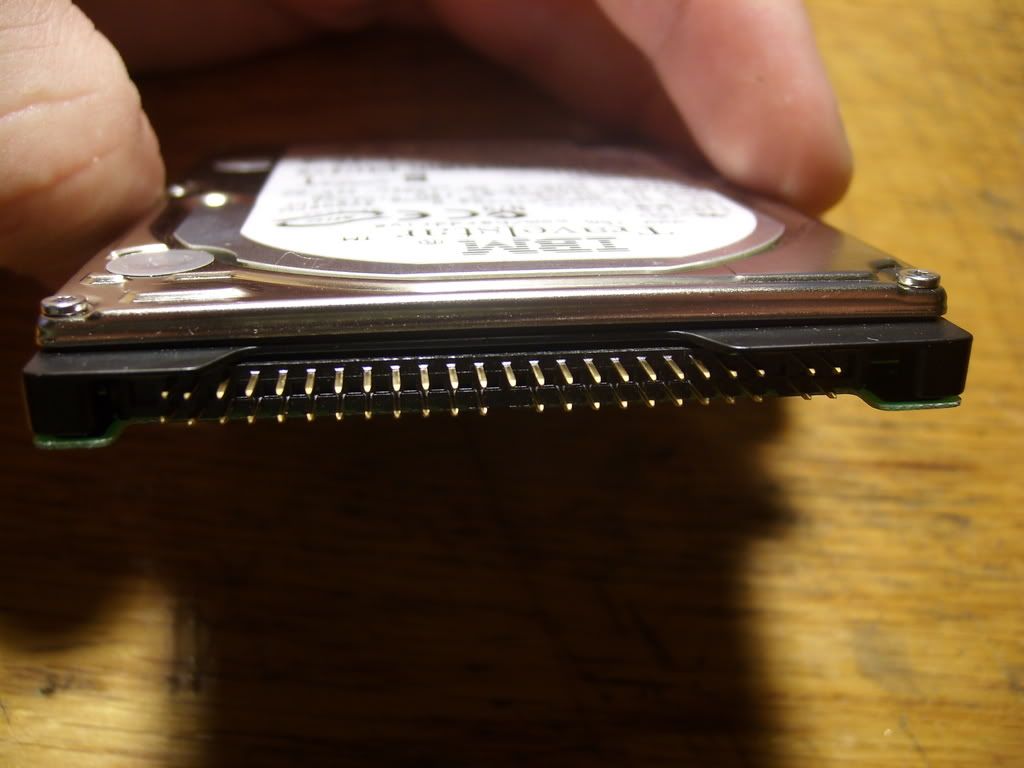

    This is a pata harddrive,
    [​IMG]

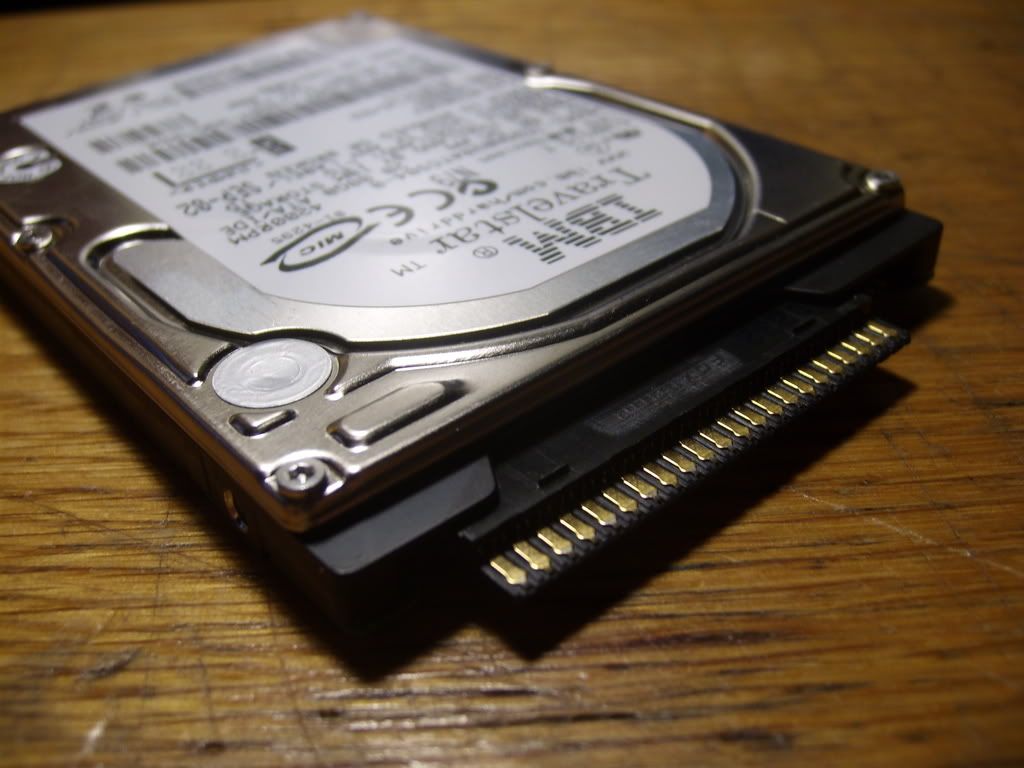

    This is a pata harddrive with a adaptor:
    [​IMG]

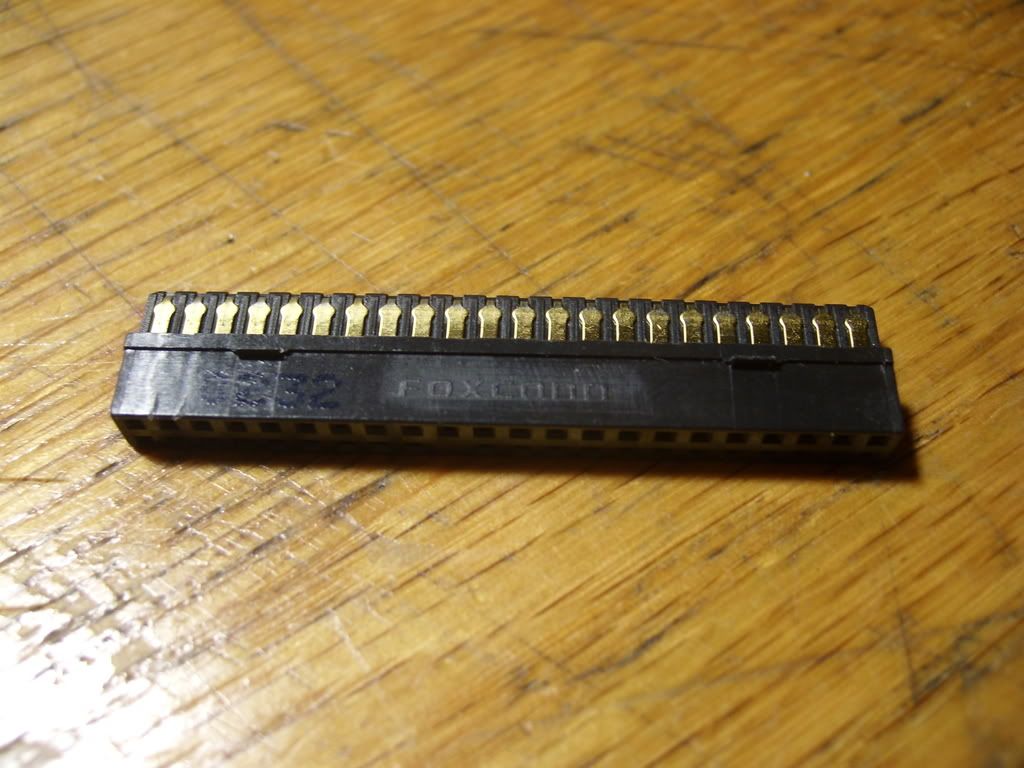

    Adaptor by itself:
    [​IMG]

    K-TRON

    K-TRON, Jun 2, 2008
    #3
  4. bigozone

    bigozone JellyRoll touring now

    Reputations:
    1,112
    Messages:
    2,730
    Likes Received:
    0
    Trophy Points:
    55
    to me it looks like its a standard 44 pin IDE connector,,, i do believe,,, the extra jumpers on the right are most likely MASTER/DLAVE settings

    bigozone, Jun 2, 2008
    #4
