    Kinda forgot to put K5 pro in some of the chips that had thermal grease...

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by Reonu, Aug 19, 2020.

  1. Reonu

    Reonu Notebook Enthusiast

    Reputations:
    28
    Messages:
    36
    Likes Received:
    21
    Trophy Points:
    16
    [​IMG]

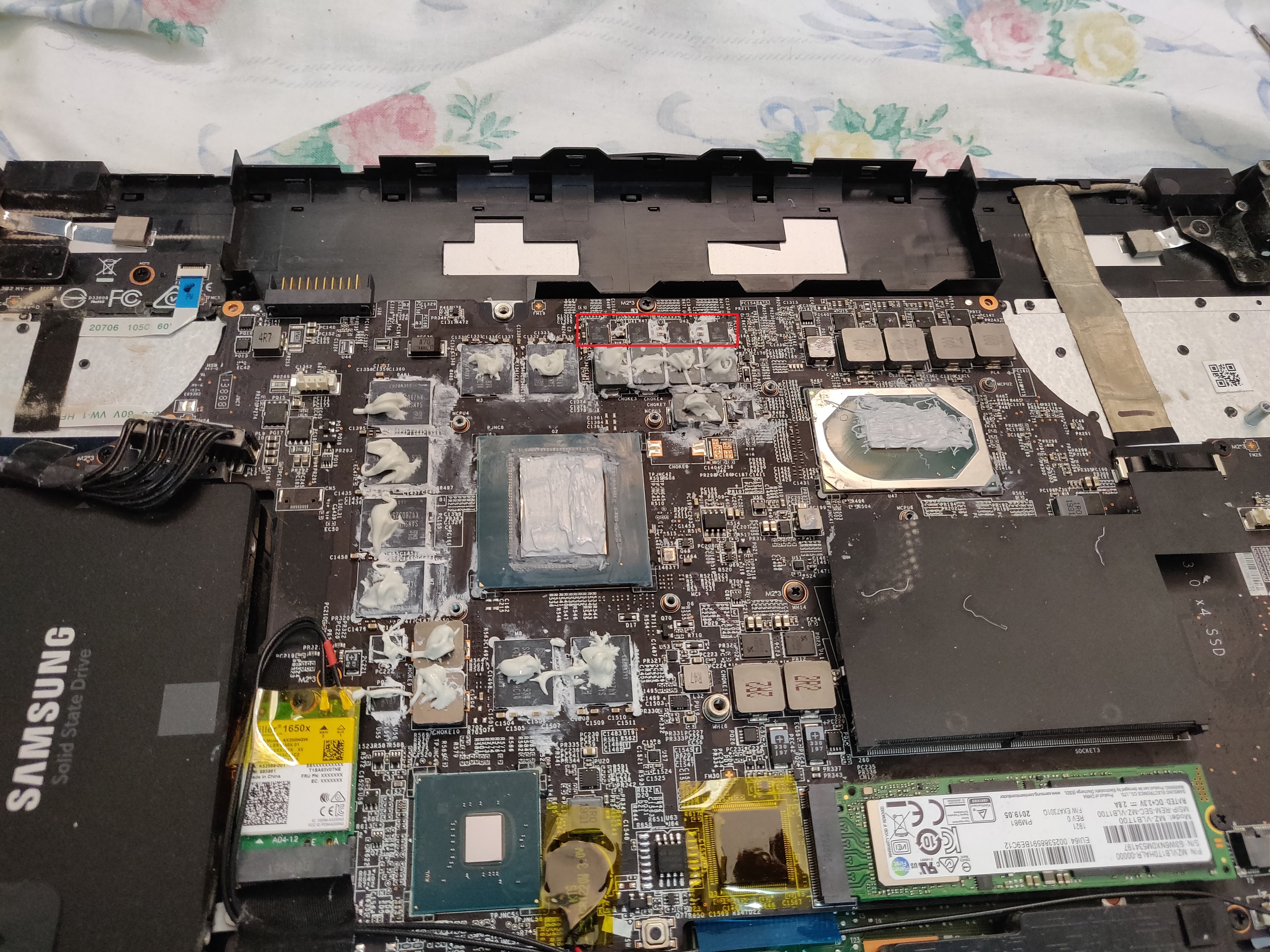

    I forgot to apply K5 pro to these chips marked in red. What are the chances that the paste right below them spread up there anyways? Should I re-open it and repaste AGAIN? lol

    Thanks

    PS: Don't worry, I cleaned up the paste situation in the CPU die after taking this picture, before putting the cooler on. I was, however, unable to remove all these thermal grease leftovers on the motherboard around the VRMs lol it just wouldn't come off

    Reonu, Aug 19, 2020
    #1
  2. senso

    senso Notebook Deity

    Reputations:
    565
    Messages:
    1,645
    Likes Received:
    789
    Trophy Points:
    131
    Those are the VRMs, you WANT to cool them, much more important to put K5 in those chips than in the inductors in fact.
    With a tooth pick, some Q-tips and lots of patience you can clean all that up, but that will take its time.

    senso, Aug 19, 2020
    #2
    Reonu likes this.
  3. Reonu

    Reonu Notebook Enthusiast

    Reputations:
    28
    Messages:
    36
    Likes Received:
    21
    Trophy Points:
    16
    Ugh, fine. After reading your reply I immediately turned the laptop off and opened it up. I repasted everything again. I'm now going to close it and I never want to open this laptop up ever again lol. Thanks!

    Reonu, Aug 19, 2020
    #3
