    Larger DVI conector?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by whitrzac, Oct 29, 2011.

  1. whitrzac

    whitrzac The orange end is cold...

    Reputations:
    497
    Messages:
    1,142
    Likes Received:
    7
    Trophy Points:
    56
    I found this oddball adapter at a thrift store, it has what looks to be a DVI plug(more on that later) to 2 standard VGA outputs.


    The dvi connector isn't a standard DVI/DVI I/DVI D/etc it has all of the pins of a DVI I connector, but it is 10-20% LARGER :confused:

    pics later if no one gets it...

    whitrzac, Oct 29, 2011
    #1
  2. newsposter

    newsposter Notebook Virtuoso

    Reputations:
    801
    Messages:
    3,881
    Likes Received:
    0
    Trophy Points:
    105
    pics.......

    newsposter, Oct 29, 2011
    #2
  3. Tsunade_Hime

    Tsunade_Hime such bacon. wow

    Reputations:
    5,413
    Messages:
    10,711
    Likes Received:
    1,204
    Trophy Points:
    581
    Ya it's DVI but it's like a special kind, goes to 2 x VGA. Alot of old school Dell Precisions/Dimension XPS had them.

    Tsunade_Hime, Oct 29, 2011
    #3
  4. whitrzac

    whitrzac The orange end is cold...

    Reputations:
    497
    Messages:
    1,142
    Likes Received:
    7
    Trophy Points:
    56

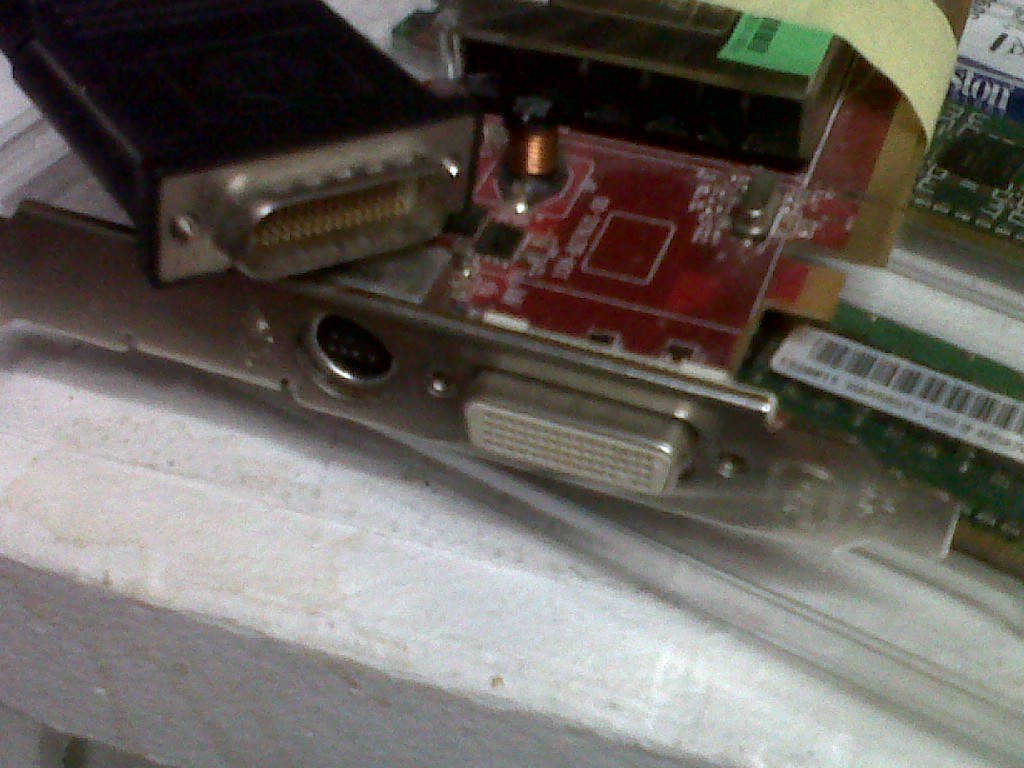

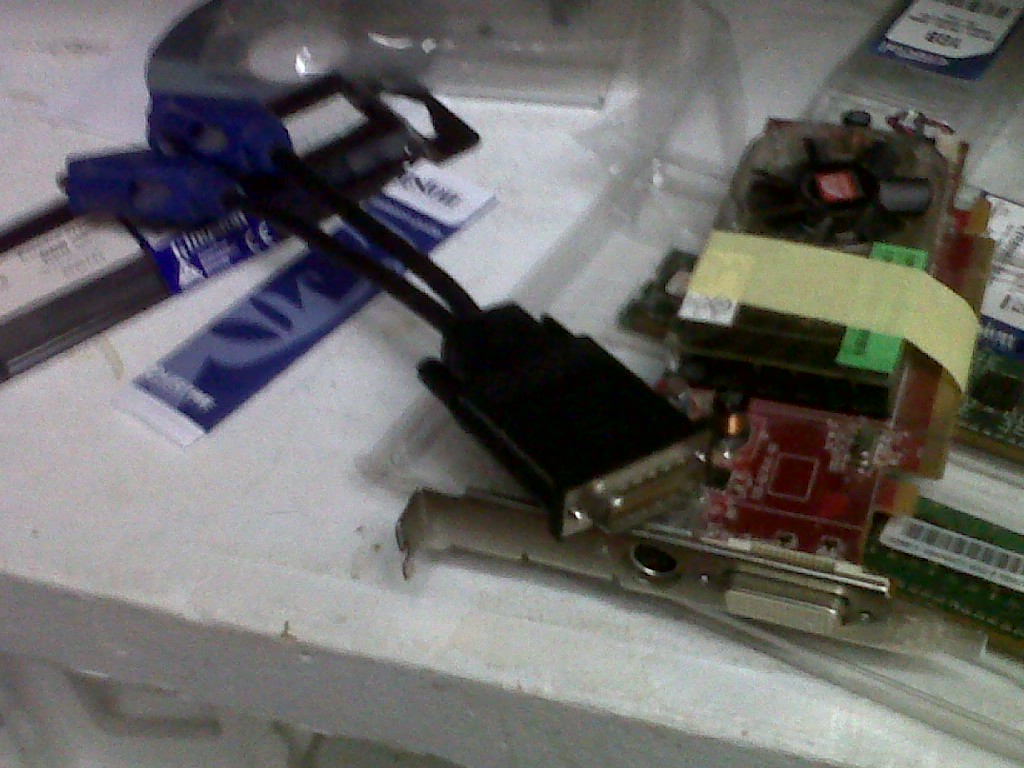

    my phone sucks...
    [​IMG]

    whitrzac, Oct 29, 2011
    #4
  5. KLF

    KLF NBR Super Modernator Super Moderator

    Reputations:
    2,844
    Messages:
    2,736
    Likes Received:
    897
    Trophy Points:
    131
    I'd say it belongs to a Matrox card.

    KLF, Oct 30, 2011
    #5
  6. notyou

    notyou Notebook Deity

    Reputations:
    652
    Messages:
    1,562
    Likes Received:
    0
    Trophy Points:
    55
    I think I remember seeing that type of plug on the Radeon GPUs Dell had in some of their business desktops (Optiplex 740 I think). For whatever reason, the ATI card had some weird proprietary (probably to Dell since that's the only place I've seen these) output so it couldn't use dual displays except when using Dell's provided cable.

    EDIT: pic of the one I remember http://snpi.dell.com/snp/images/products/mlrg/A2587435.jpg

    notyou, Oct 30, 2011
    #6
  7. whitrzac

    whitrzac The orange end is cold...

    Reputations:
    497
    Messages:
    1,142
    Likes Received:
    7
    Trophy Points:
    56
    I have one of those too :rolleyes:

    whitrzac, Oct 30, 2011
    #7
  8. whitrzac

    whitrzac The orange end is cold...

    Reputations:
    497
    Messages:
    1,142
    Likes Received:
    7
    Trophy Points:
    56
    free reps to whomever gets it.... :rolleyes:

    whitrzac, Oct 31, 2011
    #8
  9. Kuu

    Kuu That Quiet Person

    Reputations:
    765
    Messages:
    968
    Likes Received:
    18
    Trophy Points:
    31
    DMS-59 - Wikipedia, the free encyclopedia

    Closest I could come up with. Looks more like dual DVI though.

    I've only seen them in workstation class computers though, they're meant to save space on the bracket so you can run 4 monitors off a single card if you really wanted to and provided the gpu you're using can drive that many.

    Haven't seen any recently though.

    Kuu, Oct 31, 2011
    #9
  10. whitrzac

    whitrzac The orange end is cold...

    Reputations:
    497
    Messages:
    1,142
    Likes Received:
    7
    Trophy Points:
    56
    its close, but its a completely different adapter, I have 1 of those to 2 VGA ports also :rolleyes:

    whitrzac, Oct 31, 2011
    #10
  11. chx1975

    chx1975 Notebook Consultant

    Reputations:
    3
    Messages:
    207
    Likes Received:
    8
    Trophy Points:
    31
    chx1975, Oct 31, 2011
    #11
  12. whitrzac

    whitrzac The orange end is cold...

    Reputations:
    497
    Messages:
    1,142
    Likes Received:
    7
    Trophy Points:
    56
    whitrzac, Oct 31, 2011
    #12
  13. cdoublejj

    cdoublejj Notebook Deity

    Reputations:
    195
    Messages:
    1,123
    Likes Received:
    92
    Trophy Points:
    66
    yes thats mot as common connector and it isn't dvi it's for low profile cards that don't have space for 2 dvi or 2 vga connectors. i've seen several of these and ven used the mi forget that actual name of it. i've see n it on matrox and radeon.

    cdoublejj, Oct 31, 2011
    #13
  14. whitrzac

    whitrzac The orange end is cold...

    Reputations:
    497
    Messages:
    1,142
    Likes Received:
    7
    Trophy Points:
    56
    :confused:


    really, has NBR failed? :eek:

    whitrzac, Nov 1, 2011
    #14
  15. cdoublejj

    cdoublejj Notebook Deity

    Reputations:
    195
    Messages:
    1,123
    Likes Received:
    92
    Trophy Points:
    66
    I think so, they aren't THAT rare and have seen at least 3 of these ports and have seen VGA and DVI variants. in fact i have my self it's at work maybe i should take a pic.

    cdoublejj, Nov 2, 2011
    #15
  16. Star Forge

    Star Forge Quaggan's Creed Redux!

    Reputations:
    1,676
    Messages:
    2,700
    Likes Received:
    10
    Trophy Points:
    56
    I know what it is. It is used for a special dual-monitor system card for some Dell desktops. I know this because my part-time job has computers using said connectors. I will snap a picture of it tomorrow when I am on that particular unit.

    Star Forge, Nov 3, 2011
    #16
  17. cdoublejj

    cdoublejj Notebook Deity

    Reputations:
    195
    Messages:
    1,123
    Likes Received:
    92
    Trophy Points:
    66
    thats exactly where i found my cards, was from dells.

    cdoublejj, Nov 3, 2011
    #17
  18. Star Forge

    Star Forge Quaggan's Creed Redux!

    Reputations:
    1,676
    Messages:
    2,700
    Likes Received:
    10
    Trophy Points:
    56
    Not exactly like yours but it is from a Dell propietary... So case closed??? :p

    [​IMG]

    Star Forge, Nov 4, 2011
    #18
  19. whitrzac

    whitrzac The orange end is cold...

    Reputations:
    497
    Messages:
    1,142
    Likes Received:
    7
    Trophy Points:
    56
    that is a ati dm59(irrc) I had one of those adapters too...

    whitrzac, Nov 4, 2011
    #19
  20. cdoublejj

    cdoublejj Notebook Deity

    Reputations:
    195
    Messages:
    1,123
    Likes Received:
    92
    Trophy Points:
    66
    [​IMG]

    [​IMG]

    cdoublejj, Nov 8, 2011
    #20
  21. chx1975

    chx1975 Notebook Consultant

    Reputations:
    3
    Messages:
    207
    Likes Received:
    8
    Trophy Points:
    31
    No, it's not the LFH-60/DMS-59 , it's VESA Plug and Display - Wikipedia, the free encyclopedia this! Finally figured it out. Really bothered me. (Watch how the LFH-60 is four row of pins and the original photo has three rows plus a "hook" which is also missing from the LFH-60.)

    Amusing the Wikipedia article mentions it's mistaken for the ADC which is the mistake I made above.

    The cable is a Dell 5E911 splitter. While I doubt the Vesa Plug and Display was designed as a dual VGA carrier, I bet they just took an existing connector and wired it up. Similar to what happened to the VHDCI SCSI-3 connector which is also used to carry two, even four display signals or 48 100Mbit Ethernet signals.

    [​IMG]

    Ancient (~2000) low profile Dell AGP Radeon VE MM (called Radeon 7000 later) cards used the connector, watch how this card connector has too many holes to be DVI:

    [​IMG]

    Watch how different is the LFH-60 connector which was used later ubiquitously in this role:

    [​IMG]

    chx1975, Feb 23, 2012
    #21
