    Mini-PCI

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by moon angel, Mar 5, 2008.

  1. moon angel

    moon angel Notebook Virtuoso NBR Reviewer

    Reputations:
    2,011
    Messages:
    2,777
    Likes Received:
    15
    Trophy Points:
    56
    Apart from wifi cards and bluetooth what other kind of cards can you get for mini-pci slots?

    moon angel, Mar 5, 2008
    #1
  2. D3X

    D3X the robo know it all

    Reputations:
    688
    Messages:
    1,666
    Likes Received:
    6
    Trophy Points:
    56
    Mini-PCIe TV tuners (AverMedia A301 Analog TV Tuner)
    [​IMG]

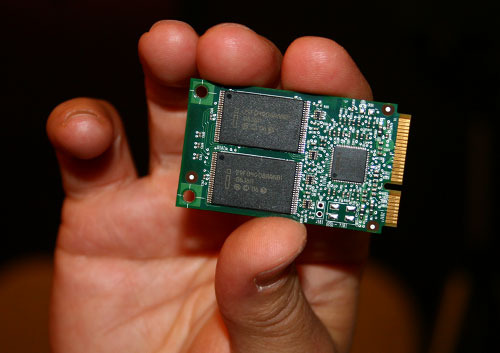

    Mini-PCIe Turbo Memory Module (1GB)
    [​IMG]

    Mini-PCIe SSD (16GB displayed)
    [​IMG]

    D3X, Mar 5, 2008
    #2
  3. D3X

    D3X the robo know it all

    Reputations:
    688
    Messages:
    1,666
    Likes Received:
    6
    Trophy Points:
    56

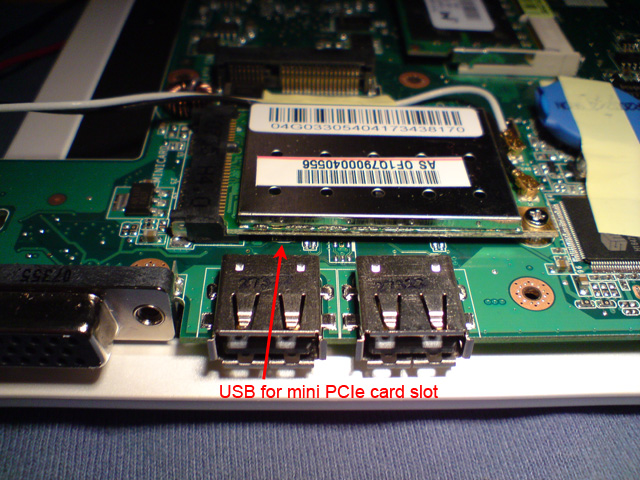

    Here's something interesting.

    [​IMG]
    Anyone want to take a guess at what this is?

    D3X, Mar 5, 2008
    #3
  4. D3X

    D3X the robo know it all

    Reputations:
    688
    Messages:
    1,666
    Likes Received:
    6
    Trophy Points:
    56
    btw are you talking about PCI Express Mini or the older PCI Mini?

    [​IMG]
    Advantech Mini PCI Type III Serial ATA card

    D3X, Mar 5, 2008
    #4
  5. DigiDoc

    DigiDoc Notebook Consultant

    Reputations:
    197
    Messages:
    147
    Likes Received:
    0
    Trophy Points:
    30
    A PCI Express Mini to PCI Express 1x adapter,


    DigiDoc, Mar 5, 2008
    #5
  6. DigiDoc

    DigiDoc Notebook Consultant

    Reputations:
    197
    Messages:
    147
    Likes Received:
    0
    Trophy Points:
    30
    Any news as to when the Vaulter disk is coming out? Haven't seen any info about either laptops coming out with it, or it's even available yet.




    DigiDoc, Mar 5, 2008
    #6
  7. D3X

    D3X the robo know it all

    Reputations:
    688
    Messages:
    1,666
    Likes Received:
    6
    Trophy Points:
    56
    Yeah no idea when this is gonna be available, they have been talking about releasing that for quite sometime. still vaporware at this moment..

    D3X, Mar 5, 2008
    #7
  8. moon angel

    moon angel Notebook Virtuoso NBR Reviewer

    Reputations:
    2,011
    Messages:
    2,777
    Likes Received:
    15
    Trophy Points:
    56
    Ah now here we hit upon something:

    My new barebones has this:

    2 x Internal PCIe Mini Card slots

    I have just realised, this is different from the 200 pin sodimm style mini pci cards, right? If so should I be looking for a mini pci-e wireless card? And can anyone recommend any brands? I liek my current Atheros mini-pci wireless card but it looks like it might not fit in the new machine.

    moon angel, Mar 6, 2008
    #8
  9. DigiDoc

    DigiDoc Notebook Consultant

    Reputations:
    197
    Messages:
    147
    Likes Received:
    0
    Trophy Points:
    30
    Best one I've seen so far is the Intel Wireless N card. Part number 4965AGNMM1WB.

    Amazon.com has it.




    DigiDoc, Mar 6, 2008
    #9
  10. moon angel

    moon angel Notebook Virtuoso NBR Reviewer

    Reputations:
    2,011
    Messages:
    2,777
    Likes Received:
    15
    Trophy Points:
    56
    I've received the barebones and it does indeed have two mini pci-e slots, so I've ordered a pci-e wifi card. There are two antennae inside, one for each slot, will i need both? Is it better to use both on the one wifi card?

    moon angel, Mar 6, 2008
    #10
  11. D3X

    D3X the robo know it all

    Reputations:
    688
    Messages:
    1,666
    Likes Received:
    6
    Trophy Points:
    56
    Most Mini-PCIe Wireless B/G cards come with at least 2 Antenna Connectors which allows for Bi-Antennas that are normally available in notebooks. (Some have 3 for N or A)

    See pic here for the Atheros card:
    [​IMG]

    I have yet to see the affects of only using one Antenna, instead of 2.

    D3X, Mar 6, 2008
    #11
  12. moon angel

    moon angel Notebook Virtuoso NBR Reviewer

    Reputations:
    2,011
    Messages:
    2,777
    Likes Received:
    15
    Trophy Points:
    56
    I'll see if I can route both Antennas to the card.

    moon angel, Mar 6, 2008
    #12
