    Need your help regarding memory upgrade

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by wingsofeagle, Jul 10, 2007.

  1. wingsofeagle

    wingsofeagle Notebook Consultant

    Reputations:
    21
    Messages:
    286
    Likes Received:
    0
    Trophy Points:
    30
    I am trying to add 2Gb Kingston memory to my Thinkpad T60P laptop that already has 1 GB 1 DIMM RAM , but the Kingston CL is 4 and my laptop memory has CL 5 do you think it may cause any problem?

    wingsofeagle, Jul 10, 2007
    #1
  2. skywalker

    skywalker Business Notebook FTW!!

    Reputations:
    100
    Messages:
    2,126
    Likes Received:
    0
    Trophy Points:
    55
    nope, it doesn't matter. Dont bother with CL.

    skywalker, Jul 10, 2007
    #2
  3. Skibums

    Skibums Notebook Evangelist

    Reputations:
    18
    Messages:
    384
    Likes Received:
    0
    Trophy Points:
    30
    Specs for your laptop show you have DDR2 PC2 5300 memory, 667mhz, which is cl 5. It looks like the kingston memory is DDR2 PC2 PC2-4200, 533MHz, and has a cl 4. The memory should be fine.

    Skibums, Jul 10, 2007
    #3
  4. John Ratsey

    John Ratsey Moderately inquisitive Super Moderator

    Reputations:
    7,197
    Messages:
    28,841
    Likes Received:
    2,166
    Trophy Points:
    581

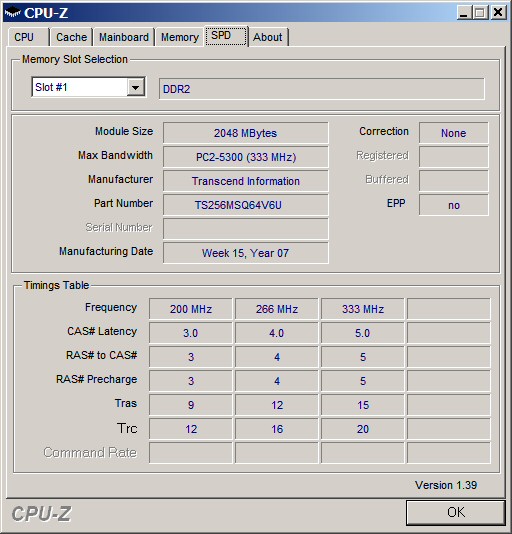

    RAM modules contain built-in timing data called SPD (I attach an example) and the BIOS looks at this during boot-up and works out the fastest speed supported by both modules. Together the two modules will run at 533MHz, CL=4.

    John


    Attached Files:

    • SPD.jpg
      File size:
      70.2 KB
      Views:
      151
    John Ratsey, Jul 10, 2007
    #4
  5. nathan_Chan168

    nathan_Chan168 Notebook Guru

    Reputations:
    0
    Messages:
    55
    Likes Received:
    0
    Trophy Points:
    15
    I have a question about my laptop and upgrading ram.
    I'm currently running an additional 512mb pc2700 DDR 333 stick of SoDimm ram. I looked around and the 333s are really expensive! One person told me that I can purchase a 400/pc3200 (which is a lot cheaper) and it should run fine. Is that true?

    My laptop is a Gateway 3550gz 1.7centrino.

    Thanks in advance!
    Nathan

    nathan_Chan168, Jul 11, 2007
    #5
  6. Chenmaster

    Chenmaster Notebook Enthusiast

    Reputations:
    1
    Messages:
    13
    Likes Received:
    0
    Trophy Points:
    5
    Yes, PC3200 is backwards compatible so you can put it into a PC2700 motherboard. Make sure you get DDR memory and not DDR2 as they do make a DDR2 version of 400Mhz.

    Chenmaster, Jul 11, 2007
    #6
  7. nathan_Chan168

    nathan_Chan168 Notebook Guru

    Reputations:
    0
    Messages:
    55
    Likes Received:
    0
    Trophy Points:
    15
    i asked the guys that sell the ram as well, and they said MAYBE ur motherboard is too crappy it might not recognize it.
    I tried CPUIDz and Everest but neither programs could even recognize what kind of board i had! hah

    But more or less buying a pc3200 should work right?

    nathan_Chan168, Jul 11, 2007
    #7
  8. Skibums

    Skibums Notebook Evangelist

    Reputations:
    18
    Messages:
    384
    Likes Received:
    0
    Trophy Points:
    30
    What's the make and model of your laptop?

    Skibums, Jul 11, 2007
    #8
  9. nathan_Chan168

    nathan_Chan168 Notebook Guru

    Reputations:
    0
    Messages:
    55
    Likes Received:
    0
    Trophy Points:
    15
    nathan_Chan168, Jul 13, 2007
    #9
