PLL Pinmod Overclocking Methods and Examples

WARNING: The information on this thread is for educational purposes and following any instructions may void your warranty and also cause major damage to your notebook. If you don't know how to monitor system temperature and what the tjmax of your CPU is then please skip this.

---->NEW: SetPLL, free alternative to SetFSB<----

How overclock a notebook with a TME-locked PLL or some other blockade

Successful PLL pinmods using ideas from this post is summarized below

OC details link	PLL	Pinmod type^1	Normal Speed	OC Speed
Calpella
MSI GX740	ICS9LPRS113AKLF	FSLx	i5-430M-2.26@133	3.40@200
Acer AS5740G	SLGSP585	FSLx	i3-330M-2.13@133	2.62@167
Acer AS5740G	ICS9LPRS3197	FSLx	i3-330M-2.13@133	2.62@167
Montevina
Gateway p7805u	ICS9LPRS365BGLF	TME-unlock	P8400-2.4@266	3.61@400
Dell Lat E4300 ^4	SLG8LP554	FSLx	P9400-2.53@266	3.16@333
Quanta TW8	SLG8SP513V	FSLx	T4500-2.3@200	3.06@266
HP 6730P	ICS9LPRS397DKLF	TME-unlock	P8600-2.4@266	3.06@333
HP 8530W^3	SLG8SP533V	TME-unlock	P8600-2.4@266	3.06@333
HP dv6-1000^4	SLG8sp513v	FSLx	[email protected]	3.00@266
Dell E5400^4	SLG8LP554V	FSLx	T7300-2.2@200	2.93@266
HP 2530P	ICS9LPRS397DKLF	TME-unlock	SL9600-2.13@266	2.90@323
HP CQ45 &	SLG8SP553V	FSLx	P8400-2.26@266	2.82@333
HP 2530P	ICS9LPRS397DKLF	TME-unlock + FSLx^3	SU9x00@200	SU9x00@266Mhz+
Alienware M11xR1	ICS9LPRS387BKLF	TME-unlock	SU7300-1.6@266	2.00@333
Acer 1810T	SLG8SP513V	FSLx+BSEL & TME-unlock	SU4100-1.3@200	1.73@266
Acer 1810T & & &	ICS9LPRS365	FSLx+BSEL & TME-unlock	SU3500-1.4@200	1.70@242
Fujitsu Amilo Pi3560	ICS9LPRS365BKL	TME-unlock	@200	@233
Santa Rosa
Dell M1730*	SLG8LP550	FSLx	X9100-3.0@200	4.0@266
Clevo M570RU^5 &	ICS9LPR365DGLF	FSLx	X9000-2.8@200	3.74@266
Dell XPS M1330 &	SLG8LP550V	FSLx	T9300-2.5@200	3.59@266
Lenovo T61^3^4	ICS954309	FSLx	T9300-2.7@200	3.59@266
ACER 6920g^3^5	ICS9LPRS365BGLF	TME	X9000-2.8@200	3.5+
HP HDX 9000 &	ICS9LPRS501PGLF	FSLx & TME-unlock	T9300-2.5@200	3.37@250
Dell XPS M1730^3	CY28547	FSLx	200Mhz PLL	266Mhz PLL
HP Pavilion dv9700t	RTM875T-606	TME-unlock	T9300-2.5@200	3.13@250
Lenovo T61	SLG8LP564V	FSLx	T8300-2.4@200	3.2@266
Lenovo X61 ^4	SLG8LP564	FSLx	T7300-2.0@200	2.93@266
Acer 6920^4	ICS9LPRS365BGLF	TME-unlock	T8300-2.6@200	3.0@233
HP 8710P	ICS9LPRS355	TME-unlock	T8300-2.4@200	2.92@243
Acer EX5620z^4	ICS9LPRS502PGLF	TME-unlock	T7500-2.4@200	2.88@240
Quanta TW7	ICS9LPRS365BGLF	FSLx	T8100-2.1@200	2.80@266
Fujitsu U9200	ICS9LPRS365BGLF	FSLx	T8100-2.1@200	2.80@266
Toshiba Tecra A9	ICS9LPR501SGL	TME-unlock	T7300-2.0@200	2.72@272
Dell XPS M1330	SLG8LP550V	FSLx	T7300-2.0@200	2.66@266
Acer Aspire 8920g	RTM875T-606	TME-unlock	T8300-2.4@200	2.60@217
Dell Inspiron 1525 &	ICS9LPRS365BKL	TME-unlock	T7250-2.0@200	2.50@250
Dell D630	SLG8LP550	FSLx	T7100-1.8@200	2.40@266
HP G60	ICS9LPR355BKL	TME-unlock	T4200-2.0@200	2.40@240
Compal FL90	ICS9LPRS365BGLF	TME-unlock	T7100-1.8@200	2.40@240
HP Pavilion DV6871us &	RTM875T-606	TME-unlock	T5600-1.83@166	2.20@200
HP Pavilion DV2000^3	ICS954305EKLF	FSLx	T2050-1.6@133	2.00@166
Acer Aspire 5920g	ICS9LPRS365BGLF	TME-unlock	T5250-1.5@166	1.61@179
HP 2510P &^2^4	ICS9LPRS355BGLF	FSLx	U7600-1.33@133	1.60@160
HP 2510P	ICS9LPRS355BGLF	FSLx+BSEL	U7600-1.2@133	1.2@200
HP 2710P^3	ICS9LPRS355BKL	FSLx & TME-unlock	U7600-1.2@133	1.50@166

^1 FSLx or FSLx+BSEL mod means a large overclocking jump eg: 166/200/266/333/400 FSB. TME-unlocked PLLs means can use 0.3Mhz increments up to the point of instability via setfsb software overclocking.
^2 not necessary other than for convenience. Could have just used setfsb overclocking.
^3 theory requires implementation.
^4 running DualIDA capable bios and cpu gaining an extra half or full multiplier. Appears all recent Dell systems can do dualIDA.
^5 Throttlestop can unlock multipliers in the Core 2 Extreme CPUs making PLL overclock unnecessary.
* is BSEL pinmodded from 266-]200 as described in http://forum.notebookreview.com/har...gl40-useful-info-pll-modders.html#post7838585





This thread will help people extract peak performance from their notebook by showing:

- how to check if your PLL is TME-locked, indicating setfsb OC won't work
- method 1: TME-unlock a PLL via a pinmod so setfsb/grub2-setfsb can program the PLL
- method 2 and 3: FSLx or FSLx+BSEL overclocking via PLL pinmod for a faster FSB.

Before attempting any of these PLL overclock methods it might be worthwhile seeing if you can BSEL pinmod the CPU. Naton explains [click pic on right for visual understanding] The 200 -> 266 consists on connecting the two holes A23 and B23 on the CPU socket with a copper wire, or B23 and B24 with a copper wire. Though it will lock your multiplier to the lowest setting for all CPUs on Intel chipsets, except Celerons. AMD/NVidia chipsets allowing overclocking without multiplier lockout.

1. Where can I get a schematic of my systemboard to identify my PLL and help if I need to pinmod? Try laptopdesktopschematic, lqv77, GSM-extreme, notebookschematic and a general google search.

2. How do I check TME_READBACK to see if I can overclock my PLL with software?

• using setfsb (Windows)
  Spoiler

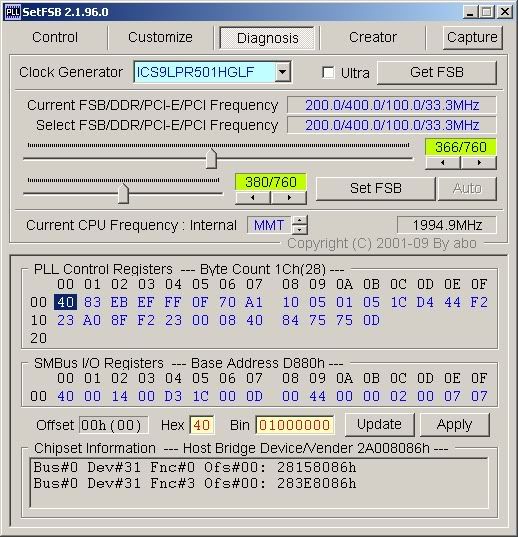

  Right: the status of TME_READBACK tells us if TME is enabled. Screenshot shows it's status on register 9 bit 6, shown as 65h=1100101(binary) bit 6=1, meaning no overclocking. In the next screenshot it is shown how to write a 0 to the PCI2 Output Enable register. If your system freezes after doing this then it uses the PCI2 signal for it's operation and it's not possible to pinmod the TME/PCI2 pin to remove the hardwired TME_Enabled mode, so continue to method 2. If the system works after the write, then refer to method 1 below. Both the ICS9LPRS355 and ICS9LPR501SGLF PLLs read TME_READBACK in this way, so it's highly likely other ICS PLLs do too.

• using R-W Everything (Windows)
  Spoiler

  1. Run r-w everything
  2. Select Access-Clock Generator
  3. Change byte 0C from 0D(13) to 16(22), click write close Clock Generator window
  4. Select Access->Clock Geneator. It will open same window as before but present 22bytes of data rather than 13.
• using lmsensors (Linux)
  Spoiler

  Setfsb's Diagnosis window requires a PLL to use for it's operation. Since newer PLLs aren't being added, we need an alternative way of checking the TME_READBACK flag using Linux.

  1. Install lmsensors package. Available for various Linux flavors on the repositories.

  2. Some distributions blacklist the i2c-dev or i2c-i801 module. Check your /etc/modules and uncomment if blacklisted

  3. Check that your bios has enabled the SMBUS device:


  Code:

  $ lspci | grep -i smbus
  00:1f.3 SMBus: Intel Corporation 82801H (ICH8 Family) SMBus Controller (rev 03)

  If not, need to switch on the bits to enable it as explained here.

  4. Load i2c modules


  Code:

  $ modprobe i2c-dev
  $ modprobe i2c-i801
  $ ls /dev/i2c*
  /dev/i2c-0

  5. Scan to identify devices on i2c bus. ICS PLL appears as device 0x69



  Code:

  $ i2cdetect -y 0
       0  1  2  3  4  5  6  7  8  9  a  b  c  d  e  f
  00:          -- -- -- -- -- 08 -- -- -- 0c -- -- --
  10: -- -- -- -- -- -- -- -- -- -- -- -- -- 1d -- --
  20: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
  30: 30 -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
  40: -- -- -- -- 44 -- -- -- -- -- -- -- 4c -- -- --
  50: 50 -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
  60: -- 61 -- -- 64 -- -- -- -- 69 -- -- -- -- -- --
  70: -- -- -- -- -- -- -- --

  6. Dump the PLL data



  Code:

  $ i2cdump -y 0 0x69 s 0
       0  1  2  3  4  5  6  7  8  9  a  b  c  d  e  f    0123456789abcdef
  00: 31 85 fc 33 ff f0 90 11 d0 65 7d 00 0d             1??3.????e}.?

  $ i2cdump -y 0 0x69 s 0xd
       0  1  2  3  4  5  6  7  8  9  a  b  c  d  e  f    0123456789abcdef
  00: cf 44 ef 2f a0 8f f2 23 00 ce 61 53 d8             ?D?/???#.?aS?

  7. Check the TME_Readback flag to see if TME is enabled (no software overclocking)

  For ICS PLLs:
  - look at first dump, register 9, bit 6
  - if bit6=1 then it's TME-locked (no overclocking)

  For CYxxx PLLS
  - look at first dump, register 15, bit 7
  - If bit7=1 then it's TME-locked (no overclocking)

3. Is there any software method to bypass TME mode without using a pinmod?

Spoiler

setfsb's author Abo has successfully overcome the 2510P's ics9LPRS355 PLL TME mode via software configuration only. As far as I know this is the only PLL he has done this for. I was able to visually compare PLL registers before and after the overclock, referring to the ics9lprs355 datasheet to see what was done. We see that he swaps the main clock from PLL1 to PLL3, and the sata clock to PLL2 below. Can perform these steps or some variation of them to see if can overcome TME mode on the other PLLs are well. Right: 2510P PLL registers before/after setfsb applies TME workaround (OD, OE sets FSB)

Step 1: set TME workaround 0h(0): 31->37 Sets source for SRC Main from PLL1 -> PLL3 Sets sata clock from SRC_Main to PLL2 11h(17): A0->A4 VCO Frequency Control Register PLL3. M Div (5:0) 12h(18): 8F->F6 VCO Frequency Control Register PLL3 N Div (9:0) 15h(21): 00->01 M/N Enable

Step 2: Set byte 0D and OE manually for your desired FSB Spoiler { FSB, Byte 0D, Byte OE} { 112, 0x88, 0x71}, { 117, 0x88, 0x87} { 125, 0x88, 0xA3} { 133, 0x88, 0xBF} { 142, 0x88, 0xDB} { 150, 0x88, 0xF7} { 158, 0x48, 0x13} { 167, 0x48, 0x2F} { 175, 0x48, 0x4B} { 183, 0x48, 0x67} { 190, 0x48, 0x7D} { 195, 0x48, 0x8E} { 200, 0x48, 0x9E}

NOTE: one undersirable behaviour that the ics9lprs355 PLL shows is that when the system is put into standby/hibernate, it resumes in a state where the PLL won't respond to setfsb requests. It requires another quick standby to unfreeze it upon which it can respond to software overclocking requests.

4. What methods can I use to overclock my PLL?

• Intro
  Spoiler

  The PLL's FSLx and the CPU's BSELx pins are tied. Method 2 is in effect a BSEL mod via the PLL's FSLx pins. Method 3 separates the PLL's FSLx signals and the CPU's BSEL signals to provide faster operation, a necessary workaround to prevent the CPU going into lowest multipler lockout when it's in an invalid (faster) BSEL setting.

  Software used for overclocking a PLL:


  • setfsb for Windows.
  • grub2 bootloader overclocking for OS-independent overclocking. Only provision is would need Linux, prefereably Ubuntu 9.10 or newer, installed to be able to compile and use it.



  PLL pins of interest: blue: method 1 | red: method 2/3. From ICS9LPR501SGLF PLL datasheet
• RAM timing: how it affects overclocking potential
  Spoiler

  Overclocking methods 1 and 3 below boot your system and set your northbridge, chipset and CPU internally to *believe* they will be receiving 200Mhz timings. They just are being sent faster signals from the PLL instead (266Mhz in method 3's case!!). This could present a problem with your RAM. DDR2-667 RAM will now be receiving timing signals for 266Mhz/887Mhz operation, yet still be using the SPD table for 667Mhz operation. In which case, I hope you've got good ram to test, or can use Thaiphoon Burner or SPDTool to slow down *at least* the CAS timing in your RAM's eeprom SPD table by increasing it's value. I believe it's CAS=6 for 800Mhz operation.

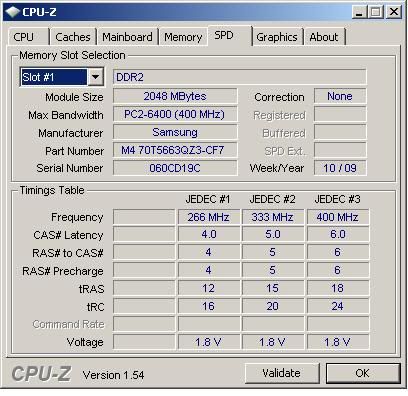

  For example if you have 800mhz DDR2 ram with an SPD like this:

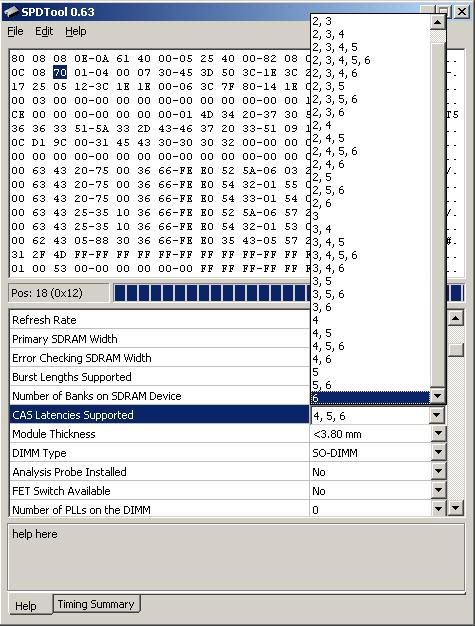

  If you want to run it at 333mhz with a CAS of 6, open SPDtool, File > Read > Module X, then change "CAS Latencies Supported" from "4, 5, 6" to "6". Then just fix the checksum (under the Edit menu) and write the SPD. Make sure you save a copy of the original SPD in case you make a mistake.




  It's a good idea to try both thaiphoon burner and SPDtool, I don't think thaiphoon burner works well with 64-bit operating systems. And SPDtool may have problems with DDR3 ram. I have attached an older trial version of thaiphoon burner that has full functionality (does let you write the SPD). The latest trial version does not let you write the SPD, so I suggest using the latest trial version to modify the SPD and then use the old trial version to write the SPD. Unless you want to purchase thaiphoon burner.
• Method 1: TME-unlock a PLL to allow software overclocking
  Spoiler

  setfsb homepage informs us that a PLL ICS9LPR501HGLF is supported. So if the TME is disabled by setting PCI2/TME pin4 logic to 0 (GND), then setfsb can all software overclocking. Only problem here is *IF* your system uses the PCI2 signal after boot, in which case it won't work. I used setfsb setting ICS9LPRS355 PLL register 02, bit 2=0 to disable PCI2 output (enabled by default), and my system worked fine afterwards. This hardware TME-disabling hardware mod can be easily reversed:

  1. lift right side of the resistor leading from pin4 (blue) as shown in above picture using a soldering iron. Right side has more room and is easier if your right handed. Then can use the lifted resistor leg to attach a GND wire to. Try to minimise soldering iron contact with your multi-layered systemboard as much as is conveniently possible.

  2. Connect lifted resistor leg to a (logic 0) GND, found by continuity testing points against the system chassis.
  3. Put some insulation tape below the lifted resistor end so it won't short the board if pressed down.
  4. Test to see if it boots up. If not, reverse process and try method 2 or 3.
  • Example: TME-unlock applied to a Toshiba Tecra A9
    Spoiler

    Configuration used

    - Toshiba Tectra A9. T7300 2Ghz CPU. PM965 Santa Rosa Chipset using FSB=800Mhz. DDR2-800 RAM.
    - In my particular case I had a TME on my PLL enabled, which was disallowing overclocking of the PLL.

    Requirements for overclocking

    - identify which PLL the notebook uses, then to download the datasheet for it.
    - Setfsb overclocking software. It's Diagnosis window useful to also read/write to the registers of the PLL.

    Problem with setfsb

    First problem was setfsb didn't have an exact match for my system's PLL ICS9LPR501 SGLF PLL. So the closely matched ICS9LPR501 HGLF was used instead. I press getfsb which does read the right frequency. Then I move the slider (top slider) a little bit and then press setfsb. The HDD lights up, I can move the mouse but not interact with anything. Then a few seconds later I get the BSOD and then the laptop restarts. This happens even if I don't move the slider, just press getfsb then setfsb. This also happens when I "Select source for SATA clock" to be "Sata = PLL2" That is, change bit 1 of byte 0 to 1. Which is what setfsb tries to change, among other things, but this is where it goes wrong. So the reasons setfsb didn't work for me are:

    1. My TME strap status (read only) reads 1 = no overclocking.
    2. System would lock up due to setfsb's ICS9LPR501HGLF overclock changing the SATA clock from PLL main to PLL2

    Hardware mod to disable TME mode

    I proceeded to use method 1 in Nando4's guide, requiring hardware modification to overcome the TME mode. The method being preferred to method 2 as

    - pin4 TME/PCI pin was easier to pinmod than pin57 FSLb pin
    - setfsb allows 1Mhz overclocking increments whereas method 2 is less probable 33/66Mhz overclocking

    This also required Abo to supply a new setfsb for my ICS9LPR501SGLF to correct the SATA clk issue.

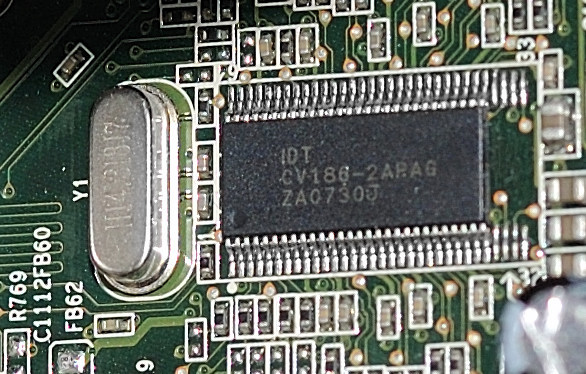

    Here are photos of my PLL: before | after and after the modification.

    Basically as you can see from the photo I found that next to the resistor there was a GND pad and a pad that was connected to the TME pin (pin 4). I found this by using a multimeter. I tested points on the motherboard with the system chassis to find GND. I tested points on the motherboard with the pin 4 (TME pin) to find the second pad.

    So I removed the resistor and put it into the new position. I did some tests with a DMM to check my work and then closed the laptop back up. I started the laptop and it?s working perfectly, the best part is that now TME = 0, confirmed by reading the TME_READBACK register 9 bit 6 being 0.

    I used setfsb to increase the fsb a little, and I took a picture of my screen with a camera since setfsb causes my laptop to freeze. After the laptop restarted I then manually copied the register values that I saw in my camera to setfsb, except I did not change the source for the SATA clock. So bit 1 of byte 0 is 0. Then when I pressed apply it worked without freezing my notebook. Here is the screenshot.

    Overclocking after TME pinmod was applied

    I sent an email to Abo (creator of setfsb) and provided this info to him. He then gave me a test version that adding ICS9LPR501SGLF PLL support. The only difference now with setfsb between ICS9LPR501HGLF and ICS9LPR501SGLF is that the bit that is used to select the source for the SATA clock is unchanged in SGLF.

    Now using setfsb I was able to overclock my FSB to over 250mhz, my CPU frequency went from 2ghz to over 2.5ghz and is stable without and modifications to ram timings. This is lucky on my part. The RAM must be quite tolerant to run using the 333Mhz SPDTable timings and still work. It has been recommended that at the very least the primary RAM timing, CAS, be increased to ensure stability and allow me to overcome any RAM timing wall with overclocking. This would be done using spdtool or Thaiphoon Burner.

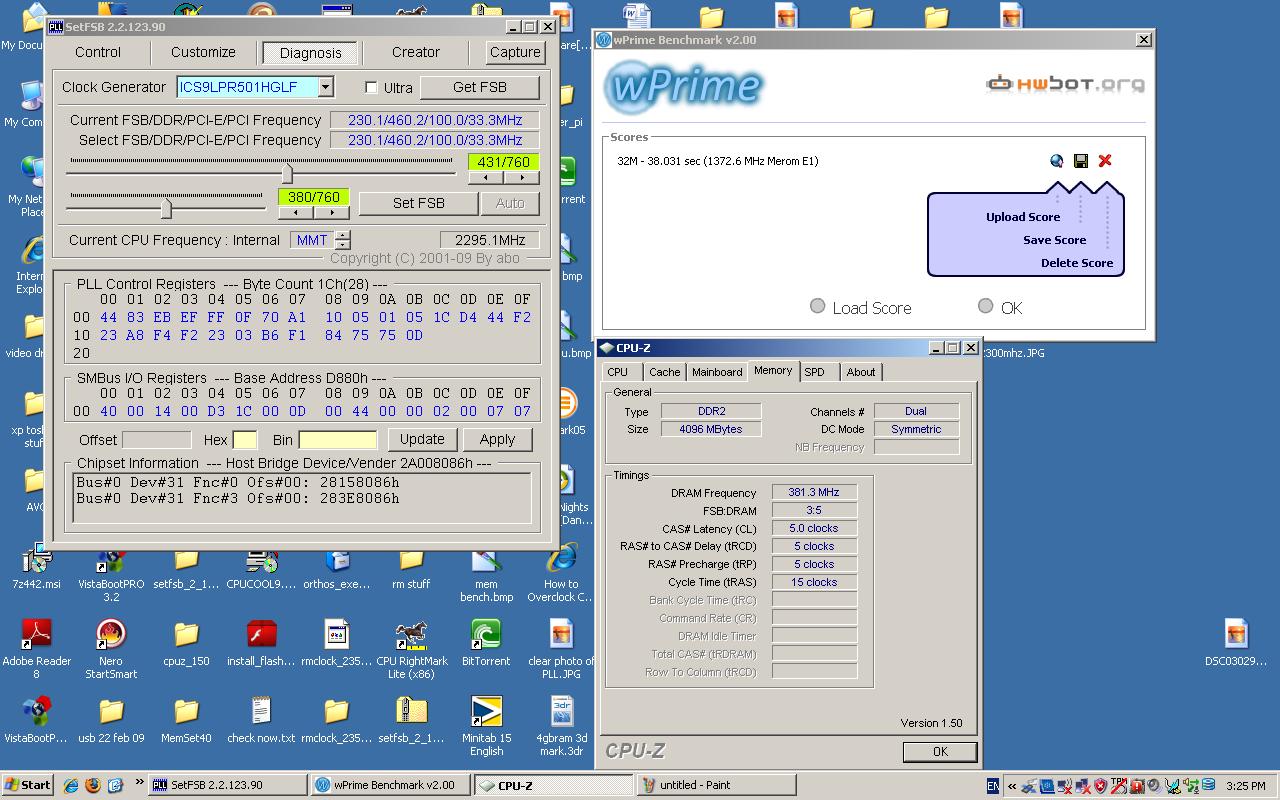

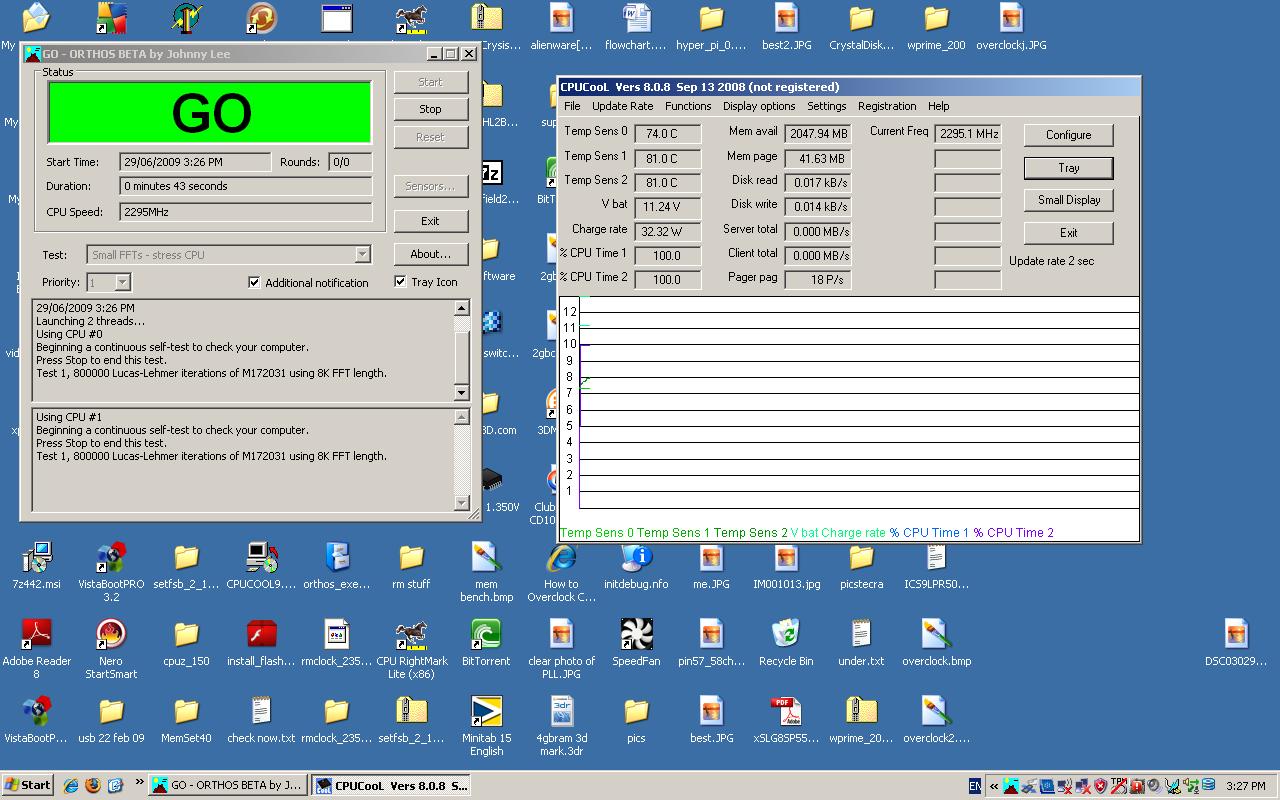

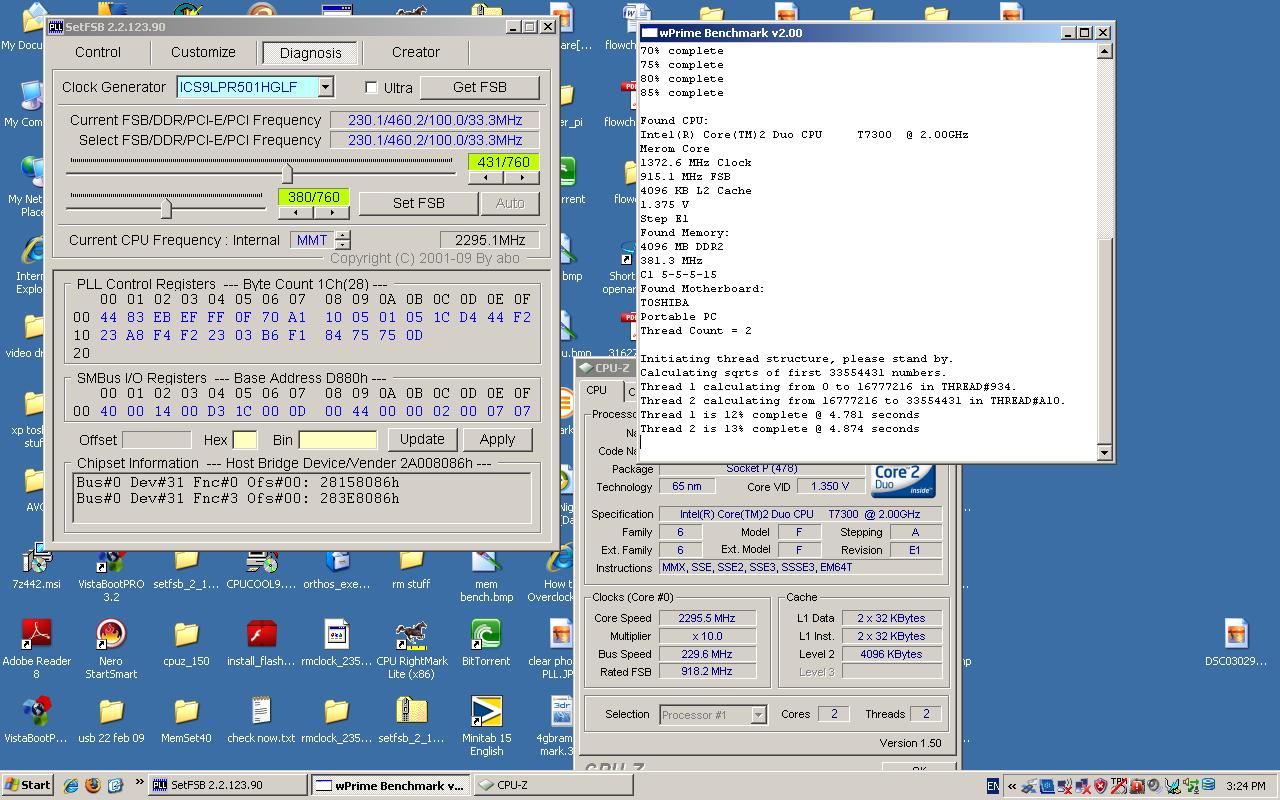

    Below are some screenshots of successful overclocking. Here is an album of successful OC screenshots.
    <!-- attachments -->

    <fieldset class='fieldset'>



    </fieldset>

    <!-- / attachments -->
• Method 2: FSLx mod to hardwire PLL for higher FSB
  Spoiler

  Here we set different BSEL and FSLx signals as a workaround to prevent CPU being locked to the lowest multiplier. Here need to:

  1. separate the Pin57 FSLb pin from board so the CPU BSEL and PLL FSLx signals can be set separately
  2. set FSLb=0 by connecting to GND, eg: pin58.

  This would be most easiest if there is a resistor leading off the Pin57 track. What I can see is it looks as if it goes to a through hole, which disappears somewhere. If my observation is correct, you'd either need to follow that through hole and see if it leads to a resistor, or otherwise use a blade to disconnect the PLL's pin57 from the board and then connect it to pin58 (GND), putting some insulation tape below Pin57 so it doesn't make contact with it's original connected track, a logic of 1 (3.3V). Fiddly work.
• Method 3: FSLx+BSEL mod to hardwire PLL for higher FSB
  Spoiler

  Overriding PLL Frequency current operation, FSB=800Mhz desired overclock, FSB=1066Mhz red shows the PLL pin of interest FSLc..FSLb..FSLa..CPU-MHz L.......L.......L......266 L.......L.......H......133 L.......H.......H......166 L.......H.......L......200 H.......H.......L......400 H.......H.......H......reserved H.......L.......H......100 H.......L.......L......333

  From: ICS9LPR501SGLF PLL datasheet and Core2 Duo Processors for Mobile Intel 965 Express Chipset Family

  We can see the PLL's FSLC/FSLB/FSLA and the CPU's BSEL2/BSEL1/BSEL0 are tied. When the BSEL signals are sampled by the CPU and in a non-compatible range, it will lock the multiplier. So this will not work with recent CPUs using Intel chipsets, but will work with AMD/Nvidia CPUs.


  1. Flash the DDR2 RAM to PC2-6400 spec so has a 400Mhz SPDtable entry as described here.

  2. Applying a strong pull down resistor (2k to GND) to the PLL's FSLb pin to do a 200->266Mhz overclock. FSLb is pin 64 on the PLL as shown here).

  This overclock would be preferred since then the rest of the system would be calibrated correctly for this higher FSB, ie: RAM would use the 400Mhz SPDTable instead of the 333Mhz SPDtable, X4500's core and render clock speed would be adjusted by the chipset correctly.

  Once overclocked with these parameters, if the TME-unlock mod has been applied, the system may be even capable of going beyond the 266Mhz FSB by using setfsb. You may still need more voltage to the CPU for it to be stable. If can disable speedstep in the bios, then perhaps the CPU can be booted up in the lowest multiplier, stable long enough to then load rmclock to up the CPU voltages for the various dividers.

FAQ

1. What are the pros and cons of software versus hardware FSB overclocking?

Spoiler

Obvious advantage of using setfsb is it gives overclocking ability in increments of 1Mhz, so it's far easier to find system limits than when dealing in 33/66Mhz increments if modding the PLL's FSLx signals using method 2 or 3 below. Though hardware overclocking presents these advantages:

1. software overclocking using setfsb requires a rerun when come out of hibernate/standby
2. Linux overclocking with setfsb requires a boot into Win, a setfsb run, then a warm boot into Linux.
3. RAM timings still believe they are working at the lower FSB so the RAM SPD_table may need slower timings
4. X3100 Core Render clock is FSB dependant, reflected by sampled BSEL signals as shown here.

Hardwiring the PLL for faster FSB can overcome (1) and (2). If the chipset supports the higher FSB speed (eg: 533->800Mhz FSB overclock by Santa Rosa), then experimental method 3 above can overcome (3) and (4) whilst preventing multiplier lock-out. Though CPU would need to be very tolerant in such a higher overclock though.

2. Can I also undervolt my CPU?

Spoiler

Be sure to check The Undervolting Guide that can be found on this forum. Undervolting may be possible after an overclock but it will make the overclock less likely to be stable. There is a second guide Advanced Undervolting (using superlfm mode) with a slightly different approach.

3. Are there any free alternatives to setfsb?

Spoiler

NBR member Inteks has used the grub2-setfsb code to come up with a prelim setfsb successor in Windows. See setfsb code - Project Not working as yet but coders welcome to join the project to help it along.

Inteks wrote 1810tray allowing overclocked-AC, undervolted-DC profiles but is now enhancing it for more generic notebook usage. setfsb being an important component.

Would be very popular and could result in monetary gains:
Money to the first guy who recreates a SetFSB alternative.(mobile i7 and C2D)

4. Is it possible to use a 1066Mhz FSB Penryn cpu on a 800Mhz FSB Santa Rosa platform?

Spoiler

-------------------------------------------------------------------------------------
*update*
NBR forum member naton has succeeded to get a T9900 (1066Mhz FSB) to run in a notebook with a GL960 chipset, after doing a BSEL mod to force the CPU to run with an 800Mhz FSB.
Details are here.
-------------------------------------------------------------------------------------


Related to this overclock, there are *some* hints that a 1066Mhz series-4 chipset penryn (1066Mhz FSB) cpu could work with a Santa Rosa systemboard. I've put together some info that may help you if you want to try a T9400/T9600 1066Mhz FSB CPU:

1. Pin-compatibility between 1066Mhz and 800Mhz penryns

Left: penryn CPU pinout for series 4 1066Mhz FSB chipsets Right: penryn CPU pinout for PM965/800Mhz FSB. We see they are directly pin compatible. Pics created by joining the two datasheet pinout pages together.

2. BIOS compatible microcode

If it won't boot, then consider whether new bios microcode is required to support the series-4 penryn CPU. There are tools for various bios and knowledgable on wimsbios->My CPU isn't recognised, mydigitallife and rebelshaven bios modding forums.

There is a suggestion in the PM965 (800fsb) chipset and a 1066 MHz fsb cpu... thread:

I called intel at 1-916-377-7000 I talked to Tom from Level 5 tech support he assured me that the intel 965m can support the new cpu however GATEWAY and only gateway can make that happen if they provide bios support for the qx9300 mobile quad cpu​

[QX9300 is a series-4 1066Mhz FSB quad-core CPU].

3. Clocking the FSB at 1066Mhz on Santa Rosa platform

If the T9400/T9600 boots up, then the mobo will downclock the CPU since the only valid BSEL settings a PM965 chipset has is 133/200Mhz. A PM45 has 200/266Mhz BSEL settings, so it would set it at 200Mhz FSB, BSEL2/1/0 being L/H/L. Can apply methods 0-3 above to increase from 800Mhz to 1066Mhz FSB on a Santa Rosa platform using setfsb and/or pinmods, or both if it's a TME-locked PLL.

PM45 valid FSB PM965 valid FSB

Left: 1066Mhz-spec FSB CPU's BSEL settings from Intel C2D 45-nm CPU datasheet. Compare this against the BSEL of 800Mhz-spec FSB CPU's BSEL settings as shown in method 2 above.
Middle: 800Mhz-spec FSB CPU's BSEL pin as highlighted from Intel C2D CPU's based on 965 express familydatasheet
Right: FSB capability comparison between the PM45 chipset that does support 1066Mhz FSB and the PM965 chipset that doesn't officially support 1066Mhz FSB (max=800Mhz). Anyone trying this mod is in a sense hopeful that the MCHBar functionality still exists if trying the PM45's BSEL selection on a PM965 system.

The potential application here is two fold:

1. to attempt to pinmod a 1066Mhz CPU to function on a Santa Rosa 800Mhz platform. A 1066Mhz CPU has a BSEL signal H/L/H - 200Mhz mode that is the the same as the Santa Rosa 800Mhz FSB platform. So if the CPU was installed, it should theoretically work, so long as the pinouts are compatible.

The idea here being to set acceptable BSEL2/BSEL1/BSEL0 CPU signals so it doesn't apply multiplier locking, whilst sending a different set of BSEL signals to then rest of the system (CPU/PLL/Northbridge) to support a higher FSB operation. How to do this? CPU datasheet advises that BSEL2/1/0 are output pins so suggest:

1. isolate the BSEL1 CPU pin from the circuit.
2. run a logic 1 (3.3V) signal to BSEL1 . Test if this is necessary as it's supposedly an output pin.
3. connect a 0 (GND) signal to PLL FSLb pin. Test if this is necessary as sometimes a disconnect is the same as a 0.

Explanation: (2) makes the CPU believe its running in 200Mhz (800Mhz FSB) mode so it doesn't apply multiplier clamping. (1) then hardwiring the output of BSEL1 logic as seen by any other chips (eg: PLL, northbridge, GM965) to operate in PM45's 266Mhz mode (1066Mhz FSB).

Precedents for success?

PM965 (800fsb) chipset and a 1066 MHz fsb cpu... thread has comments

kaltmond says: T9400 wont´t post in my PM965 nb, confirmed......

Chaz, the moderators closes the thread with Yeah, this thread has reached the end of its usefulness . . read the previous posts. 1066MHz FSBs do not work in the mobile 965 chipset. End of story.​

1066 FSB CPU with 800MHz PM965 thread has RickAbraham tell us:

I was talking with a bloke from a local PC repair shop and I watched him fit a T9600 processor into a Dell laptop running the PM965 Santa Rosa platform which is only 800MHz. The processor was fully compatiable which shocked me and I watched the machine boot up after the installation was complete. But what I want to know is are you going to get the full gain using a 1066 FSB when the chipset apparently doesnt support it. I have read on other forums that the PM965 refresh chipset is a freak some claim that it will support 8gb of ram and others claim 6gb of ram. Would the mobo downclock the CPU to 800 FSB or has anyone tested this upgrade and can prove that the chipset will run at 1066MHz ?? I am interested to find out.​

Pls report your results.

Acknowledgement

Thanks go to nando4, for providing so much useful information and guidance as well as the NBR community for sharing their PLL pinmod experiences for others to benefit from.

_______________________________________________________________________________________
This guide is linked from Repair4Laptop: Do-It-Yourself Laptop & Notebook Upgrading, Modding, Repairing.



I guess you have tried clockgen too?



ok i see the Chipset is not compatible ..sorry to intrude --post deleted



Describe when you say SETFSB does not work on your laptop, there are occasionally a few things you can do to make it work, but we need more details for now.

Cata



that photo looks like a random shot of your motherboard, wheres the PLL chip?



Actually probably Abo is right. If you will check in ICS9LPR501 datasheet description of pin number 4 you will read :"3.3V PCI clock output / Trusted Mode Enable (TME) Latched Input. This pin is sampled on
power-up as follows
0 = Overclocking of CPU and SRC Allowed
1 = Overclocking of CPU and SRC NOT allowed
After being sampled on power-up, this pin becomes a 3.3V PCI Output". That's probably SetFSB it's not working in your case, because on power up this input is set as 1 and it's probably done by a some kind hardware lock, blockade; Using reesistor in the circuit to force voltage to be set up on level which ist read as logical 1 for clock generator. And if this dont scary you we can move forward. That's the russian web page: http://people.overclockers.ru/konstantin_n/record1 where you find description with photos how to unlock for overclocking clock gen ICS9LPRS365 which if you look on it datasheet: http://www.darksmileysystems.com/downloads/criterion/e-wrecked//9LPRS365-SPEC.pdf have identical pinout like ics9lprs501. After this modification they ware able use setfsb for overclocking. That's probably what Abo refering to on his web site when he wrote about this ICS clock:"ICS9LPRS365BGLF (FS U9200 with the hardware remodeling".
Ok. But after this mod they did next one; Bsel mod from 166 to 200Mhz of course on clock generator. That's what I was able undersand from this site, but lets just say that my russian it's far worst then my english and my english isn't very good too; besides google translator it's not helping too/.
Ee Yaah I almost forgot and most important thing for You. I think that in your case changing from 200=266mhz it's just grounding FSLB pin 57 to neerest GND or connecting to FSA(10) or FSC(62). What i know signal "0" doesnt mean that on this pin thera no voltage at all it just mean that there're voltage on some certain lover level then on "1", but GND probably will work as well. And one more thing, that kind of mod was done by member of this forum :"Kaltmond" in his Clevo M570RU on clock generator ICS9LPR365DGLF, but like I said if you compare pinout of this two chips they are that same. You can find this thread here: http://forum.notebookreview.com/showthread.php?t=302873. I think he's the person with who you talk to.
Ok that's everything what I Can help You. God bless russian overclockers, google translator and russian girls



If the mod is successful then your ram will run @ 887MHz, not 800.



hi, I think that you mark wrong pins on the photo. This dot on the chip is probably for indicate pin number 1 if so your pin 57 and 58 will be on the other side of the chip( pin 7-gnd and pin 8-fsb from the top). That's what I thing



yes, you are right. I have made this mistake before.

let me tell you the story:
I wanted to do a simmilar modification on an older laptop but I was looking at the PLL upsidedown so I connected the wrong pins. I did this with solder and while I was trying to remove what I did, I damaged pins and it all wen't wrong. laptop never started again.

So you have saved me this time, thankyou. I always assume that they print the info on the PLL the right way up, but it seems they do it upsidedown.

again thankyou darnok44, +rep.



If you do this mod it´s a must to disconnect the PLL chip and MCH, and make sure CPU Socket unchanged, no direct BSEL wire pin mod, no isolate etc.

@ moral, i have the service manual of my notebook, so i know where is the correct resistor to remove.



The suggestions I have made so far are all logical and on the limited information we have, are a step forward.

Kaltmond, I am curious to know *exactly* what you did and why. Eg: Can you explain what/where is MCH? Also, once your system is running, does it believe it's running at 800Mhz or 1066Mhz? If it believes it's running at 800Mhz (eg: RAM, video, etc), how did you slow down RAM timings since it's being sent 1066Mhz signals?



MCH is the Northbridge PM965. And it´s really running @1066 and Ram @887.



The resistor is related to BSEL 1 to give a high signal. Remove it and then connect the pin to VSS to get a low singal.
Froget to say i modified the CAS Timing via SPDTool.



Moral if you provide us with really hi res photo of your clock gen where will be able to see tracks and resistors on area where are pins 57, 58 maby we will able establish which resistor should be removed. ?



Ok correct me if I'm wrong but i't looks like track from pin 58 dissapear in pcb and who knows where it pop up and where is neerest resistor.



If SPDTool have problem with SMbus driver on your motherboard maybe putting your memory in different laptop will allow you reflashing the SPD It's worth to try.



These boards are multi-layers, sandwiched on top of each other, with different layers connecting via the through holes. So pin57 could lead to the other side OR another internal layer. Multimeter will help with continuity testing to see if there is hopefully a resistor you can disconnect on the other side.



another question. since pin 57 goes into that hole, should it eventually come back out in another hole?

where else could it go?
Do the inner layers only contain tracks or can they contain resistors and other stuff?

If it must come out in another hole then I should be able to find that hole with a DMM right?
If this is true I will test every single hole on the motherboard.

Also is it possible to damage the motherboard just by testing it with a DMM?
I don't know how the DMM works, does it send it's own signal through what ever you test with it?



Through hole could lead to an internal layer of tracks or could pop out on the other side with a resistor there. These boards are surface mount, so there isn't internal resistors. I believe the internal layers are just a maze of tracks.



Firstly I would like to thank everyone who has helped me, especially nando4.

nando4, you were right that last time I did the mod I must have done it wrong. The resistor must not have been properly contacting the pads so that the connection from pin 4 (TME) was going nowhere. Pin 4 was getting no signal.
This time I took a lot of care to make sure that the connection was perfect.
I started the laptop and it’s working perfectly, the best part is that the TME = 0.
Here is a screenshot of setfsb:


Setfsb still does not work; it does allow me to change the frequency but the laptop freezes as soon as I change it. I believe it is still the same problem of setfsb trying to make the source for the SATA clock = PLL2. My system does not like that.
So I will write an email to Abo, hopefully it will be working soon.

Fyi, clockgen does not work either.

Again thanks to everyone for the help, I will be sure to keep you updated on whether setfsb works or not.


EDIT: as you can see from the OP, setfsb works for me now.



Ok, so now here is what I have done to test if overclocking is possible:

I used setfsb to increase the fsb a little, and I took a picture of my screen with a camera since setfsb causes my laptop to freeze.

After the laptop restarted I then manually copied the register values that I saw in my camera to setfsb, except I did not change the source for the SATA clock.
So bit 1 of byte 0 is 0.
Then when I pressed apply it worked without freezing my notebook.
here are the screenshots:
http://i896.photobucket.com/albums/ac167/moral_HaZaRd/overclocked/overclock2j.jpg



ok I have new photos attached.
2.3ghz.

Edit:as you can see wprime is now 38.031s



How to decrease RAM frequency from 800Mhz to 667Mhz to make a room for higher overclock? or ather option to help me rising FSB.
Sorry for my bed english



This would be done using spdtool or Thaiphoon Burner.


Edit: another option is to buy 1066mhz ram. The ram would downclock in your laptop to 667mhz. Then after the overclock the 1066mhz ram will be running at 800mhz and should be stable.



Buying 1066mhz ddr2 ram , is not a option for me because I'm in Europe, and only place where I've seen 1066mhz ddr2 ram is on www.tigerdirect.com and they don't deliver outside US. My lappy is on montevina platform so 800mhz is by default. I'm not familiar with spdtool.How to use it to make my 800mhz to run at 667mhz?



spdtool is risky, it may brick your ram.
Also neither spdtool or thaiphoon Burner work with my smbus driver so I have no experience with this.

The only thing I can give you is a link to a guide on how to use SPDTool:
http://forums.overclockers.com.au/showthread.php?t=562506



I've done many times hot flash RAM if they are broken because of flash unproper timings. And moral which system do you use now?



@ kaltmond, The same toshiba tecra A9 as I started this thread with. BTW thanks for the help with the OC.



I meam windows system, X64?



I dual boot vista business 64-bit with xp pro.



Even in xp 32bit you cannot run SPDtool or Thaiphoon? In vista X64 is understandable, but in xp......



yep in xp. I can run them but they can't find any memory modules.



Any help in overclocking a dv5t with a T9400? I've got no luck finding the PLL for it and just don't know how to do it. Help!!! A guide would be great.

Thanks.



If you post some pics of your motherboard we can help ID the chip.
It's usually (but not always) near a crystal that says 14.318MHz.
I guess the most common brand would be ICS.

Another way to do it is by trial and error;
download setfsb.
select the first PLL (clock generator) and press getfsb and setfsb and see what happens, then if it doesn't work try the next PLL. Keep doing this until one works or until you run out of PLLs to choose.

If setfsb doesn't work try clockgen.

Please post any results.



Software to detect *some* PLLs

SiSoftware's Sandra diagnostic software can detect some PLLs. See more info here.



How do you use si sandra to detect PLL?



sean you shouldnt spend so much time trying to OC ur CPU, its not worth it as its not the bottleneck of your system its the 9600m gt. Even if you did manage to OC ur CPU the performance gains would be minor in most games as most of them are GPU dependent



@sean473, click on the hardware tab then click on "mainboard".
scroll down to "system clock generator" then look if "read back support" is "yes".

I believe if "read back support" is yes then it has detected your PLL.
I have tried it on my laptop and "read back support" is no.



i can't find this after clicking what u said.



My guess would be that si sandra can not detect your PLL, have you tried the "trial and error" method with setfsb?



Can work through the PLLs faster if you can load a minimal XP install by doing a microXP+setfsb install. Some PLLs freeze the system requiring load/cold-boot cycles through the PLLs.



could i have some screenshots to show exactly where in the info you si sandra gives u the pll would be in?

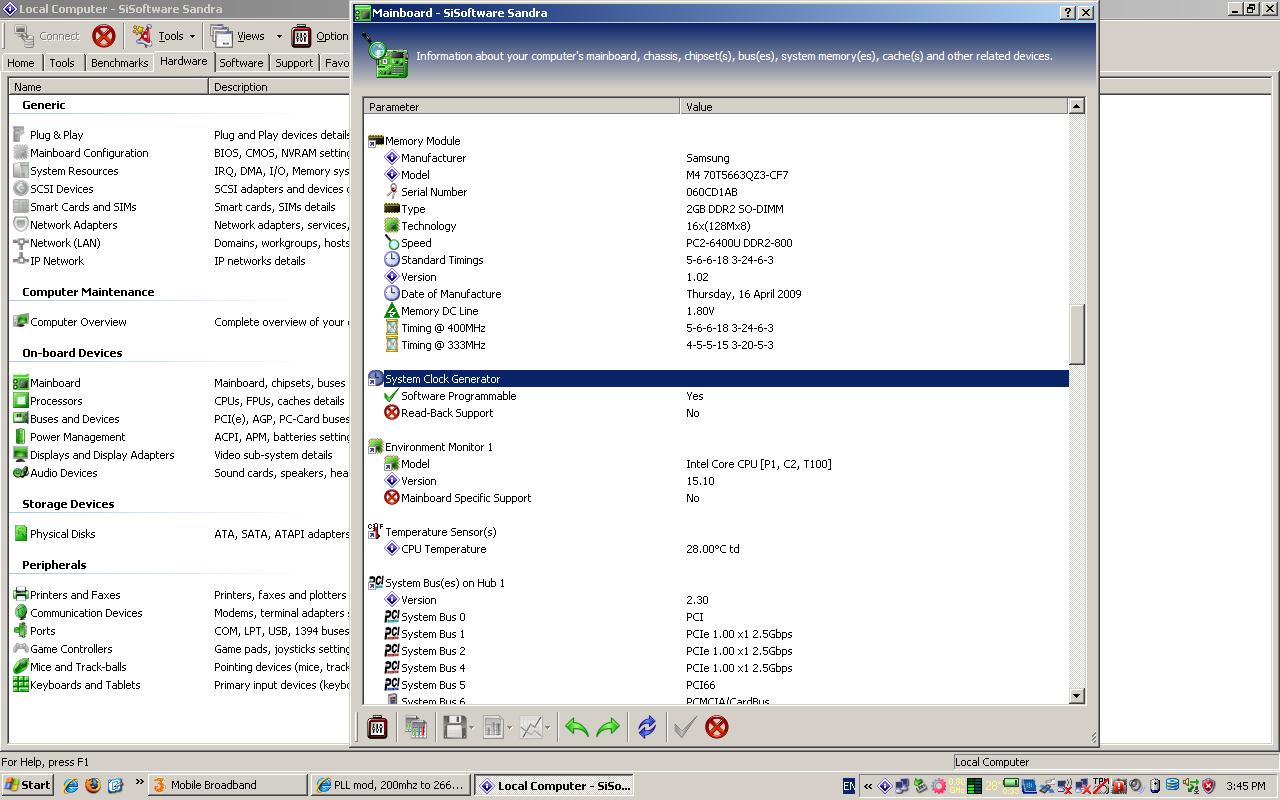

here is a screenshot:



Nope still can't find it. Any other software to find PLL?



Great news, I have found how to make spdtool and Thaiphoon Burner work for me.

For some reason they work after I press "getfsb" in setfsb.
I guess they find it hard to read my smbus, but after setfsb does it they are fine.

I don't really understand what's happening but I'm happy that I can now flash my ram.

@kaltmond, how do you "hot flash" the ram?
will the system boot with 1 bad stick and 1 good stick?

another question:
If I wan't to increase the cas latency from 5 to 6, should I change "cas latencies supported" from "4,5,6" to "6"?



anyone did 200 -> 266 hardware pinmod working ? = multiplier s not locking with 1066 fsb.
i own toshiba x205 s9349
didnt disassembled it yet but google says it has ics pll
so i want to oc it a little
post pls whis details if u had sucess in this



Amazing guide. A good help for me to continue my research overclocking my X9100 to greater heights. Thanks!



I did 133 -> 166, 166 -> 200 and 133 to 200 via pin mod (tested on both socket M and P).
I tested the above with two laptops; one with an ATi Chipset (Socket M), and one with an Intel chipset (Socket P). I didn't had any problems with the ATI based laptop. With the intel one, the CPU was locked at it lowest multiplier.

The 200 -> 266 consists on connecting the two holes A23 and B23 on the CPU socket with a copper wire, or B23 and B24 with a copper wire. I haven't tried this myself (I don't have the right laptop to test), but it is likely to work.



since this is a 33% overclock, increasing the voltage might be necessary.



The PM965 valid FSB shown on the first post, duplicated on the right, suggest that is an invalid BSEL. FSB Capability: These values are determined by the BSEL[2:0] frequency straps. Any unsupported straps will render the GMCH host interface inoperable. 01: (G)MCH capable of up to FSB 800 Mhz 10-11: (G)MCH capable of up to FSB 667 Mhz

PM45 valid FSB

PM965 valid FSB

I think there would need to be a different set of BSEL signals being seen by the chipset/PLL and the CPU for the system to boot *and* potentially work at 1066Mhz FSB as method 3 describes.



I know that the PM965 doesn't support 266FSB . The mod will work only with an intel PM975 / x4500
