    Pentium M Dothan 725 Pinmod failed. Any idea why?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by Phil, Jul 2, 2009.

  1. Phil

    Phil Retired

    Reputations:
    4,415
    Messages:
    17,036
    Likes Received:
    0
    Trophy Points:
    455
    I tried the pinmod on my Asus A6G but it's still running at 1.6GHz. I followed this guide.


    First I put in a really tiny copper wire. After that didn't work I put in a little bit thicker iron wire. No effect.

    Any ideas?

    Maybe my chipset doesn't support it I thought.

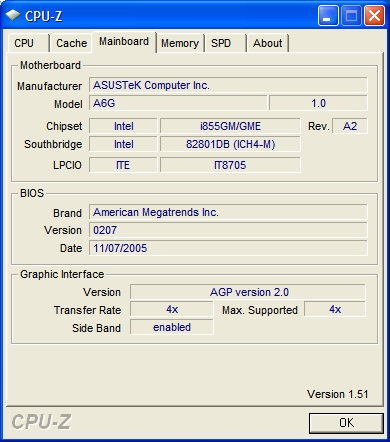

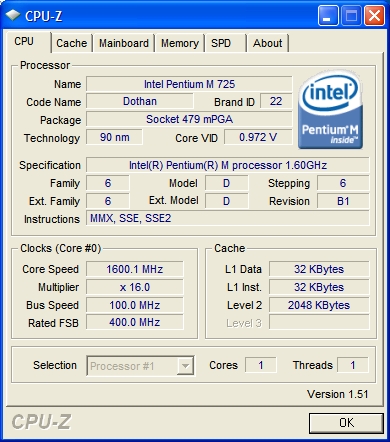

    Attached Files:

    Phil, Jul 2, 2009
    #1
  2. Pitabred

    Pitabred Linux geek con rat flail!

    Reputations:
    3,300
    Messages:
    7,115
    Likes Received:
    3
    Trophy Points:
    206
    Make sure that your wire isn't shorting out at all, and it's getting good contact when the processor is inserted into the socket. Those are common problems with pinmods... when you apply the pressure to the CPU it disconnects the wire and keeps it from properly shorting the pins.

    Pitabred, Jul 2, 2009
    #2
  3. namaiki

    namaiki "basically rocks" Super Moderator

    Reputations:
    3,905
    Messages:
    6,116
    Likes Received:
    89
    Trophy Points:
    216
    The 855 series only supports 400MHz CPUs. I tried it once on my Inspiron 700m and it didn't work, but it did on my old Joybook S72 (next generation chipset).

    namaiki, Jul 2, 2009
    #3
  4. Phil

    Phil Retired

    Reputations:
    4,415
    Messages:
    17,036
    Likes Received:
    0
    Trophy Points:
    455
    So 855 is a definite no go?

    Phil, Jul 2, 2009
    #4
  5. Johnny T

    Johnny T Notebook Nobel Laureate

    Reputations:
    6,092
    Messages:
    12,975
    Likes Received:
    201
    Trophy Points:
    481
    Nope, doesn't work with i855. Only Sonoma (915) because it has a higher FSB (533mhz). Other wise I would have pin modded my 725 a long time ago. :D

    Johnny T, Jul 2, 2009
    #5
  6. namaiki

    namaiki "basically rocks" Super Moderator

    Reputations:
    3,905
    Messages:
    6,116
    Likes Received:
    89
    Trophy Points:
    216
    It won't work. I put in a Pentium M 750 (1.86GHz) into one and it would run at up to 1.4GHz.

    namaiki, Jul 2, 2009
    #6
  7. Johnny T

    Johnny T Notebook Nobel Laureate

    Reputations:
    6,092
    Messages:
    12,975
    Likes Received:
    201
    Trophy Points:
    481
    The guide did say...
    :D

    Johnny T, Jul 2, 2009
    #7
  8. Phil

    Phil Retired

    Reputations:
    4,415
    Messages:
    17,036
    Likes Received:
    0
    Trophy Points:
    455
    Yeah I did not read very well :)

    But on the good side, I've cleaned my fans and applied new thermal paste.

    Phil, Jul 2, 2009
    #8
  9. ivar

    ivar Notebook Deity

    Reputations:
    432
    Messages:
    1,410
    Likes Received:
    0
    Trophy Points:
    55
    you need Intel 915 to use pinmoded PM725 instead of a Sonoma processor.

    Interesting that your system still works after pinmoding. :eek:

    WOW, interesting find. I did not know it would work. Did you pinmode PM750 or just inserted it?

    ivar, Jul 2, 2009
    #9
  10. namaiki

    namaiki "basically rocks" Super Moderator

    Reputations:
    3,905
    Messages:
    6,116
    Likes Received:
    89
    Trophy Points:
    216
    I just inserted it, basically for the upgrade from Pentium M 1.4GHz 1MB Cache, to Pentium M 1.4GHz 2MB Cache, because I had the processor spare.

    namaiki, Jul 2, 2009
