    Pll found->But there is no datasheet all over internet...

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by Donmajkelo, Nov 1, 2009.

  1. Donmajkelo

    Donmajkelo Notebook Enthusiast

    Reputations:
    1
    Messages:
    34
    Likes Received:
    0
    Trophy Points:
    15
    Hello guys,
    I've found my pll in my Acer Aspire 5530g (it's slg8sp626v) but can't find any datasheet in internet so abo can't help me with setfsb. Any ideas what can I do to get any OC of my RM-70 (heard it can go 2@2,5 without voltage change).
    Don.

    Donmajkelo, Nov 1, 2009
    #1
  2. Trottel

    Trottel Notebook Virtuoso

    Reputations:
    828
    Messages:
    2,303
    Likes Received:
    0
    Trophy Points:
    0
    For me if I can't find the data sheet for a chip, it usually means I didn't read it correctly. The writing can be very tiny, not perfect, or worn so it can be very difficult to read it correctly.

    Trottel, Nov 1, 2009
    #2
  3. Donmajkelo

    Donmajkelo Notebook Enthusiast

    Reputations:
    1
    Messages:
    34
    Likes Received:
    0
    Trophy Points:
    15
    Donmajkelo, Nov 1, 2009
    #3
  4. K-TRON

    K-TRON Hi, I'm Jimmy Diesel ^_^

    Reputations:
    4,412
    Messages:
    8,077
    Likes Received:
    2
    Trophy Points:
    205
    Can you take an image of the chip?
    Is it made by Cypress?, Winfast?, Relatek?, ST?

    That would be helpful information.
    You can always check the manufacturers site for information. It is a bit hard to find, but I know Cypress has all of the datasheets for there PDF's online.

    K-TRON

    K-TRON, Nov 1, 2009
    #4
  5. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    in the OP he said it's SLG*** so that means it's silego.

    Don't worry about the datasheet, you can just use a simmilar one.

    I'll help you out.
    First do this for me:
    1. open setfsb
    2. select a simmilar PLL in setfsb.
    3. click on the diagnosis tab.
    4. click getfsb.
    5. upload a screenshot for me.

    moral hazard, Nov 1, 2009
    #5
  6. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    moral hazard, Nov 1, 2009
    #6
  7. Trottel

    Trottel Notebook Virtuoso

    Reputations:
    828
    Messages:
    2,303
    Likes Received:
    0
    Trophy Points:
    0
    He gave that link in the third post. Te problem is that they don't have a data sheet for that chip.

    Trottel, Nov 1, 2009
    #7
  8. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    sorry.

    You dont need the exact datasheet.

    Most of the important pins and registers are the same on every PLL.

    When he uploads a screenshot for me I will give further instructions.

    Also, I would like a description of what happens when he tries other similar PLLs in setfsb.

    Does the system lock up?
    Or do the clocks just stay the same?

    He probably has TME mode enabled meaning no software overclocking (without a pin mod first), but I cant be sure until I see the screenshot.

    I'm going to suggest using the datasheet for SLG8LP622.

    moral hazard, Nov 1, 2009
    #8
  9. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    wow those AMD PLLs are great.

    They have RW bytes.

    Meaning overclocking is easy without a pin mod.

    Just look at Control Register 3.
    bits 4 to 0.

    look at table 1 for the correct values.

    moral hazard, Nov 1, 2009
    #9
  10. Donmajkelo

    Donmajkelo Notebook Enthusiast

    Reputations:
    1
    Messages:
    34
    Likes Received:
    0
    Trophy Points:
    15
    Ok i have taken some screen...
    So you say that amd pll is really easy to OC?

    Sorry for late reply-> work :(

    About setfsb....Strange-sometimes lock up, sometimes bsod, sometimes no change in mhz. I dont know what it depends on...


    Attached Files:

    Donmajkelo, Nov 2, 2009
    #10
  11. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    Setfsb must be doing something wrong/bad.

    How about trying to manually change the bytes.

    change control register (byte) 3 from C7 to CA.

    That should overclock from 164.2 to 178.08.

    moral hazard, Nov 2, 2009
    #11
  12. Donmajkelo

    Donmajkelo Notebook Enthusiast

    Reputations:
    1
    Messages:
    34
    Likes Received:
    0
    Trophy Points:
    15
    The problem is, it read wrong clocks. My clocks are 200/400 and setfsb reads 164/337

    Donmajkelo, Nov 3, 2009
    #12
  13. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    Try my suggestion anyway.

    moral hazard, Nov 3, 2009
    #13
  14. Donmajkelo

    Donmajkelo Notebook Enthusiast

    Reputations:
    1
    Messages:
    34
    Likes Received:
    0
    Trophy Points:
    15
    No change in clocks. I tried other values, but still no change.

    update: there was change-> BSOD.

    Donmajkelo, Nov 3, 2009
    #14
  15. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    So when you change that byte, you BSOD?

    moral hazard, Nov 3, 2009
    #15
  16. Donmajkelo

    Donmajkelo Notebook Enthusiast

    Reputations:
    1
    Messages:
    34
    Likes Received:
    0
    Trophy Points:
    15
    Yes. Few,(3 maybe 4) minutes after.

    Donmajkelo, Nov 3, 2009
    #16
  17. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    But does the clock speed change?

    Also, do you change the byte then press update and apply?

    Dont press setfsb.

    moral hazard, Nov 3, 2009
    #17
  18. Donmajkelo

    Donmajkelo Notebook Enthusiast

    Reputations:
    1
    Messages:
    34
    Likes Received:
    0
    Trophy Points:
    15
    No, speed doesn't change. yes i do update and apply. I did it once again, and look up if it will cause another BSOD. I have no idea why it is sometimes causing bsod, and sometimes not.

    Donmajkelo, Nov 3, 2009
    #18
  19. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    How did you find your PLL?

    moral hazard, Nov 3, 2009
    #19
  20. Donmajkelo

    Donmajkelo Notebook Enthusiast

    Reputations:
    1
    Messages:
    34
    Likes Received:
    0
    Trophy Points:
    15
    Opened my notebook. Now I'm sure that changing that byte is causing BSOD.

    Donmajkelo, Nov 3, 2009
    #20
  21. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    I will just look at some more datasheets for 2 mins.

    moral hazard, Nov 3, 2009
    #21
  22. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    Do you have ATI graphics?

    moral hazard, Nov 3, 2009
    #22
  23. Donmajkelo

    Donmajkelo Notebook Enthusiast

    Reputations:
    1
    Messages:
    34
    Likes Received:
    0
    Trophy Points:
    15
    Yes I do. Ati Radeon hd3470 x 2 hybrid xf(3200+3470)

    Donmajkelo, Nov 3, 2009
    #23
  24. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    your control register for PLL1 is not where it is in other PLLs.

    You really need your datasheet.

    I give up for today, maybe tomorrow I will have another idea.

    Did you try sending an email to silego?

    moral hazard, Nov 3, 2009
    #24
  25. Donmajkelo

    Donmajkelo Notebook Enthusiast

    Reputations:
    1
    Messages:
    34
    Likes Received:
    0
    Trophy Points:
    15
    Will they send me datasheet? I looked at it and it seems to be only for manufacturers.

    Donmajkelo, Nov 3, 2009
    #25
  26. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    Tell them the truth, that you just want to overclock.

    I remember one forum member did that, they were told to pay $50 for the datasheet.

    One thing you can try is trial and error, where you change different bits and watch the frequency. I can tell you what the most likely bits to try are, but I dont think it's a good idea. It could cause damage.

    Are you overclocking your graphics?
    Because you can actually do that too with setfsb if you get the PLL datasheet. that is why I asked about what graphics you had.

    moral hazard, Nov 3, 2009
    #26
  27. Donmajkelo

    Donmajkelo Notebook Enthusiast

    Reputations:
    1
    Messages:
    34
    Likes Received:
    0
    Trophy Points:
    15
    Wow, so i try to get datasheet. I think i will need some oc both my gpu & cpu.

    Donmajkelo, Nov 3, 2009
    #27
  28. Donmajkelo

    Donmajkelo Notebook Enthusiast

    Reputations:
    1
    Messages:
    34
    Likes Received:
    0
    Trophy Points:
    15
    No reply from Silego site....

    Donmajkelo, Nov 4, 2009
    #28
  29. scape02

    scape02 Newbie

    Reputations:
    11
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    I dont know if I am bumping this post up or not, cause i just found this while searchin google... But from the looks of it, he has the exact same chip as mine, only i couldnt find mine either, so with the help of a couple helpfull people at another forum, i found out that the only way i could OC my laptop in setfsb was to use the motherboard SLG8LP625T and it worked, although it will only let you OC to 1800mhz it will do the trick as, after i OC'ed the windows rating index for the Laptop actually increased from 3.0>3.2. So like I said dont flame me if i am bumping this thread it will be by accident but, I hope this works for you.

    scape02, Dec 3, 2009
    #29
  30. Darth_nVader

    Darth_nVader Notebook Consultant

    Reputations:
    52
    Messages:
    117
    Likes Received:
    1
    Trophy Points:
    31
    Scape02, will you Use SetFSB->Click Diagnosis->Chose SLG8LP625T in the Clock Generator field-> Check Ultra->Click GetFSB->Click Capture

    Then, Use SetFSB->Click Diagnosis->Chose SLG8LP625T in the Clock Generator field-> Check Ultra->Click GetFSB->Move the Slider for 1800Mhz->Click SetFSB->Click Capture

    And Upload the BMP's in the /setfsb_2_2_130_96/capture/ Folder.

    Thanks

    Darth_nVader, Dec 3, 2009
    #30
  31. scape02

    scape02 Newbie

    Reputations:
    11
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5

    :O Darth You're like DE JA VU lol jk, anyways i did what you told me to do, And here are the screenies, I also added a screenie of what happens when i OC past 200mhz... (past 9/24)


    [​IMG]

    [​IMG]

    [​IMG]

    scape02, Dec 4, 2009
    #31
  32. Darth_nVader

    Darth_nVader Notebook Consultant

    Reputations:
    52
    Messages:
    117
    Likes Received:
    1
    Trophy Points:
    31

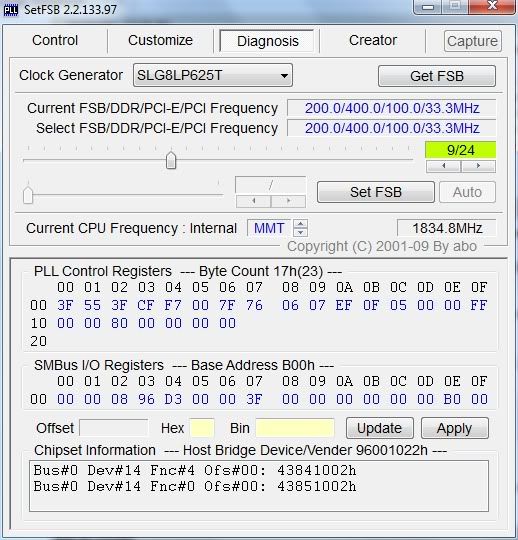

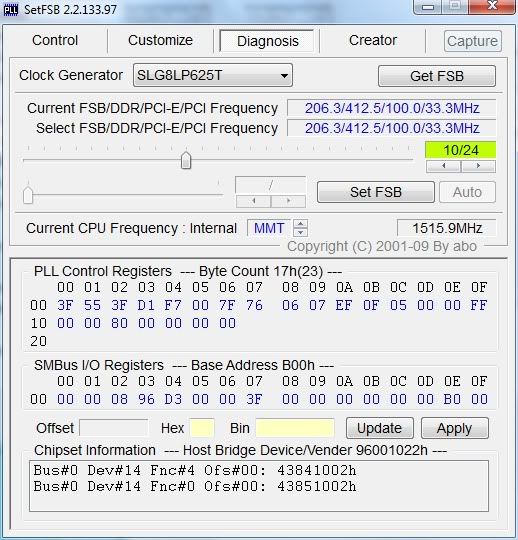

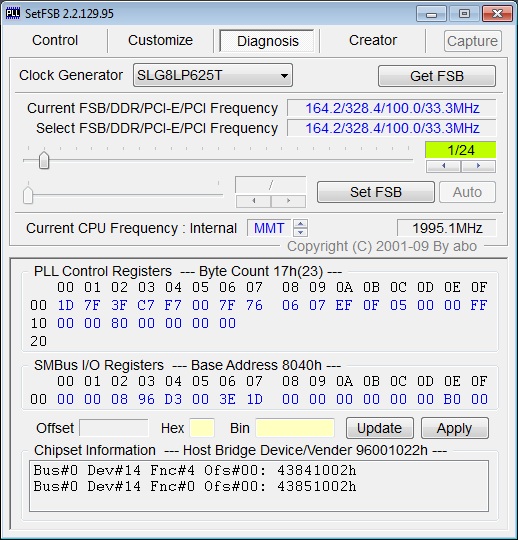

    Look at these three, down where is says PLL Control Registers --Byte Count--

    The data @03h

    C7=164.21Mhz FSB
    CF=200.01Mhz FSB
    D1=Should be 206.3Mhz FSB

    So, we can see that this has changed from the SLG*622v DataSheet.

    If we convert the Hex to Binary

    C7 = 1100 0111 (Ok the Last 2bits Read Right<-Left C = 1100 = 2Load

    The Bit that has changed:

    D1 = 110 10001 This bit should be the Last Bit of:
    PLL 1 (CPU) Frequency Select Table

    So they have shifted this:

    D1 = 160.18 Mhz FSB

    All that can be done is Click the DATA@03h and Change the BITS in the BIN Field to see:

    Maybe 11 10 0001 Click Update->Click Apply

    Darth_nVader, Dec 5, 2009
    #32
  33. scape02

    scape02 Newbie

    Reputations:
    11
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    I did as you told me to do... but still no difference... thanks anyways i might bug the setfsb guys :p to put my board up :D

    scape02, Dec 5, 2009
    #33
  34. Donmajkelo

    Donmajkelo Notebook Enthusiast

    Reputations:
    1
    Messages:
    34
    Likes Received:
    0
    Trophy Points:
    15
    I did some things on thi 03 bit, and I get to a Conclusion:
    What, if this pll must be activated? Slg8lp622 in this datasheet there is byte called:
    Spread Spectrum Enable. It is control register 0, bit 0. In my it is always 1, but what if I will give it to 0?
    It will give me no changes. Maybe It is located in other bit?

    My control register looks like: (Viewed by both SefFSB and RW-Everything)
    76543210
    0. 00011101
    1. 01111111
    2. 00111111
    3. 11000111
    4. 11110111
    5. 00000000

    and more up to 23

    Donmajkelo, Jan 6, 2010
    #34
  35. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    It's not going to help much changing the spread spectrum bit to 0. Though your FSB will be increased by 0.5% or more depending on the amount of downspread you currently have.

    moral hazard, Jan 6, 2010
    #35
  36. Donmajkelo

    Donmajkelo Notebook Enthusiast

    Reputations:
    1
    Messages:
    34
    Likes Received:
    0
    Trophy Points:
    15
    So what can I do with it? Maybe my pll is blocked for changing fsb?

    Donmajkelo, Jan 7, 2010
    #36
  37. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    Try changing byte 3 to this:

    moral hazard, Jan 7, 2010
    #37
  38. Donmajkelo

    Donmajkelo Notebook Enthusiast

    Reputations:
    1
    Messages:
    34
    Likes Received:
    0
    Trophy Points:
    15
    Done...And nothing happen.

    Donmajkelo, Jan 8, 2010
    #38
  39. blackshard83

    blackshard83 Notebook Consultant

    Reputations:
    43
    Messages:
    204
    Likes Received:
    0
    Trophy Points:
    30
    Hi all, I'm reviving the thread to say that also AMD HP dv5 machines have SLG8SP626V pll chip. I may take some screenshots from the program if necessary.

    blackshard83, Jan 24, 2010
    #39
  40. Donmajkelo

    Donmajkelo Notebook Enthusiast

    Reputations:
    1
    Messages:
    34
    Likes Received:
    0
    Trophy Points:
    15
    What is your CPU?

    Donmajkelo, Jan 25, 2010
    #40
  41. blackshard83

    blackshard83 Notebook Consultant

    Reputations:
    43
    Messages:
    204
    Likes Received:
    0
    Trophy Points:
    30
    AMD Turion ZM-80 2.1 ghz

    blackshard83, Jan 25, 2010
    #41
  42. Donmajkelo

    Donmajkelo Notebook Enthusiast

    Reputations:
    1
    Messages:
    34
    Likes Received:
    0
    Trophy Points:
    15
    Sorry for late reply->exams.

    Could you place here your screenshot from setfsb? Especially in slg8lp625t, in diagnosis, because I want to see if anything is different a lot.

    Donmajkelo, Jan 28, 2010
    #42
  43. god-kpi

    god-kpi Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    I also have a laptop acer aspire 5530G and want to overclock the processor. PLL SLG8SP626V.The program setfsb has not helped. Сan someone from the local experts help?

    ___________
    Acer 5530g
    AMD turion x2 rm70 2ghz, samsung 2gb 667-->800 mhz, ATI RADEON 3470 x2 hybrid crossfire.
    Win7 Ultimate x32

    god-kpi, Nov 28, 2010
    #43
  44. User Retired 2

    User Retired 2 Notebook Nobel Laureate NBR Reviewer

    Reputations:
    4,127
    Messages:
    7,860
    Likes Received:
    10
    Trophy Points:
    0
    User Retired 2, Nov 28, 2010
    #44
  45. god-kpi

    god-kpi Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    nothing comes out. anyone clocked the processor on the laptop?

    god-kpi, Nov 28, 2010
    #45
  46. Donmajkelo

    Donmajkelo Notebook Enthusiast

    Reputations:
    1
    Messages:
    34
    Likes Received:
    0
    Trophy Points:
    15
    We tried with abo to overclock it, but it is...unable to touch it even.

    Donmajkelo, Dec 19, 2010
    #46
  47. god-kpi

    god-kpi Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    god-kpi, Feb 19, 2011
    #47
