Post your AS-SSD File Copy result. For HDDs and SSDs, easy comparison.

The AS-SSD Copy benchmark is a benchmark that makes it easy to compare HDDs and SSDs. The Copy test simulates a file copy, which is as good as a real world test.

Here's my result for a WD6400BEVT 5400rpm:


When the MB/sec scores are added together the score is 96. Please add your MB/sec numbers together and mention it in your post.

To run the benchmark:
Download AS-SSD here: http://www.alex-is.de/PHP/fusion/downloads.php?cat_id=4&download_id=9
Make sure Windows is in High performance mode and Intel Rapid Storage Driver is installed.
Please post only results achieved on a notebook. No desktops.
To reduce wear on your SSD only run the copy benchmark, and only run it once.

Below is updated list with links for (possible) additional user info:

SSD
1.Crucial C300 256GB - 395 - CarlosGFK - http://forum.notebookreview.com/6812881-post53.html
2.SAMSUNGPB22 128GB - 357 - maximinimaus - http://forum.notebookreview.com/6808518-post5.html
3.Crucial C300 256GB - 354 - Napbree http://forum.notebookreview.com/6812881-post92.html
4.SAMSUNGPB22 256GB - 313 - Rachel - http://forum.notebookreview.com/6811857-post31.html
5.Intel G2 80GB - 307 - Jkleiss - http://forum.notebookreview.com/6810644-post18.html
6.Corsair Nova 128GB - 302 - Abidderman - http://forum.notebookreview.com/6814637-post71.html
7.Intel G2 80GB - 297 - dlai - http://forum.notebookreview.com/6811591-post29.html
8.Intel G2 160GB - 286 - Forge - http://forum.notebookreview.com/6812353-post46.html
9.Patriot Inferno 100GB - 274 - tilleroftheearth - http://forum.notebookreview.com/6811379-post24.html
10. Crucial M225 256GB - 263 - namaiki - http://forum.notebookreview.com/6812418-post51.html
11.Crucial M225 256 GB - 240 - dlai - http://forum.notebookreview.com/6811591-post29.html
12.CrucialM225 256GB -248 - wikoogle - http://forum.notebookreview.com/6818119-post81.html
13.OCZ Vertex 2 120GB - 179 - unreal25 - http://forum.notebookreview.com/6812382-post48.html
14.KingstonSNV425S2 - 150 - HRK - http://forum.notebookreview.com/6809799-post12.html

HDD
1.MomentusXT - 162 - tilleroftheearth - http://forum.notebookreview.com/6827098-post83.html
2.Hitachi7K500 - 159 - tilleroftheearth - http://forum.notebookreview.com/6811504-post26.html
3.SAM HM64JJ - 149 - Forge - http://forum.notebookreview.com/6812353-post46.html
4.MomentusXT - 142 - rsatmans (500GB) - http://forum.notebookreview.com/6808346-post4.html
5.ST9500420A - 122 - dlai - http://forum.notebookreview.com/6812109-post43.html
6.WD3200BEKT - 113 - HRK - http://forum.notebookreview.com/6808859-post6.html
7.Hitachi7K500 - 105 - King of Interns - http://forum.notebookreview.com/6809461-post10.html
8.Hitachi7K200 - 105 - Ackers - http://forum.notebookreview.com/6809809-post13.html
9.WD3200BEKT - 103 - crayonyes - http://forum.notebookreview.com/6807854-post2.html
10.WD6400BEVT - 96 - Phil - First Post
11.ST9500420ASG - 85 - RWUK - http://forum.notebookreview.com/6814510-post65.html
12.WD3200BEKT - 78 - Abidderman - http://forum.notebookreview.com/6810293-post16.html
13.WD3200BEKT - 73 - vinuneuro - http://forum.notebookreview.com/6809696-post11.html
14.WD7500BPVT - 67 - dlai - http://forum.notebookreview.com/6812109-post43.html
15.WD5000BEVT - 66 - Poulsen - http://forum.notebookreview.com/6812356-post47.html

RAID
1. 2 x Intel G2 160GB - 599 - eYe-I-aïe - http://forum.notebookreview.com/6810876-post20.html
2. 2x WD3200BEKT - 216 - Atreides-duke link

To be included in the list post a screenshot of the AS-SSD Copy benchmark and add the 3 MB/sec numbers together.

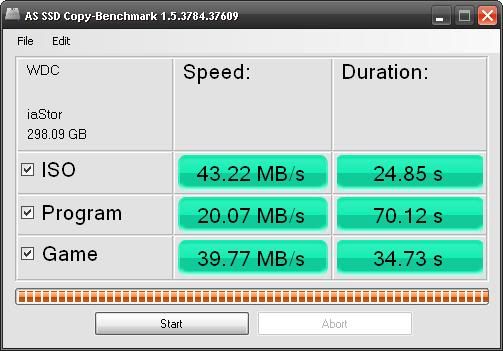

WD3200BEKT 7200rpm = Total results 103


I don't understand why the Program copy is so low.



Have you tried it twice?

Maybe it's caused by fragmentation.



Momentus XT 500GB



SAMSUNG SSD PB22-JS3 FDE 2.5" 128GB
Firmware VBM9MD1Q
left: balanced
right: high performance



WD3200BEKT-22KA9T0




Kingston SNV425S2 64GB



Where do I get the latest the Intel Rapid Storage driver?

Would you install it if you were me? I googled it and people say that wiper doesn't work with it so it's a bad idea for SSDs. Is this still true. Do I ever need to use Wiper, or can I just rely on TRIM on FreeSpaceCleaner?

I never bothered to install it and these are the results I get...





Should I install the Intel Rapid Storage driver? Or am I better off keeping my SSD on the stock Crucial 1916 firmware and msahci driver to be able to use wiper?



Wow are you sure you didn't get the two mixed up? SSDs should be much faster than hard drives on program load...



Well, I tried a couple of more times even with a 10.0.0.1046 driver, but the results were even worse.

The sequential write was about 110 MB/s when I got it about two weeks ago, but today it was like 40 MB/s. The 4K read and write are very low too.

The sequential read is still decent like 230 MB/s and the boot up time and loading programs seem to be very fast.

I'm replacing it with a Vertex 2 60GB tomorrow as I can still use this Kingston for my backup laptop.

BTW, I'm using a 9.6.0.1014 RST driver.

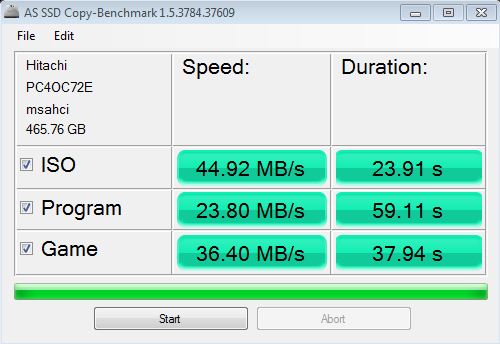

Here is my Hitachi 7k500 7200rpm HDD score: Drive nearly empty as that is the way I like to keep things. Keep most of my data on an external.



For some reason program in German and couldn't change it but meh who cares



I'm wondering what's wrong with my WD3200BEKT. This is a 2nd gen Scorpio Black, 250gb/platter. It feels extremely snappy.



The results fluctuate heavily.

Kingston SNV425S2 64GB



Hitachi 7200k



USB (Seagate FreeAgent 5400rpm)

just because I'm bored

http://forum.notebookreview.com/attachment.php?attachmentid=57244&stc=1&d=1287539530



It was my first attempt

I tried again and it does seem better, but then I tried several times again,
the result seems to fluctuate..
I don't think we can have a stable result with this benchmark.



These are my marks for my 320 Black and Corsair 128 Nova SSD.



Please add your MB/sec numbers together and mention it in your post.

I added the numbers for the first posts.

SSD

1. SAMSUNGPB22 128GB - 350 - maximinimaus (PB22-JS3 FDE 2.5" 128GB)
2. CrucialM225 256GB -232 - wikoogle
3. Corsair Nova 128GB - 166 - Abidderman
4. KingstonSNV425S2 - 150- HRK

HDD

1. MomentusXT - 142 - rsatmans (500GB)
2. WD3200BEKT - 113 - HRK (22KA9T0)
3. Hitachi7K500 - 105 - King of Interns
4. Hitachi 7K200 - 105 - Abidderman
5. WD3200BEKT - 103 - crayonyes
6. WD6400BEVT - 96 - Phil
7. WD3200BEKT - 78 - Abidderman
8. WD3200BEKT - 73 - vinuneuro

1. Intel.com
2. Absolutely
3. Yes
4. No



Intel G2 80GB



From now on please add your 3 MB/sec numbers together and mention them in your post.

SSD

1. SAMSUNGPB22 128GB - 350 - maximinimaus (PB22-JS3 FDE 2.5" 128GB)
2. Intel G2 80GB - 307 - Jkleiss
3. CrucialM225 256GB -232 - wikoogle
4. Corsair Nova 128GB - 166 - Abidderman
5. KingstonSNV425S2 - 150 - HRK

HDD

1. MomentusXT - 142 - rsatmans (500GB)
2. WD3200BEKT - 113 - HRK (22KA9T0)
3. Hitachi7K500 - 105 - King of Interns
4. Hitachi7K200 - 105 - Abidderman
5. WD3200BEKT - 103 - crayonyes
6. WD6400BEVT - 96 - Phil
7. WD3200BEKT - 78 - Abidderman
8. WD3200BEKT - 73 - vinuneuro

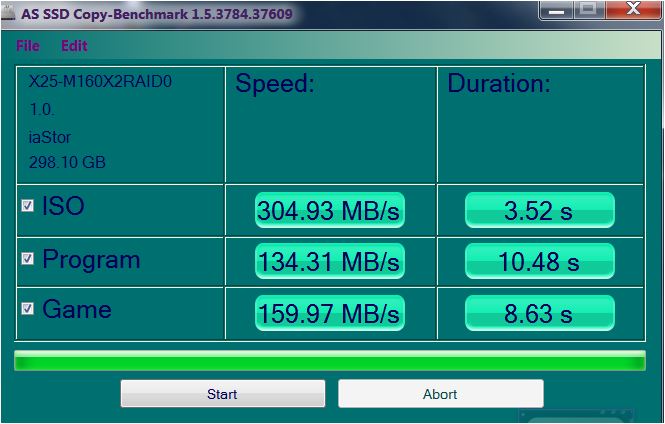

2 X Intel G2 160GB RAID0:

599.21



RAID

1. 2x Intel G2 160GB - 599 - eYe-I-aïe

SSD

1. SAMSUNGPB22 128GB - 350 - maximinimaus (PB22-JS3 FDE 2.5" 128GB)
2. Intel G2 80GB - 307 - Jkleiss
3. CrucialM225 256GB -232 - wikoogle
4. Corsair Nova 128GB - 166 - Abidderman
5. KingstonSNV425S2 - 150 - HRK

HDD

1. MomentusXT - 142 - rsatmans (500GB)
2. WD3200BEKT - 113 - HRK (22KA9T0)
3. Hitachi7K500 - 105 - King of Interns
4. Hitachi7K200 - 105 - Abidderman
5. WD3200BEKT - 103 - crayonyes
6. WD6400BEVT - 96 - Phil
7. WD3200BEKT - 78 - Abidderman
8. WD3200BEKT - 73 - vinuneuro



I just ran this and got a score of 269 for a 100GB Inferno.

Just curious how long this copy test took for others: I saw about 2:45 (MM:SS) from start to finish for 'timed' tests that add up to less than 47 seconds.

I know the program is creating the test files but does this time stay standard or does it depend on the drive used?

Curious to see how this aspect of the test compares with others.



Can you post a screenshot too?

I just did a run that took 4:44, the seconds added together is 2:32.



Phil,

Here is a re-run:

274.39 MB/s of the 3 runs.

43.51 seconds 'timed tests'.

2:40 (MM:SS) total run time.

With screen shot this time.

This is of course my Inferno 100GB SandForce based SSD.



RAID

1. 2x Intel G2 160GB - 599 - eYe-I-aïe

SSD

1. SAMSUNGPB22 128GB - 350 - maximinimaus
2. Intel G2 80GB - 307 - Jkleiss
3. Patriot Inferno 100GB - 274 - tilleroftheearth
4. CrucialM225 256GB -232 - wikoogle
5. Corsair Nova 128GB - 166 - Abidderman
6. KingstonSNV425S2 - 150 - HRK

HDD

1. MomentusXT - 142 - rsatmans (500GB)
2. WD3200BEKT - 113 - HRK (22KA9T0)
3. Hitachi7K500 - 105 - King of Interns
4. Hitachi7K200 - 105 - Abidderman
5. WD3200BEKT - 103 - crayonyes
6. WD6400BEVT - 96 - Phil
7. WD3200BEKT - 78 - Abidderman
8. WD3200BEKT - 73 - vinuneuro



Here is my Hitachi 7K500 results too.

IRST 1046:
158.86 MB/s of the 3 runs.

75.93 seconds 'timed tests'.

2:27 (MM:SS) total run time.


MSAHCI v1.0:
149.87 MB/s of the 3 runs.

80.27 seconds 'timed tests'.

2:35 (MM:SS) total run time.


What is interesting here is that the Hitachi is 13 seconds faster to complete the test (compared to the Inferno SSD with same IRST drivers) even though the timed tests themselves take almost twice as long on the Hitachi.

Another point of interest: the Hitachi is on a Core 2 Duo platform while the Inferno is on an i3 based one. Both 8GB RAM and 2.26 GHz nominal clock rates (cpu). IRST 1046 WHQL drivers used on both.



I was hoping this would be a way to compare HDDs and SSDs independed of the notebook used. This turns out to be not the case.

RAID

1. 2x Intel G2 160GB - 599 - eYe-I-aïe

SSD

1. SAMSUNGPB22 128GB - 350 - maximinimaus
2. Intel G2 80GB - 307 - Jkleiss
3. Patriot Inferno 100GB - 274 - tilleroftheearth
4. CrucialM225 256GB -232 - wikoogle
5. Corsair Nova 128GB - 166 - Abidderman
6. KingstonSNV425S2 - 150 - HRK

HDD

1. Hitachi7K500 - 159 - tilleroftheearth
2. MomentusXT - 142 - rsatmans (500GB)
3. WD3200BEKT - 113 - HRK (22KA9T0)
4. Hitachi7K500 - 105 - King of Interns
5. Hitachi7K200 - 105 - Abidderman
6. WD3200BEKT - 103 - crayonyes
7. WD6400BEVT - 96 - Phil
8. WD3200BEKT - 78 - Abidderman
9. WD3200BEKT - 73 - vinuneuro



No, not only is the platform/notebook a determining factor but also how it is setup and also the AHCI/IRST drivers used (as seen in my 7K500 example).

I just want to point out that I set up my mechanical HD's as noted here:

See:
http://forum.notebookreview.com/har...-hitachi-7k500-benchmark-setup-specifics.html


The short version: I set the fastest part of the platters as my 'T' drive and point all Temp files there (64GB size).

If the AS SSD copy benchmark uses this first partition for its testing - this may explain my 'scores' here (even if others are using a faster cpu/platform than I).



First file is Intel G2 80 gb SSD: 297.07 mb 40.49 sec

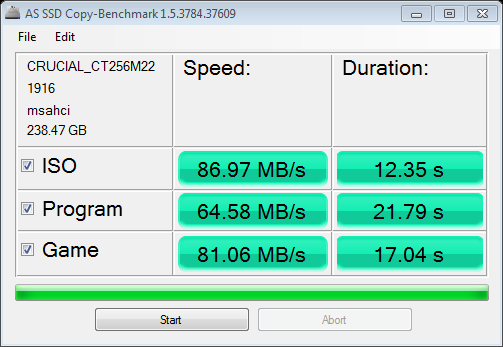

Second file is Crucial M225 256 gb SSD: 240.24 mb 52.10 sec



dlai,

Thanks for providing the times of your scores - but I would be interested in the total time that the copy test takes to run.

(I can calculate the 'timed' scores - but the time the complete test takes to run seems like it would be beneficial to know too).

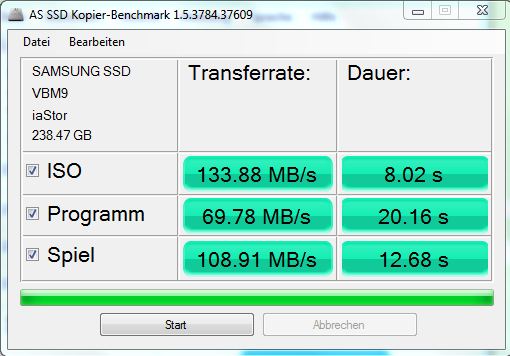

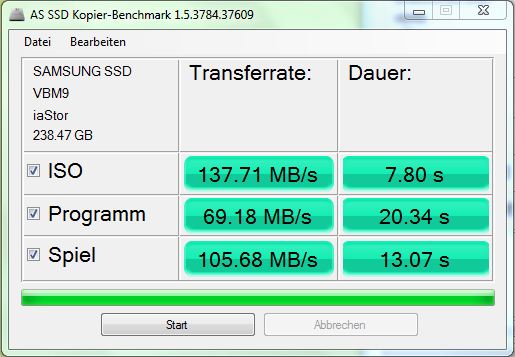

Sony TT 1.8 256GB Samsung SSD PB22- CS3 FDE with TRIM. The 2.5 128GB variant should result in slightly better times. My scores though were 313 for the both and i've had my TT on all day.

The 1st is my 1st run in high performance mode and in balanced mode in the vaio control centre.
The 2nd one is in high performace mode using both profiles.

I'll come back and edit in the results for my 2.5 128GB Corsair drive with a PB22 controller that has no TRIM.
Edited to add:

I won't include these scores as I cannot install the Intel RS drivers.



Thanks for those results Rachel. Please add the MB/sec numbers together if you want to be included in the best list.



Hi Phil: Do I get to play since I posted my results and added my numbers together 4 posts up?



Give me some time please

RAID

1. 2x Intel G2 160GB - 599 - eYe-I-aïe

SSD

1. SAMSUNGPB22 128GB - 350 - maximinimaus
2. SAMSUNGPB22 256GB - 313 - Rachel (1.8")
3. Intel G2 80GB - 307 - Jkleiss
4. Intel G2 80GB - 297 - dlai
5. Patriot Inferno 100GB - 274 - tilleroftheearth
6. Crucial M225 256 GB - 240 - dlai
7. CrucialM225 256GB -232 - wikoogle
8. Corsair Nova 128GB - 166 - Abidderman
9. KingstonSNV425S2 - 150 - HRK

HDD

1. Hitachi7K500 - 159 - tilleroftheearth
2. MomentusXT - 142 - rsatmans (500GB)
3. WD3200BEKT - 113 - HRK (22KA9T0)
4. Hitachi7K500 - 105 - King of Interns
5. Hitachi7K200 - 105 - Abidderman
6. WD3200BEKT - 103 - crayonyes
7. WD6400BEVT - 96 - Phil
8. WD3200BEKT - 78 - Abidderman
9. WD3200BEKT - 73 - vinuneuro



313 for me. I'm not going to do the results for my SZ and added in my reasons why in my post above.



It's sort of weird. For the Intel, from the second I clicked on start till the test ended was 2:22. For the Crucial, it was 2:03. Yet, the benchmark numbers for the Intel were better, so to speak. Maybe the size of the drive makes a difference?



Maybe the programs needs some time to create the file to copy. The Crucial has higher write speeds so that would make sense.



dlai,

Thank you.

I'm guessing that the 15% better time for the Crucial is because of the T9600 based W500 vs. the P8600 based X200 (16.6% difference in clock speed).

I'm also guessing that the P9600 with no idle states (vs. the P8600 with idle states) available to the cpu is also boosting the better (overall) time the Crucial is posting.

See:
http://ark.intel.com/Product.aspx?id=35568

See:
http://ark.intel.com/Product.aspx?id=35563


This is interesting!

Thanks again.



Phil, if this were true, then the Hitachi should not be faster (total time) than the Inferno, right?

2:27 vs. 2:40 (7K500/Inferno, respectively).



Correct....



I assume that benchmark is not mac compatible?

I see no one use a Vertex 2 yet



I posted the Inferno results - not exactly Vertex 2, but SandForce based non the less.

Not mac compatible afaik.



tiller and Phil, what you both posted makes sense to me.

I ran the tests on both my spinners. Here's the info:

First is the WD7500BPVT, 750 gb drive, 67.37 mb/s, 173.88 seconds, 4:31 total time to run.
Second is the ST9500420A, 500 gb drive, 121.95 mb/s, 97.22 seconds, 3:05 total time to run.



RAID

1. 2x Intel G2 160GB - 599 - eYe-I-aïe

SSD

1. SAMSUNGPB22 128GB - 350 - maximinimaus
2. SAMSUNGPB22 256GB - 313 - Rachel (1.8")
3. Intel G2 80GB - 307 - Jkleiss
4. Intel G2 80GB - 297 - dlai
5. Patriot Inferno 100GB - 274 - tilleroftheearth
6. Crucial M225 256 GB - 240 - dlai
7. CrucialM225 256GB -232 - wikoogle
8. Corsair Nova 128GB - 166 - Abidderman
9. KingstonSNV425S2 - 150 - HRK

HDD

1. Hitachi7K500 - 159 - tilleroftheearth
2. MomentusXT - 142 - rsatmans (500GB)
3. ST9500420A - 122 - dlai
4. WD3200BEKT - 113 - HRK (22KA9T0)
5. Hitachi7K500 - 105 - King of Interns
6. Hitachi7K200 - 105 - Abidderman
7. WD3200BEKT - 103 - crayonyes
8. WD6400BEVT - 96 - Phil
9. WD3200BEKT - 78 - Abidderman
10. WD3200BEKT - 73 - vinuneuro
11. WD7500BPVT - 67 - dlai

File Copy bm for Vertex 2

OCZ Vertex 2 100GB SandForce SF-1200 SSD Review - AS SSD Benchmark - Legit Reviews



Just pointing out that that was run on a desktop system with the Win7 default drivers and the add-on card (Sata-3) drivers. In addition to not being the system boot drive (an Intel XM-V was used).

In other words, about the best you can get from the Vertex2 (except for using IRST drivers).



Ran AS-SSD benchmarks on my drives. Drivers are IRST 10.0.0.1046.


HM640JJ HDD: Used as a storage-only drive, no OS installed. 37% full.
148.2 total score. Picture below.

Intel G2 160GB SSD: Os drive, 25% full.
286.43 total score. Picture below.



IRST 10.0.0.1046
WD5000BEVT 66.39 MB/s


The latest driver beta driver gave me about 3 MB/s extra.



Those Vertex 2 scores are insane!

This is what I got: OCZ Vertex 2 120GB (Sandforce), 1.11 firmware



thats 178.6. Btw, the first time I ran it, it was 190, then it just kept dropping. Seems like a bad test tbh. Or my drive is going down in performance really fast.

This is the usual test:



Interesting score for the Samsung 640GB HD. I have yet to see a simple increase in platter density equate to better performance since the Hitachi 7K200 several years ago.

Since this is a storage only scenario and my 7K500 is posting a better score as a system drive - I was right to assume the Samsung's only strength is simply higher capacity over the Hitachi and still can't pretend to catch the XT hybrid at all (with the nand fully populated).

I'll have to take the time in the next couple of days to see what my XT scores here - it is set up identically to the Hitachi - partitions and all.

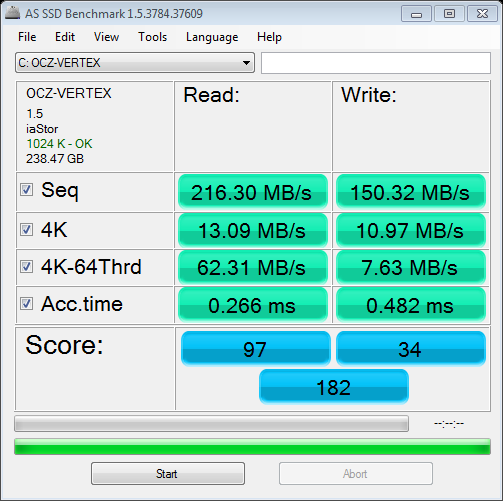

This is my OCZ Vertex 256 gig. PM55 chipset and ahci driver. Total is 313.
[/IMG]
