    Problems with upgrading firmware on Samsung SSD 128 GB

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by Peter-X, Mar 20, 2010.

  1. Peter-X

    Peter-X Notebook Consultant

    Reputations:
    0
    Messages:
    133
    Likes Received:
    0
    Trophy Points:
    0
    Hello
    I was trying to update firmware on my ssd samsung but unsuccesfully
    I created usb boot downloaded win 98 boot manager
    I got in to samsung software and it asked me :
    1.download firmware ? I pressed y
    2.then asked have u backup your data ? continue ? and from this point i couldnt press anything it just freeze ..
    anybody know solution ?
    thnx

    Peter-X, Mar 20, 2010
    #1
  2. Angelic

    Angelic Kickin' back :3

    Reputations:
    4,496
    Messages:
    2,075
    Likes Received:
    0
    Trophy Points:
    55
    Wow, so it's totally unresponsive? I hope you didn't brick the SSD somehow.

    Angelic, Mar 20, 2010
    #2
  3. Peter-X

    Peter-X Notebook Consultant

    Reputations:
    0
    Messages:
    133
    Likes Received:
    0
    Trophy Points:
    0
    no
    it even didnt started
    it freeze before i hit y key for the start upgrading so i unpluged whole laptop from power lead
    went back to notmal boot to win and tried to change files in usb key
    then do it back external boot priority enable ect .. nothing
    I cant NORMALLY update bloody ssd

    Peter-X, Mar 20, 2010
    #3
  4. sgilmore62

    sgilmore62 uber doomer

    Reputations:
    356
    Messages:
    1,897
    Likes Received:
    0
    Trophy Points:
    55
    What firmware is currently on the SSD? if it isn't either VBM1801 or VBM18C1Q then that updater isn't going to work. Is it a Dell SSD?

    sgilmore62, Mar 20, 2010
    #4
  5. Peter-X

    Peter-X Notebook Consultant

    Reputations:
    0
    Messages:
    133
    Likes Received:
    0
    Trophy Points:
    0
    No its not dell its samsung ssd it cannot be dell
    my ssd is :

    ATA Device Properties
    Model ID SAMSUNG MMCRE28G5MXP-0VB
    Serial Number :
    Revision VBM1801Q <------------------------ this is firmware
    World Wide Name 5-0000F0-056424431
    Device Type SATA-II
    Parameters 248085 cylinders, 16 heads, 63 sectors per track, 512 bytes per sector
    LBA Sectors 250069680
    Buffer Unknown
    Multiple Sectors 16
    ECC Bytes 4
    Unformatted Capacity 122104 MB
    ATA Standard ATA/ATAPI-7

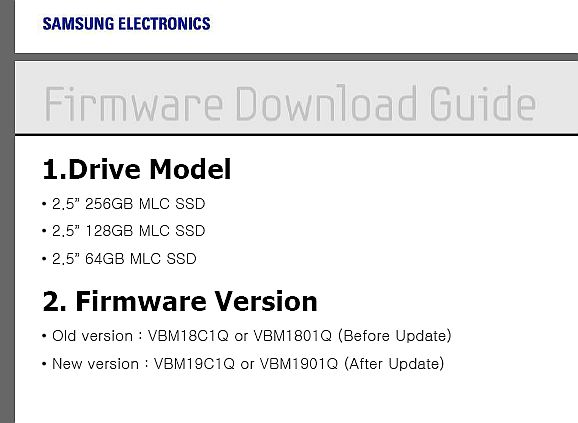

    as u can see there is same firmware version on guide like mine before upgrade

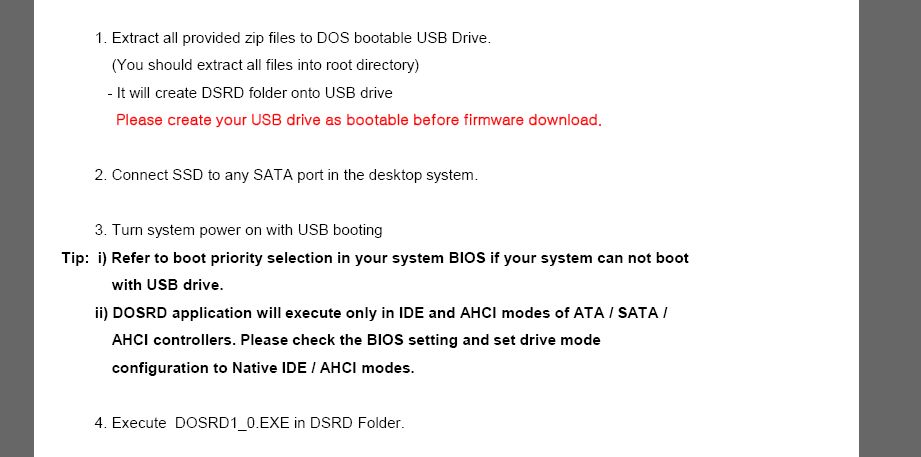

    first pic dunno if i need desktop laptop is probably incompatible
    or may be i have wrong win 98 boot manager? but i booted and i succesfully entered to samsung program
    dont know if i need ntfs or fat usb key

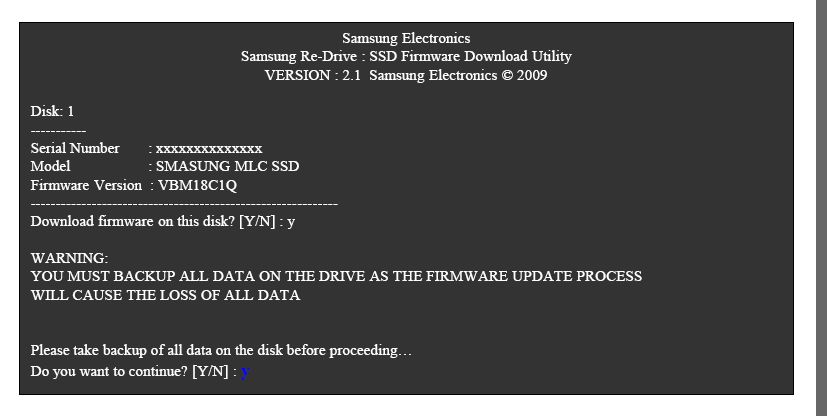

    as u can se on third pic there is : download firmware on disk ? I was able to hit y letter
    but there is warning : u must backup data bla bla and then when i want hit y it freeze


    Attached Files:

    Peter-X, Mar 20, 2010
    #5
  6. sgilmore62

    sgilmore62 uber doomer

    Reputations:
    356
    Messages:
    1,897
    Likes Received:
    0
    Trophy Points:
    55
    Yes, you can and should update that VBM1801Q firmware because it doesn't even have garbage collection. The VBM19C1Q that you will update has GC and TRIM. I had trouble updating mine from VBM18C1Q to VBM19C1Q. I took out all other drives except the SSD and had to switch it to port 0.

    That is strange that the updater is recognizing your drive and fw and is freezing. Your computers BIOS must be putting a freeze lock on it or something.

    sgilmore62, Mar 20, 2010
    #6
  7. Peter-X

    Peter-X Notebook Consultant

    Reputations:
    0
    Messages:
    133
    Likes Received:
    0
    Trophy Points:
    0

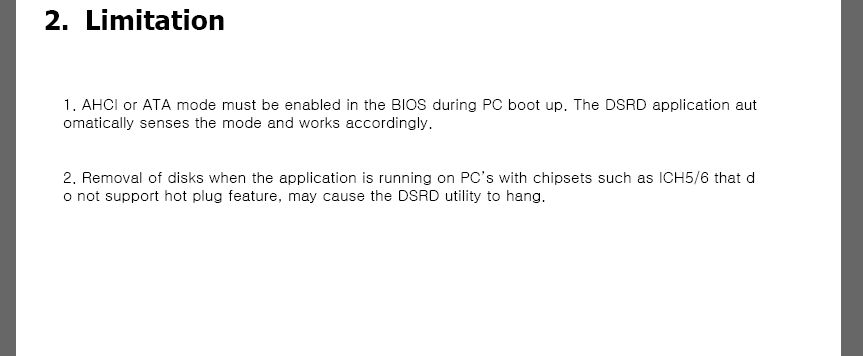

    they saying even this : the program may hung but am usin ICH 9
    that i should use desktop not laptop


    Attached Files:

    Peter-X, Mar 20, 2010
    #7
