    Quadro P4200 in Clevo P750DM-G: Benchmarks and pics

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by MKazmer, Oct 5, 2020.

  1. MKazmer

    MKazmer Notebook Consultant

    Reputations:
    32
    Messages:
    165
    Likes Received:
    66
    Trophy Points:
    41

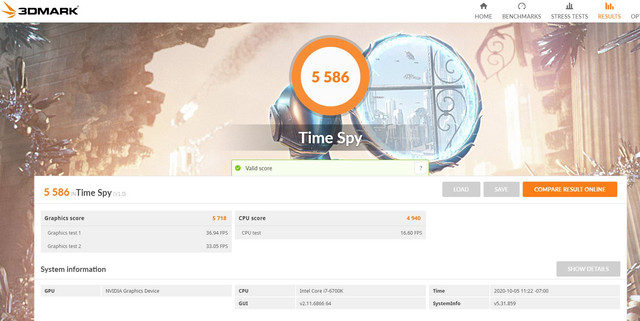

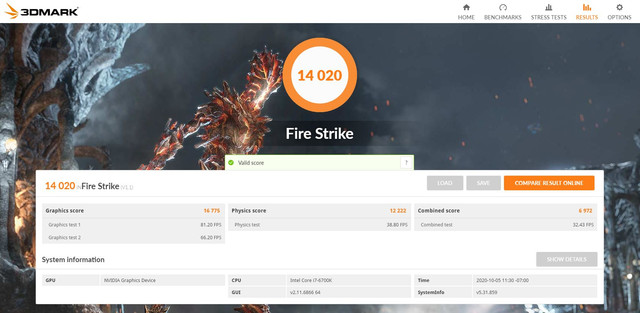

    If there are any other benchmarks you would like to see, let me know and I will run it. From what I'm seeing here, it performs approximately 20% faster than the P4000, and on par with a mobile GTX1070. The P4000 ran similar to the GTX1060 in benchmarks, but performed noticeably better than the 1060 in real-world use.

    Here is a link to the details of the PC components via Geekbench

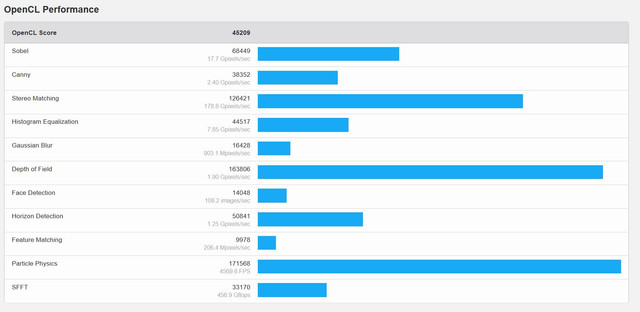

    OpenCL Score: 45209

    [​IMG]

    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]


    Below: Passmark graphics only
    [​IMG]

    Below: combination of fujipoly padding and Gelid GP-extreme. The lighter color is the fujipoly.
    [​IMG]

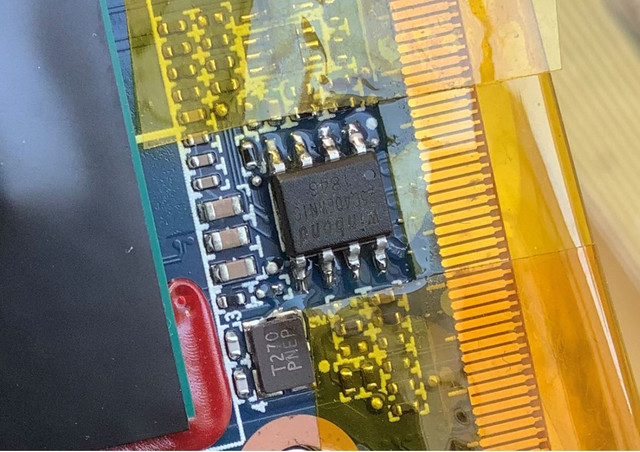

    This last photo is the eeprom I used. I covered nearby components with kapton tape to provide some protection to surrounding components when I soldered it.
    [​IMG]

    Last edited: Oct 5, 2020
    MKazmer, Oct 5, 2020
    #1
    Tobias1245, triturbo, sicily428 and 1 other person like this.
  2. MKazmer

    MKazmer Notebook Consultant

    Reputations:
    32
    Messages:
    165
    Likes Received:
    66
    Trophy Points:
    41

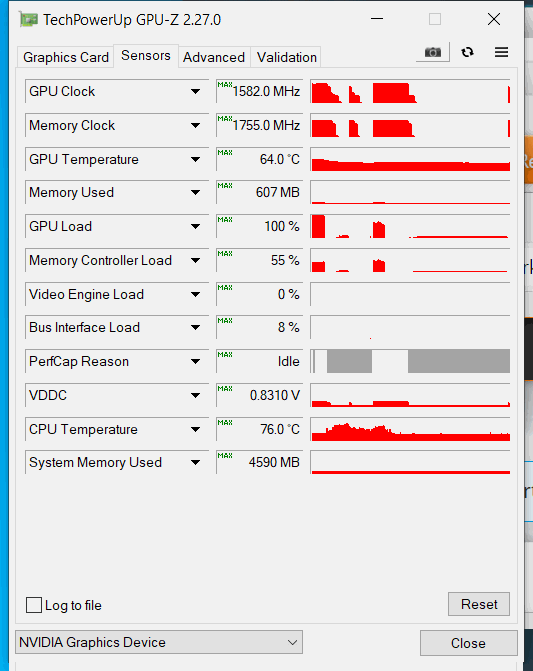

    Here is a screenshot of GPU-z sensors right after the 3DMark11 run. The hottest the GPU got was 64C, so it's possible that it could be pushed a bit higher.

    [​IMG]

    MKazmer, Oct 5, 2020
    #2
    mirage_bg likes this.
  3. mirage_bg

    mirage_bg Notebook Deity

    Reputations:
    55
    Messages:
    862
    Likes Received:
    180
    Trophy Points:
    56
    Great results!
    Its only pity that Pascal based Quadros are not OCable....it would be amazing if they were (you would easily break 18K graphics in FS..)

    BTW, you could try to improve your cooling system. 64C after FS means at least 80-85 after prolonging gaming session. Which is ok in winter, but in summer...

    Last edited: Oct 6, 2020
    mirage_bg, Oct 6, 2020
    #3
  4. MKazmer

    MKazmer Notebook Consultant

    Reputations:
    32
    Messages:
    165
    Likes Received:
    66
    Trophy Points:
    41
    Improving the cooling is definitely next on my list. I'm curious if anyone has upgraded their fans. What would you do to upgrade the cooling in this machine? I'm thinking about widening the intake vents, elevating the laptop with taller feet, and modding the heatsink. There isn't much room to add an additional heat pipe, but I do have a sheet of solid copper that I can cut strips from and solder to the heatsink in specific areas. Also, I'm curious if the GPU can be OCd at the BIOS level. Has anyone tried that?

    MKazmer, Oct 6, 2020
    #4
  5. MKazmer

    MKazmer Notebook Consultant

    Reputations:
    32
    Messages:
    165
    Likes Received:
    66
    Trophy Points:
    41
    Has anyone tried this TDP tweaker on a mobile pascal quadro?

    MKazmer, Oct 6, 2020
    #5
  6. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    Last edited: Nov 15, 2020
    sicily428, Nov 15, 2020
    #6
  7. MKazmer

    MKazmer Notebook Consultant

    Reputations:
    32
    Messages:
    165
    Likes Received:
    66
    Trophy Points:
    41
    I believe it was made for the HP G5 ZBook. Sorry for the delayed response.

    MKazmer, Dec 18, 2020
    #7
    sicily428 likes this.
