    Question about Laptop motherboard

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by Eddy25, Feb 5, 2009.

  1. Eddy25

    Eddy25 Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5

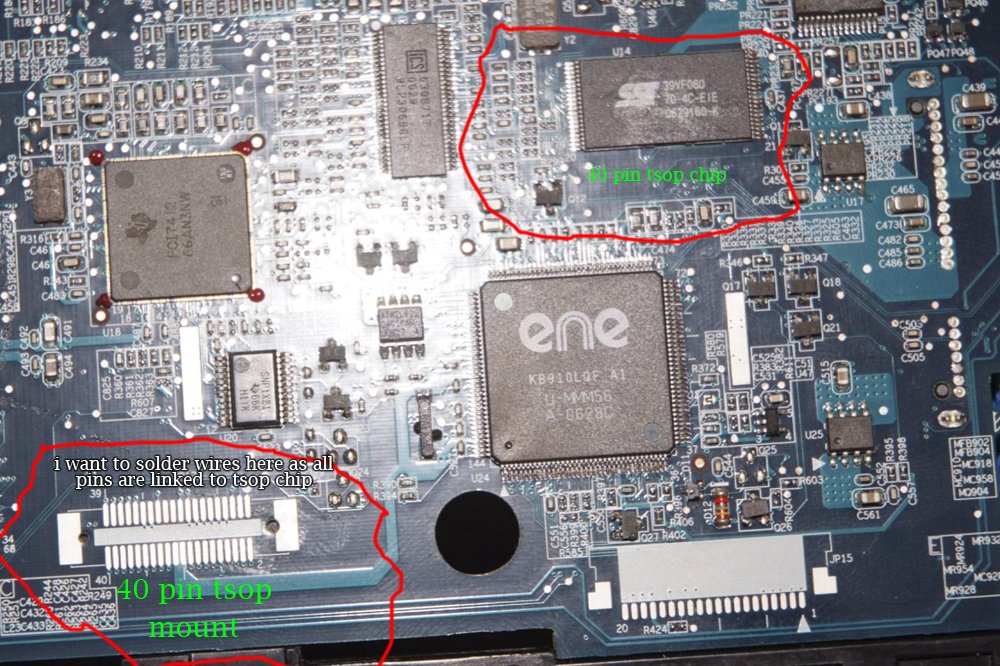

    Have found somewhere in the net the attached photo of a laptop motherboard. As you notice the author says that "he wants to solder wires between the bios chip (a 40 pin tsop) and these 40 white pads. Have someone a clue what is the interest of these 40 white pads (why are they here) and are they really direct linked to the bios chip.(actually i have seen similar pads on several mobo of laptops but have never understand the utility of this pads).


    Attached Files:

    Eddy25, Feb 5, 2009
    #1
  2. Commander Wolf

    Commander Wolf can i haz broadwell?

    Reputations:
    2,962
    Messages:
    8,231
    Likes Received:
    63
    Trophy Points:
    216
    The 40 white "pads" aren't pads and aren't white. They should be contacts and metallic. They're usually indicative of a chip that isn't included on this particular motherboard, but may be on a similar motherboard using the same PCB.

    Why this person would want to solder wires to the contacts is beyond me, but I'd be it's some sort of far-fetched overclocking idea (as these things tend to be). Whether or not it'll work is impossible to determine without further information.

    Commander Wolf, Feb 5, 2009
    #2
  3. Eddy25

    Eddy25 Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    After reading the article of the photo's guy i discovered that he is programming a new bios chip of his mobo by wiring theses "contacts" to an external programmer and it seems to work..

    Eddy25, Feb 5, 2009
