    Question about upgrading Laptop LCD (Asus G46VW eDP 30pin)

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by raclimja, Sep 21, 2015.

  1. raclimja

    raclimja Notebook Consultant

    Reputations:
    130
    Messages:
    220
    Likes Received:
    28
    Trophy Points:
    41
    I just bought a used Asus G46VW and it came with AUO B140RTN03.0 which is a 14" 1600x900 TN screen.

    I want to upgrade it to an IPS screen.

    I just ordered a B140HAN01.2 which has identical dimensions and same connector to my B140RTN03.0.

    Some stuff are concerning me. According to panelook, B140RTN03.0 uses eDP 1 lane while B140HAN01.2 uses eDP 2 lanes. What does lanes supposed to mean? Will I have any problem with it?

    B140RTN03.0 total power consumption is 4.2W while B140HAN01.2 is 5.4w

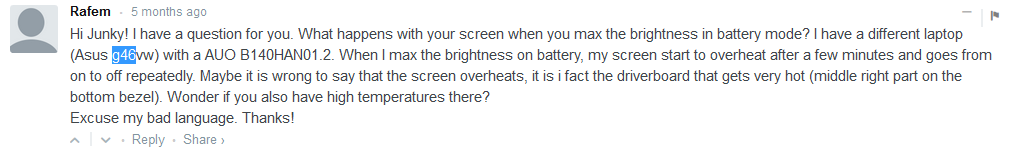

    the reason I bring up the power consumption is I found this while googling
    [​IMG]

    source: http://www.gaminglaptopsjunky.com/replacing-lenovo-y40-display-good-one/

    raclimja, Sep 21, 2015
    #1
  2. TANWare

    TANWare Just This Side of Senile, I think. Super Moderator

    Reputations:
    2,548
    Messages:
    9,585
    Likes Received:
    4,997
    Trophy Points:
    431
    Because the new resolution is 1920x1080 it requires more bandwidth. This is the reason for the 2 lanes. The link below shows a replacement for FHD so it is more than likely a dual lane setup will not be an issue.

    https://www.laptopscreen.com/English/model/ASUS/G46VW/

    TANWare, Sep 21, 2015
