Yeah since NBR moved to the new forum software (XenForo), any thread older than a certain age is automatically closed.
-
yrekabakery Notebook Virtuoso
-
-
but 99% of the time mobile lidless cpu doesn't even have contact due to tripod designVistar Shook, Papusan and Mr. Fox like this. -
Papusan likes this.
-
better not buy in the first place, waste of time -
-
-
-
7577 Mainboard 1:
http://forum.notebookreview.com/attachments/screenshot_20171201-164801-png.152383/
7577 Mainboard 2:
http://forum.notebookreview.com/attachments/screenshot_20171201-165022-png.152385/
7577 Mainboard 3:
http://forum.notebookreview.com/attachments/screenshot_20171201-164950-png.152384/Vasudev and Donald@Paladin44 like this. -
In theory it could be done but the problem is that the height of cpu area is significantly thinner than gpu area. I'm talking about the die's Z-height and other supporting components. -
-
It COULD be done right and have everything balanced but with Dell's track record on alienwares I don't think that might be the case. It's always better to not mix up the pressure applied etc.
Does it work better than tripod? I can't say for sure, I haven't handled this laptop personally. But given the low heat output of the 1050ti it might be ok on the GPU side. -

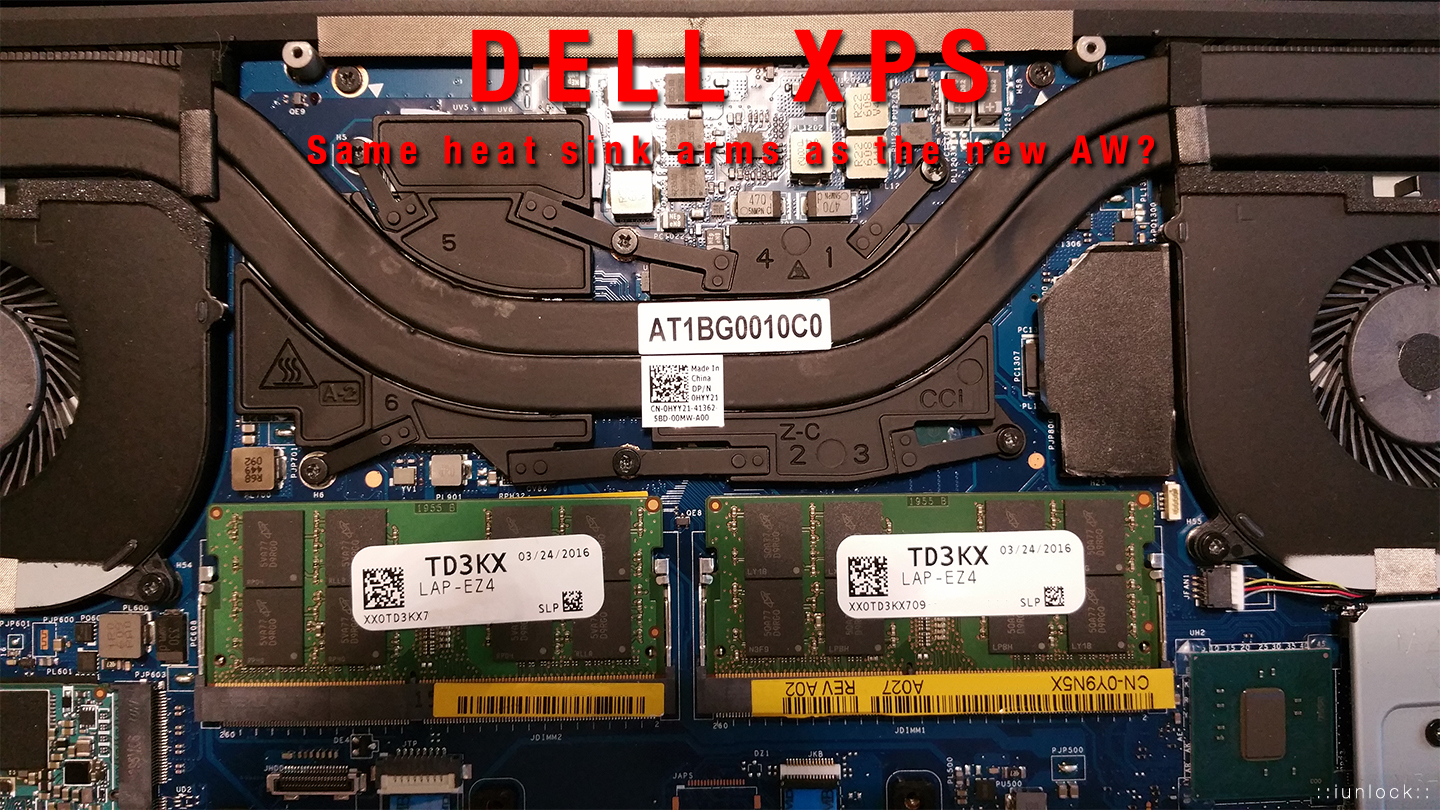

Dell and Azor prefer the tragic TRIPOD Heatsink design... Alienware or XPS, it doesn't matter.
Last edited: Dec 5, 2017 -
-
Maleko48 likes this.
-
-
Last edited: Dec 5, 2017
-
-
-
thinkpads are good example, though expensive -
lol
Papusan likes this. -
More pipes or more HS metal doesn't mean a ****y, if it's attached with less than minimum amount needed screws. It's doomed to be uneven/ warped when it's finish attached.Last edited: Dec 5, 2017 -
While I've got everyone here, does anybody have any input to give on spot welding (AKA: resistance welding) copper to aluminum, copper to copper, or aluminum to aluminum and the pro's/con's on thermal conductivity? I follow some serious ebike groups online and have a lot of insight into high power drive systems which are also quite demanding on the hardware and rely heavily on electrical and thermal properties of all the parts and pieces in play.
It is well known that spot welding nickel battery pack tabs is the superior way of constructing a pack compared to soldering due to less electrical resistance than soldering. I am assuming that translates equally to thermal resistance as well. (If electricity can flow easier, heat should be able to flow easier too right?) I'm just curious why more spot welding doesn't happen with modding laptop parts. It seems to fit the bill perfectly for fabricating custom bits and pieces with superior electrical/heat transfer properties and eliminating the need for drilling/tapping/screws/etc depending on how and where it is being applied. -
https://www.waresphere.com/store/he...1854-00hm903-at0sq001dt0-0c53568-0c53564.htmlPapusan likes this. -
Last edited: Dec 5, 2017
-
Mr. Fox likes this.
-
Last edited: Dec 6, 2017Vistar Shook and Papusan like this.
-
-
ASUS is scum on the notebook side.
@Mr. Fox @Papusan @bloodhawk
4 screws but 1.5 screw on gpu: https://forum.51nb.com/data/attachment/forum/201712/01/161225h1yusz31y1730sqx.jpg
Thinkpad 25 Anniversary ed (CN): https://forum.51nb.com/forum.php?mod=viewthread&tid=1812699&extra=page=2 -
Vistar Shook and Papusan like this.
-
-
Asus in fully flavor with Tripod (4 screws for the whole cpu/gpu HS package).

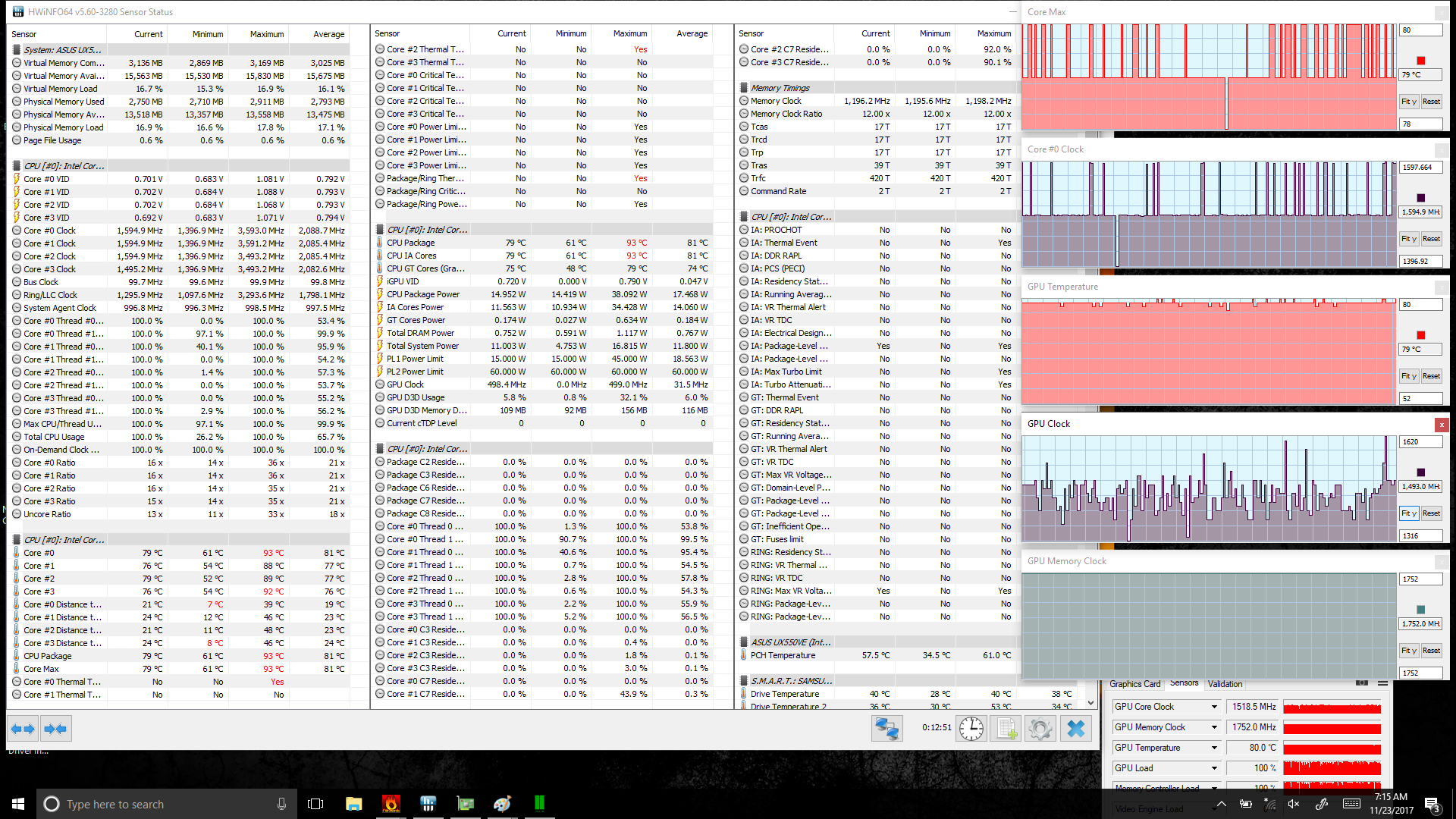

Missing Heatsink screws is one thing, but why throttle the processor although the 45w i7 BGA chips barely run with 15w Cpu Package Power Load?
Last edited: Dec 6, 2017Maleko48 and FrozenLord like this. -
Example: ASUS NovaGo hands-on: Your laptop is now a smartphone
No wonder everything is such a horrible mess. Thanks, but no thanks.
-
*) ... made possible by lacking inrush current limiters, meaning it charges its capacitors with a crazy peak current before tapering down. Always have to remember which socket to plug it in to because it will trip the breakers when used on the 'wrong' circuit. -
The DIY example I saw used city bus electric brake regen capacitors to construct his bank and I think he mentioned tungsten electrodes.
As for the spot welder, I would start with an E-toE dual MOT configuration and the fattest wire that can be wrapped 0.5 to 1.0 times basically. Not 100% sure how the capacitors would need to be worked in just yet. I wonder if drill bits of a particular composition might be well-suited to the task... Or possibly diamond coating a tip similar to the way diamond and carbide cutting tips work.
Best case scenario for powering this would have to be from a 50amp electric oven plug for us residential dwellers. I would need to look into what it would take to have multiple transformers in series/parallel potentially as well.
I think it is at least fun to think about this stuff.t456 likes this. -
I want to reduce my battery by 66% (6 of 9 cells) and move my HDD in its place
Then place a fan in the 'then' unused HDD slot.
Would all be pointless though If I cant mold another thin but large area fin array, with attached heatpipes above the GPU to exhaust out the center rear exhaust area I would make.
Once I finish school I am going to try it anyways. I need to figure out a way to cool the VRMs on my laptop and personally I want to push 4.5Ghz+ daily overclock.
Probably will take some time regardless since I have to test measure everything and find a fin array wide enough and with enough fin density that I can cut down evenly
I dont need a large battery. Only enough to hibernate/sleep or not immediately shut off when unplugged accidentally.Maleko48 likes this. -
That sounds like a great custom mod project. Which system is it happening on?
What is the construction of your current stock battery pack and what is the maximum amperage it needs to be able to push out at peak? Is it pouch cells or 18650 cells or custom from factory? I assume it's the standard 19.5V output? It might be hard finding a way to fit a proper BMS to make the battery mod work considering how locked down all the proprietary hardware is. Also your C rate might turn into an issue with such a low cell count on a high demand device.
Are you thinking bonded fin heat sink or extruded plate fin heat sink and do you plan on tying it into the rest of your heat sinking system via heat pipe or just letting it stand alone isolated?
As for cutting down a fin set, do you have a specific method in mind? My first two thoughts are Dremel with cutoff wheels and/or freezing the fins in a block of water then using something of your choice to do the fine cutting. A band saw would be ideal I think, or possibly some kind of diamond wire coping saw?
Keep us updated. Would love to see something like this come to life.
P.S.) This place has some good reading on the matter.
https://www.aavid.com/product-group/bonded-finLast edited: Dec 11, 2017Vasudev likes this. -
All those questions are why I am waiting to begin with modding, I am pretty ignorant to a majority of those questions.
As for the battery I would try to prevent the high demand on them by having a battery profile to use when battery is for what ever reason in use. But that probably doesnt resolve configuration issues.
As for the fins I would probably have to look through a number of different ultrabooks and see if I can find a fin array thin enough, and dense enough. Then buy like 6-7(maybe more like 4-5 of them to run in parallel. With HVAC tape I would also be able to have a bit of flexibility instead of a strict line. Stacking would be much easier, but I dont know if this would displace heat well enough.
The other question however would be the contact plate and how I form the heatpipes. Would I just stack the additional pipes on the vanilla installation or split the pipes so that its 4 pipes on one set of fins and 4 pipes on another set of fins? This is all assuming I can mold pipes without breaking them of course.
I dont have tools and dont want to purchase any as I am always having to leave them behind when I leave the country, tired of replacing them.
Then there is also, should I try for 2 smaller fans, use one for the fin array and other for moving air off the components or just one larger fan for the additional fin array and leave the components to themselves as is.
Maybe put the left heatsink assembly in parallel
https://www.ebay.com/itm/Razer-Blad...NcAAOSwnTdaF9hl:sc:USPSFirstClass!76002!US!-1Last edited: Dec 12, 2017 -
https://www.ebay.com/usr/cicichen594?ul_noapp=true
I had a short conversation with him not long ago, English is not his first language but he communicates well enough to get the point across.
He does manufacture and offer a number of aftermarket products mostly for alienware that I saw (purchased both GPU and CPU iterations for my Ranger) but if the interest is high enough and of course if the money is right I wouldnt be surprised if he was able to manufacture better heatsinks for other laptops.
I couldnt say what his official position on the matter is, but he stated he designs and manufactures heatsinks, so at the very least, might be worth an inquiry...
Its anecdotal but my experience with him thus far has been positive, a number of other Ranger owners also purchased these heatsinks.
@Maleko48
After I wrap up school I may contact him again and see if he can fabricate a heatsink of a different design provided the price is right.Maleko48 likes this.
