    SSD-Z Beta available

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by Cloudfire, Mar 19, 2015.

  1. Cloudfire

    Cloudfire (Really odd person)

    Reputations:
    7,279
    Messages:
    10,304
    Likes Received:
    2,878
    Trophy Points:
    581
    For those familiar with GPU-Z and CPU-Z, now there is a similar program that can find out most about your SSD. Very nifty program. Shows controller type, NAND type, manufacture process, temperature and everything. It even have a benchmark (but not stable yet) :vbthumbsup:

    Download it here:
    http://aezay.dk/aezay/ssdz/

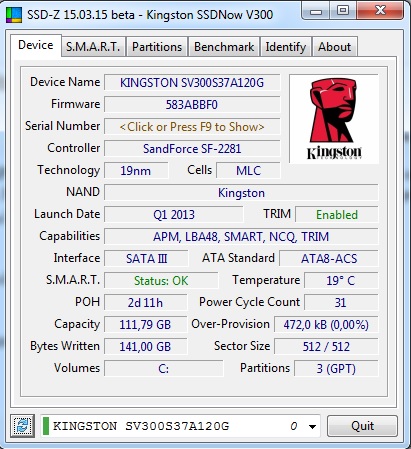

    Here is my Kingston SV300 120GB from my coding computer
    [​IMG]

    Cloudfire, Mar 19, 2015
    #1
    triturbo likes this.
  2. Dialup David

    Dialup David Notebook Consultant

    Reputations:
    112
    Messages:
    249
    Likes Received:
    123
    Trophy Points:
    56

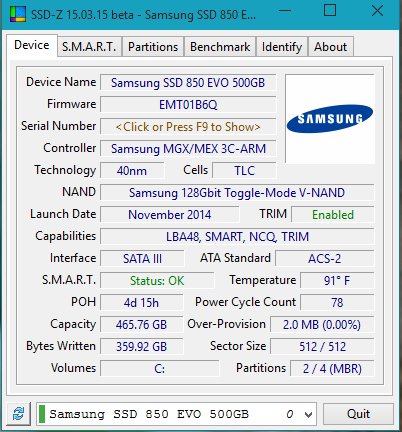

    Neat program :)

    [​IMG]

    Dialup David, Mar 19, 2015
    #2
    Cloudfire likes this.
  3. Cloudfire

    Cloudfire (Really odd person)

    Reputations:
    7,279
    Messages:
    10,304
    Likes Received:
    2,878
    Trophy Points:
    581
    Mohahaha, I have 19nm NAND. That 850 Evo is still at 40nm :p

    Nevermind the performance difference though... :mad:

    Cloudfire, Mar 19, 2015
    #3
  4. t456

    t456 1977-09-05, 12:56:00 UTC

    Reputations:
    1,959
    Messages:
    2,588
    Likes Received:
    2,048
    Trophy Points:
    181
    Nice program, unfortunately no RAID support (yet):

    [​IMG]

    t456, Mar 20, 2015
    #4
  5. TomJGX

    TomJGX I HATE BGA!

    Reputations:
    1,456
    Messages:
    8,707
    Likes Received:
    3,315
    Trophy Points:
    431
    HAHAHA my Extreme II Trolls ALL... 19mm MLC NAND AND PERFORMANCE!!! SSD.png

    TomJGX, Mar 20, 2015
    #5
  6. tilleroftheearth

    tilleroftheearth Wisdom listens quietly...

    Reputations:
    5,398
    Messages:
    12,692
    Likes Received:
    2,717
    Trophy Points:
    631
    uhm, you guys do know that 40nm nand and bigger is SUPERIOR to all smaller geometry's, right?

    tilleroftheearth, Mar 20, 2015
    #6
    TomJGX and HTWingNut like this.
  7. Bullrun

    Bullrun Notebook Deity

    Reputations:
    545
    Messages:
    1,171
    Likes Received:
    494
    Trophy Points:
    101
    Yes. The NAND itself, (SLC, MLC) definitely. But should we add "done right"? ;)


    EDIT: It's likely the reason for the 850 Pro's high price tag.

    Bullrun, Mar 20, 2015
    #7
  8. ajkula66

    ajkula66 Courage and Consequence

    Reputations:
    3,018
    Messages:
    3,198
    Likes Received:
    2,318
    Trophy Points:
    231
    The software in question identifies my SLC drive (Intel X-25E) as having MLC cells...:vbeek:

    On my Micron SSD it doesn't specify the manufacturer, type of cells used (SLC) or controller...so yeah, work in progress sounds about right, and not just for the benchmark section.

    ajkula66, Mar 20, 2015
    #8
  9. tilleroftheearth

    tilleroftheearth Wisdom listens quietly...

    Reputations:
    5,398
    Messages:
    12,692
    Likes Received:
    2,717
    Trophy Points:
    631
    Yes, we should add 'done right', definitely.

    The high price tag of the 850 Pro has nothing to do with quality or superiority in real world performance.

    Where are the marketing people to explain...

    tilleroftheearth, Mar 20, 2015
    #9
  10. Bullrun

    Bullrun Notebook Deity

    Reputations:
    545
    Messages:
    1,171
    Likes Received:
    494
    Trophy Points:
    101
    Agreed, not higher price based on performance. But the cost of 40nm NAND yields compared to 19nm yields from NAND wafers (more expensive to produce 40nm).

    Bullrun, Mar 20, 2015
    #10
  11. tilleroftheearth

    tilleroftheearth Wisdom listens quietly...

    Reputations:
    5,398
    Messages:
    12,692
    Likes Received:
    2,717
    Trophy Points:
    631
    But you're not doing your comparison correctly.

    It is V-Nand (32 layer nand at 40nm) vs. flat 19nm nand you should be comparing.

    It is not more expensive. It is cheaper.

    (Need proof? Samsung would rather die than increase costs needlessly. If the 19nm nand was less expensive, guess what the 850 Pro would have inside?).

    tilleroftheearth, Mar 20, 2015
    #11
  12. Bullrun

    Bullrun Notebook Deity

    Reputations:
    545
    Messages:
    1,171
    Likes Received:
    494
    Trophy Points:
    101
    Hmmm, OK. I didn't look at the production costs of V-NAND. I went straight to 40nm vs 19nm planar.

    Bullrun, Mar 21, 2015
    #12
  13. baii

    baii Sone

    Reputations:
    1,420
    Messages:
    3,925
    Likes Received:
    201
    Trophy Points:
    131
    I have a feeling this just show info grabbed on the web instead of really "reading" the SSD, which make it pointless.

    Unlike CPU-z or GPU-z, which valuable info is actually read off the component. Nice effort I guess.

    Last edited: Mar 22, 2015
    baii, Mar 22, 2015
    #13
  14. pete962

    pete962 Notebook Evangelist

    Reputations:
    126
    Messages:
    500
    Likes Received:
    223
    Trophy Points:
    56
    It got all 3 of my drives all correct as far as I know, anyway it's beta so problems are expected.
    Some type of data base is required to decode manufacturers codes etc., even for CPU and GPU, so maybe that's what OP meant, but either way if it's maintained and updated by the author, it could be nice addition to cpu-z and gpu-z, which btw had their own errors too, so I give it thumbs up.
    If I may make a suggestion, I wish the author concentrated on making some sense out of smart data mumble-jumble, some of it manufacturer specific. For example why my SSD under RAW READ ERROR RATE one day shows 7 digit long number and next day all zeros. I have no idea what it means, did I really had millions of read errors one day and zero next?

    pete962, Mar 25, 2015
    #14
