    Sager M57U Hard Drive Upgrade

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by vr4racer, Jul 19, 2008.

  1. vr4racer

    vr4racer Notebook Consultant

    Reputations:
    1
    Messages:
    121
    Likes Received:
    1
    Trophy Points:
    31
    Hello

    Looking at upgrading the hard drive to one of those new western digital scorpio 7200 Rpm drives perferably the 320gig version. Currently have samsung hm160JI ATA drive inside right now. Just wondering if my system compatiable with these new drives as when i looked inside my laptop i dont have a sata connection just a normal fixed plug you push your harddrive in and out off.

    Thanks. :)

    vr4racer, Jul 19, 2008
    #1
  2. Andy

    Andy Notebook Prophet

    Reputations:
    2,133
    Messages:
    6,399
    Likes Received:
    1
    Trophy Points:
    206
    I think the HM160JI is a SATA HDD, but does your laptop have an adapter sort of thing or are you unaware of how a SATA port looks..??

    Andy, Jul 19, 2008
    #2
  3. powerpack

    powerpack Notebook Prophet

    Reputations:
    7,101
    Messages:
    5,757
    Likes Received:
    0
    Trophy Points:
    0
    I did a Google search and John talked about it and said he got the SATA version which just leaves me confused. You can install SiSoftSandra for free will tell you SATA or PATA. The other sites said SATA.

    powerpack, Jul 19, 2008
    #3
  4. vr4racer

    vr4racer Notebook Consultant

    Reputations:
    1
    Messages:
    121
    Likes Received:
    1
    Trophy Points:
    31
    Yea im unsure if it has an adapter what should i be looking for? Can you show me a pic please?

    Cheers

    vr4racer, Jul 19, 2008
    #4
  5. Andy

    Andy Notebook Prophet

    Reputations:
    2,133
    Messages:
    6,399
    Likes Received:
    1
    Trophy Points:
    206
    :D, Well thats something I was going to ask you for..any pics..?? :D

    Andy, Jul 19, 2008
    #5
  6. vr4racer

    vr4racer Notebook Consultant

    Reputations:
    1
    Messages:
    121
    Likes Received:
    1
    Trophy Points:
    31
    Yea it says Type ATA and interface Sata.But how come i dont have the sata cable?

    vr4racer, Jul 19, 2008
    #6
  7. Andy

    Andy Notebook Prophet

    Reputations:
    2,133
    Messages:
    6,399
    Likes Received:
    1
    Trophy Points:
    206
    SATA cable..?? Well, there should be a SATA port..!!
    I guess thats the push-in, pull-out plug you were talking about..!!

    Andy, Jul 19, 2008
    #7
  8. vr4racer

    vr4racer Notebook Consultant

    Reputations:
    1
    Messages:
    121
    Likes Received:
    1
    Trophy Points:
    31
    Is that Port fixed?

    vr4racer, Jul 19, 2008
    #8
  9. vr4racer

    vr4racer Notebook Consultant

    Reputations:
    1
    Messages:
    121
    Likes Received:
    1
    Trophy Points:
    31

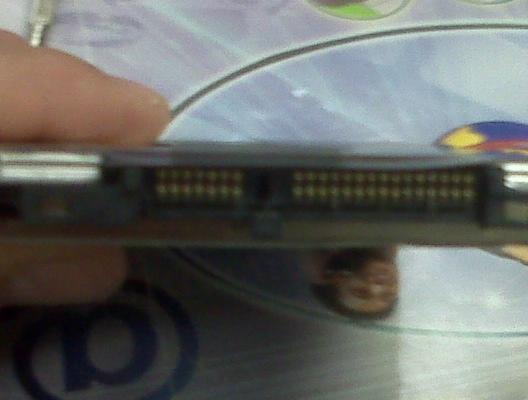

    Looks like this if i remember correctly.


    Attached Files:

    vr4racer, Jul 19, 2008
    #9
  10. K-TRON

    K-TRON Hi, I'm Jimmy Diesel ^_^

    Reputations:
    4,412
    Messages:
    8,077
    Likes Received:
    2
    Trophy Points:
    205
    yup, that is a sata port adaptor. The Samsung JI is the SATA version, the HI is the ATA version.
    However the JI does have a single 160gb platter, so it has speeds of 52mb/sec. Even upgrading to the fastest 320gb 7200rpm drive you will not notice a huge performance difference.
    Simply remove the harddrive and it will say what type it it.
    If the harddrive is for your M57u in your signature, than it is definitely a Sata drive.

    K-TRON

    K-TRON, Jul 19, 2008
    #10
  11. Andy

    Andy Notebook Prophet

    Reputations:
    2,133
    Messages:
    6,399
    Likes Received:
    1
    Trophy Points:
    206
    Ok, I guess it will be a SATA HDD (since K-Tron has confirmed that :p)
    Just found an image on google, it shows how a laptop SATA port to which the HDD is connected, looks.. :D

    Andy, Jul 19, 2008
    #11
  12. Phil

    Phil Retired

    Reputations:
    4,415
    Messages:
    17,036
    Likes Received:
    0
    Trophy Points:
    455
    Maybe not 'huge' but in my opinion it's certainly worth it. The HM160JI is quite an average performer with an average read of 35.7 Mb/sec and acces times of 18ms.

    If you'd upgrade to a Hitachi 7K200 200GB or a WD 320GB/7200rpm you will notice an increase in speed.

    Check out the application benchmarks here:
    http://www.tomshardware.com/charts/...se-i-o-benchmark-pattern,678.html?p=1917,1906
    http://www.tomshardware.com/charts/...on-i-o-benchmark-pattern,693.html?p=1917,1906

    Phil, Jul 20, 2008
    #12
  13. K-TRON

    K-TRON Hi, I'm Jimmy Diesel ^_^

    Reputations:
    4,412
    Messages:
    8,077
    Likes Received:
    2
    Trophy Points:
    205
    Oh, sorry guys, phil is right about the speeds of the JI, I made a simple mistake with modeling codes. I confused the JI and the JC. The JC is able to do 52mb/sec.
    So yeah upgrading to a 320gb 5400rpm drive or a 200gb or larger 7200rpm drive will show a rather large performance increase.

    K-TRON

    K-TRON, Jul 20, 2008
    #13
