Samsung LTN154P2-L05 : Connect directly to VGA/DVI ?

Discussion in 'Hardware Components and Aftermarket Upgrades' started by Lunex, Apr 23, 2008.

Lunex Newbie

Reputations:

0

Messages:

2

Likes Received:

0

Trophy Points:

5

Hi Forum,

i've had a broken IBM/Lenovo Laptop and have "looted" all parts that could be useful

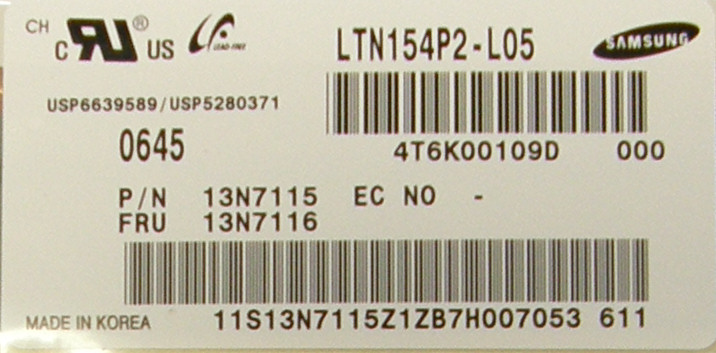

So i found this display :

My question is :
Does any of you know how to connect this display directly to a VGA/DVI Video source ?

(Maybe with an adapter cable ? )

This would be a great picture display for a wall

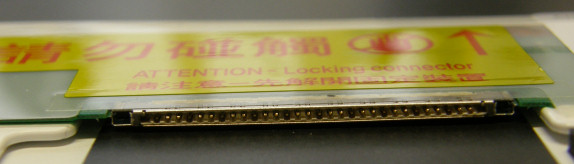

hope this Picture of the connector helps !
(Here again in really big)

In addition :

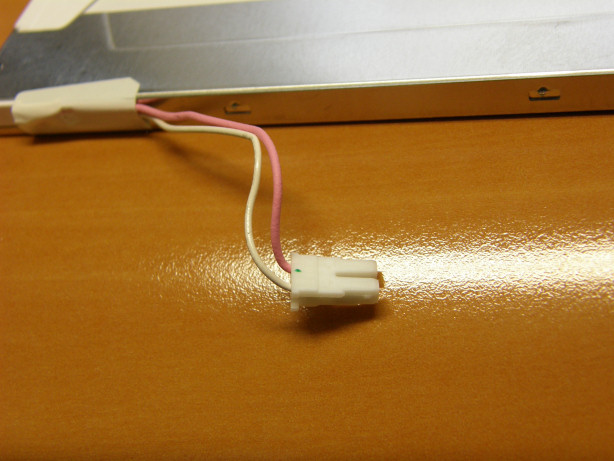

Does anybody know what this small connector at the bottom of the display
could be useful for ? Backlightmaybe ?

thanks in advance,

Lunex

Lunex, Apr 23, 2008

#1
K-TRON Hi, I'm Jimmy Diesel ^_^

Reputations:

4,412

Messages:

8,077

Likes Received:

2

Trophy Points:

205

You will not be able to get the screen to adapt to a standard vga/dvi port. You would have to find a spec sheet on the screen, and the cable in order to find what each wire does.
Sure you can email samsung electronics, but they probably will not answer, let alone give you the spec sheets.

That pink and white wire, goes to the screen inverter, which powers the screen. You need an inveter for the screen to work properly.

K-TRON

K-TRON, Apr 23, 2008

#2
Lunex Newbie

Reputations:

0

Messages:

2

Likes Received:

0

Trophy Points:

5

Ok thats sad
but thanks for the fast answer anyway K-Tron !

Lunex, Apr 24, 2008
