    Sata Raid

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by chalkyw, Nov 19, 2010.

  1. chalkyw

    chalkyw Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Hello All,

    I know this is not quite a laptop issue however I really need help!

    I have recently had some major computer issues and in the process deleted all my data, ouch.
    So I decided to use the time to upgrade and bought three new hard drives, all 500gb sata.

    I set up RAID in the bios and all seemed to go well, except when I finally got windows loaded I only have access to 1 tb of drive and so I took a look at admin tools/comp management/disk drives and there it is.

    only issue is it says it is dynamic and foreign! ?

    Can someone please help me?

    Lee

    chalkyw, Nov 19, 2010
    #1
  2. trieudoahong

    trieudoahong Notebook Consultant

    Reputations:
    19
    Messages:
    283
    Likes Received:
    0
    Trophy Points:
    30
    because you setup 2 500gb in raid 0, so you have 1tb in total.
    the best way to prevent data lost in this case is create a clone backup of windows, re-create raid array as raid 1 (mirror) so 2 500gb will create an array in 500 gb. if 1 of them failed and your data is still there.
    about the dynamic disk, did you change it from basic disk to dynamic disk after install windows? Can i see the screen shot of device manager and disk management?

    trieudoahong, Nov 19, 2010
    #2
  3. chalkyw

    chalkyw Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    I included all 3 disks in an array, soo 1.5 tb in total and yes i'll post a screen shot

    chalkyw, Nov 19, 2010
    #3
  4. tilleroftheearth

    tilleroftheearth Wisdom listens quietly...

    Reputations:
    5,398
    Messages:
    12,692
    Likes Received:
    2,717
    Trophy Points:
    631
    Because it is a dynamic disk (instead of a Basic disk), maybe the RAID controller won't/can't used it?

    Convert it back to Basic and try again.

    Good luck.

    tilleroftheearth, Nov 19, 2010
    #4
  5. chalkyw

    chalkyw Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5

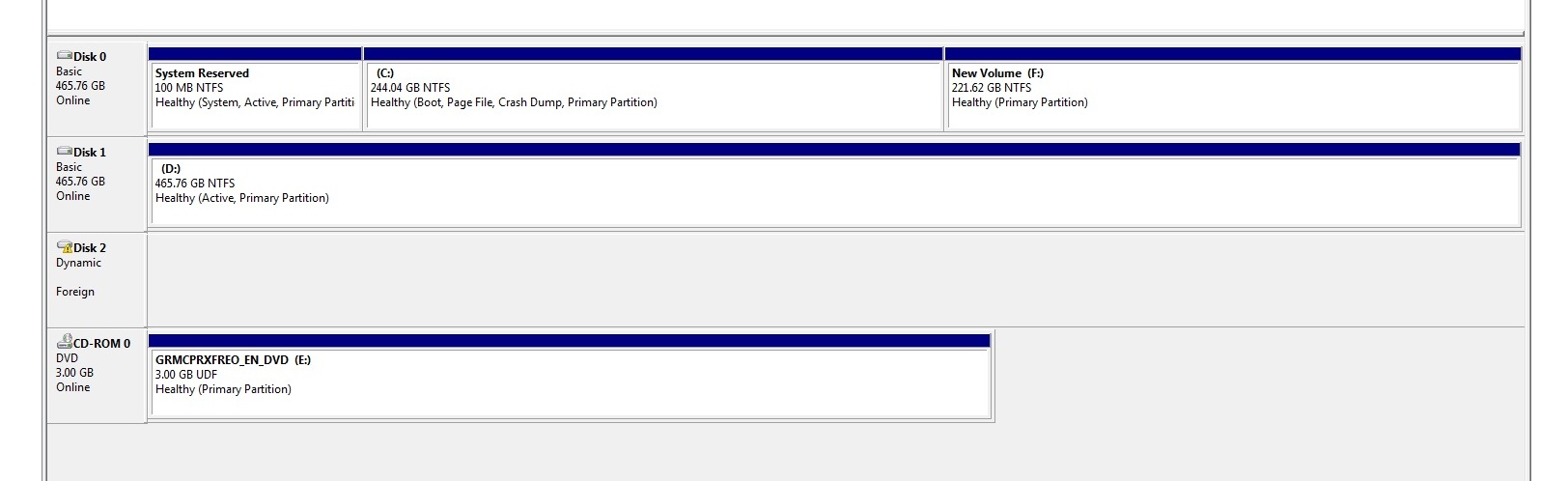

    here it is


    Attached Files:

    chalkyw, Nov 19, 2010
    #5
  6. chalkyw

    chalkyw Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    how do i convert it to basic?
    I know I didn't set it to dynamic, as far as I know.

    chalkyw, Nov 19, 2010
    #6
  7. tilleroftheearth

    tilleroftheearth Wisdom listens quietly...

    Reputations:
    5,398
    Messages:
    12,692
    Likes Received:
    2,717
    Trophy Points:
    631
    Right Click on Disk 2 (Dynamic, Foreign) and select Convert (I'm pretty sure).

    Good luck.

    tilleroftheearth, Nov 19, 2010
    #7
  8. trieudoahong

    trieudoahong Notebook Consultant

    Reputations:
    19
    Messages:
    283
    Likes Received:
    0
    Trophy Points:
    30
    convert it back to basic and re-configure it by raid utility :).

    trieudoahong, Nov 19, 2010
    #8
  9. maximinimaus

    maximinimaus Notebook Evangelist

    Reputations:
    468
    Messages:
    635
    Likes Received:
    0
    Trophy Points:
    30
    I do have only little experience with RAID, I'm a beginner.
    If you configure 2 disk each 0,5 GB in RAID0, should not the OS see only one disk with 1GB? Judging from the captured screen, Windows seems to see them as 2 physical disks.
    As there are 3 disks, I would suggest a RAID5 configuration, if its supported by the Raid controller. After the failing of one disk, the system is still working.

    maximinimaus, Nov 19, 2010
    #9
  10. Greg

    Greg Notebook Nobel Laureate

    Reputations:
    7,857
    Messages:
    16,212
    Likes Received:
    58
    Trophy Points:
    466
    If you put in 3x 500GB drives and you have 1.5TB of space available, you are using RAID0 which is not redundant at all. You need RAID1 (2x 500GB to 1x 500GB mirrored) or RAID5 (more compute intensive 3x 500GB to 2x 1TB).

    Greg, Nov 19, 2010
    #10
  11. maximinimaus

    maximinimaus Notebook Evangelist

    Reputations:
    468
    Messages:
    635
    Likes Received:
    0
    Trophy Points:
    30
    Raid5 will result in 1 TB(2x500GB) as one disk is needed for checksums.

    maximinimaus, Nov 19, 2010
    #11
  12. Greg

    Greg Notebook Nobel Laureate

    Reputations:
    7,857
    Messages:
    16,212
    Likes Received:
    58
    Trophy Points:
    466
    Sorry...I meant 1x 1TB. Anyway, you guys get the point.

    Greg, Nov 21, 2010
    #12
