    Screen Upgrade Aspire V3-571G-73614G50Makk

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by Spartacuss, Jan 22, 2017.

  1. Spartacuss

    Spartacuss Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    Hello guys i need some help, i have read alot of information and i m a little confused.

    In this article ( http://www.anandtech.com/show/6066/acer-aspire-v3571g9435-the-value-proposition/5) they use this screen: http://www.laptopscreen.com/English/screen-part-number/B156HW01~V.4/

    But they forgot to buy a cable with 40pin LVDS-LVDS, so the image goes all white

    In other topic ( http://forum.notebookreview.com/thr...-my-aspire-v3-571g-9686-wxga-to-wuxga.760821/) one user have said this:
    "I change my screen to fhd today,
    * 30pin edp N156HGE-EBB
    Size: 15.6-inch WideScreen (13.6"x7.6")
    Resolution: WUXGA (1920x1080) Full HD
    Type: Matte
    Backlight type: LED

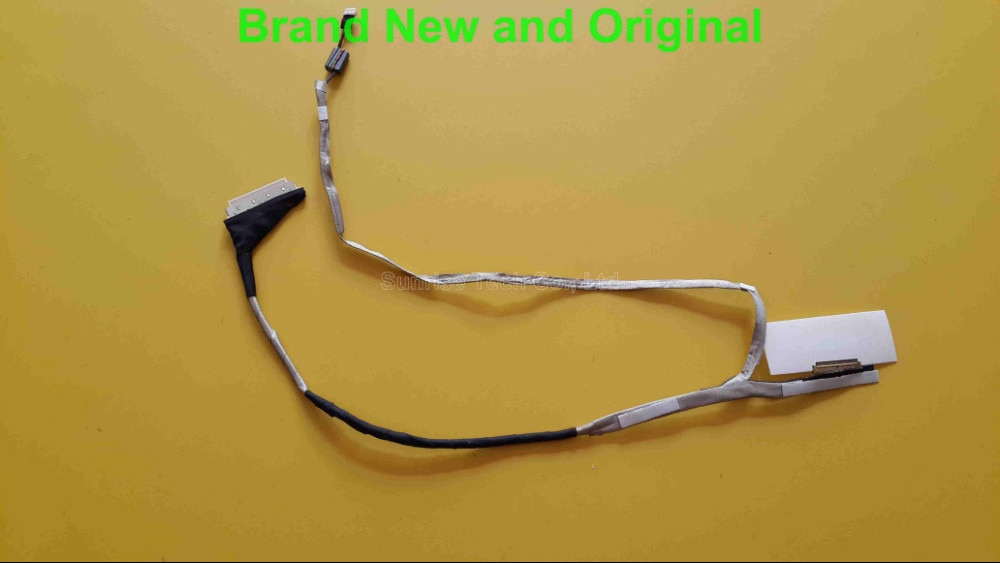

    * New LED cable for Acer ASPIRE V3-571 V3-571G Q5WV1 FHD HD LCD LED LVDS video cable DC02C004600 (40pin to board edp to screen, see image bellow)

    Little cutting and use some double sided tape for fixing screen. Thanks for this topic"

    So what i have to do? Buy a edp screen and that cable and everythink will be ok? My board will read like a normal LVDS screen?

    [​IMG]

    Spartacuss, Jan 22, 2017
    #1
  2. Spartacuss

    Spartacuss Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    Nobody?

    Spartacuss, Jan 23, 2017
    #2
  3. Spartacuss

    Spartacuss Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    ok :(

    Spartacuss, Jan 25, 2017
    #3
  4. Pangea33

    Pangea33 Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    It doesn't look like you're getting any sort of traction here, but I also have a V3-571G with a WXGA screen that needs replacing.

    I would love to go with a WUXGA screen if possible. Please report back if you find anything out and I'll do the same.

    Thanks!

    Pangea33, Mar 12, 2017
    #4
