    Set FSB questions.

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by Phil, May 24, 2009.

  1. Phil

    Phil Retired

    Reputations:
    4,415
    Messages:
    17,036
    Likes Received:
    0
    Trophy Points:
    455
    I have an Atom Z520 that I would like to overclock a bit. (Acer 751)

    I installed SetFSB and found the right clock generator.

    The upper slide says 160/760
    The lower slide says 325/760

    Now it's running at 1.26. I'd like to go to 1.33GHz.

    What should I do?

    Phil, May 24, 2009
    #1
  2. flipfire

    flipfire Moderately Boss

    Reputations:
    6,156
    Messages:
    11,214
    Likes Received:
    68
    Trophy Points:
    466
    Did you click Get FSB before you started?

    Higher is FSB which is CPU/RAM.

    Lower is PCI-express bus

    Use CPU-z to confirm frequency changes.

    flipfire, May 24, 2009
    #2
  3. ViciousXUSMC

    ViciousXUSMC Master Viking NBR Reviewer

    Reputations:
    11,461
    Messages:
    16,824
    Likes Received:
    76
    Trophy Points:
    466

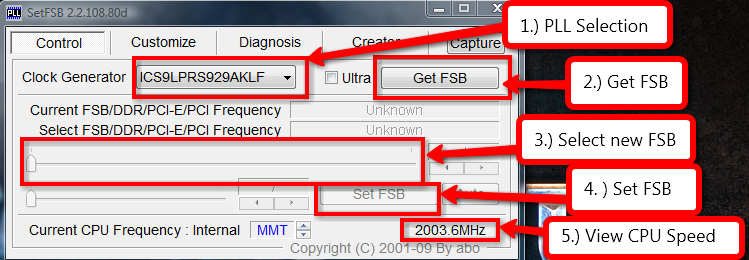

    Different PLL as this is for the Asus W90 but I made this as part of my W90 Guide

    [​IMG]
    From W90 Limit Breaker

    Last edited by a moderator: May 7, 2015
    ViciousXUSMC, May 24, 2009
    #3
  4. Phil

    Phil Retired

    Reputations:
    4,415
    Messages:
    17,036
    Likes Received:
    0
    Trophy Points:
    455
    Yes.

    Should I increase both? If so, which one first PCI or FSB? Or just one?

    Thanks I'm using RMClock. That works too.

    Phil, May 25, 2009
    #4
  5. ViciousXUSMC

    ViciousXUSMC Master Viking NBR Reviewer

    Reputations:
    11,461
    Messages:
    16,824
    Likes Received:
    76
    Trophy Points:
    466
    Just cpu/ram

    mess with your pci buss and your system will become unstable fast and you can even cause hdd corruption.

    ViciousXUSMC, May 25, 2009
    #5
  6. RainMotorsports

    RainMotorsports Formerly ClutchX2

    Reputations:
    565
    Messages:
    2,382
    Likes Received:
    2
    Trophy Points:
    56
    Set FSB works off a 1:2 ram fsb ratio btw so if its not showing the correct fsb dont worry about it. If it is showing the correct fsb then you can easily set a particular bus speed by passing it to the app as a command line switch as per the manual. Unfortunatly for someone like me who has a 2:3 ratio i have to tell it 200 which is actually 266mhz.

    I cant really explain how the slider relates to anything, 397ish on myne is 200 aka 266mhz actual and 500 is about 306mhz actual.

    You can use something like wprime or go more extreme and that intel burn in app to test the stability. Not sure how the atom is with overclocking but with the C2D it seems like ram is the weakest link.

    RainMotorsports, May 25, 2009
    #6
  7. ViciousXUSMC

    ViciousXUSMC Master Viking NBR Reviewer

    Reputations:
    11,461
    Messages:
    16,824
    Likes Received:
    76
    Trophy Points:
    466
    Yeah RAM is the limit for me on my quad Q9000 also, Atom goes to about 1.8 for most people and very few manage 2.0ghz. Well this is for the 1.6ghz atom in the EEE, I did not know there was a slower Atom than that....

    ViciousXUSMC, May 25, 2009
    #7
  8. schinkster

    schinkster Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    Where would you get PLLs for specific notebooks? ie. a Dell Precision m6400?
    thanks,

    schinkster, Jun 3, 2009
    #8
  9. RainMotorsports

    RainMotorsports Formerly ClutchX2

    Reputations:
    565
    Messages:
    2,382
    Likes Received:
    2
    Trophy Points:
    56
    Start with the dell section of this website? Google, or rip apart the laptop and search for the clock generator chip to get the number off of.

    RainMotorsports, Jun 3, 2009
