    Hi
    Does A Socket P Cpu Fit In A Socket M ?
    I Mean T7300 ,sla45 Package Does It Fit In Place For T2300 ,sl8vr?
    What Are The Differences Socket P&m ?
    Thank You

    MOBARAK ZAYED, Mar 5, 2009
    #1
  2. namaiki

    namaiki "basically rocks" Super Moderator

    Reputations:
    3,905
    Messages:
    6,116
    Likes Received:
    89
    Trophy Points:
    216
    A Socket P CPU will not fit nor work if installed on a Socket M motherboard.

    namaiki, Mar 5, 2009
    #2
  3. Andy

    Andy Notebook Prophet

    Reputations:
    2,133
    Messages:
    6,399
    Likes Received:
    1
    Trophy Points:
    206
    Socket P will fit into a Socket M motherboard and vice versa, but they won't work, because of the totally different electrical pin-out.

    The T7300 installed in place of the T2300, will result in a dead system (won't boot on powering on).

    Socket P and M have a slightly different Pin-Grid Array (both have 478 pins though) and a different pin-out (due to addition of FSB throttling to Socket P).

    The T7200 is Socket M and is almost similar in specs to the T7300.

    Andy, Mar 5, 2009
    #3
  4. namaiki

    namaiki "basically rocks" Super Moderator

    Reputations:
    3,905
    Messages:
    6,116
    Likes Received:
    89
    Trophy Points:
    216
    Bleh, it doesn't really matter, but a Socket P CPU won't fit into a Socket M motherboard, unless you feel like snapping a pin off. Different pins are missing in the socket.

    namaiki, Mar 5, 2009
    #4
  5. Andy

    Andy Notebook Prophet

    Reputations:
    2,133
    Messages:
    6,399
    Likes Received:
    1
    Trophy Points:
    206
    Yeah yeah yeah, my bad. I confused it with Socket 479.
    P and M don't fit each other, they each have one pin-hole at different locations.

    Andy, Mar 5, 2009
    #5
  6. Commander Wolf

    Commander Wolf can i haz broadwell?

    Reputations:
    2,962
    Messages:
    8,231
    Likes Received:
    63
    Trophy Points:
    216
    Socket P:

    [​IMG]

    Socket M:

    [​IMG]

    To elaborate on what Andy and Namaiki have said; this is a bit hard to see since one socket is rotated, but in the lower right corner of the Socket P and in the upper right corner of the Socket M, you'll notice two dead pins... which aren't in the same place.

    Commander Wolf, Mar 5, 2009
    #6
  7. jakejm79

    jakejm79 Notebook Consultant

    Reputations:
    87
    Messages:
    290
    Likes Received:
    3
    Trophy Points:
    31
    Maybe this illustrates it better, (hope you don't mind me stealing the pics).
    [​IMG]

    jakejm79, Mar 5, 2009
    #7
  8. Pikachu

    Pikachu Notebook Consultant

    Reputations:
    45
    Messages:
    258
    Likes Received:
    0
    Trophy Points:
    30
    No. Sockets are different.

    Pikachu, Mar 5, 2009
    #8
  9. Tippey764

    Tippey764 Notebook Deity

    Reputations:
    377
    Messages:
    1,423
    Likes Received:
    0
    Trophy Points:
    55

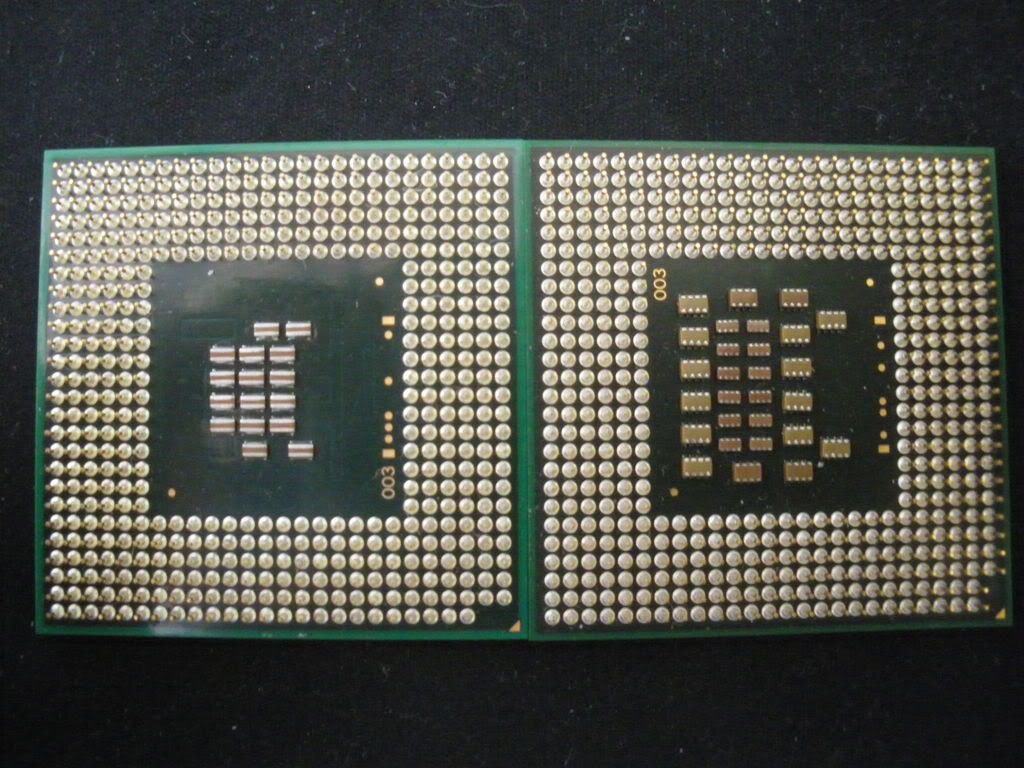

    On the left is a celeron 540 socket P on the right is a celeron 410 socket M [​IMG]

    Tippey764, Mar 5, 2009
    #9
  10. MOBARAK ZAYED

    MOBARAK ZAYED Notebook Enthusiast

    Reputations:
    0
    Messages:
    40
    Likes Received:
    0
    Trophy Points:
    15
    Thank You All For Your Concern And Your Time

    MOBARAK ZAYED, Mar 5, 2009
    #10
