    Standards for UV/OC GTX 1070

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by FredKearnes, Sep 9, 2018.

  1. FredKearnes

    FredKearnes Notebook Enthusiast

    Reputations:
    21
    Messages:
    12
    Likes Received:
    9
    Trophy Points:
    6
    I know that all GPU's are different, and some can do better than others. And while I have an understanding of Throttle Stop, I have seen UV/OC done different ways. Is there a universally accepted way to accomplish the best figures for both? I just want to gain a moderate boost in performance, with a drop in temperatures.

    Thanks

  2. bennyg

    bennyg Notebook Virtuoso

    Reputations:
    1,567
    Messages:
    2,370
    Likes Received:
    2,375
    Trophy Points:
    181

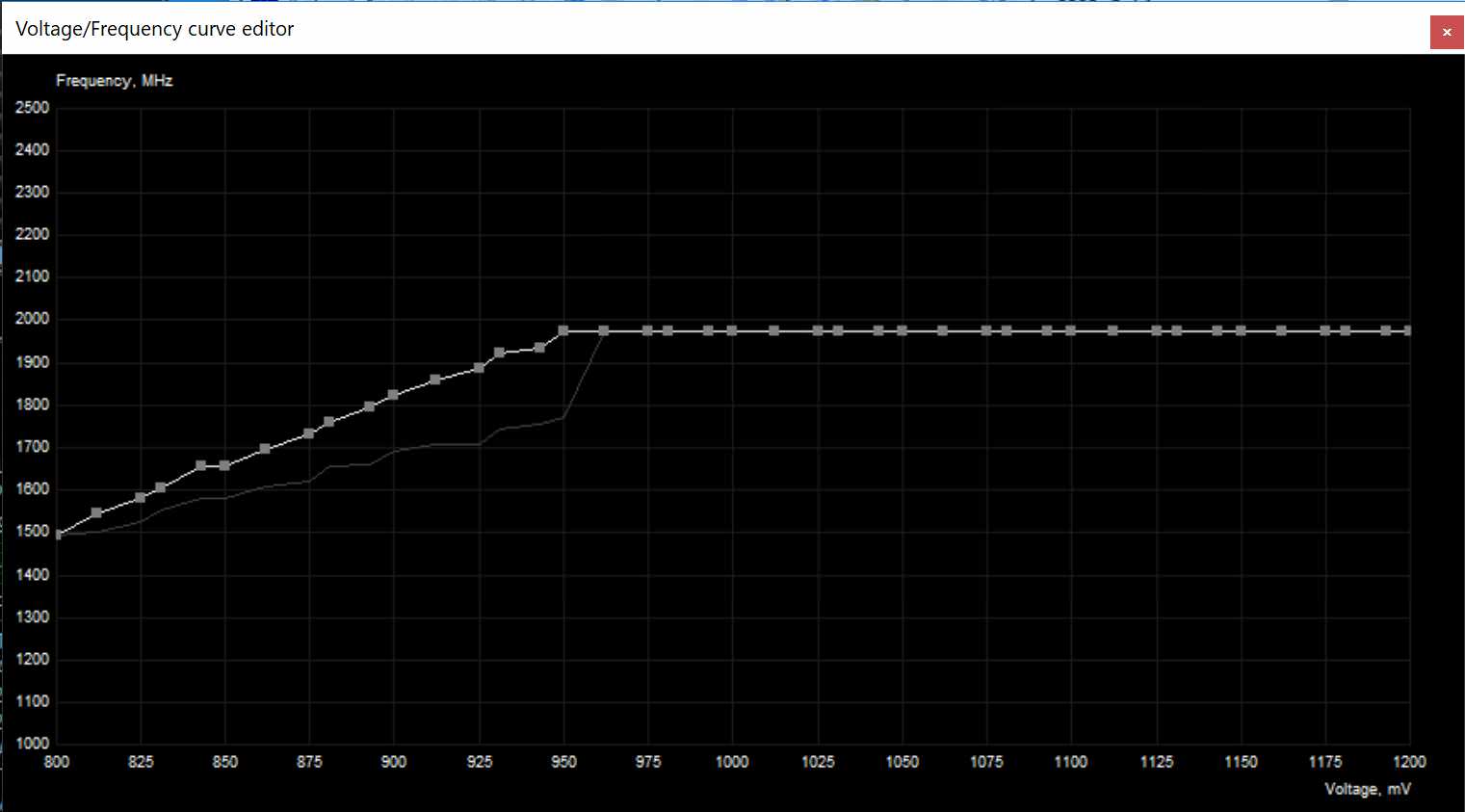

    Do something like this in afterburner (this represents a 0.95V cap with an overclock, and then use a +core offset as high as it will go while remaining stable).
    [​IMG]

    FredKearnes likes this.
  3. Mastermind5200

    Mastermind5200 Notebook Virtuoso

    Reputations:
    372
    Messages:
    2,152
    Likes Received:
    826
    Trophy Points:
    131
    How do you get there? I've always wondered...

  4. bennyg

    bennyg Notebook Virtuoso

    Reputations:
    1,567
    Messages:
    2,370
    Likes Received:
    2,375
    Trophy Points:
    181
    [​IMG]

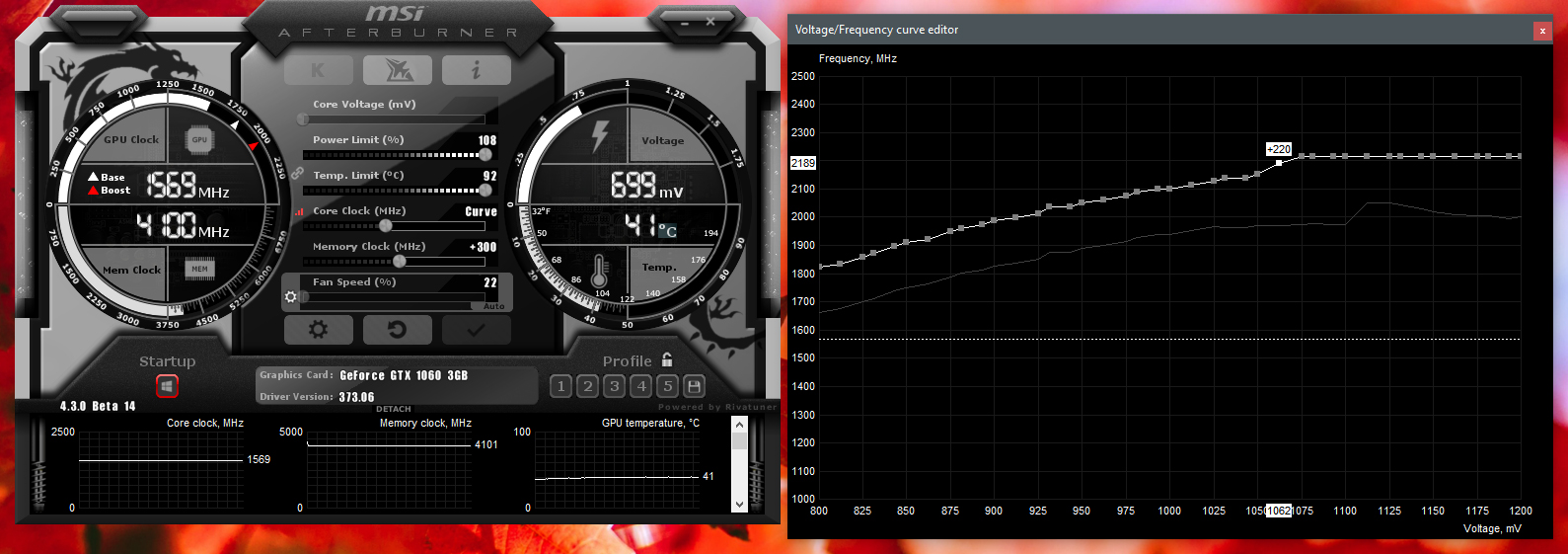

    That's the skin I use, it's the little red 3 bar icon near the negative end of the core offset clock slider

    The GUI is really, really clunky and likes to change itself from where you set it, so always check your curve is still perfectly flat after you click apply. Do the voltage monitoring unlock, so you can see the card is indeed locked to your max voltage (or use GPUz or Hwinfo etc)

    Hover over that same icon to see the tooltip for keyboard shortcuts, it's the only place you'll find that info

    FredKearnes and Mastermind5200 like this.
  5. yrekabakery

    yrekabakery Notebook Virtuoso

    Reputations:
    1,470
    Messages:
    3,438
    Likes Received:
    3,688
    Trophy Points:
    331
    You can also press Ctrl+F.

    Mastermind5200 likes this.
