    Talking about TDP (Thermal Design Power) of the GPUs

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by sicily428, Aug 24, 2017.

  1. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    Hi! I think we should make a guide about TDP (Thermal Design Power) of the GPUs. :)

    I'm watching so many people asking for thin and light laptops with a powerfull hardware (gtx1070/gtx1080) but they don't know consequences for that. A powerful gpu needs a good cooling system and there isn't enough space for it in a thin laptop. Thermal issues are really important for a thin laptop with a powerful hardware and thermal throttling can easily increase with a drop in performances.

    What are values for each Nvidia / Amd gpu? where can I find right values for that?

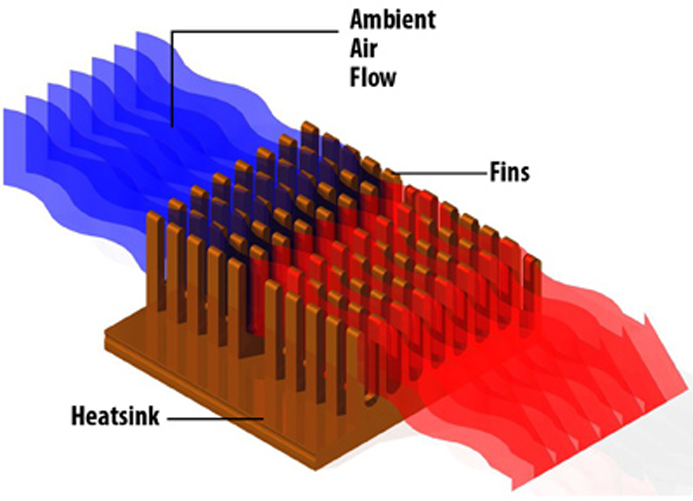

    heatsink, heatpipes and fan.

    [​IMG]



    [​IMG]

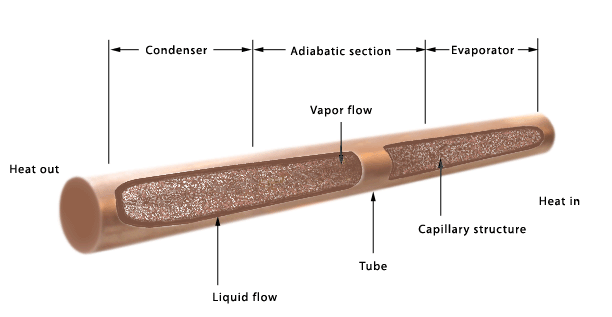

    How heat pipes work

    [​IMG]

    [​IMG]

    Last edited: Jan 5, 2018
    sicily428, Aug 24, 2017
    #1
  2. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    Ask someone to dump their vbios then view it using @Coolane tool and you'll see the exact TDP value.


    Most brands use 115w 1070/150w 1080 for standard. Some use higher like MSi GT series, Clevo, etc...

    Only cowards use Max-Q

    Mobius 1, Aug 24, 2017
    #2
    ThePerfectStorm, ChanceJackson, poprostujakub and 2 others like this.
  3. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    these should be standard values of TDP:



    Nvidia

    gtx1050 ------>75W

    https://www.techpowerup.com/gpudb/2917/geforce-gtx-1050-mobile





    gtx1050ti -----> 75W

    https://www.techpowerup.com/gpudb/2912/geforce-gtx-1050-ti-mobile





    gtx1060 ------> 80W/85W

    https://www.techpowerup.com/gpudb/2868/geforce-gtx-1060-mobile





    gtx1070 ------> 115W/120W

    https://www.techpowerup.com/gpudb/2869/geforce-gtx-1070-mobile





    gtx1080 ------> 150W

    https://www.techpowerup.com/gpudb/2870/geforce-gtx-1080-mobile



    AMD

    RX580 ------>????

    sicily428, Aug 24, 2017
    #3
    Vasudev likes this.
  4. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,706
    Messages:
    29,842
    Likes Received:
    59,621
    Trophy Points:
    931
    Now,its Up to the Vendors put max TGP/TDP. At least for Pascal.

    Papusan, Aug 25, 2017
    #4
    Vasudev and sicily428 like this.
  5. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    thanks! :)

    do you confirm these values? 85W TPD for a gtx1070?

    Last edited by a moderator: Sep 9, 2017
    sicily428, Aug 25, 2017
    #5
    Vasudev likes this.
  6. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    for core, not really sure.


    @D2 Ultima

    Mobius 1, Aug 25, 2017
    #6
    sicily428 and Vasudev like this.
  7. D2 Ultima

    D2 Ultima Livestreaming Master

    Reputations:
    4,335
    Messages:
    11,803
    Likes Received:
    9,751
    Trophy Points:
    931
    Prema knows a lot more than I do about these things. I would take his word if he gives it.

    Sent from my OnePlus 1 using a coconut

    D2 Ultima, Aug 25, 2017
    #7
    sicily428, Vasudev and Papusan like this.
  8. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    Last edited by a moderator: Sep 9, 2017
    sicily428, Aug 25, 2017
    #8
  9. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,706
    Messages:
    29,842
    Likes Received:
    59,621
    Trophy Points:
    931
    Papusan, Aug 26, 2017
    #9
    sicily428 likes this.
  10. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    thanks :)

    Source: Prema
    http://forum.notebookreview.com/thr...00m-series-gpus.763032/page-580#post-10307709

    http://forum.notebookreview.com/thr...00m-series-gpus.763032/page-142#post-10214164

    http://forum.notebookreview.com/threads/power-draw-via-mxm-interface.798389/#post-10391387

    gtx960m------------->50W TDP



    gtx965m------------->50W/56W TDP



    gtx970m------------->62W TDP



    gtx980m------------->85W TDP




    gtx1060 ------> 65W TDP




    gtx1070 ------> 85W TDP




    gtx1080 ------> 125+W TDP

    Opinion: It's time we talked about throttling in reviews
    https://www.notebookcheck.net/Opinion-It-s-time-we-talked-about-throttling-in-reviews.234232.0.html

    Opinion: Nvidia's Max-Q — Maximum efficiency, minimum performance?
    https://www.notebookcheck.net/Opini...-efficiency-minimum-performance.232038.0.html




    Last edited by a moderator: Sep 9, 2017
    sicily428, Aug 26, 2017
    #10
    ChanceJackson and tilleroftheearth like this.
  11. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231

    sicily428, Oct 15, 2017
    #11
  12. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    Last edited: Nov 27, 2017
    sicily428, Nov 27, 2017
    #12
  13. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Nov 27, 2017
    #13
  14. alexhawker

    alexhawker Spent Gladiator

    Reputations:
    500
    Messages:
    2,540
    Likes Received:
    792
    Trophy Points:
    131
    alexhawker, Nov 27, 2017
    #14
    Papusan likes this.
  15. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    Nvidia 1060 Max-Q vs 1060 - Laptop Graphics Comparison Benchmarks

    sicily428, Jan 3, 2018
    #15
  16. Deks

    Deks Notebook Prophet

    Reputations:
    1,272
    Messages:
    5,201
    Likes Received:
    2,073
    Trophy Points:
    331
    RX 580 (mobile) in GL702ZC has a TDP of 65W. The GPU is however limited to 68W in total.
    RX 580 (mobile) in HP Omen has an unkown TDP as of yet. But the core itself drew about 120W... which I think makes it closer to the desktop 480 in total power draw

    Deks, Jan 4, 2018
