The "Undervolting" Guide

No, but you would not get the 12X performance.
that would be undervolting + underclocking



Yes it does... no way around it so far. It will just downclock by like 100mhz

It will downclock and reduce the performance..

multiplier x FSB = clockspeed

eg:
12 x 200mhz = 2.4ghz
11 x 200mhz = 2.2ghz



AMD UnderVolting thread has been started, works for all new Turions
AMD UnderVolting thread



A question. In the guide it does not say anything about the enhanced power states (the two C4E states). By default they are ticked, but in the guide they are not ticked (I have attached an image showing this). Should these be ticked or not?



Mine are selected and I have had no problems.

These will be the lowest power states and the new CPUs should support them best.

John



Hi.

yes 8.5 is the max, but RMCLOCK only supports 8.0 so you only get 2.1ghz instead of 2.24.

Just hope they release a new version soon!

Regards

John.



Thank you very much for this guide, my results:
BeforeT7100 @ 1.8ghz
51-56C with 1.2875-1.3875
AfterT7100 @ 1.8ghz
38-43C with 1.100-1.150



i have to do the tests on battery.. or i can plug in the AC?



How do I get RMclock to start up with windows without asking every time? (vista)



http://forum.notebookreview.com/showthread.php?p=3915385#post3915385

Can someone help me please? Please click the link above. Still no luck with underclocking my processor. The lowest I can go is only 1.00V? Thanks.



ALso i have runned it already 1 hour and 10 minutes...

Req.vcore is still 1.2500V ... It wont go down.. how many hours/minutes i have to do it more?



i tried to undervolt..
strange thing is that the undervolt will not be recognised until i manually go to the vista current power plan and change the scheme from Balanced to RMClock Power Management

this is irritating since whenever vista boot up, it will by default select Balanced and not RMClock, and the settings saved for RMClock will be deleted when i reboot computer...

Is there anyway to solve it?



Are you sure you selected Power on Demand profile in RMClock?



click on settings, look at startup options.

Regards

John.



I have ticked "Start minimized to system Tray" and "Run at Windows Startup" and is "via startup registry key". Should I set it to "via startup folder"?
Or is it in vista that I should do something?



So I have another problem. When running RMclock (performance on demand) after doing the undervolting exactly as in the guide (which works fine in the stress tests) then sometimes the VID jumps up into voltages that are in the old ranges and way higher than my 9x (highest) multiplier voltage. I attached a couple of images. Notice that current in cpu info says 1.1375 even though my max is 1.0375. Why is that? When I did stress test it stayed at 1.0375, but when running the computer normally then it jumps up and down and sometimes even to 1.20V. I do not understand this



1.20V may be IDA (Intel Dynamic Acceleration - one core can overclock at higher voltage when the other is idle) briefly in action.

I always look at the trend on the monitoring page and don't get stuck in the detail. RMClock doesn't officially support the hardware - V2.35 was the final release with Santa Rosa support debugged.

John



I'm adding 2GB of RAM memory soon, will this change anything? (Yes, I know my sig says 4GB but one was faulty and has been removed)



RAM should have no effect over it.



Hey just a quick Q. I undervolted my 6864fx and when it idles around 30C the fan is really loud.. sometimes it will quiet down like its slowing down for a few seconds and then start back up again. Is there a way to make the fan sound quieter? ive already cleaned out the fans for dust etc. THANKS



will half multi's ever be supported? kinda feel like my t9300 was a bad choice now.

only just getting to grips with this, but so far it looks like 0.9500V is stable across the board on mine, but can't test the 12.5 multi to see if 2.5ghz is stable.



i run my T9300 undervolted and it still maintains its 12.5x multi. there is a workaround in RMclock that you have to use. on the advanced cpu settings page, uncheck the box that says 'Engage Intel Dynamic Acceleration' and apply. then go to the profile pages. make sure that the box that says IDA is checked. it will force RMclock to run the T9300 at its 12.5x multi.

only thing i've noticed with this workaround, is that every time you restart, you have to uncheck the 'Engage IDA' box and re-apply.



For a permanent fix, try find the registry value for this



when i do this tweak, the voltage settings disappear on the "performance on demand" page, only "use P=state transitions remain .

So what does this do? because once i did this i can't complete Orthos for longer than a minute and i crash, but without this it runs perfectly fine.

*EDIT* actually it doesn't crash, it just slows done to a crawl if i then visit the "performance on demand" page while in orthos :S

Anyhow, aside from this, how exactly should i check to see how fast the cpu is running (essentially to see 2.5ghx and the 12.5 multi actually working). I'm looking in cpu-z and it's still showing 2.4ghz



Hm, i am very glad i finally read this thread

T5600 @ 1.25v with 83-85C load. Going down to 1.063v (lowest possible 0.950v set in RMclock), same voltage as the 6x multi..

Anyways, full load is only ~66C now ****ing great! And my powerconsumption (meassured with a nice powermeter), 68W fullload to 57W fulload.

So, i decreased the temps by 20Celsius, decreased powerconsumption with 11W and probably got a much longer batterytime.

I can't understand how i missed this thread.



What CPU-Z shows is your real speed. So you haven't got it to work correctly!



rightmark is acting real buggy for me all of a sudden. It keeps wanting to crash

*EDIT* it's now working. Seems my custom DPI in Vista made one of the pages crash for me in RM.

I did get it working in the end by luck though, but at 2.5ghz i can't keep 0.9500V



I will definitely be trying this on my HDX 16t... thanks!



Hi.

How do you RESET to total default settings in RMCLOCK , so i can start from fresh.

thanks

John.



There should be an RMClockWipeout.reg file (in the installed directory), run that.



The RMClockWipeout.reg should do it , as notyou told you...
There are also defaults, in case you`re doing it step by step...



I apologize if this has been asked before, I tried a search and came up with nothing.
In 64 Bit versions of both windows vista and windows server 2008, I am unable to get Enhanced C4, and Enhanced C3 in the advanced tabs to "stick".
I check them, but if i press refresh at the bottom of that page, or restart RMCLOCK, the will be unchecked. Both options work in 32 bit Vista Home Premium.

has anyone else running a 64bit os encountered this issue?

My CPU is Intel T9300.

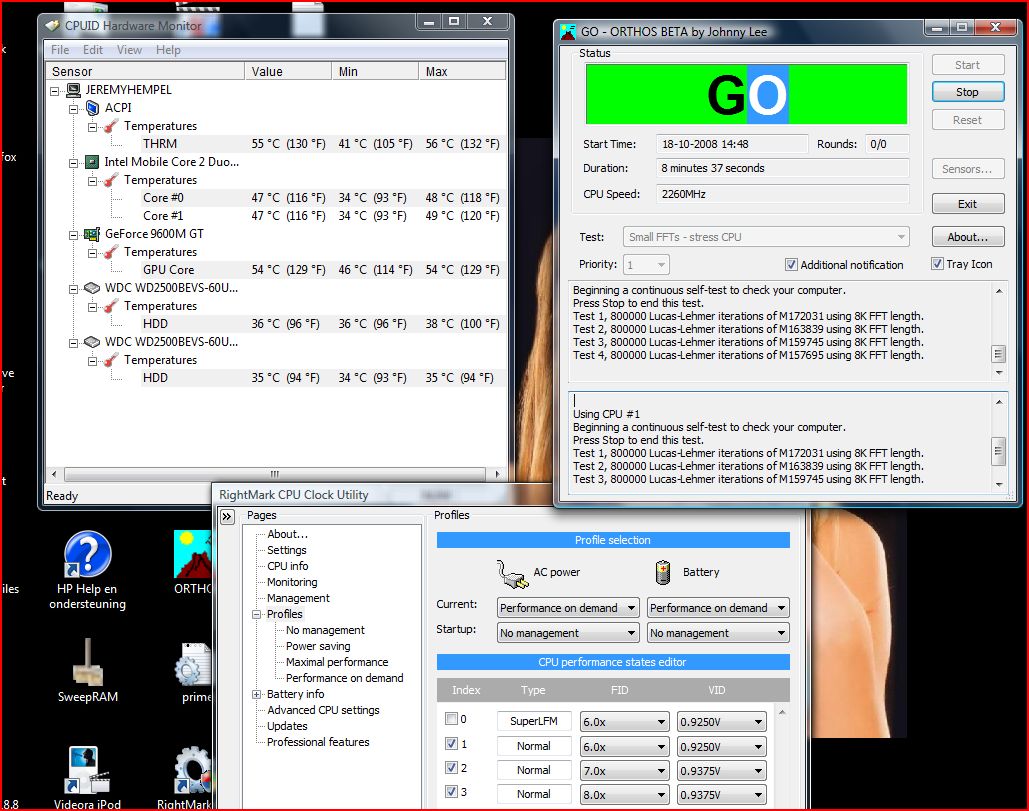

there are my results.
lowerd my VID from 1.0250 to 0.9375

and it's stable

Is this a good result or not??

edit: got it stable for 2:30 hours on 0.9735 and no BSOD nothing going 1 step lower having all voltage's on 0.9250...

What does this affect in performance??



As long as it`s stable, no , it won`t.
I would tick also the SuperLFM, and chance my lowest multiplier to 6x. That would make the CPU run at 600 Mhz on idle. Better battery life, less heat etc.



I have no idea how a processor works so I'm just wondering, if you made your processor idle at a lower speed than normal, is there a chance that it would shorten its lifespan, say from constant accelerating and decelerating?



no it will only lengthen its life. CPU at cooler temps = longer CPU lifespan



bump, but anyone?



well its stable, but IMO it does affect the speed of the procesor.. firefox gets a apphang like every 10 minutes..



this is good information, thanks



Well, it does affect the IDLE speed of the proc, but not the active speed. If you are having issues with apps hanging, then it may be a voltage stability issue. I actually use SuperLFM to max (10x) with ODCM throttling (for battery only) and have reduced my power consumption by about 15% (from 1.175v to 1.025v) and it is stable at all P-states (lowest is 0.950v)



So who is going to be the first to post numbers on undervolting the new aluminum macbooks?

I don't know if coolbook will work with the new chipset but RmClock might work in Windows and bootcamp.



Answer is simple,

Theres different types of C3,4 states. Your CPU or revision doesnt support those enhanced sleep states thats why the settings wont stick.

RMclock automatically detects and enables these sleep states.



Just finished undervolting my Sony FW-290 and I must say so far the results have been great. When i first ran orthos i got a high temp of 57 degrees celsius, which is not all that hot. After undervolting i got .9000v stable on a 3 hour run on orthos with a top heat output of 45 degrees celsius. If it was possible I think this chip could possibly go lower but im happy with my current results. its idling 36-37 degrees celsius and with super LFM im at 850 mhz lol. This is defiantly a must do for all notebook owners.



cant post my screenie until i have 15 or more post under my belt.



Yes im afraid not, we did it to stop spammers from posting obscene photos.

What CPU?



its the P8400. The 36-37 degrees Celsius temp i got earlier was taken in a room full of computers and students so it was quite warm. Took this screenshot when i got home which was much cooler.

http://img528.imageshack.us/img528/828/undervoltscreenshot29dekn4.jpg



Is there any other programs besides rmclock for vista x64 for educing cpu voltage?



CrystalCPUID (Works for Some, like me)



I see that some people are geting lower voltage options in the profile tab. is there anyway to go lower than the .9000v lowest setting ive got?



Go into Regedit > HKEY_CURRENT_USER > Software > RightMark > RMClock > Look for "UnlockVid", if not there, create a 32-bit DWORD value with that name and assign the valuedata as 1. [0x00000001 (1)]
