    The Big Swap Help!!! HiRES Pics

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by thatA52FX3, Feb 13, 2012.

  1. thatA52FX3

    thatA52FX3 Notebook Enthusiast

    Reputations:
    0
    Messages:
    32
    Likes Received:
    0
    Trophy Points:
    15
    Ok as you might have read, I wanted to do a (1920x1080p) LCD swap in my Asus A52f-x3 laptop with Intel HD graphics. I ordered a AU Optronics B156HW01 V.4 LCD and hooked it up to my STOCK lvds cable.

    Here are the results.

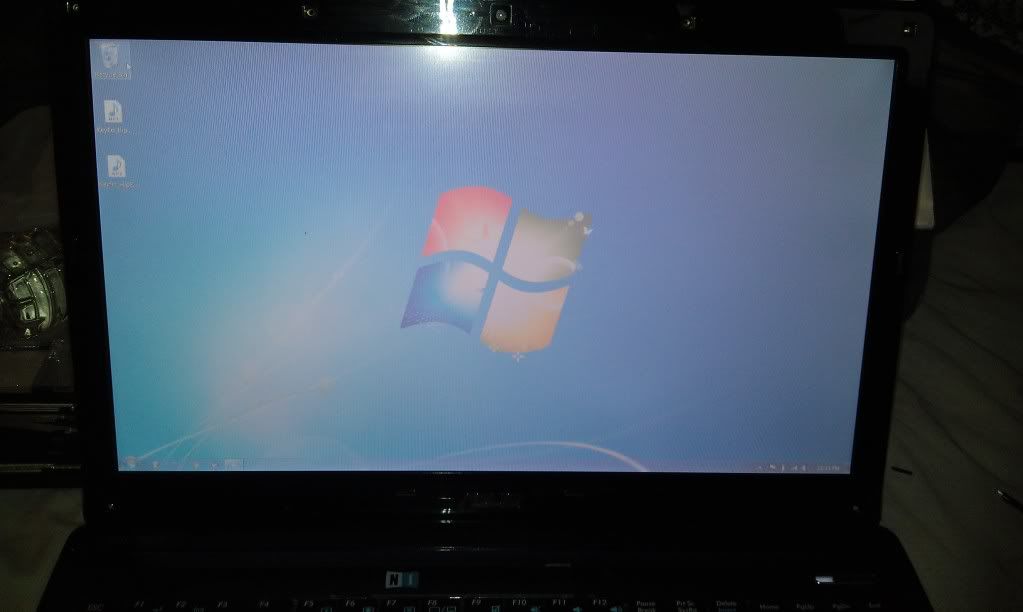

    Normal Viewing Angle


    View Angle tilted towards me

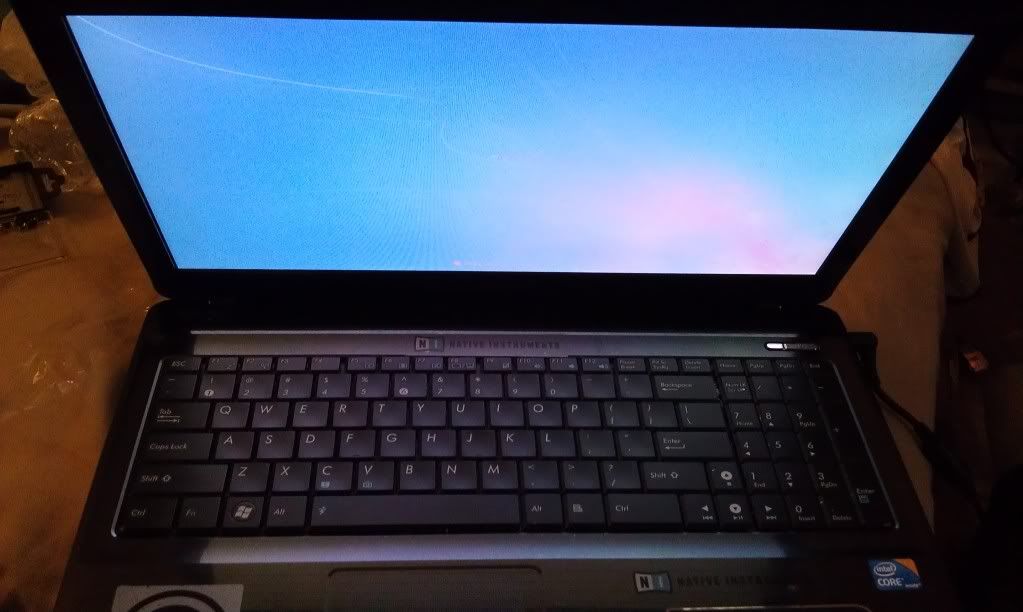

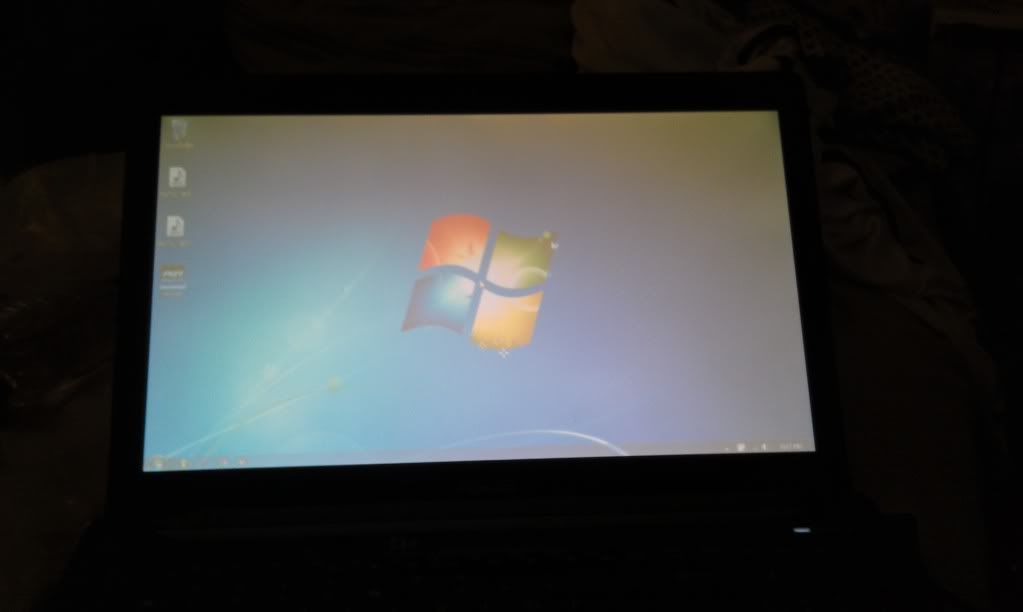

    View Angle tilted away from me



    NOTICE THE VERTICAL LINES?! AND COLORS MISSING?!
    LETS MOVE ON!

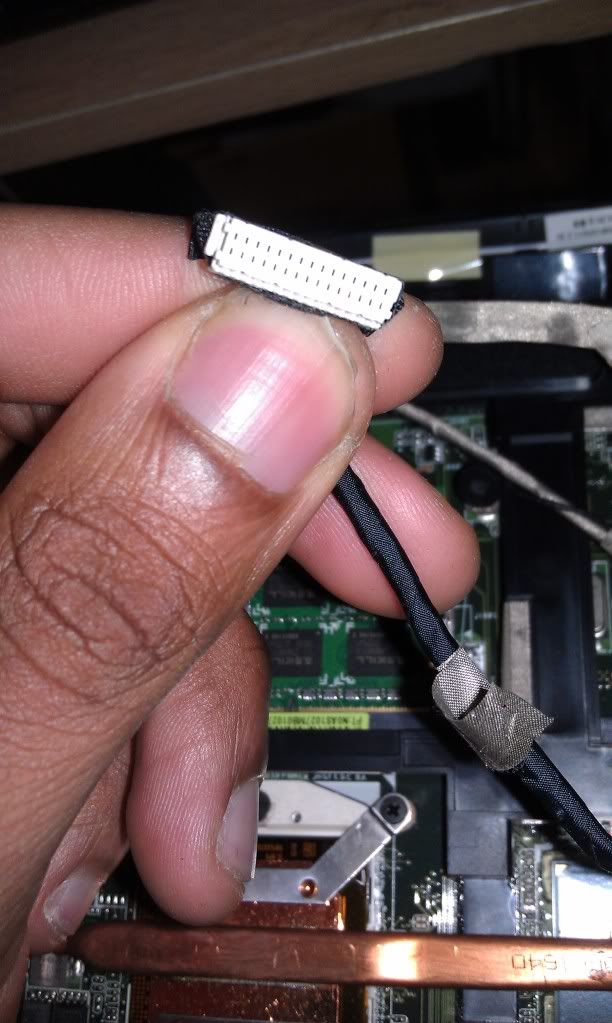

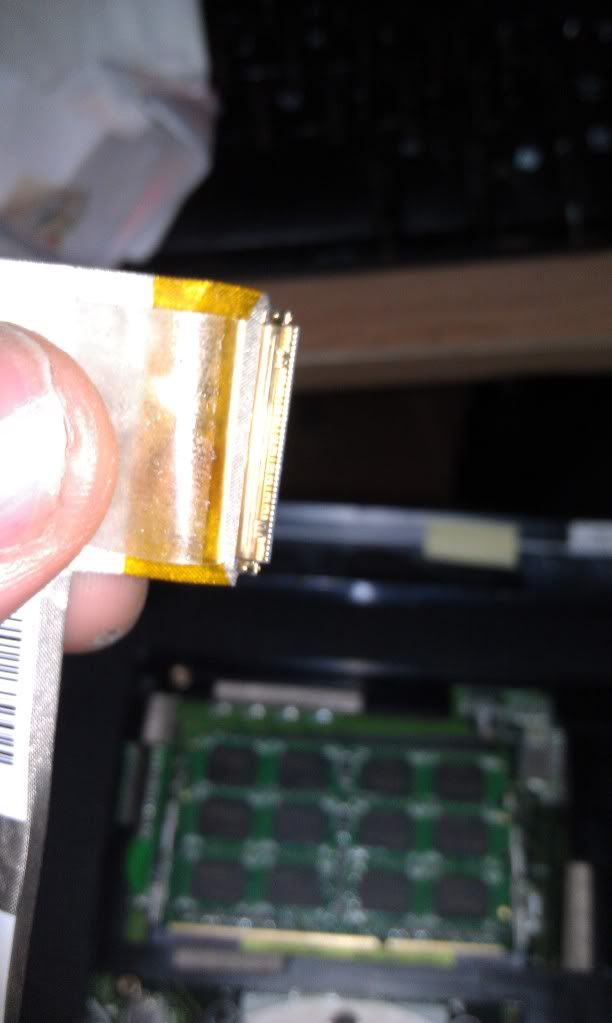

    After chatting with some forum members, mainly LSB, I came to the conclusion that I needed a FHD LVDS cable. Here is where I am confused, The B156HW01 V.4 has a 40 pin connection which fits fine on the LCD, but my Stock LDVS has a 30 pin female insert that goes to my MOBO (which is a k52 rev 2.0)...

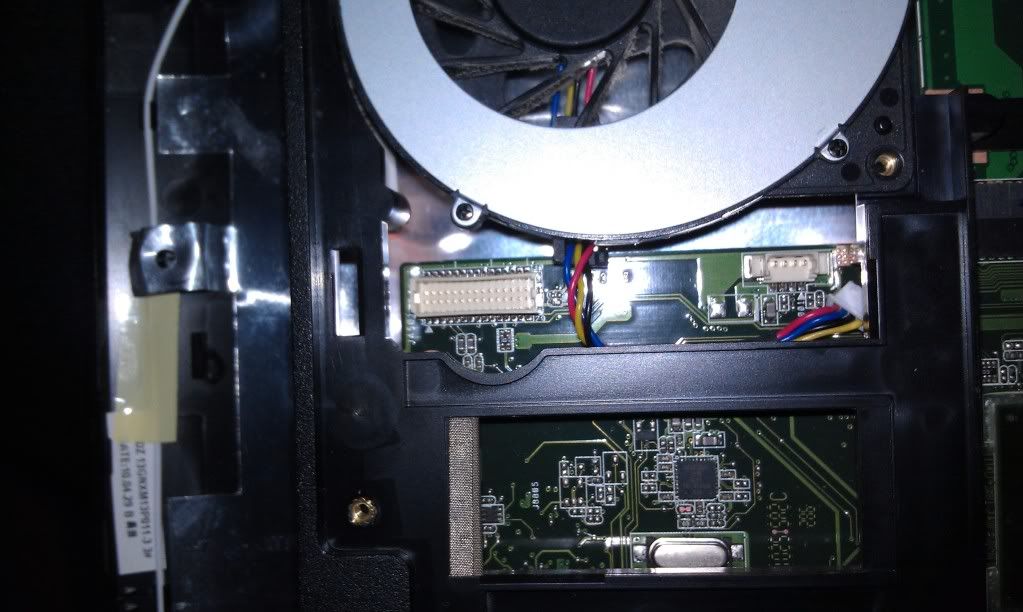

    After pondering, I asked myself, why not get a Asus FHD LDVS from another laptop, in which I did. I ordered the Asus N55sw LDVS CMOS MIC Ribbon.

    That is all for now, if any of you have any input please help me out. I will rep everyone who contributes.

    After all this I will get to my g60 backlit keyboard mod, piece of cake.

    thatA52FX3, Feb 13, 2012
    #1
  2. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    If your mobo only has 30 pins its likely it wont work.

    Meaker@Sager, Feb 13, 2012
    #2
  3. thatA52FX3

    thatA52FX3 Notebook Enthusiast

    Reputations:
    0
    Messages:
    32
    Likes Received:
    0
    Trophy Points:
    15
    so there's no way I can get a better LCD screen? Not even a 1600x900? My screen is wack!

    Are there any 1920x1080px WXGA HD 15.6" screens out there instead of FHD?


    So it looks liek this swap isnt going to really work out, Atleast I gave it a shot. I am returning the screen and I cancled my order with AsusParts.eu. Looks like Im stuck with this 1366x768 :/
    My MOBO doesnt support FHD or dual channel LVDS so I am out of luck. I will probably look into buying a new Asus laptop, maybe the g60vx or something.

    Thankyou guys for all your help

    thatA52FX3, Feb 13, 2012
    #3
  4. tijo

    tijo Sacred Blame

    Reputations:
    7,588
    Messages:
    10,023
    Likes Received:
    1,077
    Trophy Points:
    581
    Well, you could get a decent 1366x768 panel, some probably exist. It won't do anything about the resolution, but most 1366x768 panels are junk to start with so that might be your problem.

    tijo, Feb 13, 2012
    #4
  5. thatA52FX3

    thatA52FX3 Notebook Enthusiast

    Reputations:
    0
    Messages:
    32
    Likes Received:
    0
    Trophy Points:
    15
    the g60vx keyboard is installed, without back lit keys. the ribbon cable is ultra small, smh, my planned mods are failing. I do liek the keyabord better than the stock a52f keyboard
