    There is no 1920x1080 panel that use LVDS 1 channel - 6bit right?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by tminer1, Jan 28, 2018.

  1. tminer1

    tminer1 Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    My laptop screen was broken so i bought this panel ( http://www.panelook.com/B156HW03 V0_AUO_15.6_LCM_overview_13461.html) to replace. However when i turn it on, the panel just gradually from the edge becomes fully white ands display nothing but white. Is it safe to assume it is the panel fault since my LVDS cable and laptop originally support a FHD screen, so they most support any other LVSD 2channel 6bit 40 pin.

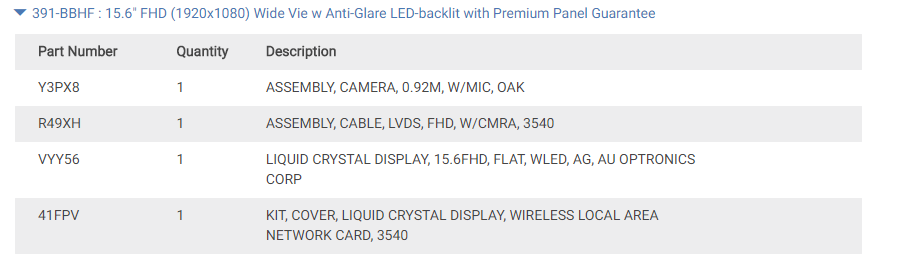

    My laptop original spec of the display
    [​IMG]

    tminer1, Jan 28, 2018
    #1
