    Thermal adhesive alternative for heatsinks

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by luisxd, Apr 5, 2020.

  1. luisxd

    luisxd Notebook Consultant

    Reputations:
    32
    Messages:
    155
    Likes Received:
    50
    Trophy Points:
    41

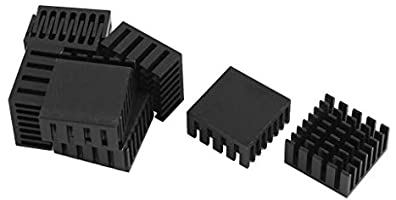

    I have a CLEVO P870TM1-G and have been thinking on sticking some "mini" heat sinks to the preinstalled heat sink to improve temperatures. I already have the mini heat sinks but I don't have any thermal adhesive left to install them so I was wondering if there's an alternative to this. I was thinking on just using thermal paste or maybe double-sided tape, but I'm not really sure if those are good options. I read somewhere that I could use thermal epoxy (AS has one) but I don't want them to be permanently installed.

    [​IMG]

    luisxd, Apr 5, 2020
    #1
  2. luisxd

    luisxd Notebook Consultant

    Reputations:
    32
    Messages:
    155
    Likes Received:
    50
    Trophy Points:
    41

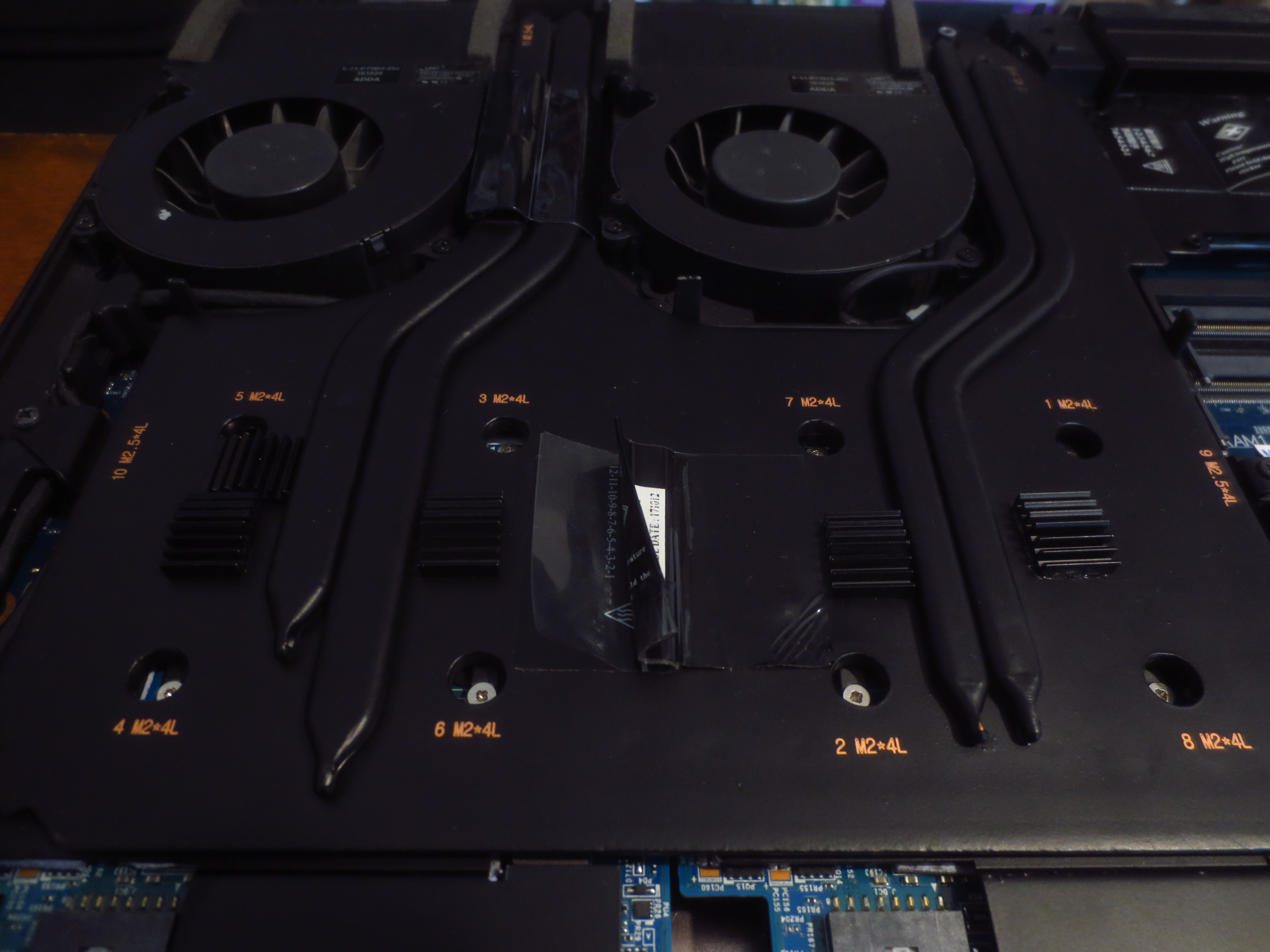

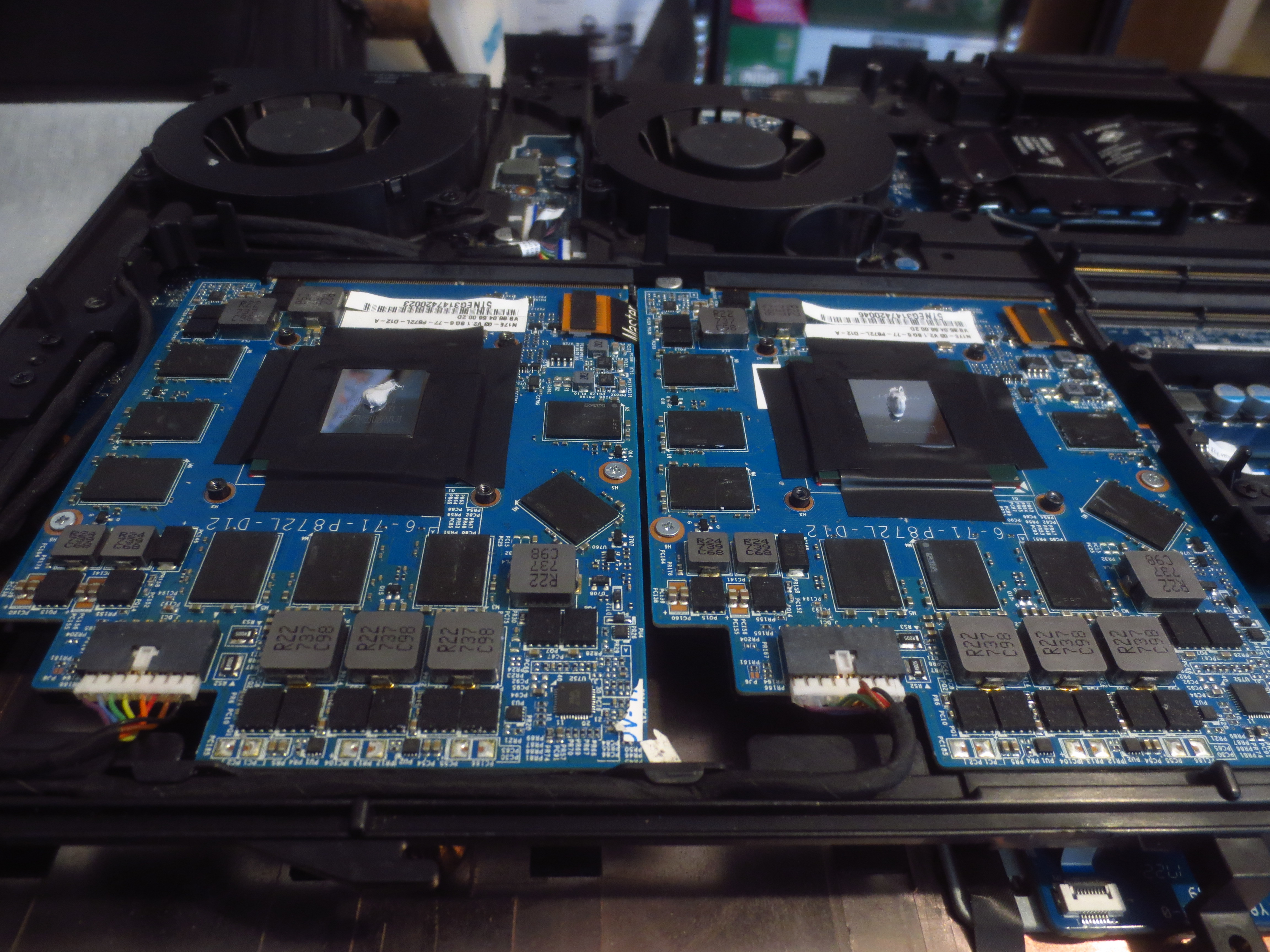

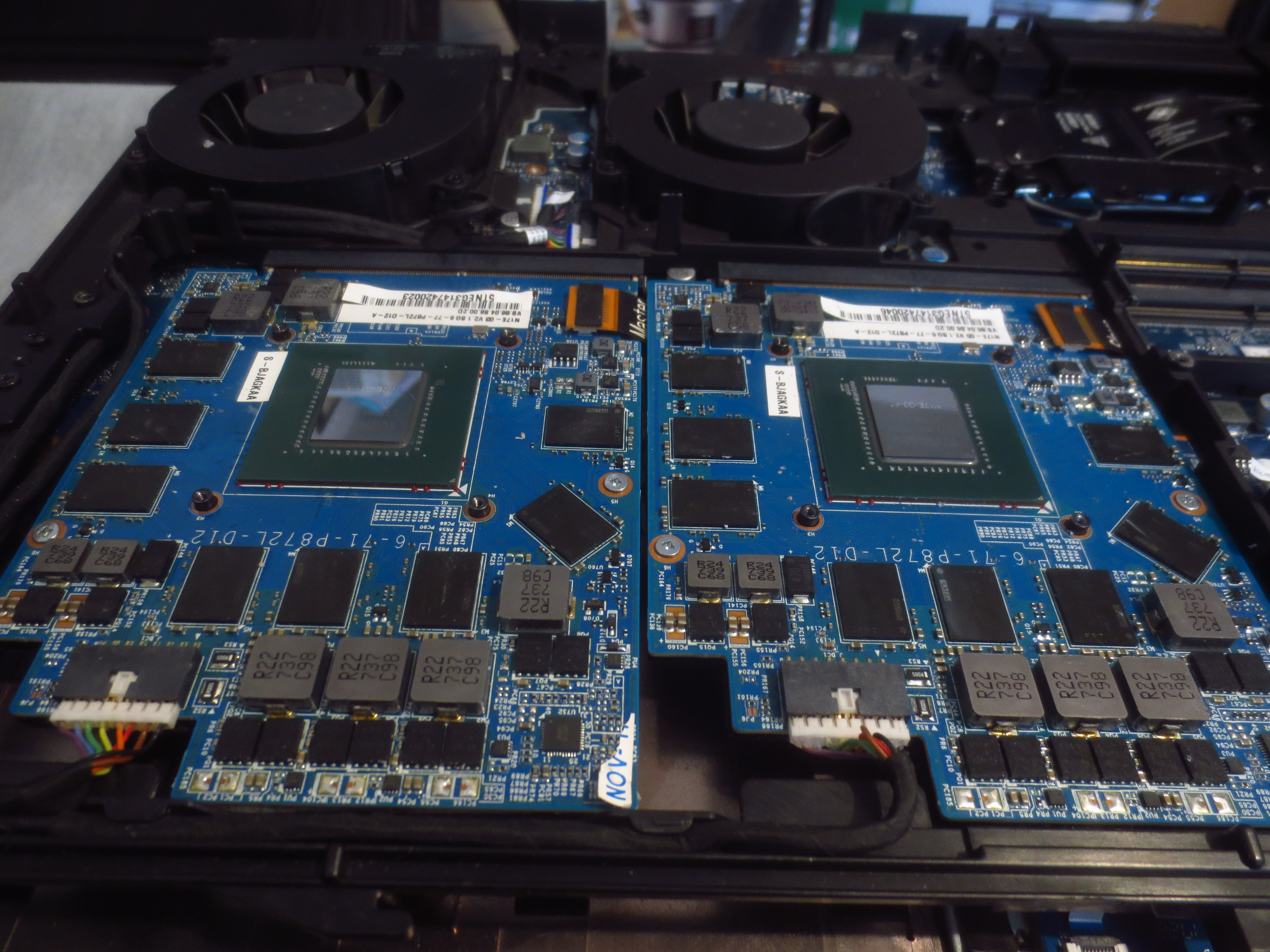

    Found some M3 double sided thermal tape so I used that. Had some trouble with the back cover height so I couldn't use all of the heat sinks, only the small ones which I only had 5 lol, I guess some is better than nothing. Also changed the thermal paste cause it was a mess, it was spilled all over the die. So far I've noticed at least 5 C less in normal use (youtube, websites, etc). Took some pictures of the process.

    [​IMG]

    [​IMG]
    [​IMG]

    luisxd, Apr 5, 2020
    #2
    Dr. AMK likes this.
  3. Dr. AMK

    Dr. AMK Living with Hope

    Reputations:
    3,961
    Messages:
    2,182
    Likes Received:
    4,654
    Trophy Points:
    281
    Dr. AMK, Apr 5, 2020
    #3
    luisxd likes this.
  4. luisxd

    luisxd Notebook Consultant

    Reputations:
    32
    Messages:
    155
    Likes Received:
    50
    Trophy Points:
    41
    There was already some type of tape installed but the thermal paste got under it and did a mess, I replaced it mainly to keep the substrate clean cause it was kinda annoying to clean lol

    What's you configuration for your 1080 SLI?, I played a little with the fan curve on MSI AB but the improvement was very little. There are some titles I can't play because the GPU gets too hot even with Vsync enabled.

    Thanks!

    luisxd, Apr 5, 2020
    #4
    Dr. AMK likes this.
  5. Dr. AMK

    Dr. AMK Living with Hope

    Reputations:
    3,961
    Messages:
    2,182
    Likes Received:
    4,654
    Trophy Points:
    281
    Just go with Mr. Fox guide and you will feel the difference. Undervolte to 0.9 and will play any title without any issues.

    Dr. AMK, Apr 5, 2020
    #5
    Papusan and luisxd like this.
  6. Dr. AMK

    Dr. AMK Living with Hope

    Reputations:
    3,961
    Messages:
    2,182
    Likes Received:
    4,654
    Trophy Points:
    281
    Flash the attached bios for both cards.


    Attached Files:

    Dr. AMK, Apr 5, 2020
    #6
  7. luisxd

    luisxd Notebook Consultant

    Reputations:
    32
    Messages:
    155
    Likes Received:
    50
    Trophy Points:
    41
    How do I do that? Is it safe? Does it work with any GTX 1080?

    luisxd, Apr 5, 2020
    #7
  8. luisxd

    luisxd Notebook Consultant

    Reputations:
    32
    Messages:
    155
    Likes Received:
    50
    Trophy Points:
    41
    luisxd, Apr 5, 2020
    #8
  9. Dr. AMK

    Dr. AMK Living with Hope

    Reputations:
    3,961
    Messages:
    2,182
    Likes Received:
    4,654
    Trophy Points:
    281

    Dr. AMK, Apr 6, 2020
    #9
    luisxd likes this.
  10. luisxd

    luisxd Notebook Consultant

    Reputations:
    32
    Messages:
    155
    Likes Received:
    50
    Trophy Points:
    41
    I used that method a few weeks ago but it didn't work well, but Mr. Fox video did help a lot, specially to unlock voltage control, I've seen at least 10 C less on some stuff, which is great.

    Thanks.

    luisxd, Apr 6, 2020
    #10
    Papusan and Dr. AMK like this.
